[ MC500 v.1.0 ] 2012 年 7 月 27 日 1 ExtremTrac Waterproof GPS Tracker User Manual Model: MC500（V1.0） 2012-09-20 [ MC500 v.1.0 ] 2012 年 7 月 27 日 2  1. Function The GPS / GPRS / SMS vehicle tracking positioning system, built ‐ in GPS positioning module + GPRS communication module with the network map platform, real ‐ time tracking of vehicle location information and vehicle Like real ‐ time monitoring and remote control of the vehicle, such as off the oil recovery oil passage. Product specific features: 1. Fixed time report 2. Support AGPS assisted positioning 3. Real time report 4. Electronic fence (set on the host the remote instruction set) 5. SOS emergency alarm 6. Over speed alarm 7. Vibration sensor G ‐ SENSOR mobile wake ‐ up alarm 8. Low power alarm 9. Power ‐ saving mode (built ‐ in G ‐ SENSOR, if still detected automatically enters sleep mode, move immediately wake ‐ up) 10. Quad ‐ band 850, 900, 1800, 1900 11. FLASH blind spot to make a report after the 2000 points (when there is no GPRS signal) 12. USB / remote update 13. Standby current does not exceed 15mAh 14. Mileage reports / mileage settings 15. Cut off the oil / restore oil line [ MC500 v.1.0 ] 2012 年 7 月 27 日 3  2 . Wiring Installation ： 【 Wiring Installation 】 ： 1). Default factory settings without a headset and speakers, does not provide voice capabilities. 2). Install the SIM card, remove the four bottom cover screws, install the SIM card, turn on the power switch, and then loaded on the screws. + ‐ FUEL CUT SOS+ SOS ‐ ACC OPTION MIC+ MIC ‐ RED BLACK GREEN ORANGE PURPLE YELLOW BROWN WHITE BLUE GREY [ MC500 v.1.0 ] 2012 年 7 月 27 日 4 General installation, just connect the positive and negative electrical and ACC wire: MAIN POWER 4). Ignition Wire YELLOW Ignition detection cable : Connect the vehicle ACC ignition signal. Can detect the vehicle's ignition On/Off status 5). Car lock control signal lines: GREEN In order to ensure the safety of the vehicle, the relay is normally closed relay. 6). SOS signal button Emergency situations, the user can direct alarm to the alarm center number. [ MC500 v.1.0 ] 2012 年 7 月 27 日 5  3 SMS Configuration: Put the MC500 device outside in open area, or near the window, call the SIM card number of the tracker, if it rings, then you can start to configure the unit. *GP001,0000, 33333333333 Set authorize number MC500 SIM No.: 99999999999 Mobile number: 33333333333 *GP004,0000,99999999999 Set ID UseMC500 number as ID Set IP APN PASSWORD USER IP PORT Time Interval [ MC500 v.1.0 ] 2012 年 7 月 27 日 6 Web Configuration:  Log in: www.webgpsonline.net Username: MC500 Password: 123456  Please find one un ‐ registered unit for your car, modify 3 items of parameters, then save setting. You only need to modify 3 items parameter: 1. Plate Number: Change it to your car Plate No. 2. Terminal ID:99999999999 User the number of tracker SIM card ( better have 11 digit, if no 11 digit, then add 0 ) 3. Vehicle ID: if you have many cars, you can use this to identify each car Click Click [ MC500 v.1.0 ] 2012 年 7 月 27 日 7 Online Tracking & Control Go to Fleet Management ‐‐‐‐ >Live Tracking, start the tracking. Go to Parameters ‐‐‐ > Device Parameters to do other settings  4. Mobile Phone Control Cut fuel ： *GP011,0000 Recover fuel: *GP013,0000 [ MC500 v.1.0 ] 2012 年 7 月 27 日 8 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cau se harmful interference. (2) This device must accept any interference received, incl uding interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to o perate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the inst ructions, may cause harmfu l interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turnin g the equipment off and on, the user is en couraged to try to correct the interferen ce by one or more of the following measures: Reorient or relocate th e receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Extremtrac Technology Co., Ltd April 17, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Extremtrac Technology Co., Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description：GPS Vehicle/Asset Tracker Model name：MC500 FCC ID：SRZET800MC500 We affirm that between SIEMIC and Extremtrac Technology Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name : Tom Chan Title：Marketing Manager Company Name: Extremtrac Technology Co., Ltd Address: 4F,The Second Building,MinZhi The Third Industrial Zone,Bao'an District,P.O.518131,Shenzhen China Email: [email protected] Telephone: +86 755 27384725

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Extremtrac Technology Co., Ltd April 17, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SRZET800MC500 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - BOM - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name : Tom Chan Title：Marketing Manager Company Name: Extremtrac Technology Co., Ltd Address: 4F,The Second Building,MinZhi The Third Industrial Zone,Bao'an District,P.O.518131,Shenzhen China Email: [email protected] Telephone: +86 755 27384725

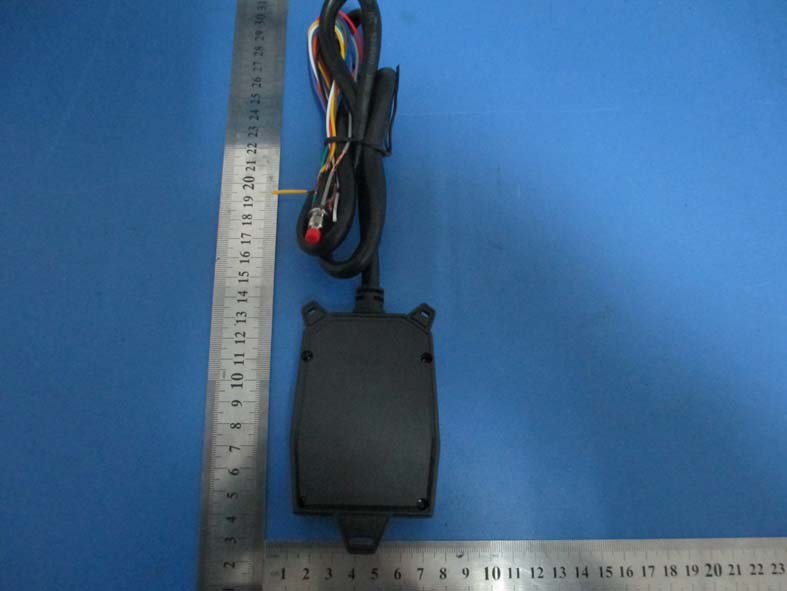

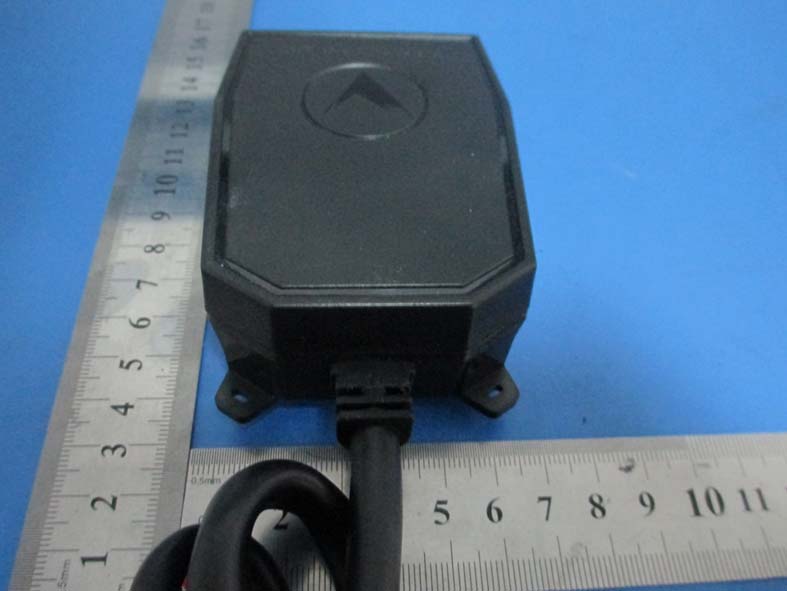

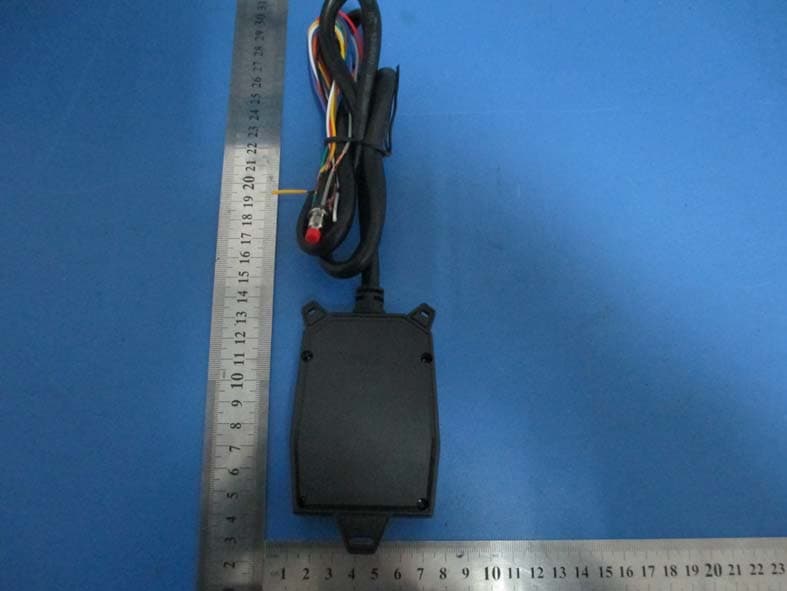

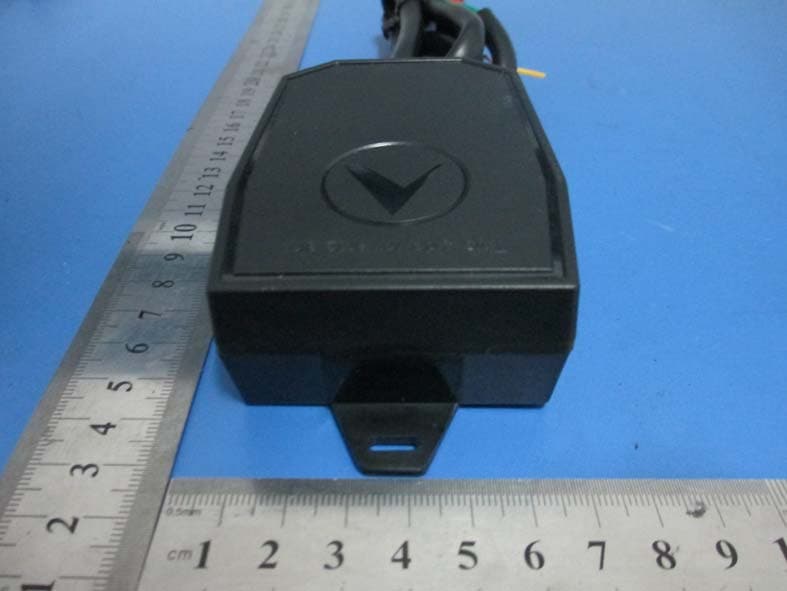

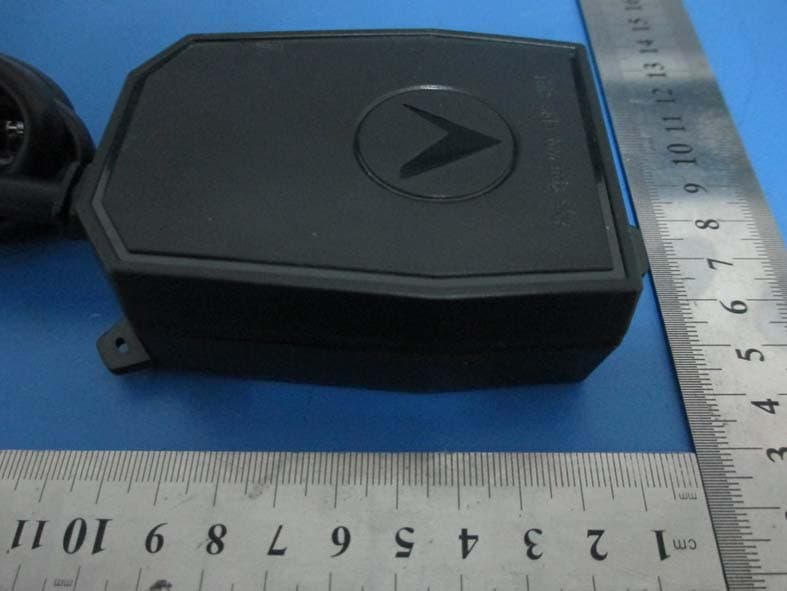

Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1 Issue Date: April 15, 2013 Page: 23 of 34 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1 Issue Date: April 15, 2013 Page: 24 of 34 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1 Issue Date: April 15, 2013 Page: 25 of 34 www.siemic.com.cn EUT - Left View EUT - Right View

Label Location

FCC ID: SRZET800MC500 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Extremtrac Technology Co., Ltd GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A April 15, 2013 Report No.: 13020239-FCC-H1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC 2.1091: 2012 Report No: 13020239-FCC-H1 Issue Date: April 15, 2013 Page: 2 of 9 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Evaluation Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC 2.1091: 2012 Report No: 13020239-FCC-H1 Issue Date: April 15, 2013 Page: 3 of 9 www.siemic.com.cn This page has been left blank intentionally. Title: RF Exposure Evaluation Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC 2.1091: 2012 Report No: 13020239-FCC-H1 Issue Date: April 15, 2013 Page: 4 of 9 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................................................................................. 7 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................................................... 7 Title: RF Exposure Evaluation Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC 2.1091: 2012 Report No: 13020239-FCC-H1 Issue Date: April 15, 2013 Page: 5 of 9 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Extremtrac Technology Co., Ltd, GPS Vehicle/Asset Tracker and model: MC500 against the current Stipulated Standards. The GPS Vehicle/Asset Tracker has demonstrated compliance with the FCC 2.1091: 2012. EUT Information EUT Description : GPS Vehicle/Asset Tracker Main Model : MC500 Serial Model N/A Antenna Gain : GSM850: 2 dBi PCS1900: 2 dBi GPS: 2 dBi Input Power : 9V - 36V(DC) Maximum Conducted Peak Power to Antenna : GSM850: 32.78 dBm PCS1900: 29.19dBm Maximum Radiated ERP/EIRP : GSM850: 30.05 dBm / ERP PCS1900: 27.26 dBm / EIRP Classification Per Stipulated Test Standard : FCC 2.1091: 2012 Title: RF Exposure Evaluation Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC 2.1091: 2012 Report No: 13020239-FCC-H1 Issue Date: April 15, 2013 Page: 6 of 9 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of GPS Vehicle/Asset Tracker with stipulated standard Applicant / Client Extremtrac Technology Co., Ltd 4F,The Second Building,MinZhi The Third Industrial Zone,Bao'an District,P.O.518131,Shenzhen China Manufacturer Extremtrac Technology Co., Ltd 4F,The Second Building,MinZhi The Third Industrial Zone,Bao'an District,P.O.518131,Shenzhen China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020239-FCC-H1 Date EUT received April 01, 2013 Standard applied FCC 2.1091: 2012 Dates of test April 08, 2013 No of Units #1 Equipment Category PCT Trade Name N/A RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz GPS:1575.42MHz(Rx) Number of Channels 299CH (PCS1900) and 124CH (GSM850) Modulation GSM/GPRS: GMSK FCC ID SRZET800MC500 Title: RF Exposure Evaluation Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC 2.1091: 2012 Report No: 13020239-FCC-H1 Issue Date: April 15, 2013 Page: 7 of 9 www.siemic.com.cn 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrol…

Text truncated - open the document above for the full version.

Extremtrac Technology Co., Ltd GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A April 15, 2013 Report No.: 13020239-FCC-R1-V1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1-V1 Issue Date: April 15, 2013 Page: 2 of 39 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1-V1 Issue Date: April 15, 2013 Page: 3 of 39 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1-V1 Issue Date: April 15, 2013 Page: 4 of 39 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MODIFICATION ..................................................................................................................................................... 7 4. TEST SUMMARY .................................................................................................................................................... 8 5. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 25 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 28 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 35 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 38 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 39 Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1-V1 Issue Date: April 15, 2013 Page: 5 of 39 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Extremtrac Technology Co., Ltd, GPS Vehicle/Asset Tracker and model: MC500 against the current Stipulated Standards. The GPS Vehicle/Asset Tracker has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2012. EUT Information EUT Description : GPS Vehicle/Asset Tracker Main Model : MC500 Serial Model : N/A Antenna Gain : GSM850: 2dBi PCS1900: 2 dBi GPS: 2dBi Input Power : 9V - 36V(DC) Maximum Conducted Peak Power to Antenna : GSM850: 32.78 dBm PCS1900: 29.19dBm Maximum Radiated ERP/EIRP : GSM850: 30.05 dBm / ERP PCS1900: 27.26 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2012 NOTE: The model use the GSM module-M35 ( from Quectel Wireless), M35 FCC ID: XMR201202M35. Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1-V1 Issue Date: April 15, 2013 Page: 6 of 39 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of GPS Vehicle/Asset Tracker with stipulated standard Applicant / Client Extremtrac Technology Co., Ltd 4F,The Second Building,MinZhi The Third Industrial Zone,Bao'an District,P.O.518131,Shenzhen China Manufacturer Extremtrac Technology Co., Ltd 4F,The Second Building,MinZhi The Third Industrial Zone,Bao'an District,P.O.518131,Shenzhen China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 13020239-FCC-R1-V1 Date EUT received April 01, 2…

Text truncated - open the document above for the full version.

Title: RF Test Report for GPS Vehicle/Asset Tracker Main Model: MC500 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2012 Report No: 13020239-FCC-R1 Issue Date: April 15, 2013 Page: 29 of 34 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz - Front View
