SS3-201306002Wireless remote control

© 2012-2013 DJI Innovations. All Rights Reserved. 1 | PHANTOM Quick Start Manual V1.7 2013.07.04 Revision For NAZA-M Firmware V3.12 & Assistant Software V2.12 Thank you for purchasing our product. Please visit the DJI website, PHANTOM section to confirm if the printed manual is the latest one according to the manual version. If not, please download and refer to the latest manual. Please read the entire manual strictly and follow these steps to use you product. The manual will get you ready to fly by doing simple operations. You can get an advanced manual from DJI website to learn more about PHANTOM, for example, configuring parameters by connecting to assistant software, changing the transmitter to Mode1, matching frequency between the transmitter and the receiver, etc. Make sure to use the NAZA-M assistant software of 2.0 version (or above 2.0) to carry out firmware upgrade and parameter configuration. DO NOT use the NAZA-M assistant software bellow 2.0 version. Note: The built-in autopilot system is NAZA-M; you can obtain the current NAZA-M Firmware Version according to the Assistant Software. If you ever upgrade your NAZA-M Firmware, please carefully read the corresponding NAZA-M release note and NAZA-M quick start guide. www.dji-innovations.com © 2012-2013 DJI Innovations. All Rights Reserved. 2 | Content CONTENT ............................................................................................................................................................... 2 DISCLAIMER & WARNING ................................................................................................................................. 3 CAUTIONS FOR PRODUCT USE ..................................................................................................................... 4 TRADEMARKS........................................................................................................................................................ 4 BATTERY USAGE & CHARGING CAUTIONS ............................................................................................... 5 IN THE BOX ............................................................................................................................................................ 6 REQUIRED ITEMS ................................................................................................................................................. 6 INTRODUCTION ................................................................................................................................................... 7 AIRCRAFT & TRANSMITTER BASIC OPERATION ...................................................................................... 8 BEFORE FLYING ................................................................................................................................................... 9 FLIGHT TEST ........................................................................................................................................................ 13 THE FLOWCHART OF FAILSAFE AND HOW TO REGAIN CONTROL .............................................. 14 LOW-VOLTAGE ALERT .................................................................................................................................... 15 LED & SOUND INDICATOR DESCRIPTION ................................................................................................ 15 CE STATEMENT .................................................................................................................................................. 17 FCC STATEMENT ............................................................................................................................................... 17 © 2012-2013 DJI Innovations. All Rights Reserved. 3 | Disclaimer & Warning Please read this disclaimer carefully before using the PHANTOM. By using this product, you hereby agree to this disclaimer and signify that you have read them fully. THIS PRODUCT IS NOT SUITABLE FOR PEOPLE UNDER THE AGE OF 18. PHANTOM is an excellent flight platform offering an excellent flight experience, only if it is powered normally and in a good working condition. Despite the PHANTOM having a built-in autopilot system and our efforts in making the operation of the controller as safe as possible when the main power battery is connected, we strongly recommend users to remove all propellers when calibrating and setting parameters. Make sure all connections are good, and keep children and animals away during firmware upgrade, system calibration and parameter setup. DJI Innovations accepts no liability for damage(s) or injuries incurred directly or indirectly from the use of this product in the following conditions: 1. Damage(s) or injuries incurred when users are drunk, taking drugs, drug anesthesia, dizziness, fatigue, nausea and any other conditions no matter physically or mentally that could impair your ability. 2. Damage(s) or injuries caused by subjective intentional operations. 3. Any mental damage compensation caused by accident. 4. Failure to follow the guidance of the manual to assemble or operate. 5. Malfunctions caused by refit or replacement with non-DJI accessories and parts. 6. Damage(s) or injuries caused by using third party products or fake DJI products. 7. Damage(s) or injuries caused by mis-operation or subjective mis-judgment. 8. Damage(s) or injuries caused by mechanical failures due to erosion, aging. 9. Damage(s) or injuries caused by continued flying after low- voltage protection alert is triggered. 10. Damage(s) or injuries caused by knowingly flying the aircraft in abnormal condition (such as water, oil, soil, sand and other unknown material ingress into the aircraft or the assembly is not completed, the main components have obvious faults, obvious defect or missing accessories). 11. Damage(s) or injuries caused by flying in the following situations such as the aircraft in magnetic interference …

Text truncated - open the document above for the full version.

Date: Jun 18, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The SZ DJI TECHNOLOGY CO.,LTD , the undersigned, hereby authorizes Mrs. Ivy Zhu from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the SZ DJI TECHNOLOGY CO.,LTD solely in matters relating to the application for an FCC equipment authorization for FCC ID SS3-2013060002 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the SZ DJI TECHNOLOGY CO.,LTD in connection with the Application shall have the same effect as acts of the SZ DJI TECHNOLOGY CO.,LTD. The SZ DJI TECHNOLOGY CO.,LTD also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Yongqian.Fan Manager

Date: Jun 18, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: SZ DJI TECHNOLOGY CO.,LTD FCC ID: SS3-2013060002 FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. SZ DJI TECHNOLOGY CO.,LTD requests that the following documents regarding this submission for FCC ID: SS3-2013060002 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which SS3-2013060002 considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, SZ DJI TECHNOLOGY CO.,LTD considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yongqian.Fan Manager

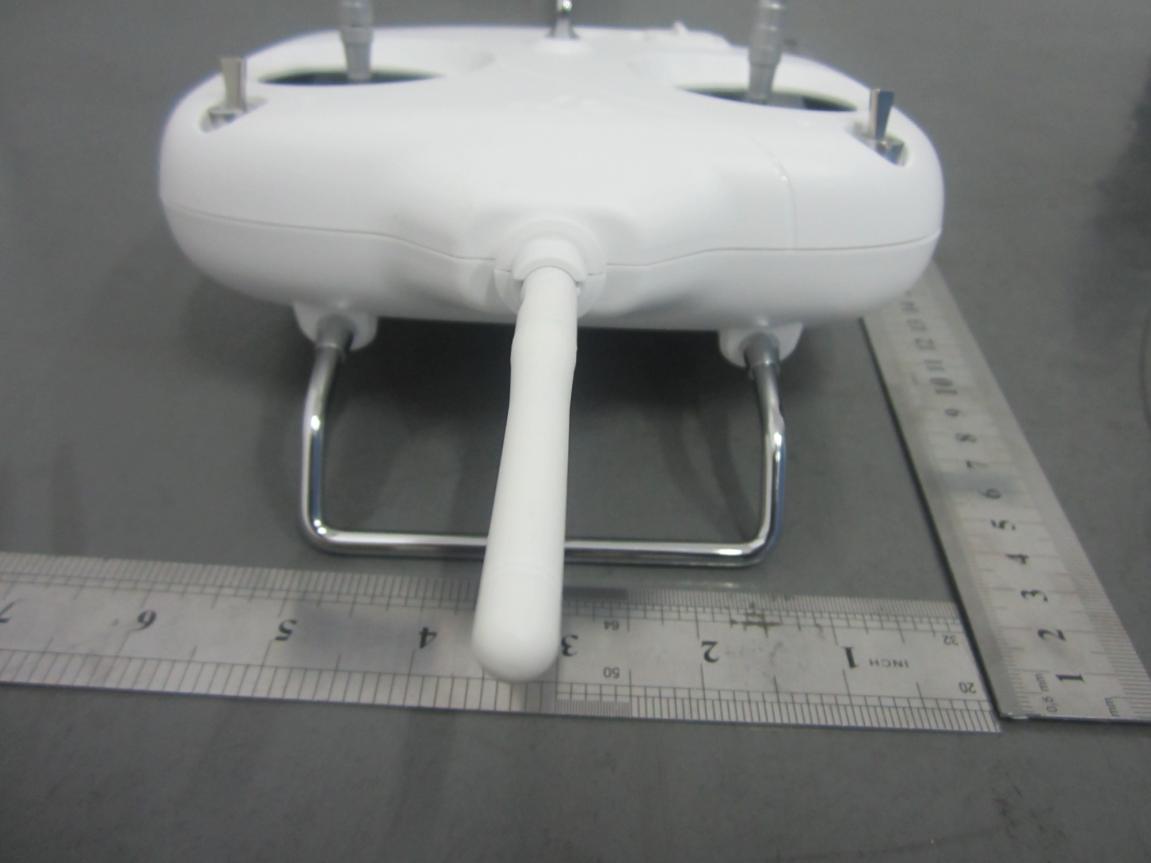

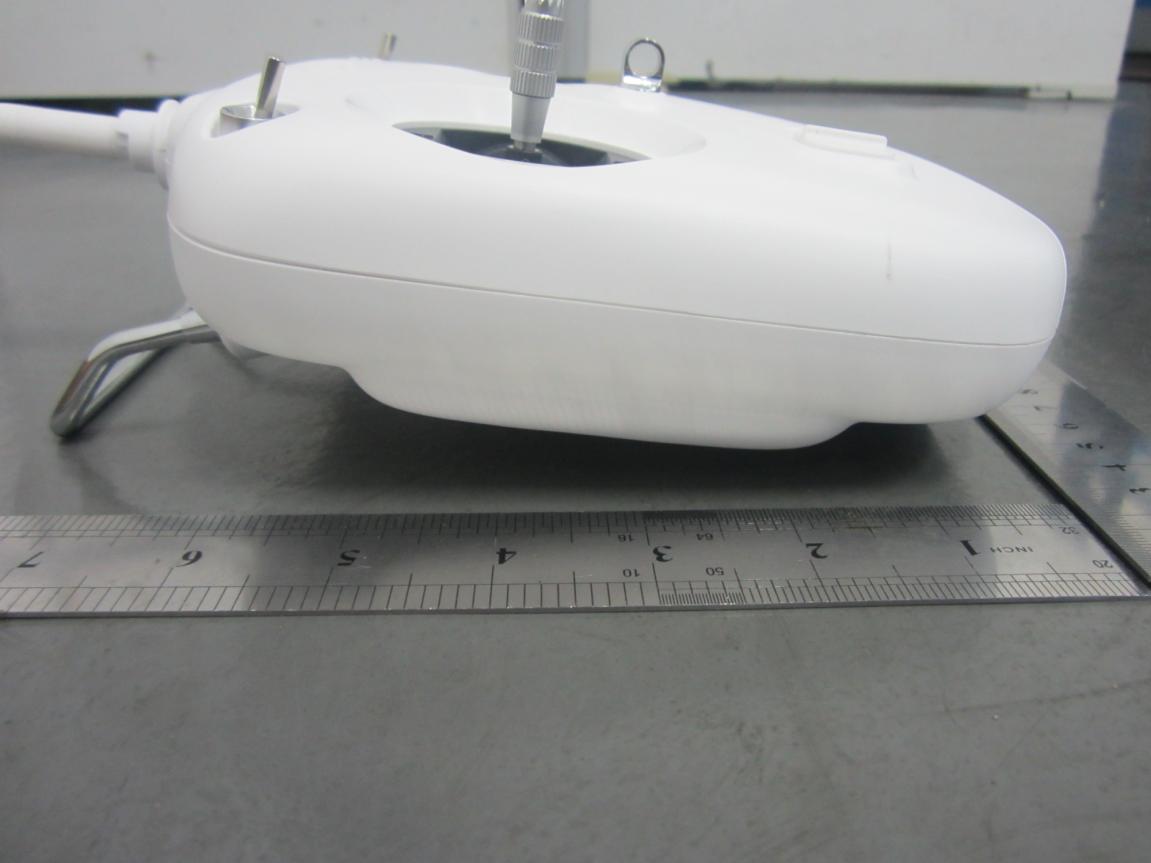

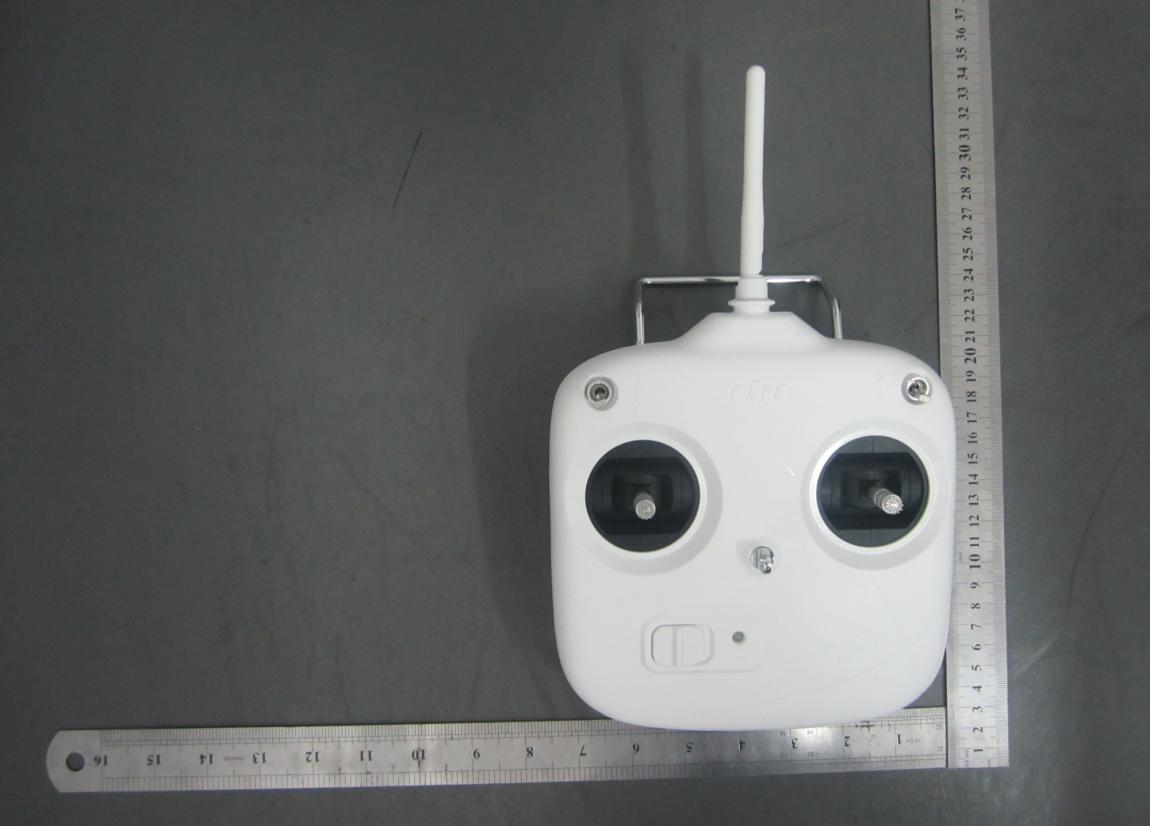

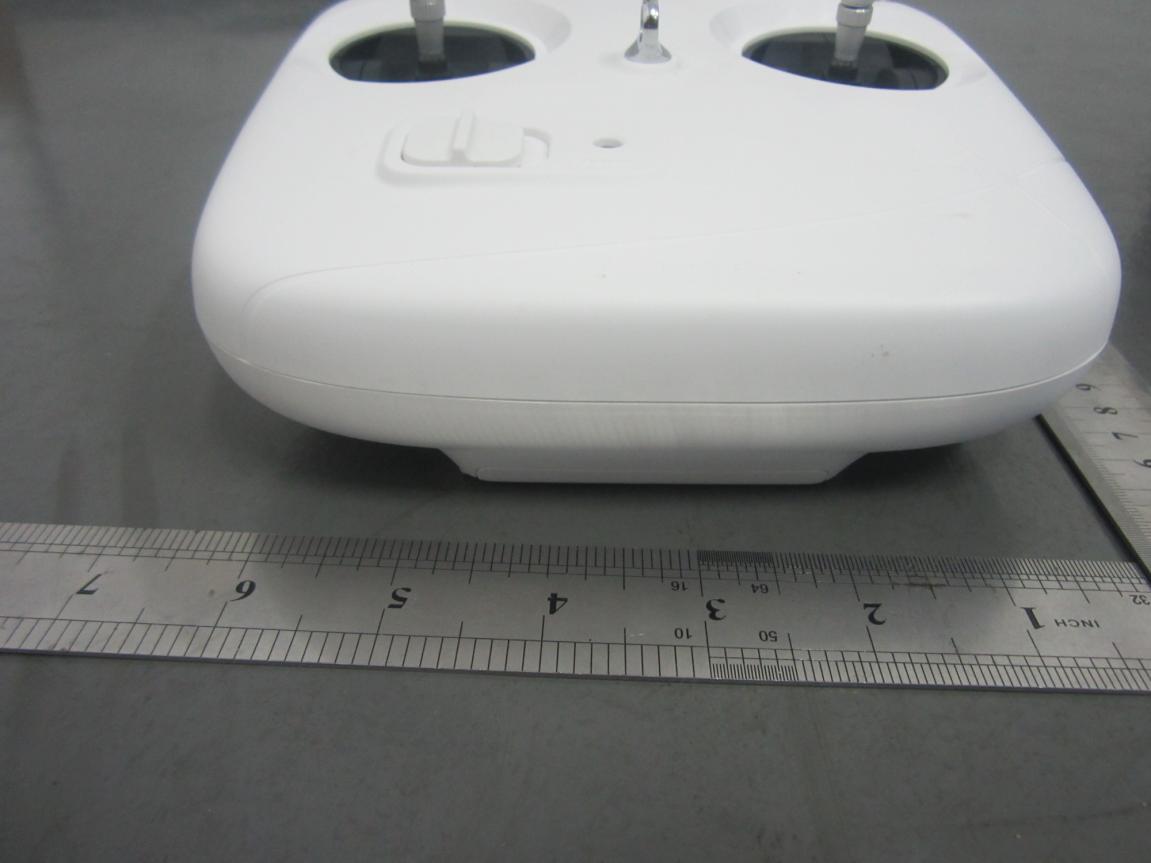

External Photos--Transmitter 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

Size：60mm*35mm， Background color：Silvery； Font color：Black； Sticker material：PET； Location： High 5mm High 5mm High 5mm High 5mm

Internal Photos—Transmitter 1. EUT uncover view 2. Mainboard view 3. RF chip view 4. RF antenna view 5. Control key view

SZ13030226W02 Page 2 of 34 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 6 2.1. Antenna requirement ................................................................................................................. 6 2.2. Peak Output Power.................................................................................................................... 6 2.3. Bandwidth ................................................................................................................................. 8 2.4. Conducted Spurious Emissions and Band Edge ..................................................................... 11 2.5. Power spectral density (PSD) ................................................................................................. 15 2.6. Restricted Frequency Bands.................................................................................................... 18 2.7. Conducted Emission ............................................................................................................... 22 2.8. Radiated Emission................................................................................................................... 24 2.9. RF Exposure Evaluation ......................................................................................................... 33 Change History Issue Date Reason for change 1.0 July 19, 2013 First edition SZ13030226W02 Page 3 of 34 1. General Information 1.1. EUT Description EUT Type ............................. : Phantom Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : V5 Software Version .................. : Applicant .............................. : Manufacturer ........................ : 0.02 SZ DJI TECHNOLOGY CO.,LTD Room 613、614, 6/F, HKUST SZ IER Bldg, No.9 Yuexing 1st Rd Hi-Tech Park(South), Nanshan District, Shenzhen, Guangdong, China SZ DJI TECHNOLOGY CO.,LTD(Baoan Branch) Room 311~320,Office Bldg.,Zhongyuntai Industrial Park,Songbai Rd.,Shiyan Town, Bao'an District, Shenzhen, Guangdong, China Frequency Range .................. : 2404.867MHz~2476.547MHz Channel Number................... : 36 Modulation Type .................. : DSSS Antenna Type ........................ : Dipole Antenna Antenna Gain ........................ : 2.0dBi Note 1: The EUT is Phantom, it operating at 2.4GHz ISM band, the frequencies allocated is F (MHz) =2404.867+2.048*(n-1) (1<=n<=36). The lowest, middle, highest channel numbers of the EUT used and tested in this report are separately 1 (2405.376MHz), 18 (2440.192MHz) and 36 (2477.056MHz). Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 4: The antenna connector of EUT is designed with permanent attachment and no consideration of replacement. SZ13030226W02 Page 4 of 34 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Wi-Fi, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.203 Antenna Requirement PA S S 2 15.247(b) Peak Output Power PASS 3 15.247(a) Bandwidth PASS 4 15.247(d) Conducted Spurious Emission and Band edge PASS 5 15.247(d) Restricted Frequency Bands PASS 6 15.207 Conducted Emission N/A 7 15.209 ,15.247(d) Radiated Emission PASS 8 15.247(e) Power spectral density (PSD) PASS 9 15.247(i). §1.1307&2.1091 RF Exposure Evaluation PASS The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescribed in ANSI C63.4 2009. These RF tests were performed according to the method of measurements prescribed in KDB558074 D01 V02 10/04/2012. SZ13030226W02 Page 5 of 34 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at FL.1, Building A, FeiYang Science Park, Block 67, BaoAn District, Shenzhen, 518101 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.10 2009, ANSI C63.4 2009 and CISPR Publication 22; the FCC registration number is 695796. 1.3.2. Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 SZ13030226W02 Page 6 of 34 2. 47 CFR Part 15C Requirements 2.1. Antenna requirement 2.1.1. Applicable Standard According to FCC 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. 2.1.2. Result: Compliant The EUT has a permanently and irreplaceable attached antenna. Please refer to the EUT internal ph…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Radiated emission (9KHz-30MHz) 2. Radiated emission (30MHz-1GHz) 3. Radiated emission (above 1GHz)
