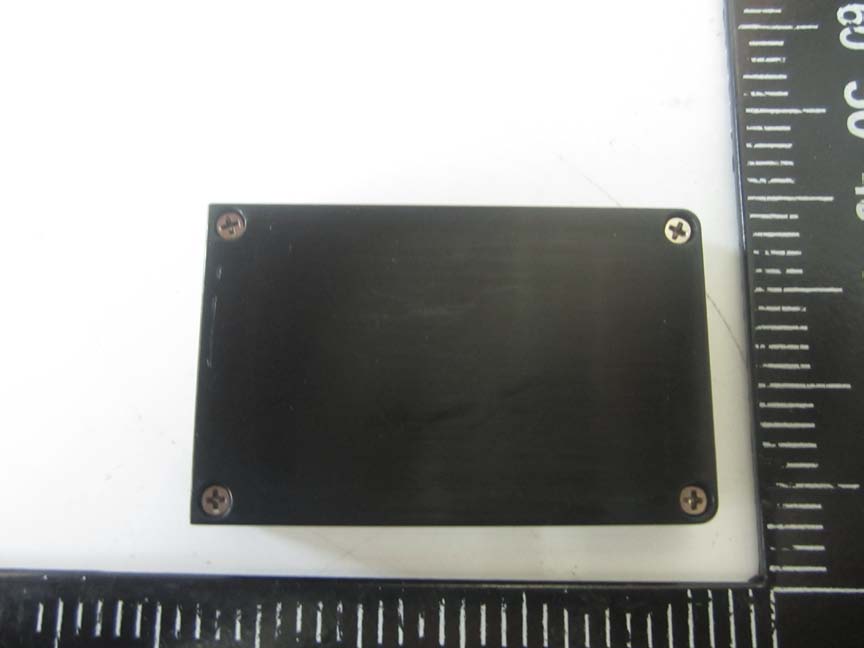

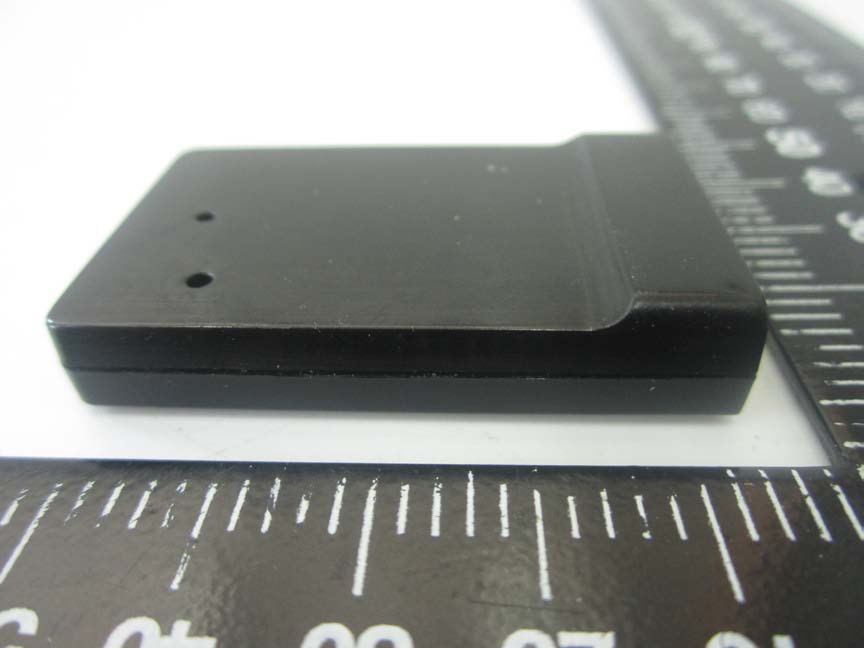

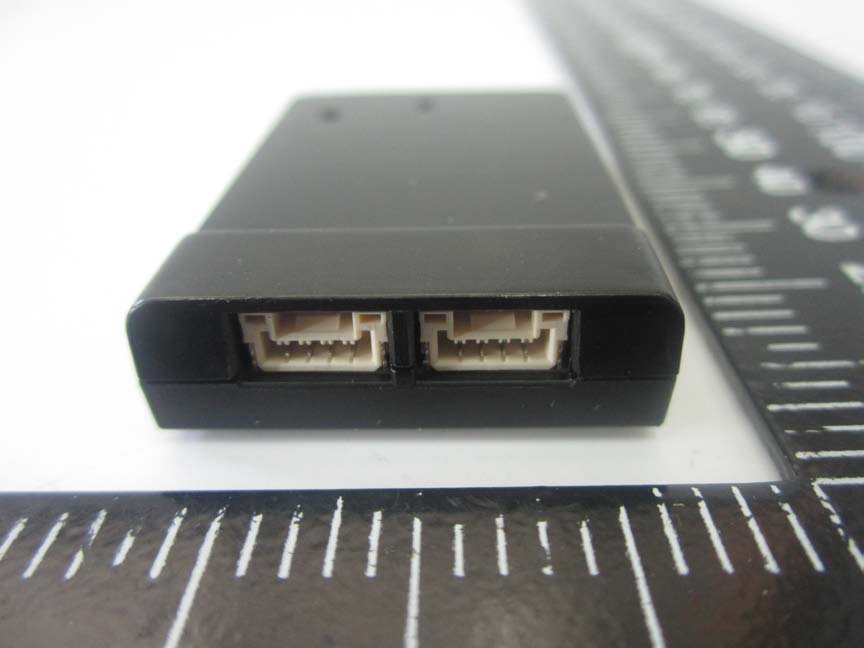

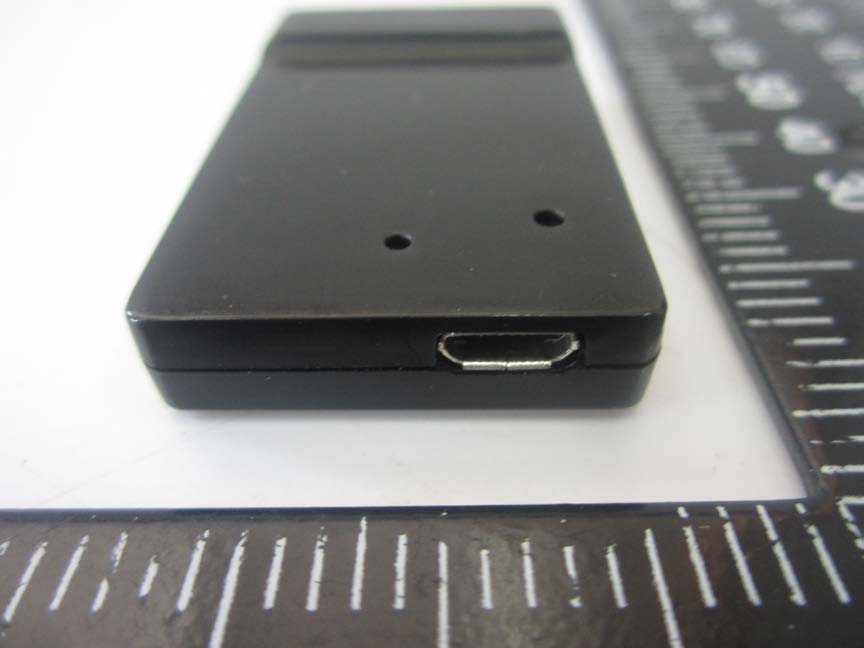

SS3-800RX1504RONIN RX

Thumb Controller V1.02015.4 User Manual 2 © 2015 DJI. All Rights Reserved. Disclaimers and Warnings Congratulations on purchasing your new DJI product. Carefully read the manual and all disclaimers before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read it in its entirety. You agree that you are responsible for your own conduct, for all content that is created using this product, and for any consequences that may arise from either. You agree to use this product only for purposes that are proper and in accordance with local regulations, stated terms, and all applicable polices and guidelines. By reading this disclaimer, you also agree that: 1. Any part of this disclaimer is subject to change without prior notice. Refer to www.dij.com for the latest version. 2. DJI reserves the right of final interpretation of this disclaimer. As DJI has no control over use, setup, final assembly, modification, or misuse of its products, no liability shall be assumed or accepted for any resulting damage or injury. By using, setting up, or assembling the product, the user accepts all resulting liability. DJI assumes no liability for damages or injuries incurred directly or indirectly from the use of this product. DJI is a registered trademark. All names of products, brands, etc. appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by DJI, with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI. No patent liability is assumed with respect to the use of the product or information contained herein. © 2015 DJI. All Rights Reserved. 3 Content Disclaimers and Warnings 2 In the Box 4 Introduction 5 Thumb Controller 5 External Receiver (For Ronin Only) 6 Installation 7 Installing the Thumb Controller 7 Installing the External Receiver (For Ronin Only) 8 Connecting the Thumb Controller to the Gimbal 9 Connecting the Thumb Controller to the Ronin-M 9 Connecting the Thumb Controller to the Ronin 9 Indicator Status 11 Using the Thumb Controller 12 Mode 12 Function 13 Gimbal Settings 13 Device Settings 14 DJI Assistant App Tuning 16 DJI PC/MAC Assistant Tuning 17 Settings 17 Updating the Thumb Controller and the Receiver 18 Specifications 20 4 © 2015 DJI. All Rights Reserved. In the Box Check to ensure that all of the following items are included in the package. If any items are missing, contact DJI or your local dealer. The following items are included with the Thumb Controller for the Ronin-M: The following items are included with the Thumb Controller for the Ronin: Thumb Controller×1Quick Release Accessory Mount×1 USB Cable×1Rubber Ring×1 Receiver×1Adhesive Tape×14-Pin Cable×1 Thumb Controller×1Quick Release Accessory Mount ×1 USB Cable×1 © 2015 DJI. All Rights Reserved. 5 Introduction The Thumb Controller is designed specifically for DJI Ronin series handheld gimbals. It provides a simple, intuitive interface for controlling the gimbal’s pan, tilt, and roll motion. The pressure- sensitive stick and the easy-to-read OLED display give Ronin users more control than ever before. The Thumb Controller communicates with the Ronin-M via a preinstalled internal receiver. An external receiver is needed when the Thumb Controller is used with the Ronin. Thumb Controller [1] Power Button Press and hold the power button to turn on/off the Thumb Controller [2] Status Indicator Indicates the status of the Thumb Controller [3] OLED Display Displays the menu of the Thumb Controller [4] Pressure-Sensitive Stick Transmits the user’s input to the force sensor [1] [2] [3] [4] 6 © 2015 DJI. All Rights Reserved. [5] Micro-USB Port For charging the Thumb Controller and upgrading its firmware [6] Override Button Allow the Thumb Controller to reactivated and updated following a failure update process [1] CAN Port Connects the receiver to the Ronin [2] Bind Button Connects the Thumb Controller to the Ronin [3] LED Indicator Indicates the status of the receiver [4] Micro-USB Port For upgrading the firmware External Receiver (For Ronin Only) [5] [6] [1] [2] [3] [4] © 2015 DJI. All Rights Reserved. 7 Installation Installing the Thumb Controller 1. Install the quick-release accessory mount by clamping it around the handlebar of the Ronin and tightening the screw. Remember to place the rubber ring on the on the handlebar and clamp the accessory mount around it when installing the unit on the Ronin-M. 2. Insert the Thumb Controller into the quick-release accessory mount and ensure that it is secure. 8 © 2015 DJI. All Rights Reserved. Installing the External Receiver (For Ronin Only) 1. Use the 4-pin cable to connect the CAN port on the Ronin to the CAN 1 or Can 2 port on the receiver. 2. Use the adhesive tape to secure the receiver on the Ronin. © 2015 DJI. All Rights Reserved. 9 Connecting the Thumb Controller to the Gimbal Connecting the Thumb Controller to the Ronin-M 1. Turn on the Ronin-M. 2. Press the Ronin-M’s Bind Button (shown below) one time. The LED indicator on the Ronin-M will rapidly blink green. 3. Turn on the Thumb Controller. If the LED indicator on the Ronin-M and the LED indicator on the Thumb Controller both glow solid green, they have been successfully connected. Connecting the Thumb Controller to the Ronin 1. Turn on the Ronin. 2. Press the Bind Button on the receiver one time. The LED indicator on the receiver will rapidly blink green. 3. Turn on the Thumb Controller. If the LED indicator on the receiver and the LED indicator on the Thumb Controller both glow solid green, they have been successfully connected. Bind Button 10 © 2015 DJI. All Rights Reserved. The binding process only needs to be completed one time, unless the bind button is pressed or the Ronin/Ronin-M needs to be connected to another Thumb Controller. Bind Button © 2015 DJI. All Rights Reserved. 11 Indicator Status Thumb …

Text truncated - open the document above for the full version.

© 2015 DJI. All Rights Reserved. 13 Mode ST Off SmoothTrack is off. The Thumb Controller is free to control the pan axis. The gimbal will stop and hold the last position determined by the pan axis control stick, without applying SmoothTrack. ST On SmoothTrack is on. The Thumb Controller is free to control the pan axis. The gimbal will stop and hold the last position determined by the pan axis control stick, while applying SmoothTrack. Auto Center SmoothTrack is on. The gimbal will apply SmoothTrack when reorienting and resetting the pan angle to the forward-facing direction after the pan axis control stick is released. RF NC DJI Ronin Thumb Controller Menu The Main Menu contains six tabs: Mode, Function, Gimbal Setting, Device Setting, Default Setting, and About. Press up/down on the pressure-sensitive stick to select an item. Press right to view and select options and press left to return to the Main Menu. 14 © 2015 DJI. All Rights Reserved. Function The Function tab allows you to select the SmoothTrack speed. There are 3 possible speeds: Fast, Normal, and Slow. The value of each speed can be adjusted in the DJI Assistant app or the PC/ MAC Assistant. Gimbal Settings Channel Allows you to assign control of the pan, tilt, or roll motion of the gimbal to the up/down input on the pressure-sensitive stick. Allows you to assign control of the pan, tilt, or roll motion of the gimbal to the left/right input on the pressure-sensitive stick. Selecting ‘None’ means that the corresponding input axis from the pressure-sensitive stick will not affect the movement of the gimbal. By default, the up/down input on the pressure-sensitive stick controls the tilt axis movement of the gimbal and the left/right input on the pressure-sensitive stick controls the pan axis movement of the gimbal. If you reassign the control input of either axis, only the most recent assignment will be valid. Direction By default, the “Normal” direction orientation scheme indicates that the up movement of the stick moves the tilt axis up and the down movement of the stick moves the tilt axis down, while the left movement of the stick rotates the pan axis to the left and the right movement of the stick rotates the pan axis to the right. © 2015 DJI. All Rights Reserved. 15 When the “Reverse” orientation is selected, the up/down and left/ right controls are switched. Calibration “Cali System” should be used if there is perceptible drift on any axis. The calibration procedure should take approximately 90 seconds to complete. Selecting “Auto Tune” will automatically adjustment each motor’s stiffness settings to achieve an optimal balance. This process should take approximately 20 seconds to complete. The gimbal cannot be controlled by the Thumb Controller or the remote controller during calibration. Do not touch or move the gimbal during either process. Device Settings Sensitivity There are two sensitivity settings for the Thumb Controller: Soft/Hard. Sleep If the Thumb Controller has been idle for longer than the specified amount of time, the OLED display will be turned off. Power Off If the Thumb Controller has been idle for longer than the specified amount of time, it will be turned off. Default Settings Restores all settings to the factory defaults. About Displays the firmware version that is currently installed on the Thumb Controller. 16 © 2015 DJI. All Rights Reserved. DJI Assistant App Tuning You can adjust various parameters in the DJI Assistant app. Turn on the Thumb Controller and the gimbal, then launch the DJI Assistant app. You can adjust the control speeds in the Wizard menu. To meet your specific requirements, you can also access advanced functions through the Assistant app. In the Control Menu, you can adjust the Deadband, Maximum Speed, Smoothing, and Controller Priority. Controller Priority: If both the Thumb Controller and a remote controller simultaneously send control signals to the gimbal, the input from the selected controller will take priority will control the device. Refer to the Ronin/Ronin-M User Manual for more details. GimbalControlViewerMore Pan Thumb Controller Remote Operator Tilt Control Speed Adjustment 15 1515 40 Speed Pan Axis Tilt Axis DeadbandAccel 0 00 0 0 0 Roll Axis 00 0 Test Pan Speed SmoothTrack Test Test Tilt Speed Test Roll Speed ？ Gimbal Wizard GimbalControlViewerMore N/A Mode： Wizard Control DeadbandMaximum Speed SmoothingEndpoint ChannelsSettings © 2015 DJI. All Rights Reserved. 17 DJI PC/MAC Assistant Tuning The DJI PC/MAC Assistant allows you to tune the Thumb Controller and update its firmware. The tuning procedures offered through the DJI Assistant App are the same as those offered through the DJI PC/MAC Assistant. There is no need to adjust the settings in both. The DJI Assistant app and the PC/MAC Assistant program cannot be connected to the Thumb Controller at the same time. If you are running the Assistant app on your mobile device, be sure to disconnect the Micro-USB cable before using the Assistant on a PC/MAC. Settings In the Control Menu, you can adjust the Deadband, Maximum Speed, Smoothing, and Controller Priority. 18 © 2015 DJI. All Rights Reserved. Updating the Thumb Controller and the Receiver You can find the latest firmware version information on this page and update the firmware by following the steps below: 1. Use the Micro-USB cable to connect the Thumb Controller to your computer, then wait until the indicator in the Assistant blinks blue. 2. Click “Update.” 3. Wait for the download to finish. 4. Click “Update” again and then click “Confirm.” 5. After the update is complete, turn the Thumb Controller off and then on again. 6. Repeat this process with the Ronin-M or the Ronin External Receiver, depending on your model. © 2015 DJI. All Rights Reserved. 19 Ensure that your computer is connected to the internet Close all antivirus programs and network firewalls Ensure that the device is turned on before beginning the update process Do not disconnect the USB cable un…
