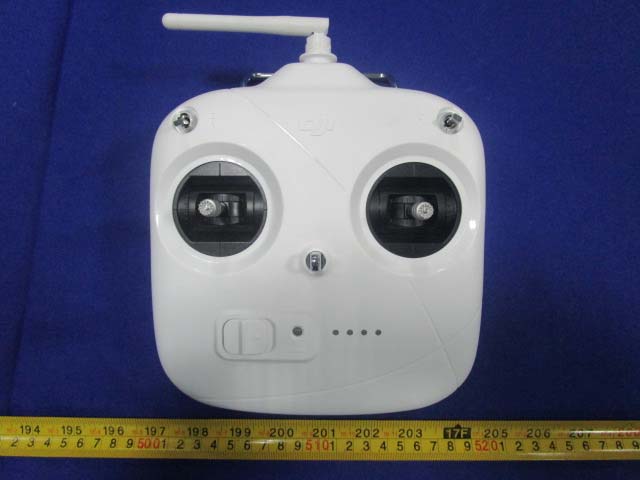

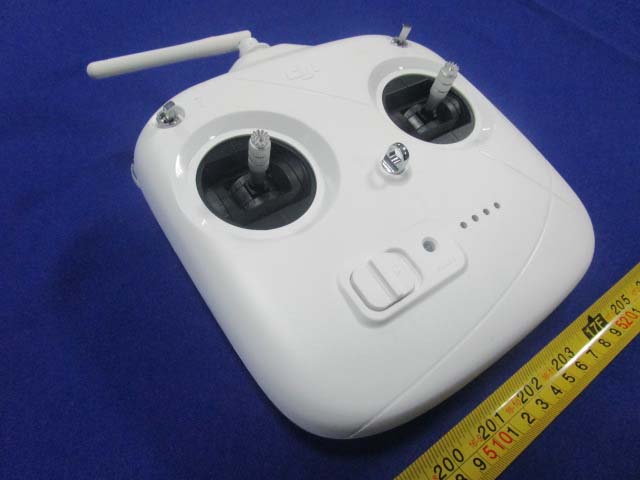

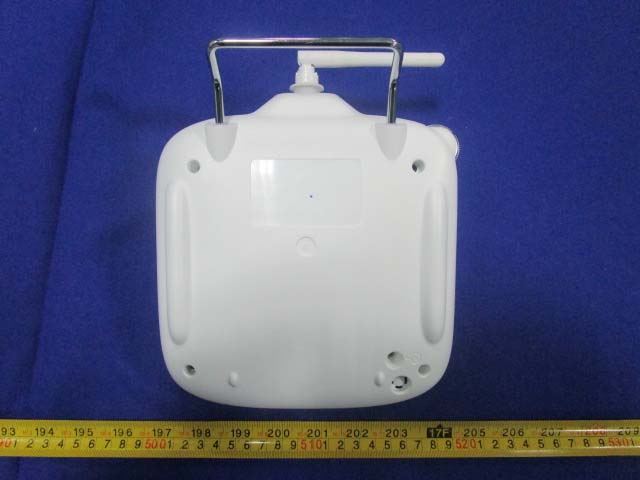

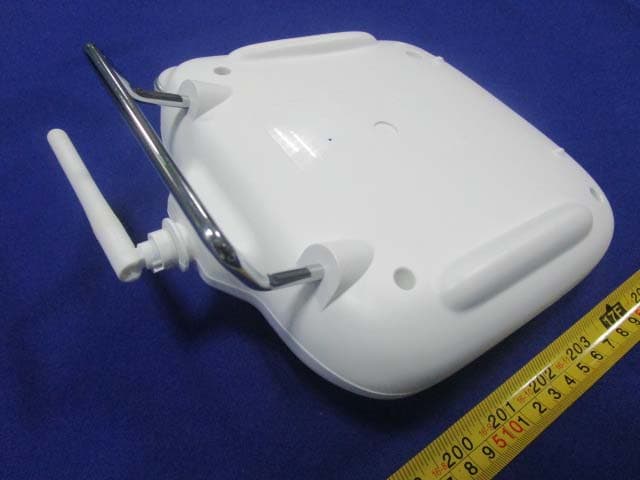

SS3-GL3581503Remote Controller

PHANTOM 3 V1.0 2015.04 User Manual Standard 2 © 2015 DJI. All Rights Reserved. Using this manual Legends WarningImportantHints and TipsReference Read Before the First Flight Read the following documents before using the Phantom 3 Standard: 1. In the Box 2. Phantom 3 Standard User Manual 3. Phantom 3 Standard Quick Start Guide 4. Phantom 3 Standard Guidelines and Disclaimer 5. Phantom 3 Standard Intelligent Flight Battery Safety Guidelines We recommend that you watch all tutorial videos on the official DJI website and read the Disclaimer before you fly. Prepare for your first flight by reviewing the Phantom 3 Standard Quick Start Guide and refer to the User Manual for more detailed information . Video Tutorials Please watch the tutorial videos at the link below, which demonstrates how to use Phantom 3 Standard aircraft http://www.dji.com/product/phantom-3/video Download the DJI Pilot app Download and install the DJI Pilot app before using the aircraft. Scan the QR code to the right to download the latest version. The Android version of the DJI Pilot app is compatible with Android 4.1.2 or later. The iOS version of the DJI Pilot app is compatible with iOS 8.0 or later. © 2015 DJI. All Rights Reserved. 3 Contents Using this manual Legends 2 Read Before the First Flight 2 Video Tutorials 2 Download the DJI Pilot app 2 Product Profile Introduction 6 Feature Highlights 6 Preparing the Aircraft 7 Aircraft Diagram 8 Remote Controller Diagram 8 Aircraft Flight Controller 11 Flight Mode 11 Flight Status Indicator 11 Return-to-Home (RTH) 12 Smart RTH 12 Low Battery RTH 13 Failsafe RTH 14 Vision Positioning System 14 Flight Recorder 16 Attaching and Detaching the Propellers 16 DJI Intelligent Flight Battery 17 Remote Controller Remote Controller Profile 23 Using the Remote Controller 23 Remote Controller Status LED 27 Linking the Remote Controller 28 Remote Controller Compliance Version 29 4 © 2015 DJI. All Rights Reserved. Camera and Gimbal Camera Profile 31 Gimbal 32 DJI Pilot App Camera 35 Director 38 Store 38 Discovery 38 Flight Flight Environment Requirements 40 Flight Limits and No-Fly Zones 40 Preflight Checklist 44 Calibrating the Compass 44 Auto Takeoff and Auto Landing 45 Flight Test 46 Starting/Stopping the Motors 46 Troubleshooting (FAQ) Appendix Specifications 53 Intelligent Orientation Control (IOC) 55 FCC Compliance 56 © 2015 DJI. All Rights Reserved. 5 Product Profile This section introduces the Phantom 3 Standard and lists the components of the aircraft and remote controller. 6 © 2015 DJI. All Rights Reserved. Product Profile Product Profile Introduction The Phantom 3 Standard represents the next generation of DJI quadcopters. It is capable of capturing 1080P video and video signal out of the box. The built-in camera has an integrated gimbal to maximize stability while minimizing both weight and size. Feature Highlights Camera and Gimbal: With the Phantom 3 Standard, you’re shooting 1080p video and capturing 12 megapixel pho- tos that look crisper and cleaner than ever. An enhanced sensor gives you greater clarity, lower noise, and better pictures than any previous flying camera. DJI Intelligent Flight Battery: The 4480 mAh DJI Intelligent Flight Battery features upgraded battery cells and an advanced power management system. Built-in WiFi Extender: The wifi extender is integrated into the remote controller to allow a easy connection to teh aircraft. Flight Controller: The next-generation flight controller has been updated to provide a safer, more reliable flight experience. A newly implemented flight recorder stores critical data from each flight. © 2015 DJI. All Rights Reserved. 7 Product Profile Phantom 3 Standard User Manual Preparing the Aircraft Removing Gimbal Clamp Remove the gimbal clamp by sliding it to the right (when facing the nose of the aircraft), as shown below. Attaching the Propellers: Mount the propellers with black dots on to motors with black axes and spin counter-clockwise to secure. Mount the propellers with sliver dots on to motors with sliver axes and spin clockwise to secure. Be sure all propellers are securely in place. Preparing the Remote Controller: 1. Twist the Phone Holder to face outwards and fix in position. 2 . Ensure the battery is fully charged. 3. Be sure S1 and S2 are switched to the upper most position. The LED will go green if the Remote Controller is functioning. Place all propellers onto the correct motors and tighten by hand to lock them in position. S1S2 8 © 2015 DJI. All Rights Reserved. Product Profile Phantom 3 Standard User Manual Aircraft Diagram [1] Gimbal and Camera [2] [Camera Micro-SD Card Slot [3] Aircraft Micro-USB Port [4] Front LED Indicator [5] Landing gear [6] Motor [7] Rear LED Indicator [8] Antennas [10] [11] © 2015 DJI. All Rights Reserved. 9 Product Profile Phantom 3 Standard User Manual Remote Controller Diagram [1] Power Button [2] Status LED [3] Battery Level LEDs [4] Neck Strap Securing Hole [5] S1 Switch [6] S2 Switch [7] Control Stick [8] Phone Holder [9] Antennas [10] Gimbal Dial [11] Charging Port 10 © 2015 DJI. All Rights Reserved. Aircraft This section introduces the features of the Flight Controller, Vision Positioning System, and the Intelligent Flight Battery © 2015 DJI. All Rights Reserved. 11 Aircraft Flight Status Indicator The Phantom 3 Standard has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are shown in the figure below: The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is turned on to indicate the front (or nose) of the aircraft. The Aircraft Status Indicators communicate the system status of the flight controller. Refer to the table below for more information about the Aircraft Status Indicators: Aircraft Flight Controller The Phantom 3 Standard’s flight controller features several important upgrades, including a new flight mode. Safe- ty modes include Failsafe and Return-to-Home. These features ensure the safe return of y…

Text truncated - open the document above for the full version.

© 2015 DJI. All Rights Reserved. 29 Gimbal Camera Camera and Gimbal Camera Profile The on-board camera uses the 1/2.3 inch CMOS sensor to capture video (up to 30fps with the Phantom 3 Standard) and 12 megapixel stills. You may choose to record the video in either MOV or MP4 format. Available picture shooting modes include burst, continuous, and time-lapse mode. A live preview of what the camera sees can be monitored on the WiFi connected mobile device via the DJI Pilot app. Camera Micro-SD Card Slot To store your photos and videos, insert the Micro-SD card into the slot, as shown below, before turning on the Phantom 3 Standard. The Phantom 3 Standard comes with a 16 GB Micro-SD card and supports Micro- SD cards up to 64 GB. A UHS-1 Micro-SD card is recommended due to their fast read and write speeds allowing you to save high-resolution video data. Do not remove the Micro-SD card from the Phantom 3 Standard when it is turned on. Camera Data Port Turn on the Phantom 3 Standard and connect a USB cable to the Camera Data Port to download photos and videos to your computer. The aircraft must be turned on before attempting to access the files on the Micro-SD card. 30 © 2015 DJI. All Rights Reserved. Gimbal Camera Phantom 3 Standard User Manual Camera Operation Use the Shutter and Video Recording buttons on the remote controller to shoot the images or videos through the DJI Pilot app. For more information about how to use these buttons, refer to “Controlling the Camera Page 24”. Gimbal Gimbal Profile The 3-axis gimbal provides a steady platform for the attached camera, allowing you to capture clear, stable images and video. The gimbal can tilt the camera within a 120 ̊ range. Use the gimbal dial on the remote controller to control the tilt movement of the camera. Gimbal Operation Modes Two gimbal operation modes are available. Switch between the different operation modes on the camera settings page of the DJI Pilot app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: Follow Mode The angle between gimbal’s orientation and aircraft’s nose remains constant at all times. FPV Mode The gimbal will synchronize with the movement of the aircraft to provide a first-person perspective flying experience. A gimbal motor error may occur in these situations: (1) the aircraft is placed on uneven ground or the gimbal’s motion is obstructed (2) the gimbal has been subjected to an excessive external force, such as a collision. Please take off from flat, open ground and protect the gimbal at all times. Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The gimbal will recover full functionality after it dries. -90° 0° 30° © 2015 DJI. All Rights Reserved. 31 Gimbal Camera Phantom 3 Standard User Manual ② ① ③ Anti-Drop Kit The anti-drop kit helps keep the gimbal and camera connected to the aircraft. Two pins have been mounted prior to shipping. If new or additional pins are required, see the diagram below. Press Part ① through the hole of the vibration absorber and into the center hole of Part ② , then lock them together as shown ③ . Mounting the anti-drop kit pins diagonally from each other is recommended. 32 © 2015 DJI. All Rights Reserved. DJI Pilot App This section introduces the four main functions of the DJI Pilot app. © 2015 DJI. All Rights Reserved. 33 DJI Pilot App DJI Pilot App The DJI Pilot app is a mobile application designed specifically for the Phantom 3 series. Use this app to control the gimbal, camera, and other aircraft functions. The app also features Map, Academy, and User Center, which are used for configuring your aircraft and sharing your photos and videos with others. It is recommended that you use a tablet for the best experience. Camera The Camera page contains a live HD video feed from the Phantom 3 Standard’s camera. You can also configure various camera parameters from the Camera page. United States Mountain View CAMERA STOREDISCOVERY DIRECTOR Safe to Fly (GPS) MODE CL P-GPS H: 39 M D: 1039 M V.S: 8.3 M/S H.S: 24.2 M/S 1.2 M 1/320 4821 JPEG ISO 100 EV 0 [14] [13] [10] [9] [8][7][6][5][4][3][2][1] [17] [16] [15] [11][12] 34 © 2015 DJI. All Rights Reserved. DJI Pilot App Phantom 3 Standard User Manual [1] Flight Mode : The text next to this icon indicates the current flight mode. Tap to configure the MC (Main Controller) Settings. These settings allow you to modify flight limits and set the gain values. [2] GPS Signal Strength : This icon shows the current strength of GPS signals. Green bars indicate adequate GPS strength. [3] IOC Settings CL : This icon displays the IOC setting when the aircraft has entered F-mode. Tap to view the IOC settings menu and select the desired IOC setting. [4] System Status : This icon indicates the current aircraft system status and GPS signal strength. [5] Battery Level Indicator : The battery level indicator provides a dynamic display of the battery level. The colored zones on the battery level indicator represent the power levels needed to carry out different functions. [6] Remote Controller Signal : This icon shows the strength of remote controller’s signal. [7] HD Video Link Signal Strength : This icon shows the strength of the HD video downlink connection between the aircraft and the remote controller. [8] Battery Level : This icon shows the current battery level. Tap to view the battery information menu, set the various battery warning thresholds, and view the battery warning history. [9] General Settings : Tap this icon to view the General Settings page. From this page, you can set flight parameters, reset the camera, enable the quick view feature, adjust the gimbal roll value, and toggle the flight route display. [10] Camera Operation Bar Shutter and Recording Settings : Tap to enter various camera value settings, including color space for the recording, resolution of the videos, image size and so on. Shutter : Tap this button to…

Text truncated - open the document above for the full version.
