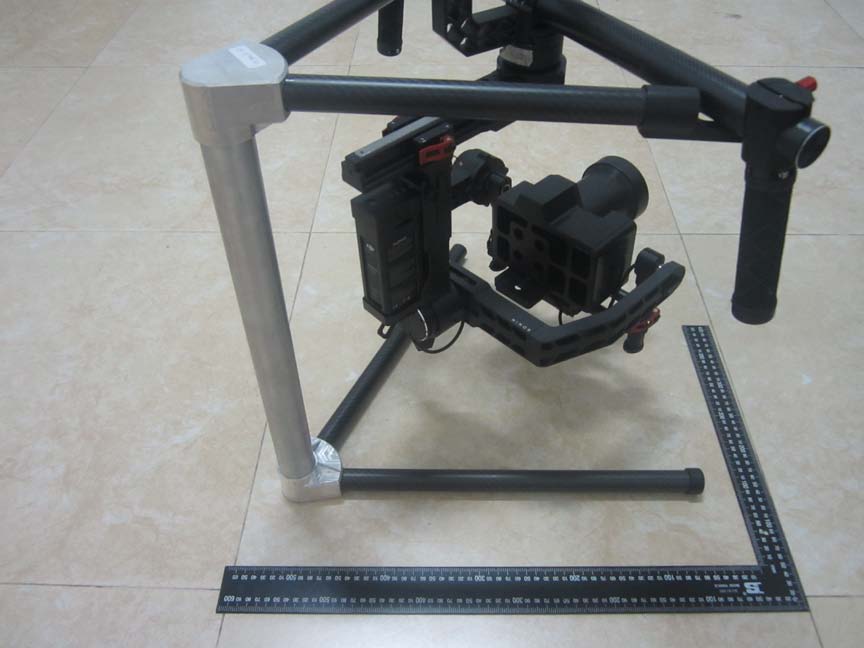

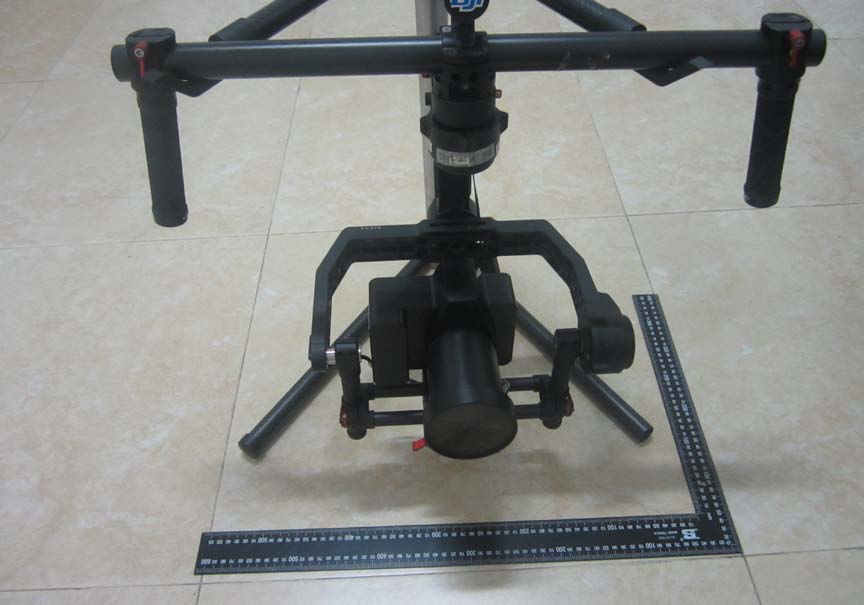

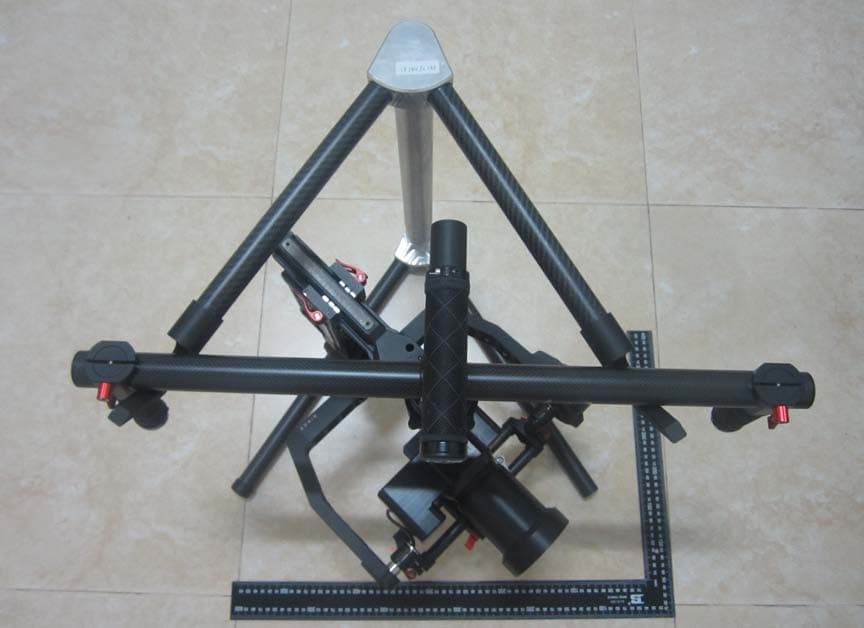

Ronin 2014.07 V1.0 User Manual 2 © 2014 DJI. All Rights Reserved. Disclaimers and Warnings Congratulations on purchasing your new DJI product. Please read this manual and disclaimer carefully before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read it in full. You agree that you are responsible for your own conduct and any content created while using this product, and for any consequence thereof. You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and any applicable polices and guidelines. By reading this disclaimer, you also agree: 1. Any part of this disclaimer is subject to change without prior notice. Refer to www.dij.com for the latest version.              Do not modify or adjust the Ronin. The Ronin has been calibrated before it leaves the factory. No modifcation or amending to the Ronin is allowed. Make sure to use the original battery, otherwise performance may be hindered, and internal malfunctions and damage to the gimbal may be caused. Please download the corresponding Assistant softwares. As DJI has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. DJI assumes no liability for damage(s) or injuries incurred directly or indirectly from the use of this product. DJI and Ronin are registered trademarks of DJI as names of product, brand, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by DJI with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI. No patent liability is assumed with respect to the use of the product or information contained herein. Using Lithium Polymer (LiPo) Batteries LiPo smart batteries can be extremely hazardous and require special attention when handled. Always follow these instructions when using LiPo batteries: 1. DJI smart batteries must be charged with a DJI charger. 2. DJI smart batteries are designed to stop charging when full. However, it is good practice to monitor the charging progress and disconnect the battery from the charger once fully charged.                    4. Never charge a swollen, leaky or damaged battery. 5. Examine charger regularly for damage to the cord, plug, enclosure or other parts. Never use a damaged charger. 6. Disconnect the charger when not in use. !                 Usage and Storage Keep batteries out of the reach of children and pets. Never discharge batteries below 3V per cell. Do not heat the battery. Do not insert or remove batteries if the plastic cover has been torn or compromised in any way. Do not drop or strike batteries. Never use a swollen, leaky or damaged battery. © 2014 DJI. All Rights Reserved. 3 Ronin User Manual Clean battery terminals with a clean, dry cloth. Do not expose batteries to extreme temperatures, including excessive heat. Do not leave the batteries inside vehicles on hot days. Do not allow batteries to come into contact with any kind of liquid. Do not leave batteries out in the rain or near a source of moisture. Do not leave batteries in a microwave oven or in a pressurized container. Do not attempt to dismantle, pierce or cut a battery. Do not attempt to repair batteries yourself. Do not place loose battery cells on any conductive surface, such as metal-toppled tables. Do not put the loose cells in a pocket, bag or drawer where they may short-circuit against other items or where battery terminals could be pressed against each other. Do not place or use batteries on strong electrostatic or electromagnetic surfaces or surrounding areas. This may result in battery damage. Do not place heavy objects on the batteries or charger. Avoid dropping batteries. Avoid direct contact with the electrolyte contained within the batteries. The electrolyte and electrolysis vapors are harmful to your health. Do not mix battery brands inside the controller. Do not attach the battery to wall or car charger sockets directly. Always use a DJI approved adapter. Battery Disposal Discarding batteries in general household waste is bad for the environment. Please dispose of batteries properly.        Damaged or unusable batteries must be disposed of in a container specially reserved for this purpose. When disposing of batteries, follow appropriate local guidelines and regulations. For further information, contact your local solid waste authority or a battery store. Only use the DJI smart battery. Always use the DJI smart battery charger. Using this manual Legend ImportantHints and Tips"       Download DJI Ronin Assistant App Download and install the DJI Ronin Assistant App. Search "DJI Assistant" on the App Store and then follow the instructions for iOS installation. iOS6.1 or above Ronin 2014.07 V1.0 User Manual 2 © 2014 DJI. All Rights Reserved. Disclaimers and Warnings Congratulations on purchasing your new DJI product. Please read this manual and disclaimer carefully before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read it in full. You agree that you are responsible for your own conduct and any content created while using this product, and for any consequence thereof. You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and any applicable polices and guidelines. By reading this disclaimer, you also agree: 1. Any part of this disclaimer is subject to change without prior notice. Refer to www.dij…

Text truncated - open the document above for the full version.

© 2014 DJI. All Rights Reserved. 17 DJI Ronin Assistant App Tuning ˆ    +‰         ˆ   ˆ Download and Install 1. Download the DJI Assistant App: Search “DJI Assistant” on the App Store then follow instructions for the iOS version. 2. Be sure Bluetooth is switched to the on postion on your mobile device. Position the camera in the standard operating position. Power on your Ronin and then open the app to connect to the Ronin via Bluetooth.  "   |          4. Connect to your Ronin according to the tips in the app. After connecting to the main controller of the gimbal, you will see the Wizard menu. When the green light at the top in the App is steady and the blue light is blinking, the connection is complete. The green LED light on the Ronin will light up. There are two device types, choose "Ronin" to enter the gimbal assistant page. Choosing "A2"            Basic Settings The functionality in the Wizard are the most basic functions you may want to adjust upon receiving your Ronin. These options are also the most used functions during standard operation of the Ronin. You can complete all these settings in the Wizard menu. 1. Calibrate Auto Tune Stability provides an easy one-touch button for automatic configuration of each axis. ;‰  +  +               ƒ  ˆ ; Š               mounted such as a lens change or accessories change. This will offer the best stability and the most optimal settings. DJI Ronin Assistant App Tuning 18 © 2014 DJI. All Rights Reserved. Ronin User Manual 2. Live Data This monitors the feedback from each motor axis. If a particular motor axis indicates a power greater than 10, this often means the mechanical balancing of the camera hasn’t been properly adjusted. A properly balanced camera rig will have each axis indicating close to 0 power. Don’t worry if these settings are not always 0. The Angle indicates the current angle at which each axis is in relation to center. 3. Briefcase Mode When Briefcase Mode is switched on, the Ronin will be able to seamlessly transform into this operation mode. With Briefcase Mode turned off, the Ronin will allow the Roll axis to follow if the Ronin is tilted past the standard roll axis travel. 4. SmoothTrack Mode When SmoothTrack Mode is enabled, the Ronin will can be "steered" by the camera operator’s movements in the Pan and Tilt axis. This steering/translation speed can be adjusted for each axis independently. When the Ronin's top bar is rotated left or right, the camera will smoothly pan and slow down to a stop. Under the SmoothTrack options, the Pan Axis and the Tilt Axis can be independently adjusted. Pan Axis speed will determine how fast the camera will travel while translating a pan movement. Pan Deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s pan. Tilt Axis speed will determine how fast the camera will travel while translating a tilt movement. Tilt deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s tilt. The Pan and Tilt SmoothTrack speed can be tested. Ensure there is no obstruction of the camera when tapping these Test buttons. 5. Control Speed Adjustment Remote control speed can be adjusted here. The adjustment represents the maximum speed of gimbal control in the Pan and Tilt axis when the control sticks are pushed to their endpoints. Advanced Settings There are more advanced functions you can adjust through the Assistant to meet your requirement. Gimbal Menu © 2014 DJI. All Rights Reserved. 19 Ronin User Manual 1. Gimbal Motor Adjustment The Auto Tune Stability button allows for automatic adjustment of each motor’s stiffness settings (as relayed from the sensors and how the Ronin sees each axis’s interaction) to accomplish an optimized setting. Besides tuning stiffness, there are other electronic settings being tuned. It is highly recommended that the ˆ ; Š               + lens change or accessories change. This will offer the best stability and the most optimal settings. ‹ `       ‰   ;    ‰        amount of power applied to the motors as they react to the balancing of weight on each axis. The higher you can adjust the stiffness settings without having any vibrations or oscillations from the gimbal, the better. A majority of the time, the Auto Tuned settings will be suitable. The Trim adjustment controls the preset amount of trim applied to each axis off center. The default setting of 0 degrees represents center. 2. Gimbal SmoothTrack Mode When SmoothTrack Mode is enabled, the Ronin will can be "steered" by the camera operator’s movements in the Pan and Tilt axis. This steering/translation speed can be adjusted for each axis independently. When the Ronin's top bar is rotated left or right, the camera will smoothly pan and slow down to a stop. Under the SmoothTrack options, the Pan Axis and the Tilt Axis can be independently adjusted. Pan Axis speed will determine how fast the camera will travel while translating a pan movement. Pan Deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s pan. Tilt Axis speed will determine how fast the camera will travel while translating a tilt movement. Tilt deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s tilt. The Pan and Tilt SmoothTrack speed can be tested. Ensure there is no obstruction of the camera when tapping these Test buttons. Control Menu 20 © 2014 DJI. All Rights Reserved. Ronin User Manual 1. Controller Deadband Onboard controller and the remote ope…
