SS3-L2ES2212DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine

Mavic 3 Pro Quick Start Guide v1.0 2023.03 Aircraft The MAVIC TM 3 Pro features Omnidirectional Obstacle Sensing, an Infrared Sensing System, and a fully stabilized 3-axis gimbal with a wide camera that can shoot up to 5.2K video and 20-megapixel photos. DJI signature technologies such as Obstacle Avoidance and Intelligent Flight Modes like HyperLapse, ActiveTrack, QuickShot, Panorama, and Advanced Pilot Assistance Systems, help you capture complex shots effortlessly. 1. Gimbal and Camera A. Telephoto Camera B. Medium Telephoto Camera C. Wide Camera 2. Horizontal Omnidirectional Vision System 3. Auxiliary Bottom Light 4. Downward Vision System 5. Infrared Sensing System 6. Front LEDs 7. Motors 8. Propellers 9. Aircraft Status Indicator 10. Landing Gear (antennas included) 11. Upward Vision System 12. Intelligent Flight Battery 13. Battery Level LEDs 14. Power Button 15. Battery Buckles 16. Charging/Upgrading Port (USB-C) 17. microSD Card Slot Remote Controller The DJI RC features O3+, the latest version of DJI’s signature OCUSYNC TM image transmission technology, and can transmit a live HD view from the camera of an aircraft at a distance of up to 15 km. Users can connect to the internet via Wi-Fi and the Android operating system comes with a variety of functions such as Bluetooth and GNSS. 1. Antennas 2. Back Button 3. Control Sticks 4. RTH Button 5. Flight Pause Button 6. Flight Mode Switch 7. 5D Button 8. Power Button 9. Confirm Button 10. Touchscreen 11. microSD Card Slot 12. USB-C Port 13. Mini HDMI Port 14. Gimbal Dial 15. Record Button 16. Status LED 17. Battery Level LEDs 18. Focus/Shutter Button 19. Camera Settings Dial 20. Air Vent 21. Control Sticks Storage Slots 22. Customizable C1 Button 23. Speaker 24. Customizable C2 Button 25. Air Intake Watching Tutorial Videos Charging the Batteries Checking the Battery Levels and Powering On/Off Press once to check the battery level. Press, then press and hold to turn on/off. Preparing the Aircraft 1. Unfold the front arms and the propellers. 2. Unfold the rear arms and the propellers. 3. Unfolded Preparing the Remote Controller 1. Remove the control sticks from the storage slots, then attach the control sticks. 2. Unfold the antennas. Preparing for Takeoff 1. Power on the remote controller 2. Power on the aircraft 3. Launch DJI Fly App Flight • Remote Controller Operation Specifications • Aircraft (Model: L2S/L2E) Takeoff Weight 958 g Max Flight Time 46 minutes Operating Temperature 14° to 104°F (-10° to 40°C) Operating Frequency 2.400-2.4835 GHz; 5.725-5.850 GHz；5.17-5.25 GHz Transmitter Power(Eirp) 2.4GHz<20 dBm (CE, UKCA) 5.2GHz<23 dBm (CE) 5.8GHz<14 dBm (CE, UKCA) • Intelligent Flight Battery Capacity 5000 mAh Battery Type LiPo 4S Energy 77 Wh Charging Temperature 41° to 113°F (5° to 45°C) • Remote Controller (Model: RM510) Weight Approx. 750 g Battery 18650 Li-ion (5000 mAh @ 7.2 V) O3+ Operation Frequency 2.400-2.4835 GHz; 5.725-5.850 GHz Wi-Fi Protocol WiFi Direct, Wi-Fi Display, 802.11b/a/g/n/ac/ax 2×2 MIMO Operation Frequency 2.400-2.4835 GHz; 5.725-5.850 GHz Bluetooth Protocol Bluetooth 5.1 Operation Frequency 2.400-2.4835 GHz FCC Compliance Notice Supplier’s Declaration of Conformity Product name: DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine Model Number: L2S, L2E Responsible Party: DJI Technology, Inc. Responsible Party Address: 201 S. Victory Blvd., Burbank, CA 91502 Website: www.dji.com We, DJI Technology, Inc., being the responsible party, declares that the above mentioned model was tested to demonstrate complying with all applicable FCC rules and regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information The aircraft complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ISED Compliance Notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference.(2)This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Dév…

Text truncated - open the document above for the full version.

Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 04-23-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: SS3-L2ES2212 [SZ DJI TECHNOLOGY CO., LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Applicant Signature Printed Name: Gary Zeng Title: certification supervisor Email: [email protected] Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Tel.: 0755-26656677 Email: [email protected]

Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 04-23-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: SS3-L2ES2212 [SZ DJI TECHNOLOGY CO., LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Gary Zeng Title: certification supervisor Email: [email protected] Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Tel.: 18823339761 Email: [email protected]

Applicant Company Letterhead U.S. Agent Letter of Attestation To: Federal Communications Commission Date: 2023-03-14 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: SS3-L2ES2212 SZ DJI TECHNOLOGY CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, DJI Research LLC (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. DJI Research LLC (“the agent”) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. APPLICANT Company Name: SZ DJI TECHNOLOGY CO., LTD. Contact Person: Gary.Zeng Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Tel.: 0755-26656677 Email: [email protected] U.S. Agent Company Name: DJI Research LLC Contact Person: Jinyu Guo Address: 435 Portage Ave, Palo Alto, CA 94306 Tel.: 530-574-9905 Email: [email protected] FCC FRN: 0033569757 Sincerely yours, The Applicant The Agent Company Name SZ DJI TECHNOLOGY CO., LTD. DJI Research LLC Contact Person Gary.Zeng Jinyu Guo Signature

Page 1 of 1 Authority to Act as Agent Date: _____13 April 2023________ TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint __________ TUV Rheinland (Shenzhen) Co., Ltd. ___ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ___SZ DJI Technology Co., Ltd./ Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China._____. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: _____12 Months__________ Agreement is valid for 12 months from the above date. By: __________________________ _________Gary.Zeng_________________ (Signature) (Print name) ____ certification supervisor _____ _________ Tel:+86-0755 26656677 ___ ____ (Title) (Telephone) On behalf of: ___SZ DJI TECHNOLOGY CO., LTD. _ (Company Name)

MS-0044715 Page 1 of 1 Revision 1 Date: 03-14-2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: SS3-L2ES2212 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction SZ DJI TECHNOLOGY CO. LTD. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of specify number of days not to exceed 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: _______________________________________________ _________Gary Zeng______________ (Signature/Title) (Print name) Tel: 0755-26656677 Email: [email protected]

1 1. WM261 UAV SDR RB ANT0 1.1 Basic Specifications No. Specification Descriptions 1 Antenna Name WM261 UAV SDR RB ANT0 2 Brand DJI 3 Operation Frequency 2.4~2.483GHz; 5.725~5.85GHz 4 Connector Type IPEX 5 Impedance 50ohm 6 Gain 1.5 [email protected]~2.483GHz 3 [email protected]~5.85GHz 7 Efficiency ≥50% 8 VSWR ≤2.5 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional Vertical SZ DJI TECHNOLOGY CO., LTD Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Page 2 of 18 1.2 radiation pattern Frequency Efficiency( ) E Total. dB(dB) 2400MHz 51% 1.43649 2420MHz 52% 1.466 2440MHz 53% 1.48475 2460MHz 53% 1.4676 2480MHz 51% 1.37426 5725MHz 52% 2.81937 5775MHz 52% 2.92576 5800MHz 52% 2.85842 5850MHz 50% 2.73477 2.4GHorizonital 2.4GPitch Plane Page 3 of 18 5.8GHorizonital 5.8GPitch Plane Page 4 of 18 2. WM261 UAV SDR LF ANT1 2.1 Basic Specifications No. Specification Descriptions 1 Antenna Name WM261 UAV SDR LF ANT1 2 Brand DJI 3 Operation Frequency 2.4~2.483GHz; 5.725~5.85GHz 4 Connector Type IPEX 5 Impedance 50ohm 6 Gain 2 [email protected]~2.483GHz 2.5 [email protected]~5.85GHz 7 Efficiency ≥50% 8 VSWR ≤2.5 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional horizontal Page 5 of 18 2.2 radiation pattern Frequency Efficiency( ) E Total. dB(dB) 2400MHz 61% 1.78888 2420MHz 62% 1.78554 2440MHz 63% 1.93675 2460MHz 61% 1.63152 2480MHz 59% 1.59199 5725MHz 54% 2.35058 5775MHz 55% 2.40539 5800MHz 56% 2.47963 5850MHz 54% 2.41271 2.4GHorizonital 2.4GPitch Plane Page 6 of 18 5.8GHorizonital 5.8GPitch Plane Page 7 of 18 3. WM261 UAV SDR RF ANT2 3.1 Basic Specifications No. Specification Descriptions 1 Antenna Name WM261 UAV SDR RF ANT2 2 Brand DJI 3 Operation Frequency 2.4~2.483GHz; 5.725~5.85GHz 4 Connector Type IPEX 5 Impedance 50ohm 6 Gain 2 [email protected]~2.483GHz 2.5 [email protected]~5.85GHz 7 Efficiency ≥50% 8 VSWR ≤2.5 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional horizontal Page 8 of 18 3.2 radiation pattern Frequency Efficiency( ) E Total. dB(dB) 2400MHz 59% 1.64122 2420MHz 60% 1.87162 2440MHz 61% 1.84796 2460MHz 62% 1.99157 2480MHz 61% 1.70693 5725MHz 54% 2.48951 5775MHz 53% 2.40645 5800MHz 52% 2.34776 5850MHz 53% 2.39765 2.4GHorizonital 2.4GPitch Plane Page 9 of 18 5.8GHorizonital 5.8GPitch Plane Page 10 of 18 4. WM261 UAV SDR LB ANT3 4.1 Basic Specifications No. Specification Descriptions 1 Antenna Name WM261 UAV SDR LB ANT3 2 Brand DJI 3 Operation Frequency 2.4~2.483GHz; 5.725~5.85GHz 4 Connector Type IPEX 5 Impedance 50ohm 6 Gain 1.5 [email protected]~2.483GHz 3 [email protected]~5.85GHz 7 Efficiency ≥50% 8 VSWR ≤2.5 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional Vertical Page 11 of 18 4.2 radiation pattern Frequency Efficiency( ) E Total. dB(dB) 2400MHz 53% 1.42422 2420MHz 54% 1.45707 2440MHz 55% 1.49203 2460MHz 52% 1.44166 2480MHz 51% 1.39642 5725MHz 50% 2.65794 5775MHz 53% 2.92507 5800MHz 52% 2.71814 5850MHz 50% 2.67981 2.4GHorizonital 2.4GPitch Plane Page 12 of 18 5.8GHorizonital 5.8GPitch Plane Page 13 of 18 1. WM261 UAV WIFI ANT0 L 1.1 Basic Specifications No. Specification Descriptions 1 Antenna Name WM261 UAV WIFI ANT0 2 Brand DJI 3 Operation Frequency 2.4~2.483GHz; 5.725~5.85GHz 4 Connector Type IPEX 5 Impedance 50ohm 6 Gain -2.5 [email protected]~2.483GHz 2.0 [email protected]~5.85GHz 7 Efficiency ≥15% 8 VSWR ≤3.0 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional horizontal Page 14 of 18 1.2 radiation pattern Frequency (MHz) Efficiency Gain(dB) 2400 17% -2.27 2420 18% -2.37 2440 19% -2.27 2460 18% -2.50 2480 18% -2.34 5700 30% 1.79 5750 31% 2.00 5800 32% 1.97 5850 31% 1.87 2.4Horizonital 2.4Pitch Plane 5.8Horizonital Page 15 of 18 5.8Pitch Plane Page 16 of 18 2. WM261 UAV WIFI ANT1 2.1 Basic Specifications No. Specification Descriptions 1 Antenna Name WM261 UAV WIFI ANT1 R 2 Brand DJI 3 Operation Frequency 2.4~2.483GHz; 5.725~5.85GHz 4 Connector Type IPEX 5 Impedance 50ohm 6 Gain -2.5 [email protected]~2.483GHz 2.0 [email protected]~5.85GHz 7 Efficiency ≥15% 8 VSWR ≤3.0 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional horizontal Page 17 of 18 2.2 radiation pattern Frequency (MHz) Efficiency Gain(dB) 2400 16% -2.37 2420 17% -2.50 2440 20% -2.39 2460 19% -2.31 2480 17% -2.41 5700 33% 1.69 5750 36% 1.66 5800 35% 2.00 5850 34% 1.88 2.4Horizonital 2.4Pitch Plane Page 18 of 18 5.8Horizonital 5.8Pitch Plane

SZ DJI TECHNOLOGY CO., LTD Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Company name：SZ DJI TECHNOLOGY CO., LTD. Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Confirmation Letter dated：2023-02-06 We, SZ DJI TECHNOLOGY CO., LTD. The product: DJI Mavic 3 Pro；model No.：L2S DJI Mavic 3 Pro Cine；model No.: L2E The difference between L2S and L2E is L2E in-build SSD, except this, the other is same. Name: Gary. Zeng Designation: certification supervisor Stamp:

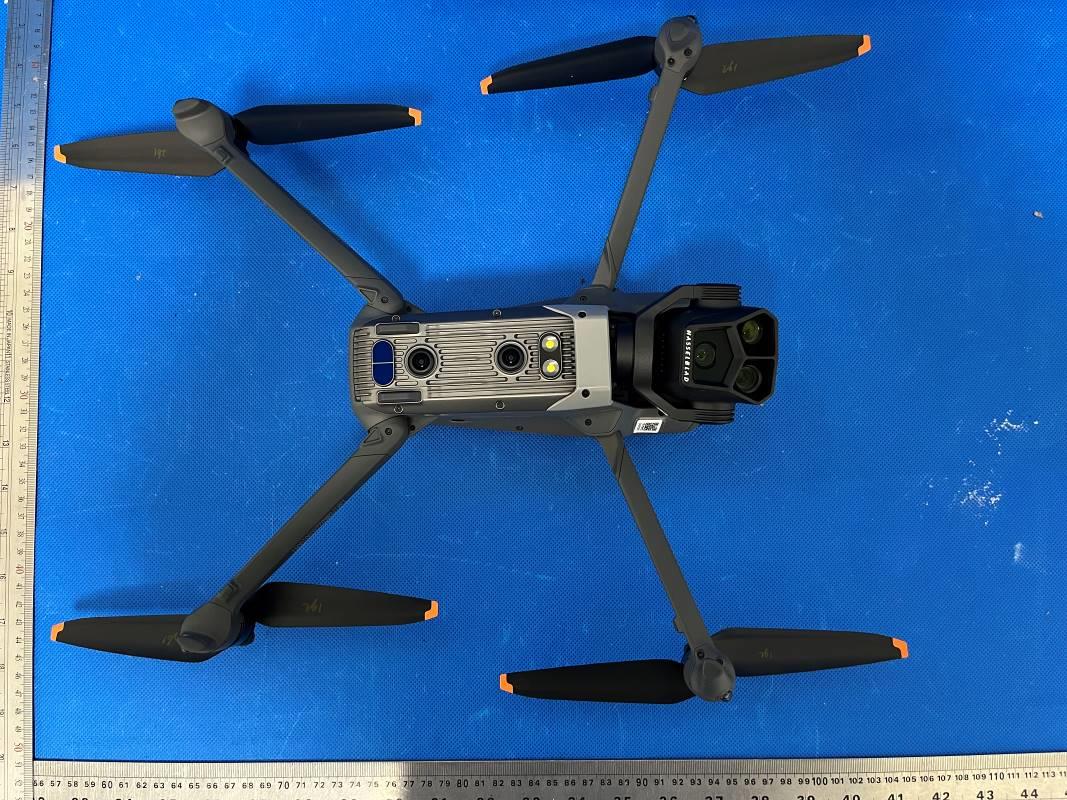

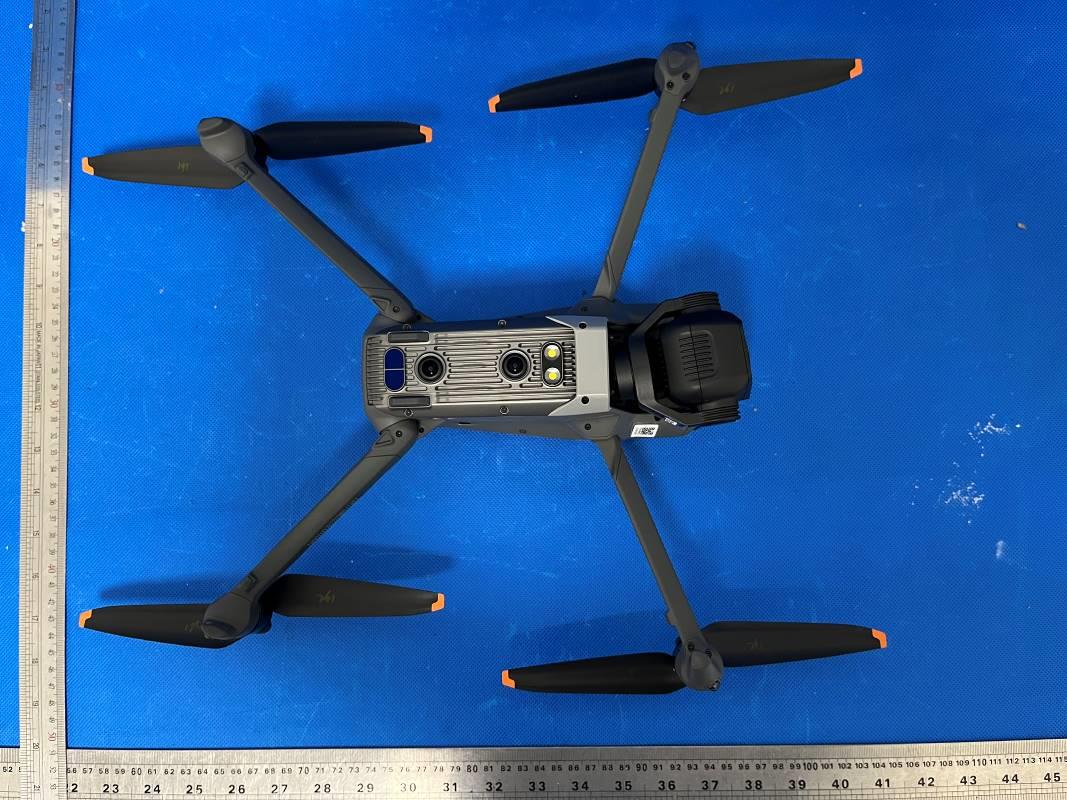

Photo Documentation Figure 1: External view 1-top side Figure 2: External view 2-bottom side Photo Documentation Figure 3: External view 3 Figure 4: Overall view–folded

Within the battery compartment

Photo Documentation Figure 5: Internal view 1 Figure 6: Internal view 2 Photo Documentation Page 4 of 11 Figure 7: Internal view 3-for vision system Figure 8: View with DC fan removed Photo Documentation Page 5 of 11 Figure 9: Internal view 4 Figure 10: Mainboard view 1 Photo Documentation Page 6 of 11 Figure 11: Mainboard view 2 Figure 12: Mainboard view 3 Photo Documentation Page 7 of 11 Figure 13: Internal view 5 (with bottom cover opened) Figure 14. Battery board view 1 Photo Documentation Page 8 of 11 Figure 15. Battery board view 2

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23PXI2 004 Auftrags-Nr.: Order no.: 168400062 Seite 1 von 8 Page 1 of 8 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-11-23 Auftraggeber: Client: SZ DJI TECHNOLOGY CO., LTD. Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Prüfgegenstand: Test item: DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine Bezeichnung / Typ-Nr.: Identification / Type no.: L2S, L2E Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: FCC Part 2: Section 2.1091 RSS-102 Issue 5 Wareneingangsdatum: Date of sample receipt: 2022-12-06 Please refer to photo documents Prüfmuster-Nr.: Test sample no: A003384103-003 A003384103-004 Prüfzeitraum: Testing period: 2022-12-06 to 2023-01-13 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X genehmigt von: authorized by: X Datum: Date: 2023-02-03 Ausstellungsdatum: Issue date: 2023-02-03 Stellung / Position: Sachverständige(r) / Expert Stellung / Position: Sachverständige(r) / Expert Sonstiges / Other: FCC ID: SS3-L2ES2212, IC: 11805A-L2ES2212, HVIN: L2S, L2E Applicant & Manufacturer: SZ DJI TECHNOLOGY CO., LTD., Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Hardy Suo Lin Lin Prüfbericht - Produkte Test Report - Products CN23PXI2 004 Page 2 of 8 1. Radio Frequency Exposure RESULT: Pass Test standard : FCC Part 2: Section 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 1.1 Product Technical Information The EUT (Equipment Under Test) is an aircraft (DJI Mavic 3 Pro with model L2S, DJI Mavic 3 Pro Cine with model L2E). It supports Bluetooth BLE, 2.4GHz SDR, 2.4GHz Wi-Fi, 5.2GHz SDR, 5.8GHz SDR, 5.8GHz Wi-Fi, GPS/BDS/Galileo and ADS-B functions. *remark: SDR means specific defined radio, and cannot changes radio specification via software / firmware by end-users. According to the declaration of the applicant, the electrical circuit design and PCB layout are identical, the different is that L2E has an additional SSD than L2S. For details refer to the User Manual, Technical Description and Circuit Diagram. General Information of EUT Value Kind of Equipment DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine Type Designation L2S (product name: DJI Mavic 3 Pro) L2E (product name: DJI Mavic 3 Pro Cine) Operating Voltage DC 15.4V (Re-charged Battery, 15.4 V, 5000mAh, 77Wh) Extreme Temperature Range -10ºC to +40ºC Radiofrequency operating mode 1) Bluetooth: operating within 2400-2483.5MHz, supports BT 5.1@BLE only, 1Mbps&2Mbps 2) 2.4GHz SDR: operating within 2400-2483.5MHz, supports 1.4MHz/3MHz/10MHz/20MHz/40MHz Bandwidth 3) 2.4GHz Wi-Fi: operating within 2400-2483.5MHz, supports 20MHz/40MHz Bandwidth and IEEE 802.11 b/g/n20/n40/ax20/ax40 4) 5.2GHz SDR: operating within 5150-5250MHz, supports 10MHz/20MHz/40MHz Bandwidth (not applicable for Canada market) 5) 5.8GHz SDR: operating within 5725-5850MHz, supports 1.4MHz/3MHz/10MHz/20MHz/40MHz Bandwidth 6) 5.8GHz Wi-Fi: operating within 5725-5850MHz, supports 20MHz/40MHz/80MHz Bandwidth and IEEE 802.11 a/n20/n40/ac20/ac40/ac80/ax20/ax40/ax80 7) GPS & BDS & Galileo (receiver): operating within 1559-1610MHz 8) ADS-B (receiver): operating at 978MHz (1MHz Bandwidth) and 1090MHz (2MHz Bandwidth) Technical Specification of Bluetooth Operating Frequency 2402-2480MHz Type of Modulation GFSK Data Rate 1Mbps, 2Mbps Channel Number 40 channels for Bluetooth BLE Channel Separation 1MHz and 2MHz Antenna Type Integral Antenna Antenna Number 1 (ANT0) Prüfbericht - Produkte Test Report - Products CN23PXI2 004 Page 3 of 8 Antenna Gain -2.5 dBi The type of wideband data transmission equipment DTS Technical Specification of 2.4GHz SDR Operating Frequency 2403.5-2469.5MHz for 1.4MHz Bandwidth 2405.12-2471.12MHz for 1.4MHz Bandwidth (CA mode) 2405.5-2468.5MHz for 3MHz Bandwidth 2408.2-2471.2MHz for 3MHz Bandwidth (CA mode) 2407.5-2467.5MHz for 10MHz Bandwidth 2412.5-2462.5MHz for 20MHz Bandwidth 2422.5-2452.5MHz for 40MHz Bandwidth Type of Modulation OFDM (QPSK, 16QAM, 64QAM) Channel Number 34 channels for 1.4MHz Bandwidth 34 channels for 1.4MHz Bandwidth (CA mode) 22 channels for 3MHz Bandwidth 22 channels for 3MHz Bandwidth (CA mode) 61 channels for 10MHz Bandwidth 51 channels for 20MHz Bandwidth 31 channels for 40MHz Bandwidth Channel Separation 2MHz for 1.4MHz Bandwidth 2MHz for 1.4MHz Bandwidth (CA mode) 3MHz for 3MHz Bandwidth 3MHz for 3MHz Bandwidth (CA mode) 1MHz for 10MHz Bandwidth 1MHz for 20MHz Bandwidth 1MHz for 40MHz …

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23PXI2 001 Auftrags-Nr.: Order no.: 168400062 Seite 1 von 26 Page 1 of 26 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-11-23 Auftraggeber: Client: SZ DJI TECHNOLOGY CO., LTD. Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Prüfgegenstand: Test item: DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine Bezeichnung / Typ-Nr.: Identification / Type no.: L2S, L2E Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 Wareneingangsdatum: Date of sample receipt: 2022-12-06 Please refer to photo documents Prüfmuster-Nr.: Test sample no: A003384103-003 A003384103-004 Prüfzeitraum: Testing period: 2022-12-06 to 2023-01-13 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X genehmigt von: authorized by: X Datum: Date: 2023-02-03 Ausstellungsdatum: Issue date: 2023-02-03 Stellung / Position: Sachverständige(r) / Expert Stellung / Position: Sachverständige(r) / Expert Sonstiges / Other: FCC ID: SS3-L2ES2212, IC: 11805A-L2ES2212, HVIN: L2S, L2E This report is for Bluetooth BLE, 2.4GHz SDR and 2.4GHz Wi-Fi. Applicant & Manufacturer: SZ DJI TECHNOLOGY CO., LTD., Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Hardy Suo Lin Lin Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN23PXI2 001 Seite 2 von 26 Page 2 of 26 TEST SUMMARY 5.1.1 Antenna Requirement RESULT: Pass 5.1.2 Maximum Peak Conducted Output Power RESULT: Pass 5.1.3 Conducted Power Spectral Density RESULT: Pass 5.1.4 6dB Bandwidth RESULT: Pass 5.1.5 99% Bandwidth RESULT: Pass 5.1.6 Conducted Spurious Emissions Measured in 100 kHz Bandwidth RESULT: Pass 5.1.7 Radiated Spurious Emission RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN23PXI2 001 Seite 3 von 26 Page 3 of 26 TABLE OF CONTENTS 1 GENERAL REMARKS ............................................................................................................................... 4 1.1 Complementary Materials ............................................................................................................ 4 2 TEST SITES ............................................................................................................................................. 5 2.1 Test Facilities ............................................................................................................................... 5 2.2 List of Test and Measurement Instruments .................................................................................. 5 2.3 Traceability ................................................................................................................................... 6 2.4 Calibration .................................................................................................................................... 6 2.5 Measurement Uncertainty ............................................................................................................ 6 2.6 Location of Original Data .............................................................................................................. 6 2.7 Status of Facility Used for Testing .............................................…

Text truncated - open the document above for the full version.
