DJI RELAY User Guide Disclaimer Carefully read this entire document and all safe and lawful practices provided before use. Introduction DJI TM Relay works at 2.4 GHz and 5.8 GHz, which can transmit signals with a supported DJI remote controller and aircraft, respectively. [1] The stable signal transmission can avoid signal being blocked in complex environments. The total working time of the relay is up to 4 hours and can be extended using a mobile power supply. With the mount, the relay can be set up using extension rods of different heights. Overview 1. Detachable Antennas Transmit wireless signals. 2. Water Vent 3. Power Button Press once to check the battery level. Press, then press and hold to power on/off. 4. Status LEDs Indicate the linking status between the remote controller (RC) or aircraft (UAV) with the relay. 5. Battery Level LEDs Indicate the battery level. 6. 5/8′′ Screw Hole For installing the mount. 7. USB-C Port For charging, connecting a mobile power supply [2] or firmware updates. Getting Started Charging the battery Charge the relay through the USB-C port using the charging cable (included) and a USB charger (not included). The battery is fully charged when all the battery level LEDs are on, which takes approximately 2 hours and 20 minutes. It is recommended to fully charge the battery before using it for the first time. It is recommended to use USB Power Delivery chargers. Installation Mount the detachable antennas onto the relay. Linking Follow the steps below to link before using it for the first time. 1. Power on the remote controller and aircraft, and make sure the two devices are linked. 2. Power on the relay. After the status LEDs turn solid red, press and hold relay power button to prepare for linking. 3. Open the DJI Agras app and tap Device Management, then tap Relay > Link to start linking. After linking successfully, the status LED (RC) of the relay will glow solid green. 4. After connecting with the remote controller, the relay will link with the aircraft automatically. The linking is successful when the status LED (UAV) becomes solid green.  Make sure the remote controller and aircraft is within 0.5 m of the relay during linking.  If linking fails, try again after checking the operation and the firmware version. Contact DJI Support if the issue persists. Activation Activation is required before using it for the first time. Follow the instructions on DJI Agras to activate the relay after linking. Using the Relay During usage, it is recommended to set up the relay in high places (such as roofs and high hills) to solve the problem of signal blockage in orchards or fields with tall crops. Follow the instructions below to set up. 1. Install the mount to the relay via the 5/8′′ screw hole. 2. Insert the extension rod into the mount via the screw hole, or attach the extension rod by rope. Users can select extension rods of different heights according to their requirements.  To ensure the signal transmission, it is recommended to set up the relay at least 2 m higher than the crops.  DO NOT obstruct the antennas during use.  DO NOT set up the relay outdoors during thunderstorms to avoid lightning strikes.  The relay should be used in the temperature range of 0° to 40° C (32° to 104° F). High temperatures can lead to fire or an explosion. Low temperatures can negatively affect the performance of the battery.  The battery temperature will be high after use. Charge the relay until it cools down to room temperature. Otherwise, charging may be disabled. Charge at a temperature range of 5° to 40° C (41° to 104° F). The ideal charging temperature range is 22° to 28° C (72° to 82° F). Charging within the ideal temperature range can prolong battery life.  Extinguish any battery fire using water, sand, or a dry powder fire extinguisher.  The electrolytes in the battery are highly corrosive. If any electrolytes make contact with your skin or eyes, wash the affected area with water and see a doctor immediately. Specifications Operating Temperature 0° to 40° C Operating Frequency [1] 2.4000-2.4835 GHz, 5.725-5.850 GHz Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FFC), <20 dBm (SRRC/CE/MIC) 5.8 GHz: <33 dBm (FCC/SRRC), <14 dBm (CE) Max Transmission Distance 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (aircraft altitude at 2.5 m in an unobstructed environment with no interference) Power Consumption 9 W (SRRC), 12 W (FCC) Battery Type Li-ion Capacity 6500 mAh [1] 5.8 GHz frequency is unavailable in some contries. Check local regulations for more information. FCC Compliance Notice Supplier’s Declaration of Conformity Product name: DJI Relay Model Number: RL01-65 Responsible Party: DJI Technology, Inc. Responsible Party Address: 201 S. Victory Blvd., Burbank, CA 91502 Website: www.dji.com We, DJI Technology, Inc., being the responsible party, declares that the above mentioned model was tested to demonstrate complying with all applicable FCC rules and regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or t…

Text truncated - open the document above for the full version.

SZ DJI TECHNOLOGY CO., LTD Date: 2/27/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: SS3-RL016523 1. SZ DJI TECHNOLOGY CO., LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. SZ DJI TECHNOLOGY CO., LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Gary Zeng Job Title: certification supervisor Company Name: SZ DJI TECHNOLOGY CO., LTD

Date: 2/27/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation FCC ID: SS3-RL016523 To whom it may concern: FCC US Agent Agent Company Name: DJI Research LLC FCC FRN: 0033569757 Agent Contact Name: Jinyu Guo Agent US Address: 435 Portage Ave, Palo Alto, CA 94306 Agent Email Address: Email: [email protected] This letter is t o confirm that we have accepted the responsibility to act as US Agent on behalf of SZ DJI TECHNOLOGY CO., LTD for the above referenced FCC ID. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Authorized Agent Contact Person Name: Jinyu Guo Agent contact Job Title: Corporate counsel Agent Company name: DJI Research LLC

SZ DJI TECHNOLOGY CO., LTD Date: 2/27/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: SS3-RL016523 SZ DJI TECHNOLOGY CO., LTD as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: DJI Research LLC Company Name: Jinyu Guo Company Address: 435 Portage Ave, Palo Alto, CA 94306 Email: [email protected] Sincerely yours, Name: Gary Zeng Job Title: certification supervisor Company Name: SZ DJI TECHNOLOGY CO., LTD

SZ DJI TECHNOLOGY CO., LTD Date: 2/27/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: SZ DJI TECHNOLOGY CO., LTD Contact Name: Gary Zeng Title of Person: certification supervisor Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China

SZ DJI TECHNOLOGY CO., LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: SS3-RL016523 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: SZ DJI TECHNOLOGY CO., LTD Contact Name: Gary Zeng Title of Person: certification supervisor Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Date:2/27/2023 Bom List

SZ DJI TECHNOLOGY CO., LTD DATE : 2023-2-27 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: Harman International Industries, Inc FCC ID: SS3-RL016523 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1)Test Setup Photos (2)External Photos (3)Internal Photos (4)User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Signature Company Name: SZ DJI TECHNOLOGY CO., LTD Contact Name: Gary Zeng Title of Person: certification supervisor Address: Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Date:2/27/2023

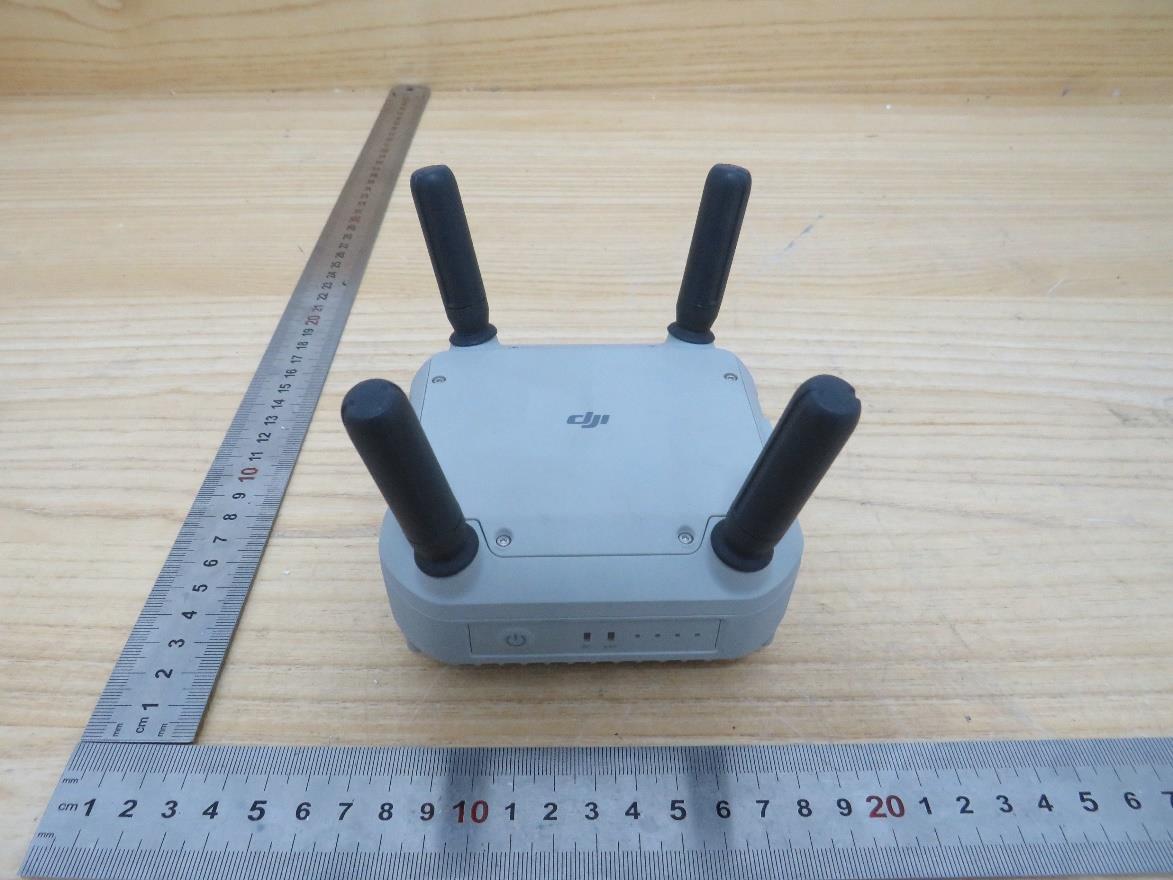

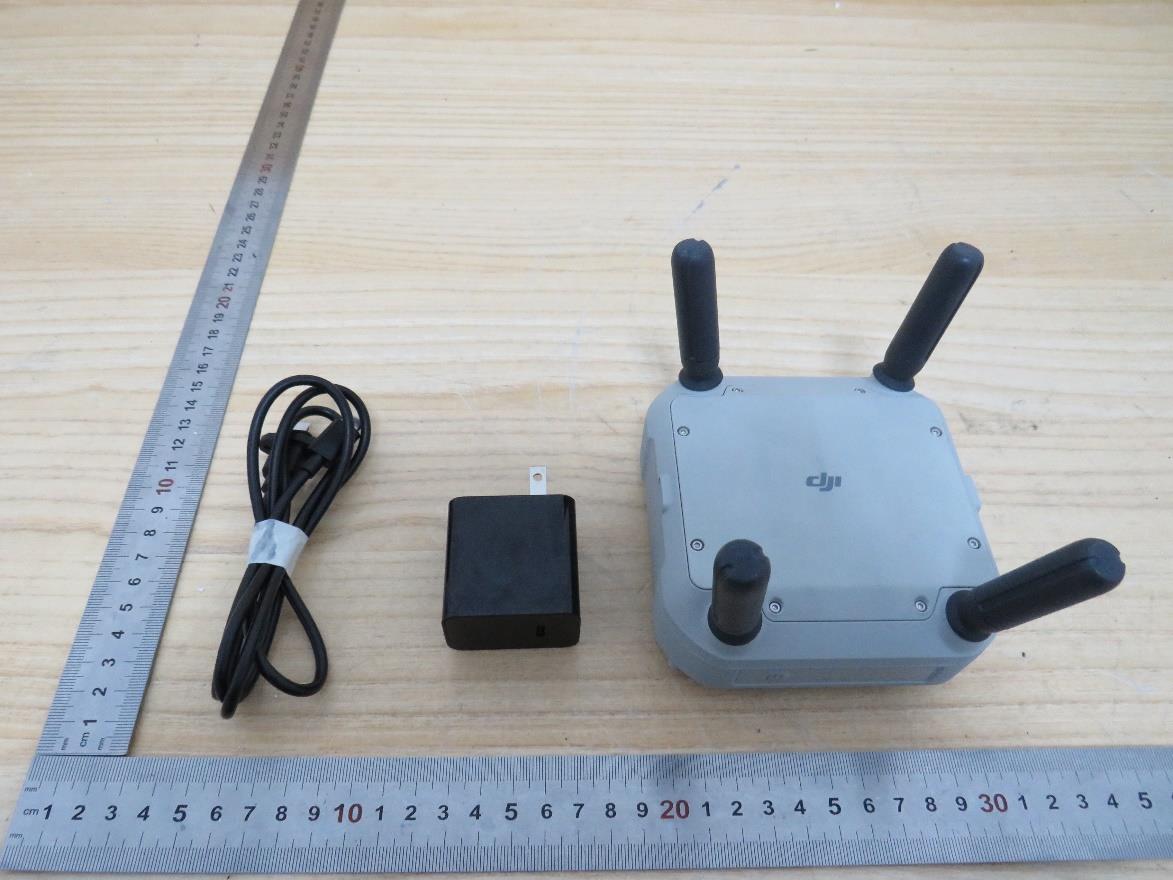

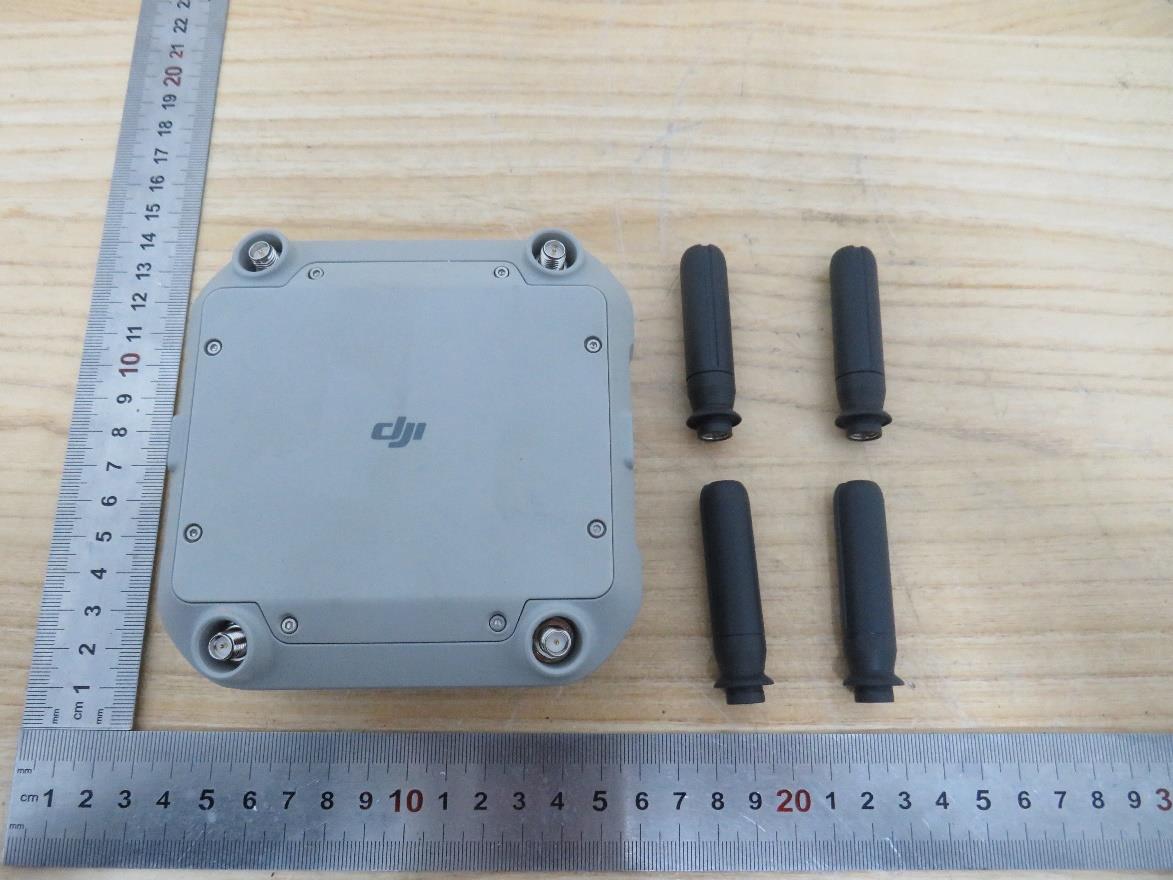

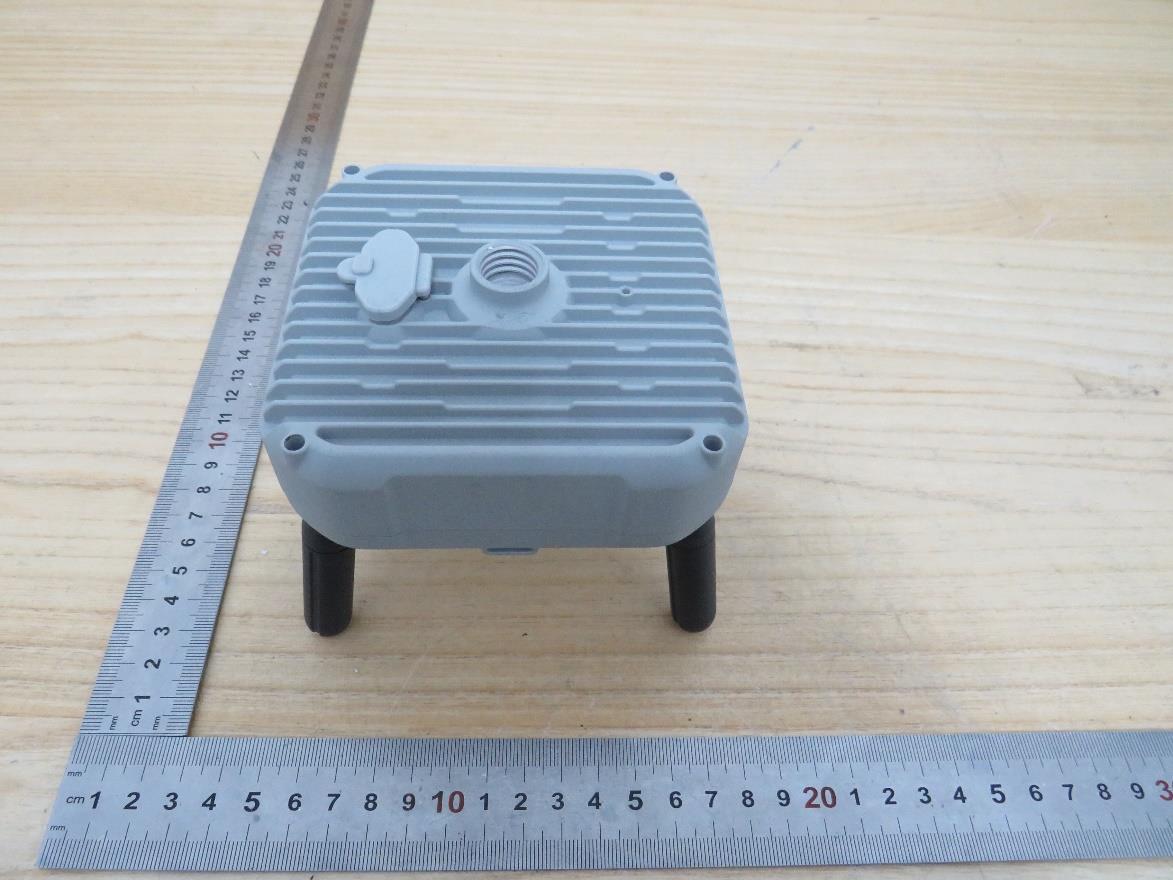

Appendix I External Photographs Page 2 of 6 View of EUT-1 View of EUT-2 Antenna 0 Antenna 1 Antenna 3 Antenna 2 Page 3 of 6 View of EUT-3 View of EUT-4 Page 4 of 6 View of EUT-5 View of EUT-6 Page 5 of 6 View of EUT-7 View of EUT-8 Page 6 of 6 View of EUT-9 View of EUT-10

Note: 1. This would be a plastic label with a permanent adhesive.

Appendix II Internal Photographs Page 2 of 7 Internal View of EUT-1 Internal View of EUT-2 Page 3 of 7 Internal View of EUT-3 Internal View of EUT-4 Page 4 of 7 Internal View of EUT-5 Internal View of EUT-6 Page 5 of 7 Internal View of EUT-7 Internal View of EUT-8 Page 6 of 7 Internal View of EUT-9 Internal View of EUT-10 Page 7 of 7 Internal View of EUT-11 Internal View of EUT-12

1 DJI Relay Antenna Datasheet__ 目录 1 Basic Specifications ........................................................................................................................ 3 2 Gain & Efficiency ............................................................................................................................ 4 3 radiation pattern ............................................................................................................................ 4 4 Structure drawing ........................................................................................................................... 5 5 manufacturer ................................................................................................................................. 5 Revision history Version Change notes Modificator Date V1.0 Alaan.he 1 Basic Specifications No. Specification Descriptions Notes 1 Antenna Name SRD Antenna 2 Brand DJI 3 Operation Frequency 2.4~2.485GHz; 5.725~5.875GHz 4 Connector Type sma 5 Impedance 50ohm 6 Gain [email protected]~2.483GHz [email protected]~5.875GHz 7 Efficiency ≥65% 8 VSWR ≤2 9 Polarization type Linear 10 3dB Beamwidth Omnidirectional horizon 11 Weight 12 Tyepe Dipole Antenna 2 Gain & Efficiency Frequency Efficiency( ) E Total. dB(dB) 2400MHz 33% 2.7349 2440MHz 40% 3.50101 2480MHz 39% 3.45536 2500MHz 39% 3.25102 2550MHz 34% 2.33345 2600MHz 22% -0.04410 5700MHz 43% 4.52577 5750MHz 54% 4.51972 5800MHz 59% 4.25223 5850MHz 59% 4.50839 3 radiation pattern 2.4&5.8GHz Theta=90 Phi=0 Phi=90 4 Structure drawing 5 manufacturer Shenzhen Zhongtian Xuntong Technology Co., Ltd. Address: No. 34, Shilong Road, Baoan District, Shenzhen City, Guangdong Province Note: This antenna is used by DJI only, manufacturer will not sale to other client and will keep it confidential, so it will not be published on the manufacturer’s website

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C TEST REPORT For DJI Relay MODEL NUMBER: RL01-65 REPORT NUMBER: 4790741213-RF-1 ISSUE DATE: May 6, 2023 FCC ID: SS3-RL016523 Prepared for SZ DJI TECHNOLOGY CO., LTD Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District, Shenzhen, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790741213-RF-1 Page 2 of 220 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 May 6, 2023 Initial Issue REPORT NO.: 4790741213-RF-1 Page 3 of 220 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6dB Bandwidth FCC Part 15.247 (a) (2) Pass 2 Average Conducted Output Power FCC Part 15.247 (b) (3) Pass 3 Power Spectral Density FCC Part 15.247 (e) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 Pass 7 Antenna Requirement FCC Part 15.203 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C > when <Accuracy Method> decision rule is applied. REPORT NO.: 4790741213-RF-1 Page 4 of 220 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 6 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. MAXIMUM OUTPUT POWER ................................................................................... 9 5.3. CHANNEL LIST ...................................................................................................... 10 5.4. TEST CHANNEL CONFIGURATION ...................................................................... 13 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 13 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 14 5.7. THE WORSE CASE CONFIGURATIONS ............................................................... 15 5.8. DESCRIPTION OF TEST SETUP ........................................................................... 16 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 17 7. ANTENNA PORT TEST RESULTS ..................................................................................... 19 7.1. CONDUCTED OUTPUT POWER ........................................................................... 19 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 20 7.3. POWER SPECTRAL DENSITY .............................................................................. 22 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION ..................................... 23 7.5. DUTY CYCLE ......................................................................................................... 25 8. RADIATED TEST RESULTS ............................................................................................... 26 8.1. RESTRICTED BANDEDGE .................................................................................... 35 8.2. SPURIOUS EMISSIONS (1 GHZ ~ 3 GHZ) ............................................................ 63 8.3. SPURIOUS EMISSIONS (3 GHZ ~ 18 GHZ) .......................................................... 69 8.4. SPURIOUS EMISSIONS (9 KHZ ~ 30 MHZ)......................................................... 111 8.5. SPURIOUS EMISSIONS (18 GHZ ~ 26 GHZ) ...................................................... 114 8.6. SPURIOUS EMISSIONS (30 MHZ ~ 1 GHZ) ........................................................ 116 8.7. SPURIOUS EMISSIONS FOR SIMULTANEOUS TRANSMISSION ..................... 118 9. AC POWER LINE CONDUCTED EMISSION .......…
