SS3-WM300U58GRemote Control

1233 Upgrade-Information zur Phantom Fernsteuerung Vielen Dank, dass Sie sich für den Kauf eines Phantoms entschieden haben. DJI bringt eine verbesserte Version (Modelle: NPVT581, NDJ6 und NRC900) von Fernsteuerungen auf den Markt, welche die bisherigen Fernsteuerungen (Modelle: PVT581, DJ6 und RC900) ersetzen wird. Die aufgerüsteten Fernsteuerungen enthalten neue Features wie einen Gimbal-Drehregler, eingebaute LiPo Batterien und eine Batterieladestandsanzeige. Die neue Version der Fernsteuerung ist mit dem Phantom 2 Vision+, Phantom 2 Vision und Phantom 2 kompatibel. Einen direkten Vergleich der beiden Fernsteuerungen finden Sie in dieser Broschüre. Avis de la Phantom télécommande Upgrade Merci beaucoup d’avoir choisi d'acheter la Phantom. DJI publie une version améliorée (modèles: NPVT581, NDJ6 et NRC900) de télécommandes, pour remplacer les télécommandes d’origine (modèles: PVT581, DJ6 et RC900). Les nouvelles fonctionnalités inclues telles qu'un contrôleur de rotation pour le gimbal, une batterie intégrée et des niveaux indicateurs de la batterie LiPo. La version améliorée de la télécommande est compatible avec Phantom 2 Vision+, Phantom 2 Vision et Phantom 2. Une comparaison directe des deux télécommandes se trouve dans cette brochure. 4. Gassperre: Drücken Sie den Gashebel nach unten, um zu landen. Der Hebel rastet ein und das Fluggerät sinkt gleichmäßig zu Boden. Drücken Sie den Gashebel nach oben, um diesen wieder zu entriegeln. 5. Trainer Port: Verbinden Sie die Fernsteuerung über den Trainer Port mit dem Computer, um die Simulations-Anwendung zu starten und Ihre Flugfähigkeiten zu verbessern. 4. Verrouillage de l’accélérateur: Abaissez la manette pour descendre. La manette se verrouille en place et l’avion descendra progressivement. Poussez la manette de gaz vers le haut pour déverrouiller l’accélérateur. 5. Le port formateur: Connectez la télécommande à l’ordinateur via le port pour activer l'application de simulation afin d'améliorer votre compétence de vol. Nochmals Vielen Dank, dass Sie sich für den Kauf eines Produktes aus der Phantom Serie entschieden haben.Encore merci pour l’achat de produits de la série Phantom Linker DrehreglerCadran gauche BatterieladestandsanzeigeIndicateur de niveau de batterie （ Vorderseite ）（ face ）（ Vorderseite ）（ face ） Trainer PortPort formateur （ Rückseite ）（ revers ）（ Rückseite ）（ revers ） Trainer PortPort formateur Notice - Phantom Remote Control Upgrade Thank you for purchasing a Phantom. DJI has released an upgraded remote control (models: NPVT581, NDJ6 and NRC900) to replace the previous models (PVT581, DJ6 and RC900). The upgraded remote control comes with new features, including a gimbal control dial, built- in LiPo battery, and battery level LED indicators. The new remote control is compatible with the Phantom 2 Vision+, Phantom 2 Vision and Phantom 2. We are taking NPVT581 as an example. Neue Features: 1. Linker Drehregler: Bewegen Sie den Regler nach rechts und die Kamera dreht sich, um nach oben zu zeigen. Bewegen Sie den Regler nach links und die Kamera dreht sich nach unten. Die Kamera hält die aktuelle Position, wenn der Regler nicht bewegt wird. Nouvelles fonctions: 1. Cadran gauche: Tournez le cadran vers la droite et le caméra se déplacera vers le haut. Tournez le cadran vers la gauche et le caméra se déplacera vers en bas. La caméra permet de garder sa position si le cadran est statique. New Features 1. Left Dial: Turn the dial to the right, and the camera will shift to point upwards.Turn the dial to the left, and the camera will shift to point downwards. The camera will keep its current position if the dial is static. 4. Throttle Lock: Pull down the throttle stick to descend. The stick will lock into place and the aircraft will descend steadily. Push the throttle stick upward to release throttle lock. 5. Trainer Port: Connect the remote control to the computer via the trainer port to run simulation application to practice your flying skills. Thank you again for buying from DJI Upgrade Version Left Dial Battery Level Indicator （ front view ）（ front view ） Trainer Port （ rear view ）（ rear view ） 3. Aufladen der Fernsteuerung: Laden Sie die eingebaute LiPo Batterie durch den Phantom RC Assistant Port über das mitgelieferte Kabel. Die Ladestandsanzeige leuchtet während des Ladevorganges rot. Sobald die Batterie voll aufgeladen ist, leuchtet die Ladestandsanzeige grün. 3. Charge de la télécommande: Charge la batterie LiPo intégrée avec le Phantom RC assistant port par le cable include. Le voyant LED clignote rouge pendant que le chargement est en cours. Le voyant LED clignote en vert lorsque la batterie est complètement chargée. 2. Eingebaute LiPo Batterie: Die Fernsteuerung enthält eine wieder aufladbare LiPo Batterie mit einer Kapazität von 2000mAh. Überprüfen Sie den aktuellen Ladezustand der Batterie direkt über die Ladestandsanzeige auf der Vorderseite der Fernsteuerung. Der Ladezustand wird wie folgt angezeigt: 2. Batterie LiPo intégrée: La télécommande comprend une batterie rechargeable LiPo avec une capacité de 2000mAh. Vérifier le niveau actuel de la batterie a partir des indicateurs de niveau de batterie sur la face avent de la télécommande. Les informations de niveau de batterie sont indiqués comme suit: Batterieladestandsanzeige 25％50％75％100％ Indicateur de niveau de batterie 25％50％75％100％ 3. Charging the Remote Control: Charge the remote control’s battery by using the included micro-USB cable. The LED indicators will display solid red when charging is in progress. The LED indicators will display solid green when the battery is fully charged. 2. Built-in LiPo Battery: The remote control includes a rechargeable LiPo battery with a capacity of 2000mAh. You can monitor the current battery level using the LED indicators on the front panel of the remote control as the figure shown: Battery Level Indicator 25％50％75％100％ Trainer Port ENDEFR Basic Version EnglishDeutsch Français NPVT581PVT581 Upgrade VersionBasic Version NPV…

Text truncated - open the document above for the full version.

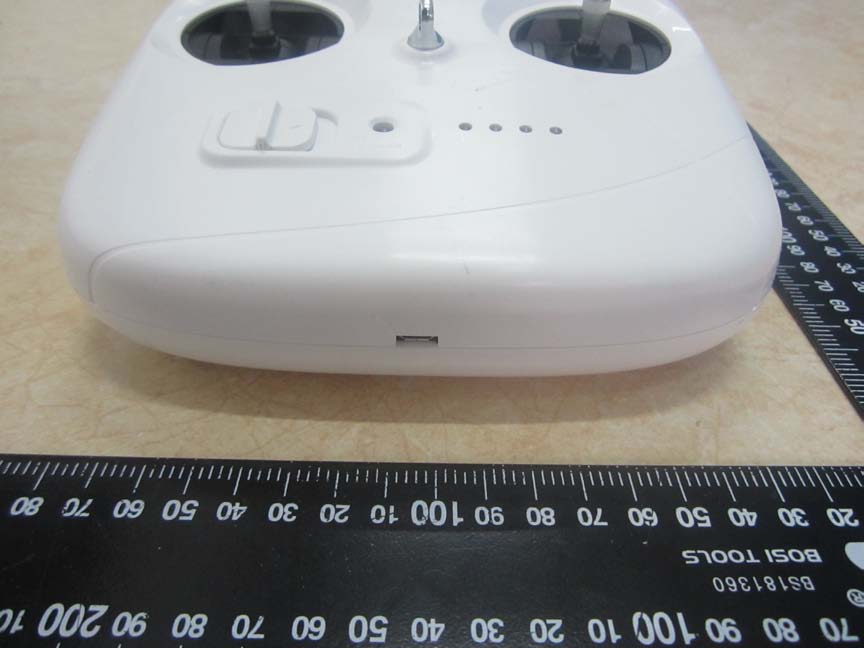

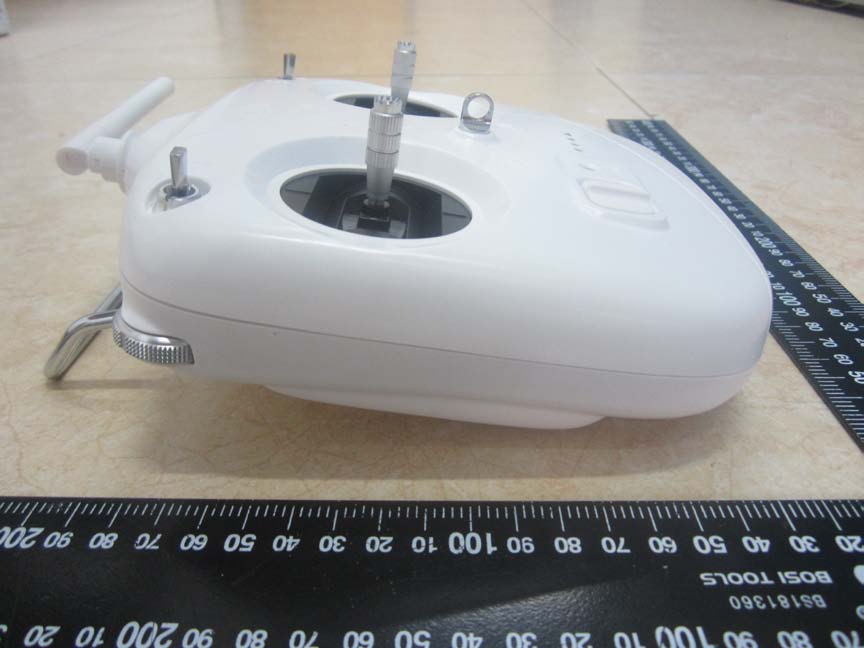

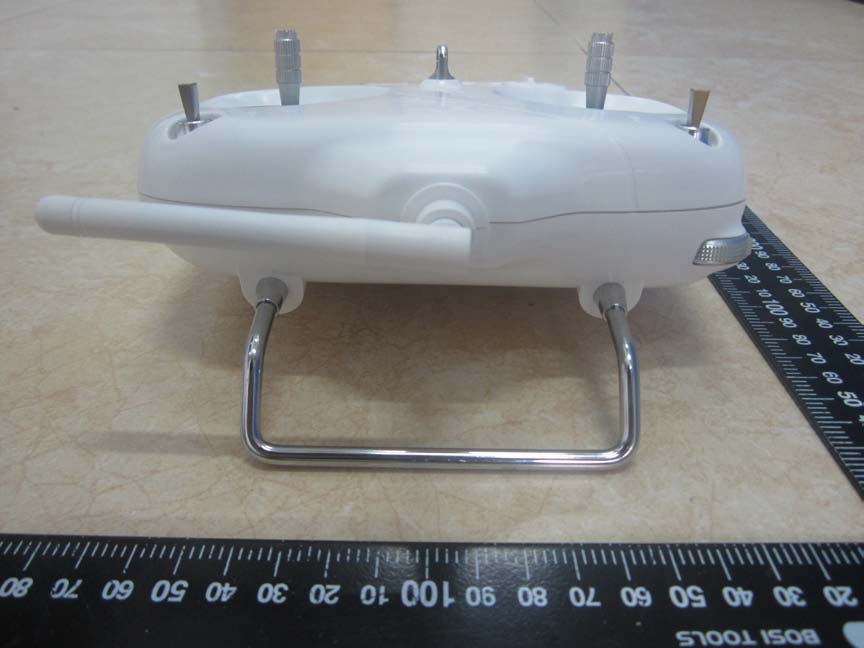

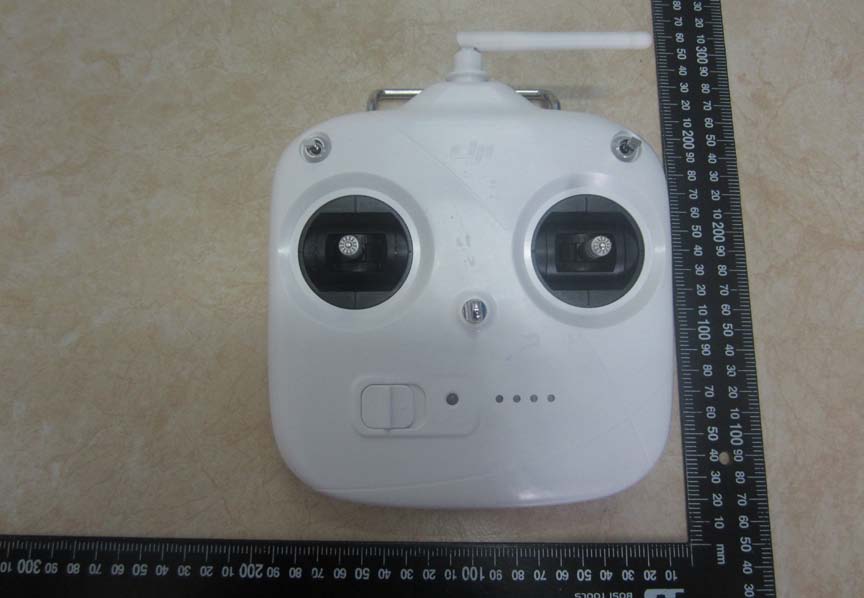

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

FCC label and label location 1. Label 2. Label location

Internal Photos 1. EUT uncover view 2. Mainboard front view 3. Mainboard rear view 4. RF board view 5. Sub board view 6. Antenna view

2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 2 0f 43 SZ14080041S02 DIRECTORY TEST REPORT DECLARATION ······················································································· 4 1. TECHNICAL INFORMATION ······················································································ 5 1.1 IDENTIFICATION OF APPLICANT ······················································································· 5 1.2 IDENTIFICATION OF MANUFACTURER ················································································ 5 1.3 EQUIPMENT UNDER TEST (EUT) ····················································································· 5 1.3.1 PHOTOGRAPHS OF THE EUT ······················································································· 5 1.3.2 IDENTIFICATION OF ALL USED EUT ················································································· 5 1.4 APPLIED REFERENCE DOCUMENTS ·················································································· 6 1.5 DEVICE CATEGORY AND SAR LIMITS ··············································································· 6 2. SPECIFIC ABSORPTION RATE (SAR) ··········································································· 7 2.1 INTRODUCTION ··········································································································· 7 2.2 SAR DEFINITION ········································································································ 7 3. SAR MEASUREMENT SETUP ······················································································ 8 3.1 THE MEASUREMENT SYSTEM ························································································· 8 3.2 PROBE ····················································································································· 8 3.3 PROBE CALIBRATION PROCESS ····················································································· 10 3.3.1 DOSIMETRIC ASSESSMENT PROCEDURE ········································································ 10 3.3.2 FREE SPACE ASSESSMENT PROCEDURE ········································································ 10 3.3.3 TEMPERATURE ASSESSMENT PROCEDURE ····································································· 10 3.4 PHANTOM ················································································································ 11 3.5 DEVICE HOLDER ········································································································ 11 4. TISSUE SIMULATING LIQUIDS ··················································································· 12 5. UNCERTAINTY ASSESSMENT ···················································································· 13 5.1 UNCERTAINTY EVALUATION FOR EUT SAR TEST ······················································· 13 5.2 UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK ················································ 14 2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 3 0f 43 SZ14080041S02 6. SAR MEASUREMENT EVALUATION ············································································ 16 6.1 SYSTEM SETUP ········································································································· 16 6.2 VALIDATION RESULTS ································································································· 17 7. OPERATIONAL CONDITIONS DURING TEST ································································ 18 7.1 BODY-WORN CONFIGURATIONS ····················································································· 18 7.2 MEASUREMENT PROCEDURE ························································································· 18 7.3 DESCRIPTION OF INTERPOLATION/EXTRAPOLATION SCHEME ·················································· 19 8. MEASUREMENT OF CONDUCTED OUTPUT POWER ···················································· 20 9. TEST RESULTS LIST ································································································· 21 ANNEX A GRAPH TEST RESULTS ················································································· 23 ANNEX B GENERAL INFORMATION ··············································································· 42 Change History Issue Date Reason for change 1.0 2014-10-16 First edition 2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 5 0f 43 SZ14080041S02 1. TECHNICAL INFORMATION Note: the Following data is based on the information by the applicant. 1.1 Identification of Applicant Company Name: SZ DJI TECHNOLOGY CO., LTD Address: 17th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan District, Shenzhen, China 1.2 Identification of Manufacturer Company Name: SZ DJI TECHNOLOGY CO., LTD Address: 17th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan District, Shenzhen, China 1.3 Equipment Under Test (EUT) Model Name: NPVT581 Trade Name: DJI Brand Name: DJI Hardware Version: 1.01 Software Version: 1.0.2.24 Tx Frequency Bands: 5728-5844MHz Uplink Modulations: GFSK DTM: Not support Antenna type: External Antenna Development Stage: Identical prototype Hotspot function: Not Support 1.3.1 Photographs of the EUT Please refer to the External Photos for the Photos of the EUT 1.3.2 Identification of all used …

Text truncated - open the document above for the full version.

2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 21 0f 43 SZ14080041S02 9. TEST RESULTS LIST Summary of Measurement Results (5.8G) Temperature: 21.0~23.8°C, humidity: 54~60%. Phantom Configurations Device Test Positions Device Test channel SAR(W/Kg), 1g Peak Scaling Factor Scaled SAR (W/Kg), 1g Body (10mm Separation) Face Upward 16 0.013 1.019 0.013 Edge A 0.096 0.098 Edge B 0.034 0.035 Edge C 0.066 0.067 Temperature: 21.0~23.8°C, humidity: 54~60%. Phantom Configurations Device Test Positions Device Test channel SAR(W/Kg), 10g Peak Scaling Factor Scaled SAR (W/Kg), 10g Body (0mm Separation) Hand Face Upward 16 0.010 1.019 0.010 Edge A 0.031 0.032 Edge B 0.017 0.017 Edge C 0.024 0.024 Note: 1. When the 1-g SAR for the mid-band channel or the channel with the highest output power satisfy the following conditions, testing of the other channels in the band is not required. (Per KDB 447498 D01 General RF Exposure Guidance v05r02) ≤ 0.8 W/kg and transmission band ≤ 100 MHz ≤ 0.6 W/kg and, 100 MHz < transmission bandwidth ≤ 200 MHz ≤ 0.4 W/kg and transmission band > 200 MHz 2. IEEE Std 1528-2013 requires the middle channel to be tested first. This generally applies to wireless devices that are designed to operate in technologies with tight tolerances for maximum output power variations across channels in the band. When the maximum output power variation across the required test channels is > ½ dB, instead of the middle channel, the highest output power channel must be used. 2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 22 0f 43 SZ14080041S02 3. Per KDB 447498, when the SAR procedures require multiple channels to be tested and the 1-g SAR for the highest output channel is less than 0.8 W/kg and peak SAR is less than 1.6W/kg, where the transmission band corresponding to all channels is ≤ 100 MHz, testing for the other channels is not required. 4. Scaling Factor calculation Band Tune-up power tolerance(dBm) SAR test channel Power (dBm) Scaling Factor 5.8G PCL = 5, PWR =17.5+-0.5 17.918 1.019 2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 23 0f 43 SZ14080041S02 ANNEX A GRAPH TEST RESULTS BAND PARAMETERS 5.8G Measurement 1: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 2: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 3: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 4: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 5: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 6: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 7: Flat Plane with Body device position on Middle Channel in GFSK mode Measurement 8: Flat Plane with Body device position on Middle Channel in GFSK mode M 2. ORLAB Type: Phon Area Zoo m Date of me Measureme A. Experi m B. SAR M e High Band B GROU ne measure scan resolu m scan reso easurement ent duration mental cond Phan Ph Device B Ch S easuremen SAR Fre q Relative pe Cond Po Ambie Liquid C SU UP FL1-3, Buil Block67, B ement (Com ution: dx=8m lution: dx=5 : 2014.10.1 n: 9 minutes ditions. ntom File hantom e Position Band annels Signal nt Results quency (MH ermittivity ductivity (S ower drift (% ent Tempera d Tempera ConvF: rest factor URFACE SA ding A, FeiYang Scie BaoAn District, Shen MEA mplete) mm,dy=8mm 5mm, dy=5m 0 s 28 second Hz) (real part) S/m) %) ature: ture: r: AR ence Park, No.8 Long nZhen , GuangDong ASUREMEN m mm, dz=5m ds gChang Road, g Province, P. R. Ch NT 1 mm surf_s a Validat B 5 H G 58 4 - VO Tel: 86-755- hinaHttp://www.m  am_plan.txt tion plane Body 5.8G High GFSK 844.000000 48.132865 6.068271 -0.680000 22.9°C 22.1°C 26.47 1:1 OLUME SAR -36698555 Fax morlab.com E-m SZ14 0 R : 86-755-36698525 mail: service@morlab Page 24 0f 43 4080041S0 .cn 02 M 2. ORLAB B GROU SAR SAR 3D UP FL1-3, Buil Block67, B Ma R 10g (W/K R 1g (W/K screen sh ding A, FeiYang Scie BaoAn District, Shen aximum loc SAR P Kg) Kg) Z ot ence Park, No.8 Long nZhen , GuangDong cation: X=8 Peak: 0.04 W Z axis scan gChang Road, g Province, P. R. Ch 8.00, Y=25.0 W/kg Hot s Tel: 86-755- hinaHttp://www.m  00 0.004151 0.013426 spot positi -36698555 Fax morlab.com E-m SZ14 ion : 86-755-36698525 mail: service@morlab Page 25 0f 43 4080041S0 .cn 02 M 2. ORLAB Type: Phon Area Zoo m Date of me Measureme A. Experi m B. SAR M e High Band B GROU ne measure scan resolu m scan reso easurement ent duration mental cond Phan Ph Device B Ch S easuremen SAR Fre q Relative pe Cond Po Ambie Liquid C SU UP FL1-3, Buil Block67, B ement (Com ution: dx=8m lution: dx=5 : 2014.10.1 n: 9 minutes ditions. ntom File hantom e Position Band annels Signal nt Results quency (MH ermittivity ductivity (S ower drift (% ent Tempera d Tempera ConvF: rest factor URFACE SA ding A, FeiYang Scie BaoAn District, Shen MEA mplete) mm,dy=8mm 5mm, dy=5m 0 s 39 second Hz) (real part) S/m) %) ature: ture: r: AR ence Park, No.8 Long nZhen , GuangDong ASUREMEN m mm, dz=5m ds gChang Road, g Province, P. R. Ch NT 2 mm surf_s a Validat B 5 H G 58 4 - VO Tel: 86-755- hinaHttp://www.m  am_plan.txt tion plane Body 5.8G High GFSK 844.000000 48.132865 6.068271 -2.970000 22.9°C 22.1°C 26.47 1:1 OLUME SAR -36698555 Fax morlab.com E-m SZ14 0 R : 86-755-36698525 mail: service@morlab Page 26 0f 43 4080041S0 .cn 02 M 2. ORLAB B GROU SAR SAR 3D UP FL1-3, Buil Block67, B Max R 10g (W/K R 1g (W/K screen sh di…

Text truncated - open the document above for the full version.

M 2. ORLAB B GROU SAR SAR 3D UP FL1-3, Buil Block67, B Ma R 10g (W/K R 1g (W/K D sceen sho ding A, FeiYang Scie BaoAn District, Shen ximum loc Kg) Kg) Z ot ence Park, No.8 Long nZhen , GuangDong cation: X=-6 Axis Scan gChang Road, g Province, P. R. Ch 6.00, Y=-1.0 1 n Hot s Tel: 86-755- hinaHttp://www.m  00 6.642542 19.581827 spot positi -36698555 Fax morlab.com E-m SZ14 ion : 86-755-36698525 mail: service@morlab Page 41 0f 43 4080041S0 .cn 02 2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 42 0f 43 SZ14080041S02 ANNEX B GENERAL INFORMATION 1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co., Ltd. Department: Morlab Laboratory Address: FL.3, Building A, FeiYang Science Park, No.8 LongChang Road, Block 67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Responsible Test Lab Manager: Mr. Su Feng Telephone: +86 755 36698555 Facsimile: +86 755 36698525 2. Identification of the Responsible Testing Location 3. Accreditation Certificate Accredited Testing Laboratory: CNAS No. L3572 (Shenzhen Morlab Communications Technology Co., Ltd.) Name: Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address: FL.3, Building A, FeiYang Science Park, No.8 LongChang Road, Block 67, BaoAn District, ShenZhen, GuangDong Province, P. R. China 2. MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 43 0f 43 SZ14080041S02 4. List of Test Equipments No. Instrument Type Cal. Date Cal. Due 1 PC Dell (Pentium IV 5.8GHz, SN:X10-23533) (n.a) (n.a) 2 Network Emulator Aglient (8960, SN:10752) 2014-2-21 1year 3 Network Analyzer Agilent(E5071B ,SN:MY42404762 ) 2014-8-24 1year 4 Voltmeter Keithley (2000, SN:1000572) 2014-8-24 1year 5 Signal Generator Rohde&Schwarz (SMP_02 ) 2014-8-24 1year 6 Power Amplifier PRANA (Ap32 SV125AZ) 2014-8-24 1year 7 Power Meter Agilent (E4416A, SN:MY45102093) 2014-5-07 1year 8 Power Sensor Agilent (N8482A, SN:MY41091706) 2014-5-07 1year 9 Directional coupler Giga-tronics(SN:1829112) 2014-8-24 1year 10 Probe Satimo (SN:SN 27/13 EPG193) 2014-9-22 1year 11 Dielectric Probe Kit Agilent (85033E ) 2014-8-24 1year 12 Phantom Satimo (SN:SN_36_08_SAM62) 2014-8-24 1year 13 Liquid Satimo(Last Calibration: 2014-10-10) N/A N/A 14 Dipole 5800MHz Satimo (SN 41/12 WGA21) 2014-9-22 1year ***** END OF REPORT *****

MORLAB TEST REP 1.TECHN 1.1. APPL 1.2. EQUI 1.2.1. IDE 1.3. TEST 1.3.1. TES 2.47 CFR 2.1. ANTE 2.1.1. APP 2.1.2. RES 2.2. PEAK 2.2.1. REQ 2.2.2. TES 2.2.3. TES 2.3. BAND 2.3.1. REQ 2.3.2. TES 2.3.3. TES 2.4. COND 2.4.1. REQ 2.4.2. TES 2.4.3. TES 2.5. POWE 2.5.1. REQ 2.5.2. TES 2.5.3. TES 2.6. COND 2.6.1. REQ 2.6.2. TES 2.6.3. TES B GROU PORT DECL NICAL INFO LICANT INFO PMENT UND E ENTIFICATION T STANDARD ST ENVIRON R PART 15C ENNA REQUIR PLICABLE ST SULT:COMP K OUTPUT PO QUIREMENT ST DESCRIPT ST RESULT∙∙ DWIDTH∙∙∙∙∙∙∙ QUIREMENT ST DESCRIPT ST RESULT∙∙ DUCTED SPU QUIREMENT ST DESCRIPT ST RESULT∙∙ ER SPECTRA QUIREMENT ST DESCRIPT ST RESULT∙∙ DUCTED EMI QUIREMENT ST DESCRIPT ST RESULT∙∙ UP FL1-3, Buil Block67, B LARATION ORMATION RMATION∙∙∙∙ ER TEST (EU N OF ALLUSE S AND RESU MENT COND C REQUIRE REMENT∙∙∙∙∙ TANDARD∙∙∙∙ PLIANT∙∙∙∙∙∙∙∙∙∙ OWER∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ TION∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ TION∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ URIOUS EMIS ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ TION∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ AL DENSITY ( ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ TION∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ISSION∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ TION∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ding A, FeiYang Scie BaoAn District, Shen DIR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ N∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ UT) DESCRI ED EUTS∙∙∙∙∙ ULTS∙∙∙∙∙∙∙∙∙∙∙∙ DITIONS∙∙∙∙∙∙∙∙ EMENTS∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ SSIONS AND ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ (PSD)∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ence Park, No.8 Long nZhen , GuangDong RECTOR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ IPTION∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ BAND EDG ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ gChang Road, g Province, P. R. Ch R RY ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ E∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Tel: 86-755- hinaHttp://www.m REPORTN ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ -36698555Fax morlab.comE-m No.：SZ140 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ : 86-755-36698525 mail: service@morlab Page20f 39 080041W0 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙2 .cn 04 4 5 5 5 6 6 7 8 8 8 8 8 8 8 9 12 2 2 2 15 5 5 5 20 0 0 1 24 4 4 5 MORLAB Applica Applica Manufa Manufa Product Model N Brand N HW Ver SW Ver Te s t S ta Te s t Da Te s t Re B GROU ant ant Address acturer acturer Add tName Name Name rsion rsion andards ate esult Te s te Revi Appr UP FL1-3, Buil Block67, B Te SZ s 17th NO SZ dress 17th NO Rem NP DJI 1.0 1.0 47 201 PAS ed by iewed by roved by ding A, FeiYang Scie BaoAn District, Shen est Rep DJI TECH h floor, Wes .18 Gaoxin DJI TECHN h floor, Wes .18 Gaoxin mote Contro VT581 I 1 .2.24 CFR Part 14-08-18 to SS : : : ence Park, No.8 Long nZhen , GuangDong port Dec HNOLOGY st Wing, Sk South 4th A NOLOGY C st Wing, Sk South 4th A ol 15 Subpar o 2014-09- Q Z gChang Road, g Province, P. R. Ch R claration CO., LTD kyworth Se Ave, Nansh O.,…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. Conducted emission antenna’s port

MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 2 0f 5 SZ14080041S02 1. Face Upward 2. Face Upward 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 3 0f 5 SZ14080041S02 3. Edge A 4. Edge A 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 4 0f 5 SZ14080041S02 5. Edge B 6. Edge B 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 5 0f 5 SZ14080041S02 7. Edge C 8. Edge C 10mm MORLAB GROUP FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Tel: 86-755-36698555 Fax: 86-755-36698525 Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. ChinaHttp://www.morlab.com E-mail: [email protected] Page 6 0f 5 SZ14080041S02 Liquid Level Photo Body Liquid Liquid depth: 15.5cm
