SS3-WM3221510Phantom 3 Advanced

PHANTOM 3 Advanced V1.0 2015.03 User Manual 2 © 2015 DJI. All Rights Reserved. Using this manual Legends WarningImportantHints and TipsReference Read Before the First Flight Read the follow documents before using the Phantom 3 Advanced for the first time. 1. Disclaimer 2. Phantom 3 Advanced Quick Start Guide 3. Phantom 3 Advanced User Manual 4. In the Box 5. Safety Guidelines 6. Intelligent Flight Battery Safety Guidelines It is recommended to watch all the tutorial videos on DJI official website and read the Disclaimer before your first flight. Prepare for your first flight by using the Phantom 3 Advanced Quick Start Guide. Refer to the user manual for more detailed information. Video Tutorials Please watch the tutorial video below to learn how to use Phantom 3 Advanced safely: http://www.dji.com/product/phantom-3-advanced/video Download the DJI Pilot app Download and install the DJI Pilot app before use. Scan the QR code below to download. For Android version of the DJI Pilot app is compatible with Android 4.1.2 or later. For iOS version of the DJI Pilot app is compatible with iOS 8.0 or later. © 2015 DJI. All Rights Reserved. 3 Using this manual Legends 2 Before Flight 2 Watch the video tutorials 2 Download the DJI Pilot app 2 Product Profile Introduction 6 Feature Highlights 6 Assemble the Aircraft 7 Aircraft Diagram 8 Remote Controller Diagram 9 Aircraft Flight Controller 12 Flight Mode 12 Flight Status Indicator 12 Return to Home (RTH) 13 Smart RTH 13 Low Battery RTH 14 Failsafe RTH 15 Dynamic Home Point 15 Vision Positioning System 16 Flight Recorder 17 Attaching and Detaching the Propellers 17 DJI Intelligent Flight Battery 18 Remote Control Remote Controller Profile 24 Remote Controller Operations 24 Remote Controller Status LED 29 Linking the Remote Controller 29 Remote Controller Compliance Version 30 Contents 4 © 2015 DJI. All Rights Reserved. Camera and Gimbal Camera Profile 32 Gimbal 33 DJI Pilot App Camera 36 Map 40 Academy 40 User Center 40 Flight Flight Environment Requirements 42 Flight Limits and Flight Restriction Area 42 Preflight Checklist 46 Calibrating the Compass 46 Auto Take-off and Auto Landing 47 Flight Test 48 Starting/Stopping the Motors 48 Troubleshooting (FAQ) Appendix Specifications 53 Intelligent Orientation Control (IOC) 56 FCC Compliance 57 © 2015 DJI. All Rights Reserved. 5 Product Profile This chapter introduces the Phantom 3 Advanced and lists the components on the aircraft and remote controllers. 6 © 2015 DJI. All Rights Reserved. Product Profile Product Profile Introduction The Phantom 3 Advanced is a brand new quadcopter capable of capturing HD video and transmitting an HD video signal out of the box. The built-in camera has an integrated gimbal to maximize stability and weight efficiency while minimizing space. Even when no GPS signal is available, Vision Positioning sys- tem provides hovering precision. Feature Highlights Camera and Gimbal: The Phantom 3 Advanced camera records video at up to 1080P and it is capable of capturing 12 megapixel stills. HD Video Downlink: Low latency, HD downlink powered by an enhanced version of the DJI Lightbridge system. DJI Intelligent Flight Battery: 4480 mAh DJI Intelligent Flight Battery employs new battery cells and a bat- tery management system. Flight Controller: The next generation flight controller system provides a more reliable flight experience. A new flight recorder stores the flight data from each flight, and Vision Positioning enhances hovering preci- sion when flying indoors and no GPS is available. © 2015 DJI. All Rights Reserved. 7 Product Profile Phantom 3 Advanced User Manual Assemble the Aircraft Removing Gimbal Clamp Remove the gimbal clamp in the direction as shown below: Attaching Propellers Attach the propellers with the black nut onto motors with the black axis and spin counter-clockwise to se- cure. Attach propellers with grey nut onto motors without a grey axis and spin clockwise to secure. Preparing Remote Controller Tilt the Mobile Device Holder to the desired position then adjust the antennas. 1. Press the button on the side of the Mobile Device Holder to release the clamp, adjust the clamp to fit the size of the mobile device. 2. Connect the mobile device to the remote controller with a USB cable. 3. Plug one end of the cable into the mobile device, and the other end into the USB port on the back of the remote controller. Place all propellers onto the correct motor and tighten by hand to secure its position. 1 3 2 8 © 2015 DJI. All Rights Reserved. Product Profile Phantom 3 Advanced User Manual Aircraft Diagram [1] GPS [2] Propeller [3] Motor [4] Front LED [5] Landing gear [6] Gimbal and Camera [7] Aircraft Micro-USB Port [8] Aircraft Status Indicator [9] Intelligent Flight Battery [10] Vision Positioning Sensors [11] Antennas [12] Camera Micro-SD Card Slot [13] Camera Micro-USB Port Remote Controller Diagram [1] Antennas Relays aircraft control and video signal. [2] Mobile Device Holder Mounting place for your mobile device. [3] Control Stick Controls aircraft orientation. [4] Return Home (RTH) Button Press and hold the button to initiate Return to Home (RTH). [1] [2] [3] [4] [5] [6] [7] [8] [11] [9] [10] [12] [13] [1] [2] [4] [5] [6] [7] [8] [3] © 2015 DJI. All Rights Reserved. 9 Product Profile Phantom 3 Advanced User Manual [5] Battery Level LEDs Displays the battery level of the remote controller. [6] Status LED Displays the remote controller's system status. [7] Power Button Used to power on or power off the remote controller. [8] RTH LED Circular LED around the RTH button displays RTH status. [17] [19] [18] [9] Camera Settings Dial Turn the dial to adjust camera settings. Only functions when the remote controller is connected to a mobile device running the DJI Pilot app. [10] Playback Button Playback the captured images or videos. [11] Shutter Button Press to take a photo. If in burst mode, the set number of photos will be taken with one press. [12] Flight Mode Switch Switc…

Text truncated - open the document above for the full version.

© 2015 DJI. All Rights Reserved. 15 Aircraft Phantom 3 Advanced User Manual There are two options for Dynamic Home Point. 1. Set the aircraft current coordinate as the new Home Point. 2. Set the mobile device's coordinate as the new Home Point. Setting Up Dynamic Home Point Follow the steps below to setup Dynamic Home Point: 1. Connect to the mobile device and launch the DJI Pilot app and go to the “Camera” page. 2. Tap“ ”and select“”, to set the mobile device’s coordinates as the new Home Point. 3. Tap“ ”and select“”, to set the aircraft’s coordinates as the new Home Point. 4. The aircraft status indicator blinks green to show Home Point is set successfully. Vision Positioning System DJI Vision Positioning is a positioning system that uses ultrasonic and image data to help the aircraft identify its current position. With the help of Vision Positioning, your Phantom 3 Advanced can hover in place more precisely and fly indoors or in other environments where there is no GPS signal available. The main components of DJI Vision Positioning are located on the bottom of your Phantom 3 Advanced, including [1] one monocular camera and [2]two sonar sensors. Using Vision Positioning Vision Positioning is activated automatically when the Phantom 3 Advanced is powered on. No manual action is required. Vision Positioning is typically used in the indoor environment where no GPS is available. By using the sensors on the Vision Positioning system, Phantom 3 Advanced can perform precision hovering even when no GPS is available. [1] [2] 16 © 2015 DJI. All Rights Reserved. Aircraft Phantom 3 Advanced User Manual Flight Recorder Flight data is automatically recorded to the SD card. This includes flight telemetry, aircraft status information, and other parameters. Access these data from the DJI Pilot app through the Aircraft Micro-USB Port. Attaching and Detaching the Propellers Use only DJI approved propellers with your Phantom 3 Advanced. The grey or black nut on the propeller indicates the rotation direction of the propeller and where it should be attached. To attach Follow the steps below to use Vision Positioning: 1. Toggle the switch to “P” mode. 2. Place the aircraft on a flat surface. Notice that the Vision Positioning system cannot work properly on surfaces without pattern variations. 3. Power on the aircraft. The aircraft status indicator will flash twice in green light, which indicates the Vision Positioning system is ready. Gently push the throttle up to lift off, and the aircraft will hover in place. The performance of your Vision Positioning System is subject to the surface you are flying over. The ultrasonic waves may not be able to accurately measure the distance over sound absorbing materials, and the camera may not function correctly in suboptimal environments. The aircraft will switch from “P” mode to “A” mode automatically if both GPS and Vision Positioning System are not available. So operate the aircraft cautiously when in any of the following situations: Flying over monochrome surfaces (e.g. pure black, pure white, pure red, pure green). Flying over a highly reflective surfaces. Flying at high speeds(over 8 m/s at 2 meters or over 4 m/s at 1 meter). Flying over water or transparent surfaces. Flying over moving surfaces or objects. Flying in an area where the lighting changes frequently or drastically. Flying over extremely dark (lux < 10) or bright (lux > 100,000) surfaces. Flying over surfaces that can absorb sound waves (e.g. thick carpet). Flying over surfaces without clear patterns or texture. Flying over surfaces with identical repeating patterns or textures (e.g. tiles with same design). Flying over inclined surfaces that will deflect sound waves away from the aircraft. Keep the sensors clean at all times. Dirt or other debris may adversely affect the effectiveness of the sensors. The effective hovering altitudes of the aircraft is from 0 to 3 meters. Vision Positioning system may not function properly when the aircraft is flying over water. Vision Positioning system may not be able to recognize pattern on the ground in low light conditions (less than 100 lux). Do not use other ultrasonic devices with frequency of 40 KHz when Vision Positioning system is in operation. Vision Positioning system may not be able to stabilize the aircraft when flying close to the ground (below 0.5 meters) in fast speed. Keep the animals away from the aircraft when Vision Positioning system is activated. The sonar sensor emits high frequency sound that is only audible to some animals. © 2015 DJI. All Rights Reserved. 17 Aircraft Phantom 3 Advanced User Manual Ensure propellers are attached to its corresponding motors, otherwise the aircraft cannot take off. Wear gloves when handling propellers. Manually tighten each of the propellers on the corresponding motors to ensure it is attached firmly. Detaching the Propellers Hold the motor still. Then spin the propeller in the unlock direction indicated on the propeller itself. Check that the propellers and motors are installed correctly and firmly before every flight. Ensure that all propellers are in good condition before each flight. DO NOT use aged, chipped, or broken propellers. To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when they are spinning. ONLY use original DJI propellers for a better and safer flight experience. DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4480 mAh, voltage of 15.2 V, and smart charge- discharge functionality. It can only be charged with an appropriate DJI approved charger. the propellers properly, match the nut with the axis on the motors of your Phantom 3 Advanced . Propellers Grey capBlack cap Figure Attach OnMotors with a grey axis Motors with a black axis Legends Lock : Turn the propellers in the indicated direction to mount and tighten Unlock : Turn the propellers in the indicated direction to loosen and remove Attaching the Propellers 1. Attach the propellers …

Text truncated - open the document above for the full version.

© 2015 DJI. All Rights Reserved. 31 Gimbal Camera Camera and Gimbal Camera Profile The on-board camera supports 4K video capture up to 4096 x 2160p24 and 12M pixel photos capture by using the 1/2.3 inch CMOS sensor. You may export the video in either MOV or MP4 format for editing. Available picture shooting modes include burst, continuous, and time-lapse mode. A live preview of what the camera is seeing before you shoot videos and pictures is supported through the DJI Pilot App. Camera Micro-SD Card Slot To store your photos and videos, plug in the Micro-SD card into the slot shown below before powering on the Phantom 3 Advanced. The Phantom 3 Advanced comes with a 16 GB Micro-SD card and supports up to a 64 GB Micro-SD card. A UHS-1 type Micro-SD card is recommended, because of the fast read and write capability of these cards enables you to store high-resolution video data. Do not remove Micro-SD card from the Phantom 3 Advanced when it is powered on. Camera Data Port Power on the Phantom 3 Advanced and then connect a USB cable to the Camera Data Port to down- load photos or videos from the camera to your computer. Power on the aircraft before attempting to access the files on the Micro-SD card. 32 © 2015 DJI. All Rights Reserved. Gimbal Camera Phantom 3 Advanced User Manual Camera Operation Use the Shutter and Record button on the remote controller to shoot the images or the videos through the DJI Pilot app. For more information about how to use these buttons, refer to “Controlling Camera”. Gimbal Gimbal Profile The 3-axis Gimbal provides a steady platform for the attached camera, allowing you to capture stabilized images and video. The Gimbal can tilt the camera up to 120 degrees. Use the gimbal dial on the remote controller to control pitch movement of the camera by default. Note that you cannot control the pan movement of the camera by default. Gimbal Operation Modes Two Gimbal operation modes are available. Switch between the different operation modes on the Camera page of the DJI Pilot App. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: Follow Mode The angle between Gimbal’s orientation and aircraft’s nose remains constant at all times. One user alone can control the pitch motion of the gimbal. FPV Mode The Gimbal will lock to the movements of the aircraft to provide a First- Person-View flying experience. Gimbal motor error may occur in these situations: (1) Gimbal is placed on uneven ground. (2) Gimbal has received an excessive external force, e.g. a collision. Please take off from flat, open ground and protect the gimbal after powering up. Flying in heavy fog or cloud may make the gimbal wet, leading to a temporary failure. The gimbal will recover when it dries out. -90° 0° 30° © 2015 DJI. All Rights Reserved. 33 Gimbal Camera Phantom 3 Advanced User Manual ② ① ③ Anti-drop Kit The Anti-drop Kit helps keep the gimbal and camera connected to the aircraft. Two have been mounted on delivery. If new ones are required, take the gimbal and press part [1] through the center hole of the Vibration Absorber the center hole of part [2]. Lock them together as shown in [3]. Mounting the Anti-drop Kit diagonally is recommended. 34 © 2015 DJI. All Rights Reserved. DJI Pilot App This chapter introduce the four main sections of the DJI Pilot app. © 2015 DJI. All Rights Reserved. 35 DJI Pilot App DJI Pilot App The DJI Pilot app is a mobile app designed specifically for the Phantom 3 Advanced. Use this app to control the gimbal, camera and other features of your flight system. The app also comes with Map, Acad- emy and User Center, for configuring your aircraft and sharing the photos and videos with your friends. It is recommended that you use a tablet for the best experience. Camera The Camera page contains a live HD video feed from the Phantom 3 Advanced’s camera. You can also configure various camera parameters from the Camera page. CAMERA ACADEMYUSER CENTER MAP United States Mountain View 1/320 4821 JPEG4K 30 ISO 100 EV 0 00:22:16 Safe to Fly (GPS) MODE CL P-GPS H:D: V.S M/S M/S H.S 24.28.3 1.2 M 2 M 39 M 200m0200m0 [16] [15] [14] [13] [11] [12] [10] [9] [8][7][6][5][4][3][2][1] 36 © 2015 DJI. All Rights Reserved. DJI Pilot App Phantom 3 Advanced User Manual [1] Flight Mode : The text next to this icon indicates the current flight mode. Tap to enter MC (Main Controller) Settings. Modify flight limits, perform compass calibration, and set the gain values. [2] GPS Signal Strength : This icon shows the current strength of GPS signals. Green bars indicates adequate GPS strength. [3] IOC Settings : This icon shows which IOC setting that the aircraft has entered when in F Mode. Tap to enter IOC setting menu and select the desired IOC setting. [4] System Status : This icon shows current aircraft system status, such as GPS signal health. [5] Battery Level Indicator : The battery level indicator dynamically displays the battery level. The color zones on the battery level indicator represent different battery levels. [6] Remote Controller Signal : This icon shows the strength of remote controller signal. [7] HD Video Link Signal Strength : This icon shows the HD video downlink signal strength between the aircraft and the remote controller. [8] Battery Level : This icon shows the current battery level. Tap to enter battery information menu, set the various battery warning thresholds and view the battery warning history in this page. [9] General Settings : Tap this icon to enter General Settings page. Select parameter metric, reset the camera, enable the quick view feature, adjust the gimbal pitch value and toggle flight route display on this page. [10] Camera Operation Bar Shutter : Tap this button to take a single photo. Press and hold this button to select burst or time-lapsed shooting. Record : Tap once to start recording video, then tap again to stop recording. You can also press the Vid- eo Recording Button o…

Text truncated - open the document above for the full version.

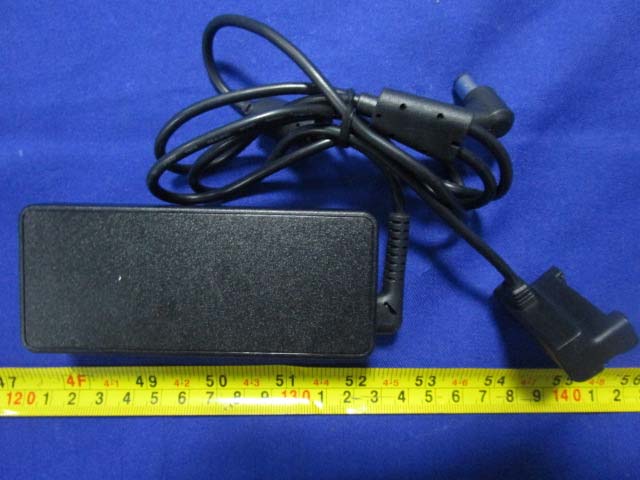

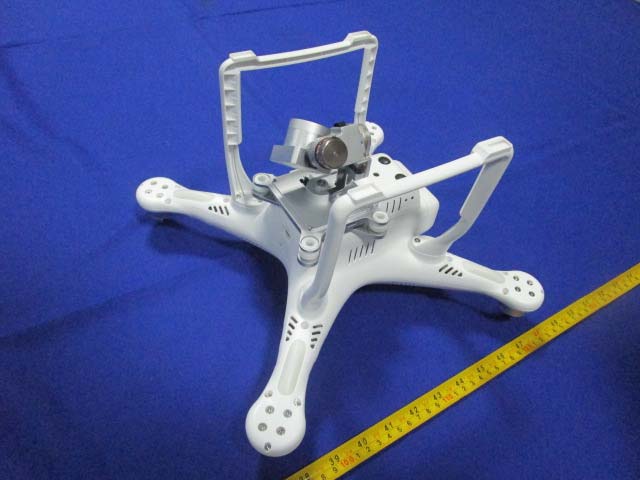

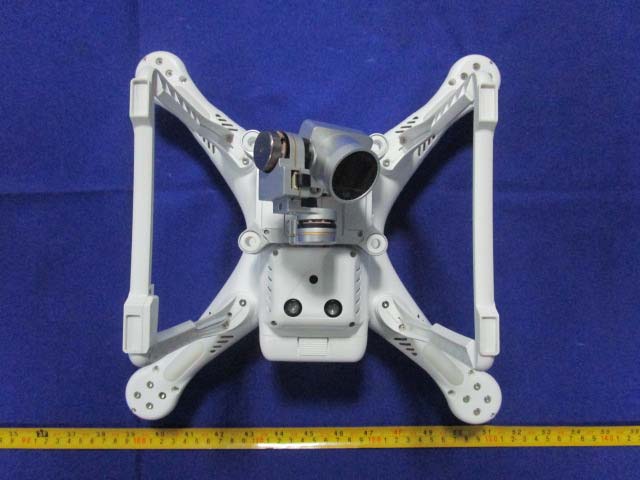

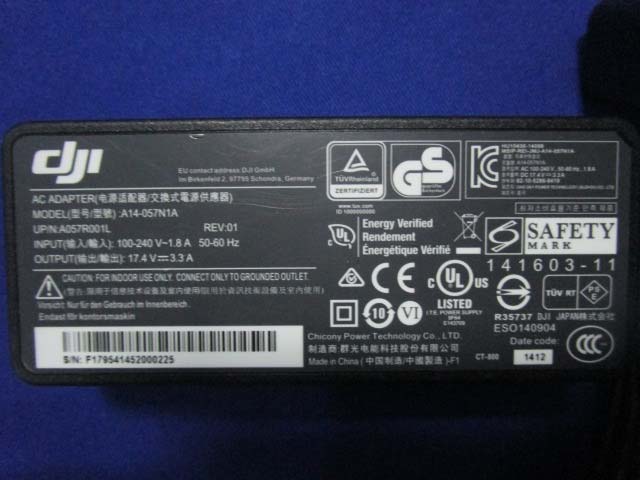

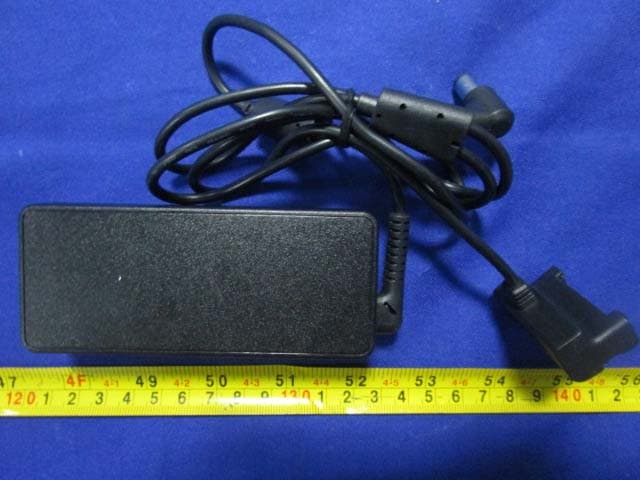

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT –Top View EUT –Bottom View EUT – Side View EUT – Side View EUT –Adapter Top View EUT –Adapter Bottom View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Uncover View EUT –Uncover View (S/N: 151013008-1) EUT –Uncover View (S/N: 151013008-2) EUT – Uncover View EUT –Uncover View EUT –Uncover View EUT –Main Board Top View EUT –Main Board Bottom View EUT –GPS Top View EUT –GPS Unshielded View EUT –GPS Bottom & Antenna View EUT – Light Board Top View EUT – Light Board Bottom View EUT – Camera Uncover View EUT – Camera Uncover View EUT – Camera Uncover View EUT –Camera Main Board Top View EUT –Camera Main Board Bottom View EUT – Camera Chip View EUT – Camera Uncover View EUT – Camera Uncover View EUT –Sensor Board Top View EUT –Sensor Board Bottom View EUT – RF Module Top View (S/N: 151013008-1) EUT – RF Module Top View (S/N: 151013008-2) EUT –RF Module Top Unshielded View EUT –RF Module Bottom View EUT –Main Chip View EUT –RF Chip View EUT –RF Module Sub Board Top View EUT –RF Module Sub Board Bottom View EUT –Antenna View EUT – Battery Top View EUT – Battery Bottom View EUT – Battery Label View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For SZ DJI TECHNOLOGY CO., LTD 14th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan, Shenzhen, Guangdong, China Report Type: Original Report Product Type: Phantom 3 Advanced Test En gineer: Allen Qiao Re port Number: RDG151013008-00A Re port Date: 2015-10-22 Reviewed B y: Sula Huang RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: SS3-WM3221510 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG151013008-00A FCC Part 15.247 Page 2 of 46 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 FCC §15.247 (i) & §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 6 APPLICABLE STANDARD .............................................................................................................................................. 6 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ................................................................................................ 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §15.247(a) (2) – 6dB BANDWIDTH.................................................................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST PROCEDURE ...................................................................................................................................................... 18 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 18 TEST DATA ................................................................................................................................................................ 18 …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
