PHANTOM 3 Professional V1.0 2015.03 User Manual 2 © 2015 DJI. All Rights Reserved. Using this manual Legends WarningImportantHints and TipsReference Read Before the First Flight Read the follow documents before using the Phantom 3 Professional for the first time. 1. Disclaimer 2. Phantom 3 Professional Quick Start Guide 3. Phantom 3 Professional User Manual 4. In the Box 5. Safety Guidelines 6. Intelligent Flight Battery Safety Guidelines It is recommended to watch all the tutorial videos on DJI official website and read the Disclaimer before your first flight. Prepare for your first flight by using the Phantom 3 Professional Quick Start Guide. Refer to the user manual for more detailed information. Video Tutorials Please watch the tutorial video below to learn how to use Phantom 3 Professional safely: http://www.dji.com/product/phantom-3-professional/video Download the DJI Pilot app Download and install the DJI Pilot app before use. Scan the QR code below to download. For Android version of the DJI Pilot app is compatible with Android 4.1.2 or later. For iOS version of the DJI Pilot app is compatible with iOS 8.0 or later. © 2015 DJI. All Rights Reserved. 3 Using this manual Legends 2 Before Flight 2 Watch the video tutorials 2 Download the DJI Pilot app 2 Product Profile Introduction 6 Feature Highlights 6 Assemble the Aircraft 7 Aircraft Diagram 8 Remote Controller Diagram 9 Aircraft Flight Controller 12 Flight Mode 12 Flight Status Indicator 12 Return to Home (RTH) 13 Smart RTH 13 Low Battery RTH 14 Failsafe RTH 15 Dynamic Home Point 15 Vision Positioning System 16 Flight Recorder 17 Attaching and Detaching the Propellers 17 DJI Intelligent Flight Battery 18 Remote Control Remote Controller Profile 24 Remote Controller Operations 24 Remote Controller Status LED 29 Linking the Remote Controller 29 Remote Controller Compliance Version 30 Contents 4 © 2015 DJI. All Rights Reserved. Camera and Gimbal Camera Profile 32 Gimbal 33 DJI Pilot App Camera 36 Map 40 Academy 40 User Center 40 Flight Flight Environment Requirements 42 Flight Limits and Flight Restriction Area 42 Preflight Checklist 46 Calibrating the Compass 46 Auto Take-off and Auto Landing 47 Flight Test 48 Starting/Stopping the Motors 48 Troubleshooting (FAQ) Appendix Specifications 53 Intelligent Orientation Control (IOC) 56 FCC Compliance 57 © 2015 DJI. All Rights Reserved. 5 Product Profile This chapter introduces the Phantom 3 Professional and lists the components on the aircraft and remote controllers. 6 © 2015 DJI. All Rights Reserved. Product Profile Product Profile Introduction The Phantom 3 Professional is a brand new quadcopter capable of capturing HD video and transmitting an HD video signal out of the box. The built-in camera has an integrated gimbal to maximize stability and weight efficiency while minimizing space. Even when no GPS signal is available, Vision Positioning sys- tem provides hovering precision. Feature Highlights Camera and Gimbal: The Phantom 3 Professional camera shoots, of course, 4K video and it is capable of capturing 12 megapixel stills. HD Video Downlink: Low latency, HD downlink powered by an enhanced version of the DJI Lightbridge system. DJI Intelligent Flight Battery: 4480 mAh DJI Intelligent Flight Battery employs new battery cells and a bat- tery management system. Flight Controller: The next generation flight controller system provides a more reliable flight experience. A new flight recorder stores the flight data from each flight, and Vision Positioning enhances hovering preci- sion when flying indoors and no GPS is available. © 2015 DJI. All Rights Reserved. 7 Product Profile Phantom 3 Professional User Manual Assemble the Aircraft Removing Gimbal Clamp Remove the gimbal clamp in the direction as shown below: Attaching Propellers Attach the propellers with the black nut onto motors with the black axis and spin counter-clockwise to se- cure. Attach propellers with grey nut onto motors without a grey axis and spin clockwise to secure. Preparing Remote Controller Tilt the Mobile Device Holder to the desired position then adjust the antennas. 1. Press the button on the side of the Mobile Device Holder to release the clamp, adjust the clamp to fit the size of the mobile device. 2. Connect the mobile device to the remote controller with a USB cable. 3. Plug one end of the cable into the mobile device, and the other end into the USB port on the back of the remote controller. Place all propellers onto the correct motor and tighten by hand to secure its position. 1 3 2 8 © 2015 DJI. All Rights Reserved. Product Profile Phantom 3 Professional User Manual Aircraft Diagram [1] GPS [2] Propeller [3] Motor [4] Front LED [5] Landing gear [6] Gimbal and Camera [7] Aircraft Micro-USB Port [8] Aircraft Status Indicator [9] Intelligent Flight Battery [10] Vision Positioning Sensors [11] Antennas [12] Camera Micro-SD Card Slot [13] Camera Micro-USB Port Remote Controller Diagram [1] Antennas Relays aircraft control and video signal. [2] Mobile Device Holder Mounting place for your mobile device. [3] Control Stick Controls aircraft orientation. [4] Return Home (RTH) Button Press and hold the button to initiate Return to Home (RTH). [1] [2] [3] [4] [5] [6] [7] [8] [11] [9] [10] [12] [13] [1] [2] [4] [5] [6] [7] [8] [3] © 2015 DJI. All Rights Reserved. 9 Product Profile Phantom 3 Professional User Manual [5] Battery Level LEDs Displays the battery level of the remote controller. [6] Status LED Displays the remote controller's system status. [7] Power Button Used to power on or power off the remote controller. [8] RTH LED Circular LED around the RTH button displays RTH status. [17] [19] [18] [9] Camera Settings Dial Turn the dial to adjust camera settings. Only functions when the remote controller is connected to a mobile device running the DJI Pilot app. [10] Playback Button Playback the captured images or videos. [11] Shutter Button Press to take a photo. If in burst mode, the set number of photos will be …

Text truncated - open the document above for the full version.

© 2015 DJI. All Rights Reserved. 15 Aircraft Phantom 3 Professional User Manual There are two options for Dynamic Home Point. 1. Set the aircraft current coordinate as the new Home Point. 2. Set the mobile device's coordinate as the new Home Point. Setting Up Dynamic Home Point Follow the steps below to setup Dynamic Home Point: 1. Connect to the mobile device and launch the DJI Pilot app and go to the “Camera” page. 2. Tap“ ”and select“”, to set the mobile device’s coordinates as the new Home Point. 3. Tap“ ”and select“”, to set the aircraft’s coordinates as the new Home Point. 4. The aircraft status indicator blinks green to show Home Point is set successfully. Vision Positioning System DJI Vision Positioning is a positioning system that uses ultrasonic and image data to help the aircraft identify its current position. With the help of Vision Positioning, your Phantom 3 Professional can hover in place more precisely and fly indoors or in other environments where there is no GPS signal available. The main components of DJI Vision Positioning are located on the bottom of your Phantom 3 Professional, including [1] one monocular camera and [2]two sonar sensors. Using Vision Positioning Vision Positioning is activated automatically when the Phantom 3 Professional is powered on. No manual action is required. Vision Positioning is typically used in the indoor environment where no GPS is available. By using the sensors on the Vision Positioning system, Phantom 3 Professional can perform precision hovering even when no GPS is available. [1] [2] 16 © 2015 DJI. All Rights Reserved. Aircraft Phantom 3 Professional User Manual Flight Recorder Flight data is automatically recorded to the SD card. This includes flight telemetry, aircraft status information, and other parameters. Access these data from the DJI Pilot app through the Aircraft Micro-USB Port. Attaching and Detaching the Propellers Use only DJI approved propellers with your Phantom 3 Professional. The grey or black nut on the propeller indicates the rotation direction of the propeller and where it should be attached. To attach Follow the steps below to use Vision Positioning: 1. Toggle the switch to “P” mode. 2. Place the aircraft on a flat surface. Notice that the Vision Positioning system cannot work properly on surfaces without pattern variations. 3. Power on the aircraft. The aircraft status indicator will flash twice in green light, which indicates the Vision Positioning system is ready. Gently push the throttle up to lift off, and the aircraft will hover in place. The performance of your Vision Positioning System is subject to the surface you are flying over. The ultrasonic waves may not be able to accurately measure the distance over sound absorbing materials, and the camera may not function correctly in suboptimal environments. The aircraft will switch from “P” mode to “A” mode automatically if both GPS and Vision Positioning System are not available. So operate the aircraft cautiously when in any of the following situations: Flying over monochrome surfaces (e.g. pure black, pure white, pure red, pure green). Flying over a highly reflective surfaces. Flying at high speeds(over 8 m/s at 2 meters or over 4 m/s at 1 meter). Flying over water or transparent surfaces. Flying over moving surfaces or objects. Flying in an area where the lighting changes frequently or drastically. Flying over extremely dark (lux < 10) or bright (lux > 100,000) surfaces. Flying over surfaces that can absorb sound waves (e.g. thick carpet). Flying over surfaces without clear patterns or texture. Flying over surfaces with identical repeating patterns or textures (e.g. tiles with same design). Flying over inclined surfaces that will deflect sound waves away from the aircraft. Keep the sensors clean at all times. Dirt or other debris may adversely affect the effectiveness of the sensors. The effective hovering altitudes of the aircraft is from 0 to 3 meters. Vision Positioning system may not function properly when the aircraft is flying over water. Vision Positioning system may not be able to recognize pattern on the ground in low light conditions (less than 100 lux). Do not use other ultrasonic devices with frequency of 40 KHz when Vision Positioning system is in operation. Vision Positioning system may not be able to stabilize the aircraft when flying close to the ground (below 0.5 meters) in fast speed. Keep the animals away from the aircraft when Vision Positioning system is activated. The sonar sensor emits high frequency sound that is only audible to some animals. © 2015 DJI. All Rights Reserved. 17 Aircraft Phantom 3 Professional User Manual Ensure propellers are attached to its corresponding motors, otherwise the aircraft cannot take off. Wear gloves when handling propellers. Manually tighten each of the propellers on the corresponding motors to ensure it is attached firmly. Detaching the Propellers Hold the motor still. Then spin the propeller in the unlock direction indicated on the propeller itself. Check that the propellers and motors are installed correctly and firmly before every flight. Ensure that all propellers are in good condition before each flight. DO NOT use aged, chipped, or broken propellers. To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when they are spinning. ONLY use original DJI propellers for a better and safer flight experience. DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4480 mAh, voltage of 15.2 V, and smart charge- discharge functionality. It can only be charged with an appropriate DJI approved charger. the propellers properly, match the nut with the axis on the motors of your Phantom 3 Professional . Propellers Grey capBlack cap Figure Attach OnMotors with a grey axis Motors with a black axis Legends Lock : Turn the propellers in the indicated direction to mount and tighten Unlock : Turn the propellers in the indicated direction to loosen and remove Attaching the …

Text truncated - open the document above for the full version.

QA-FR-170-B SZ DJI TECHNOLOGY CO., LTD. Add: 14th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan, Shenzhen, Guangdong,China Tel: 0755-86152250 Fax: 0755-86965903 FCC Authorization Date: 2015-4-7 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We ,SZ DJI TECHNOLOGY CO., LTD., Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Lisa Li E-mail: [email protected] Tel: 0755-86152250 Add: 14th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan, Shenzhen, Guangdong,China Certification Supervisor

PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Circuit Description 3 Schematic SHORT-TERM 4 External and Internal Photos 5 Test-Setup Photos 6 User Manual SZ DJI TECHNOLOGY CO., LTD. Add:14th floor, West Wing, Skyworth Semiconductor Design Building NO.18 Gaoxin South 4th Ave, Nanshan, Shenzhen, Guangdong ,China Tel: 0755-86152250 Fax: 0755-86965903 Date: 2015-4-7 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of confidentiality for FCC ID: SS3-WM3231503 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SZ DJI TECHNOLOGY CO., LTD.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SZ DJI TECHNOLOGY CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Signature: Lisa Li Certification Supervisor

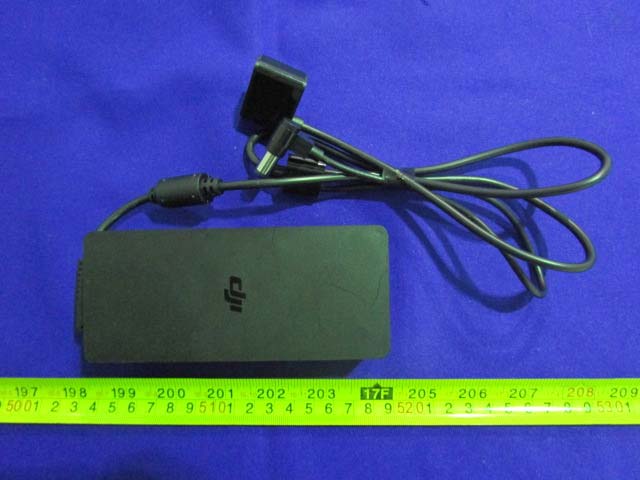

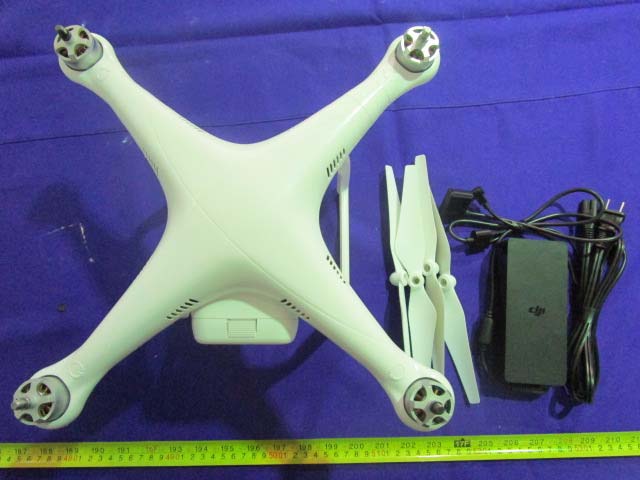

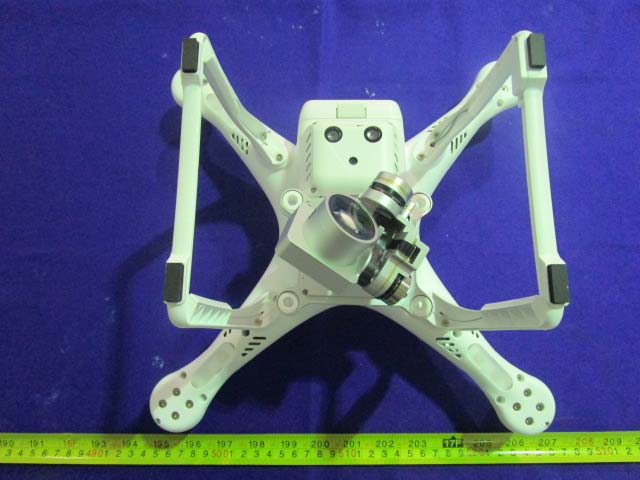

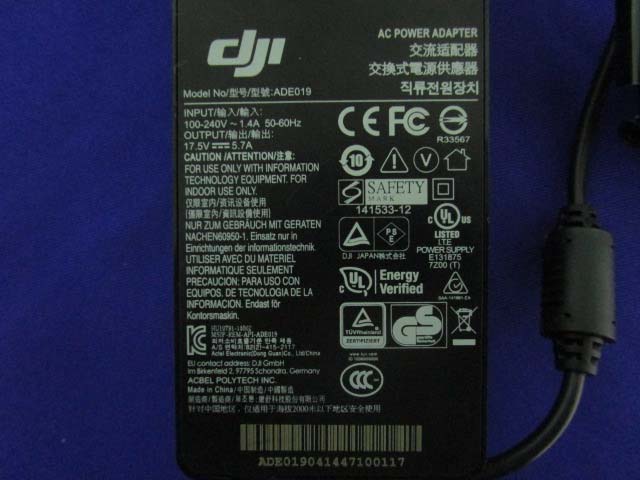

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT –Top View EUT –Bottom View EUT – Side View EUT – Side View EUT –Adapter Top View EUT –Adapter Bottom View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Uncover View EUT –Uncover View EUT – Uncover View EUT –Main Board Top View EUT –Main Board Top View EUT –Main Board Bottom View EUT –GPS Board Top View EUT –GPS Board Bottom & Antenna View EUT – GPS Module View EUT – Light Board Top View EUT – Light Board Bottom View EUT – Antenna View EUT – Camera Uncover View EUT –Camera Main Board Top View EUT –Camera Main Board Bottom View EUT – Camera Sensor Board Top View EUT –Camera Sensor Board Bottom View EUT – RF Module Top View EUT –RF Module Top Unshielded View EUT –RF Module Bottom View EUT –RF Module Suboard Top View EUT –RF Module Suboard Bottom View EUT – Battery Top View EUT – Battery Bottom View EUT – Battery Label View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG150107002-00A FCC Part 15.247 Page 7 of 47 FCC §15.247 (i) & §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Appli cable Standard According to subpart 15.247(i) and subpart §1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f²)30 30–30027.50.0730.230 300–1500//f/150030 1500–100,000//1.030 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm)(mW) 2476.5 2 1.58 28.73746.45 20.00 0 .23 1.0 Resul t: The device meet FCC MPE at 20 cm distance
