SS4BM150REPDA

BM-150R 1 This manual is protected by Copyright Laws. This manual has been produced by Bluebird Soft Inc. Please note that there may be editorial mistakes or possible omission of information. Programs embedded in the product are legally protected. Unauthorized copying, transferring, or deletion is strictly prohibited. There may be a few operational problems caused by the application environment, application program, or other surrounding machinery. This product generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. Service related to human security is not provided as there may be a possibility of confusion in the electric waves of the product. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. PIDION is a Leading Brand in the mobile industry. Bluebird Soft Inc. is a trusted global company which represents high technology and is currently registered worldwide with its PIDION trademark legally protected by law. Registered Trademark Information to the User Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. 2 BM-150RSeries Manual FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION :Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. SAR compliance for body-worn operation is restricted to belt-chips, holsters or similar accessories that have no metalic component in the assembly. The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. BM-150R (GSM) Device(FCC ID: SS4BM150R) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear 0.724 W/kg and when properly worn on the body is 1.27 W/kg. BM-150R (1xEVDO) Device (FCC ID: SS4BM150RE) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification For use at the ear 0.897 W/kg and when properly worn on the body is 1.21 W/kg. WARNING Any changes or modification not expressly approved by the party responsible could void the users’ authority to operate the device. Knowing the product BM-150R 3 I hereby declare that the product. Satisfies all the technical regulations applicable to the product within the scope of Council Directives 99/5/EC, 89/336/EEC, and 73/23/EEC: All essential radio test suites have been carried out. NOTIFIED BODY: EMCCert Dr.Rasek - Address Boelwiese 5, 91320 Ebermannstadt, Germany, Identification Number: 0678 MANUFACTURER or AUTHORISED REPRESENTATIVE: - Address Bluebird Soft., Inc. 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea This declaration is issued under the sole responsibility of the manufacturer and, if applicable, his authorized representative. POINT OF CONTRACT: Declaration of Conformity Model Type BM-150R(GSM) PDA Radio EMC Safety Health ETSI EN 301 511 / ETSI EN 300 328 ETSI EN 301 489-1/7/17, EN 55022, EN 55024 EN 60950-1 Council Rec. 99/519/EC Company Phone number Fax number Bluebird Soft., Inc. +82-2-548-0740 +82-2-548-0870 4 BM-150RSeries Manual TTaabbllee ooff CCoonntteennttss I. Getting Started 1. Activating Your Phone 2. Synchronize with ActiveSync II. Understanding Your Phone 1. Features of Your Phone 2. What’s in the box? 3. Closed View of Your Phone 4. Install/Remove the Battery 5. MiniSD Memory Card 6. Battery & LED status III. Learning the Basics 1. Powering On/Off the Phone 2. Resetting Your Phone 3. Starting your PDA 4. Using the Stylus 5. Entering Text IV. Call Functions 1. Turning the Phone Functions On/Off 2. Phone Program 3. Calling and Receiving 4. Contacts V. Camera 1. Using the Camera VI. DMB 1. Opening & Closing 2. Screen Configuration 3. Operation Guide 4. Capture Screen 5. Setting VII. Changing Your Settings 1. Personal Tab 2. System Tab 3. Connections Tab VIII. Information 1. Safety Information 2. Troubleshooting 3. Customer Service 4. Service Center Information Certification of Quality Authenti…

Text truncated - open the document above for the full version.

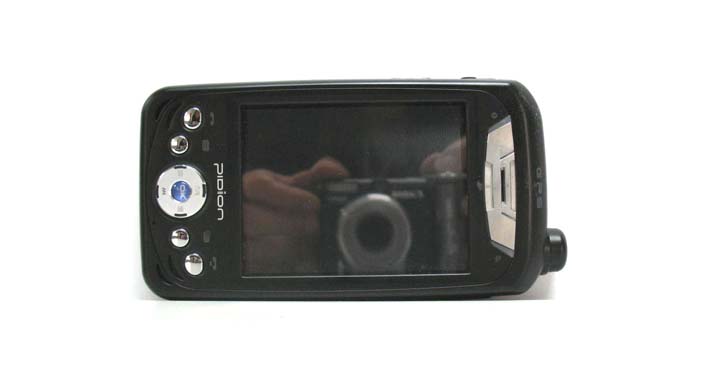

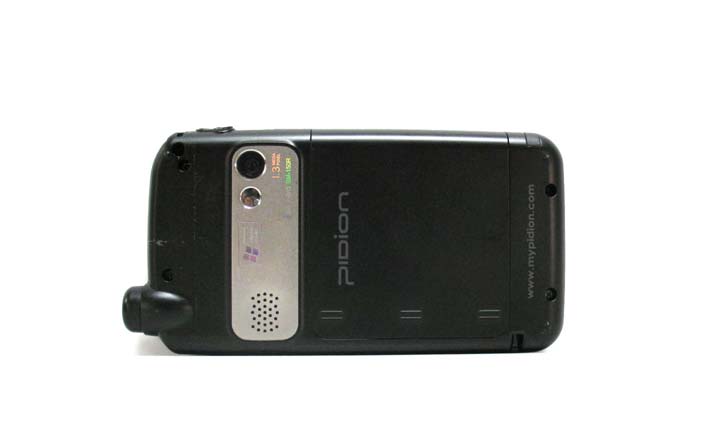

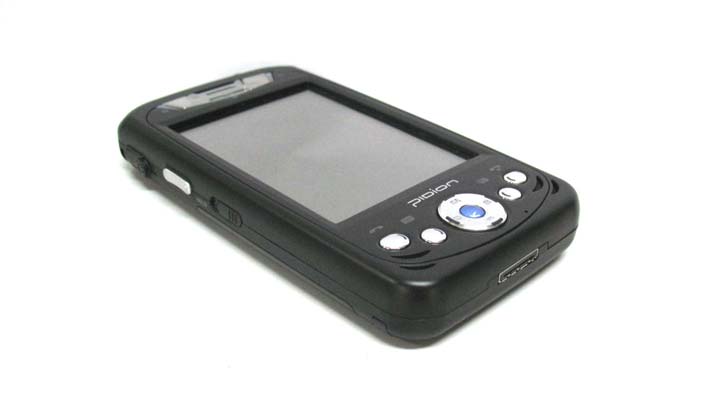

FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 27 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix D. Photos of the EUT Front View of EUT Rear View of EUT FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 28 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Right View of EUT Left View of EUT

FCC ID LABEL 1. FCC ID label location - Rear side of set 2. FCC ID label drawing BluebirdSoft Inc. FCC ID : SS4BM150RE Model : BM-150R S/N : Made in Korea This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This devices may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID : SS4BM150RE Report File No. : STROR-07-104 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Main-board GPS Antenna Bluetooth Antenna W-LAN Antenna CDMA Antenna FCC ID : SS4BM150RE Report File No. : STROR-07-104 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Main-board Card Slot

FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 29 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inner of EUT Top View of Main-board FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 30 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Main-board Top View of Keyboard FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 31 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Keyboard Top View of LCD FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 32 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of LCD Top View of CDMA FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 33 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of CDMA

Report File No. : STROS-07-020 Date of Issue : 2007-12-20 Page : 1 / 86 SAR TEST REPORT Equipment Under Test : PDA Model No. : BM-150R Applicant : Bluebird Soft., Inc. Address of Applicant : 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea FCC ID SS4BM150RE Device Category : Portable Device Exposure Category : General Population/Uncontrolled Exposure Date of Receipt : 2007-09-07 Date of Test(s) : 2007-11-14 ~ 2007-11-16 Date of Issue : 2007-12-20 Max. SAR : 0.897 W/kg (Head), 1.21 W/kg(Body) Standards: FCC OET Bulletin 65 supplement C IEEE 1528, 2003 ANSI/IEEE C95.1, C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: Te s t e d b y : Leo Kim 2007-12-20 Approved by : Denny Ham 2007-12-20 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. Report File No. : STROS-07-020 Date of Issue : 2007-12-20 Page : 2 / 86 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 4 1.8 The SAR Measurement System............................................................................ 5 1.9 System Components.......................................................................................... 7 1.10 SAR System Verification.................................................................................... 8 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 10 1.12 Test Standards and Limits.................................................................................. 11 2. Instruments List.................................................................................... 13 3. Summary of Results................................................................................ 14 APPENDIX A. Photographs of EUT & EUT’s Test Setup B. DASY4 SAR Report C. Uncertainty Analysis D. Calibration certificate Report File No. : STROS-07-020 Date of Issue : 2007-12-20 Page : 3 / 86 1. General Information 1.1 Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : www.electrolab.kr.sgs.com 1.2 Details of Applicant Manufacturer : Bluebird Soft., Inc. Address : 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea Contact Person : Gicheol Seong Phone No. : 82-2-541-4002 Fax No. : 82-2-548-0870 1.3 Version of Report Version Number Date Revision 00 2007-12-20 Initial issue 1.4 Description of EUT(s) EUT Type : PDA Model : BM-150R Serial Number : 016209 Hardware Version : UM-1-R60-MP Software Version : UM1EA0MD Mode of Operation : CDMA(1xRTT, 1xEVDO), WLAN 11b/g, Bluetooth Duty Cycle : CDMA 100%, WLAN/BT 100% Body worn Accessory : None Tx Frequency Range : 824.70 ~ 848.31 MHz(CDMA) 2412 ~ 2462 MHz(WLAN), 2402~ 2480 MHz(Bluetooth) Antenna : CDMA(Type : Inverted F, Fixed) WLAN/Bluetooth(Type : PCB type SMD, Fixed) Max Conducted Power (Peak) : 28.30 dBm(CDMA 1xEVDO), 27.95 dBm(CDMA 1xRTT) 17.67 dBm(WLAN 11b) Battery Type : DC 3.7V(Li-ion Battery) Report File No. : STROS-07-020 Date of Issue : 2007-12-20 Page : 4 / 86 1.5 Test Environment Ambient temperature : 22 ~ 23 ° C Tissue Simulating Liquid : 22 ~ 23 ° C Relative Humidity : 40 ~ 60 % 1.6 Operation Configuration The device in GSM mode was controlled by using a Communication tester(CMU200). Communication between the device and the tester was established by air link. For WLAN and BT, the client provided a special driver and test program which can control the frequency and power of the module.. Measurements were performed at the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distance of probe sensors to surface is 4 mm. This distance cannot be smaller than the Distance of sensor calibration points to probe tip as defined in the probe properties (for example, 2.7 mm for an ET3DV6 probe type). - The entire evaluation of the spatial peak values is performed within the Post-proc…

Text truncated - open the document above for the full version.

FCC ID : SS4BM150RE Report File No. : STROR-07-106 Page : 1 of 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com TEST REPORT OF FCC Part 15 Subpart B&C §15.247 FCC ID : SS4BM150RE Equipment Under Test :PDA Model Name :BM-150R Serial No. :N/A Applicant :Bluebird Soft, Inc. Manufacturer :Bluebird Soft, Inc. Date of Test(s) :2007-09-10 ~ 2007-11-09 Date of Issue :2007-12-20 In the configuration tested, the EUT complied with the standards specified above. Te s t e d B y : Date 2007-12-20 Geoffrey Do Approved By Date 2007-12-20 Denny Ham FCC ID : SS4BM150RE Report File No. : STROR-07-106 Page : 2 of 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Conducted Power Line Test --------------------------------------------------------------- 6 3. Spurious Emission, Band Edge and Restricted Band Test ------------------------- 11 4. 6 dB Bandwidth measurement ----------------------------------------------------------- 24 5. Maximum Peak Output Power measurement ---------------------------------------- 29 6. Power Spectral Density Measurement -------------------------------------------------- 34 7. Antenna Requirement --------------------------------------------------------------------- 39 Appendix A-1. Photo of Spurious Emission Test Appendix A -2. Photos of Conducted Power Line Test Appendix B. Photos of the EUT FCC ID : SS4BM150RE Report File No. : STROR-07-106 Page : 3 of 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. www.electrolab.kr.sgs.com Telephone : 82-31-428-5700 FAX : 82-31-427-2371 1.2. Details of Applicant Applicant : Bluebird Soft, Inc. Address : 558-5, Sinsa-dong, Kangnam-gu, seoul, Korea Contact Person : Gi-Cheol Sung Phone No. : 82-2-541-4002 Fax No. : 82-2-548-0870 1.3. Description of EUT Kind of Product PDA Model Name BM-150R Serial Number N/A Power Supply DC 3.7 V CDMA Module FCC ID T42ICM-E600 Frequency Range 824.70 MHz ~ 848.31 MHz(CDMA - 1xRTT & EVDO Release0) 2412 MHz ~ 2462 MHz(11b/g), 2402 MHz ~ 2480 MHz(Bluetooth) 88.1 MHz ~ 107.9 MHz(FM Transmitter) Modulation Technique DSSS(11b), OFDM(11g), FHSS(Bluetooth), DQPSK(CDMA - 1xRTT & EVDO Release0), FM(FM Transmitter) Number of Channels 11 CH(11b/g), 79 CH(Bluetooth), 20 CH(CDMA - 1xRTT & EVDO Release0), 199 CH(FM Transmitter) Operating Conditions -20 °C ~ 55 °C Antenna Type Fixed Type(11b/g, Bluetooth), Inverted F Type(CDMA), Pannel ANT(FM Transmitter) Antenna Gain -3.72 dBi(WLAN), -1.93 dBi(Bluetooth), -0.48 dBi(CDMA - 1xRTT & EVDO Release0) 1.4. Details of modification -N/A FCC ID : SS4BM150RE Report File No. : STROR-07-106 Page : 4 of 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C May 2008 Spectrum Analyzer Agilent E4440A May 2008 Spectrum Analyzer H.P. 8593E Sep. 2008 Amplifier H.P. OPT H64 Jul. 2008 Preamplifier Agilent 8449B May 2008 Attenuator Agilent 8494B May 2008 Two-Line V-Network Rohde & Schwarz NNB 41 Sep. 2008 Test Receiver Rohde & Schwarz ESVS10 April 2008 Ultra-Broadband Antenna Rohde & Schwarz HL562 Sep. 2008 Horn Antenna Electro-Metrics RGA-60 Dec. 2008 Anechoic Chamber SY Corporation L xWxH 6.5x3.6x3.6 Aug. 2008 FCC ID : SS4BM150RE Report File No. : STROR-07-106 Page : 5 of 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part 15, Subpart B & Subpart C Standard Section Test Item Result 15.207(a) AC Power Conducted EmissionComplied 15.247(a)(2) 6 dB Bandwidth Complied 15.247(b) Maximum Peak Output Power Complied 15.205(a) 15.209(a) 15.247(d) Spurious Emission, Band Edge and Restricted Bands Complied 15.247(d) Power Spectral Density Complied FCC ID : SS4BM150RE Report File No. : STROR-07-106 Page : 6 of 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. Conducted Power Line Test 2.1. Test Setup 2.2. Limit According to §15.207(a) for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies, within the band 150 kHz to 30…

Text truncated - open the document above for the full version.

FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 24 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix A. Photo of Radiated Emission Test FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 25 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix B. Photos of Field Strength Test FCC ID : SS4BM150RE Report File No. : STROR-07-104 Page : 26 of 33 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix C. Photos of Conducted Power Line Test

BM-150R 1 This manual is protected by Copyright Laws. This manual has been produced by Bluebird Soft Inc. Please note that there may be editorial mistakes or possible omission of information. Programs embedded in the product are legally protected. Unauthorized copying, transferring, or deletion is strictly prohibited. There may be a few operational problems caused by the application environment, application program, or other surrounding machinery. This product generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. Service related to human security is not provided as there may be a possibility of confusion in the electric waves of the product. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. PIDION is a Leading Brand in the mobile industry. Bluebird Soft Inc. is a trusted global company which represents high technology and is currently registered worldwide with its PIDION trademark legally protected by law. Registered Trademark Information to the User Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. 2 BM-150RSeries Manual FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION :Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. SAR compliance for body-worn operation is restricted to belt-chips, holsters or similar accessories that have no metalic component in the assembly. The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. BM-150R (GSM) Device(FCC ID: SS4BM150R) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear 0.724 W/kg and when properly worn on the body is 1.27 W/kg. BM-150R (1xEVDO) Device (FCC ID: SS4BM150RE) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification For use at the ear 0.897 W/kg and when properly worn on the body is 1.21 W/kg. WARNING Any changes or modification not expressly approved by the party responsible could void the users’ authority to operate the device. Knowing the product BM-150R 3 I hereby declare that the product. Satisfies all the technical regulations applicable to the product within the scope of Council Directives 99/5/EC, 89/336/EEC, and 73/23/EEC: All essential radio test suites have been carried out. NOTIFIED BODY: EMCCert Dr.Rasek - Address Boelwiese 5, 91320 Ebermannstadt, Germany, Identification Number: 0678 MANUFACTURER or AUTHORISED REPRESENTATIVE: - Address Bluebird Soft., Inc. 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea This declaration is issued under the sole responsibility of the manufacturer and, if applicable, his authorized representative. POINT OF CONTRACT: Declaration of Conformity Model Type BM-150R(GSM) PDA Radio EMC Safety Health ETSI EN 301 511 / ETSI EN 300 328 ETSI EN 301 489-1/7/17, EN 55022, EN 55024 EN 60950-1 Council Rec. 99/519/EC Company Phone number Fax number Bluebird Soft., Inc. +82-2-548-0740 +82-2-548-0870 4 BM-150RSeries Manual TTaabbllee ooff CCoonntteennttss I. Getting Started 1. Activating Your Phone 2. Synchronize with ActiveSync II. Understanding Your Phone 1. Features of Your Phone 2. What’s in the box? 3. Closed View of Your Phone 4. Install/Remove the Battery 5. MiniSD Memory Card 6. Battery & LED status III. Learning the Basics 1. Powering On/Off the Phone 2. Resetting Your Phone 3. Starting your PDA 4. Using the Stylus 5. Entering Text IV. Call Functions 1. Turning the Phone Functions On/Off 2. Phone Program 3. Calling and Receiving 4. Contacts V. Camera 1. Using the Camera VI. DMB 1. Opening & Closing 2. Screen Configuration 3. Operation Guide 4. Capture Screen 5. Setting VII. Changing Your Settings 1. Personal Tab 2. System Tab 3. Connections Tab VIII. Information 1. Safety Information 2. Troubleshooting 3. Customer Service 4. Service Center Information Certifica…

Text truncated - open the document above for the full version.
