SS4BM180PDA WITH WLAN, RFID AND BLUETOOTH

www.mypidion.com User's Manual ∙Please read the following warnings before using the product. ∙Shapes and colors of the images shown in this manual may differ from the actual products. ∙Contents of the manuals may differ based on the software version of products or conditions of the wireless provider. Handheld PDA BM180 2 BM180 MANUAL • This user manual is protected by copyright. • This user manual has been created by the Bluebird Inc. We have done our best not to create typos, editing errors, and leaving out any information. Please understand if there are any inconveniences. • This product’s program is legally protected. Illegal copying, transmitting, or erasing of the program is prohibited. • This product’s partial functions might have problems from the environment, user program, and other machines. • The radio equipment can’t be used for life saving services because there is possibility to have radio interference and failure. REGISTERED TRADEMARK User’s guidance BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. BLUEBIRD is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. ※ Please read warnings and cautious before use. Device typeUser’s guidance Class B Device (Household Infor- mation and Communication Device) This device has qualified the electromagnetic wave suitable registration and can be used as a household device at a resi- dential area as well as any other areas. Type registration This wireless device may cause propagation interference, and so, it cannot be used for life-saving services. 3 BM180 MANUAL Hereby, Bluebird Inc. declares that this BP50 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. Use only power supplies listed in the user manual. Adaptor Info - Manufacturer : Phihong (Switching Power Supply) - Model : PSAC15R-050 - Input : 100-240~0.4A, 50~60Hz - Output : 5V / 3.0A FCC (Federal Communications Commission) CE Warning label (IEC 60417-6044) To prevent possible hearing damage, do not listen at high volume levels for long periods. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. The antenna must be installed such that 0 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. End users cannot modify this transmitter device. Any Unauthorized modifi cation could void the user`s authority to operate this device. Part 15.105 (B) Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under FCC rules. FCC 15.407 (g) states Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. Since this is an Indoor Only device (required for this band) you do not need to worry about the extreme frequency Stability over wide temperatures, but you can show that the frequency Generation portion of this device (from the schematic) has its own stated stability that would never allow the device to generate emissions or part of the spectrum outside of the authorized band (can be determined by looking at the Occupied BW plots to see how much margin to the band edge is available). If the devices in the future use the other higher frequency UNII bands, and the devices can be used outdoors, you may need to provide details of stability over a much wider temperature range (depending on the use conditions stated in the manual). Most compliance for this requirement is stated from the specification of the frequency generation portion of the device and not necessarily through additional testing. 4 BM180 MANUAL Notice before using device ..................................... 5 Precautions before using battery ............................. 7 About the product 1. Checking components .......................................... 9 2. Checking names of parts ........................................ 10 3. Buttons ......................................................... 11 Learning basics 1. Battery .......................................................... 12 1-1 Insert the battery ............................................ 12 1-2 Remove the battery ......................................... 14 2. How th use cards ................................................ 14 2-1 Insert th…

Text truncated - open the document above for the full version.

Subject : Wireless module certified by FCC Applicant: Bluebird Inc. Product: Handheld PDA Model: BM180 Address: (Dogok-dong, SEI Tower 13,14) 39, Eonjuro30-gil, Gangnam-gu, Seoul, South Korea This product Handheld PDA contained a module for for WLAN 802.11abgn, Bluetooth 4.0. and above module is already certified for FCC(FCC ID:SS4-PW8Q7A) but this equipment is not supported WCDMA, GSM and other 3G modem. We are verified that each module still complies with limits after it is installed into this product. Date: 2014.03.18 Manager: JAEHO LEE

Federal Communications Commission Authorization and Evaluation Division Applicant: Bluebird Inc. Product: Handheld PDA Model: BM180 Address: (Dogok-dong, SEI Tower 13,14) 39, Eonjuro30-gil, Gangnam-gu, Seoul, South Korea SUBJECT: DoC for Handheld PDA To Whom It May Concern: We, the undersigned, hereby attest to the fact that we has been apply the Declaration of Conformity procedure to the class B, according to this product is a computer peripheral (FCC ID: SS4BM180) of this composite filing. Sincerely, Date: 2014.02.18 Manager: JAEHO LEE

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SS4BM180 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram Schematic diagram PCB Layout Part List Operation description Block diagram_ BM180 Circuit Description_ BM180 PCB Layout_ BM180 Part list_ BM180 Operation description_ BM180 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date: 2014.02.18 Manager: JAEHO LEE

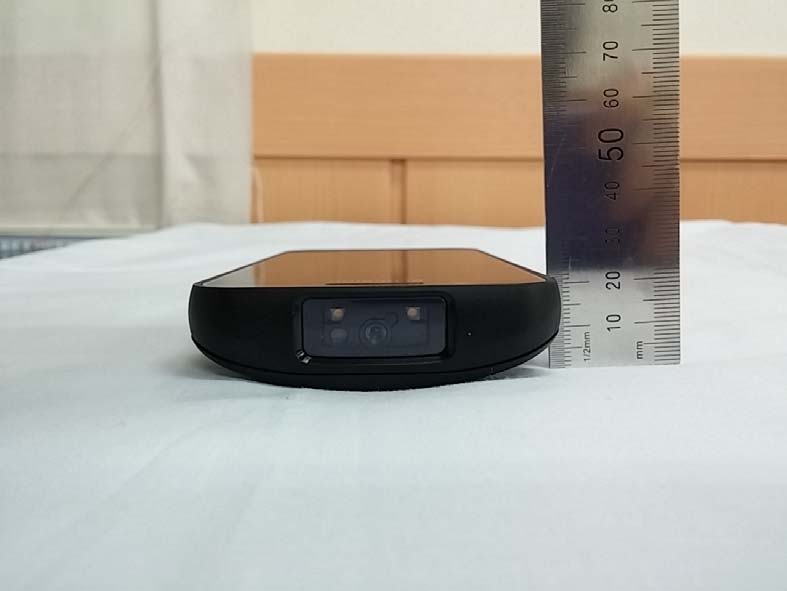

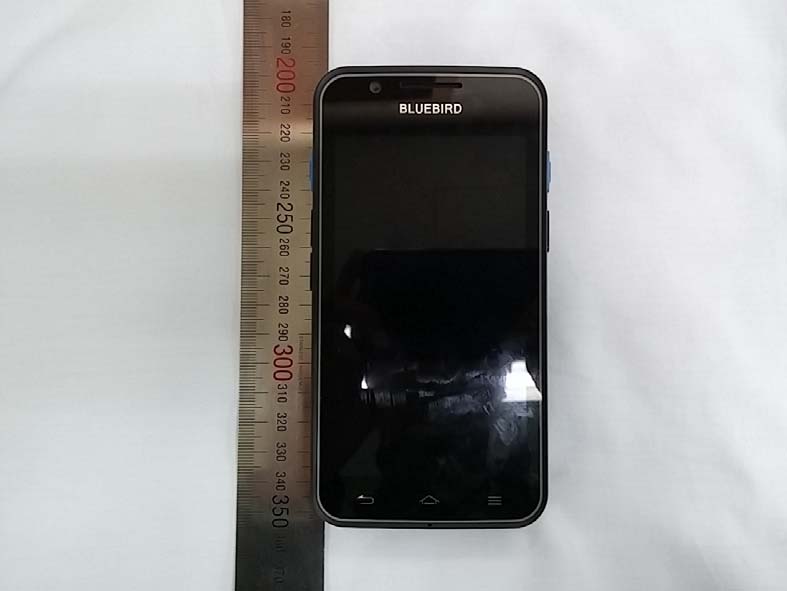

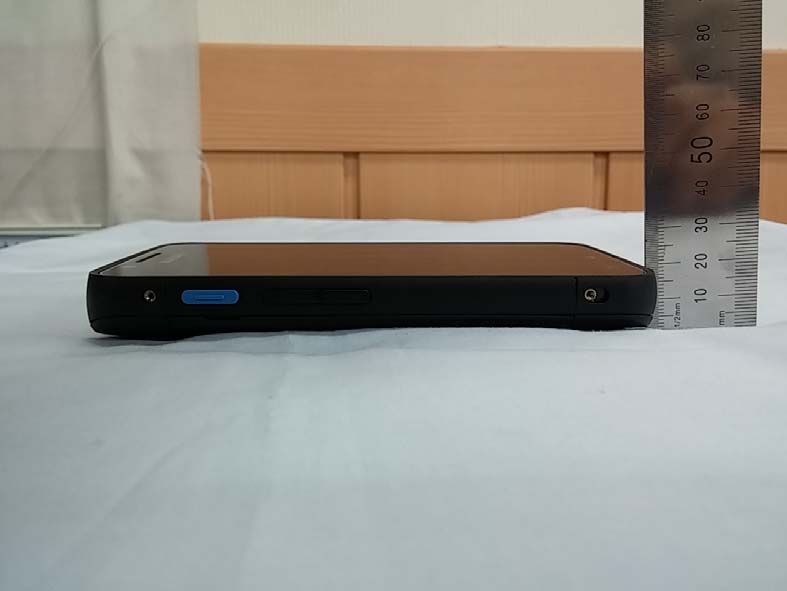

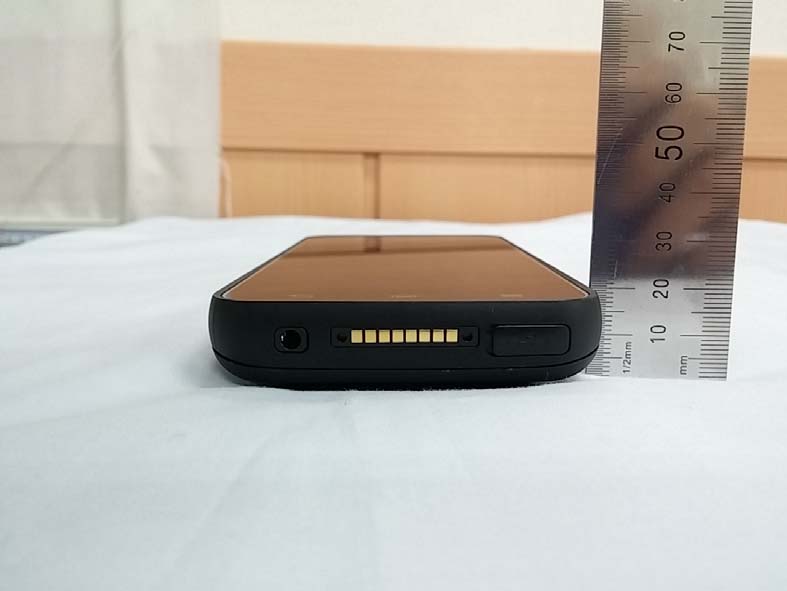

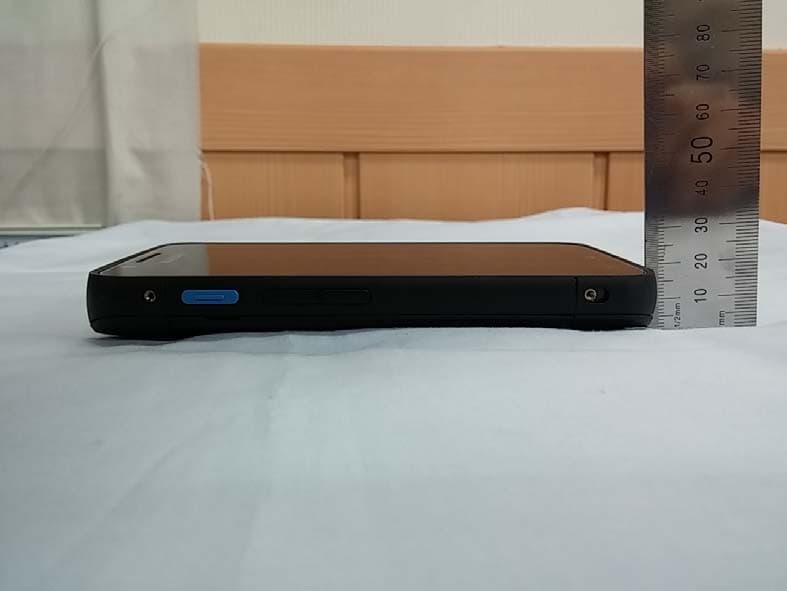

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 1 / 3 Appendix 2. Photographs of EUT [External View] Front Rear Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 2 / 3 [ Right View ] [ Left View ] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 3 / 3 [ Top View ] [ Bottom View ]

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 1 / 1 Appendix 4. Sample Label & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID is marked in the product label with model No. and below information is visible printed on the label. Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is located here.

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 1 / 9 Appendix 3. Photographs of EUT [Internal View] [ Inside View ] NFC Antenna Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 2 / 9 [WLAN antenna Front] [WLAN antenna Rear] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 3 / 9 [GPS antenna Front] [GPS antenna Rear] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 4 / 9 [Main board Front] [Main board Rear] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 5 / 9 [WLAN,BT module Front] [WLAN,BT module Rear] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 6 / 9 [WLAN,BT module Label] [Camera module Front] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 7 / 9 [Camera module Rear] [Camera module Label] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 8 / 9 [Sub control board Front] [Sub control board Rear] Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 9 / 9 [Sub board Front] [Sub board Rear]

1. ANT 3D Gain & Eff No. Freq.[MHz] Eff.[%] Avg.[dBi] Peak[dBi] θ[deg] φ[deg] Eff.[%] Avg.[d Bi] Peak[dBi] θ[deg] φ[deg] Eff.[%] Avg.[dBi] Peak[dBi] θ[deg] φ[deg] 1 2400 41.3 -3.84 2.31 150 165 7.56 -11.22 1.45 180 270 48.85 -3.11 2.87 150 24 0 2 2440 39.6 -4.02 2.19 150 165 7.47 -11.27 1.29 180 255 47.08 -3.27 2.85 150 24 0 3 2480 38.25 -4.17 2.32 150 165 7.62 -11.18 1.77 180 270 45.87 -3.38 3 150 255 4 5150 15.09 -8.21 -2.52 150 285 13.43 -8.72 -1.86 180 285 28.51 -5.45 0.56 15 0 300 5 5500 5.43 -12.65 -4.32 75 240 6.83 -11.65 -2.66 30 315 12.27 -9.11 -2 30 315 6 5825 8 -10.97 -2.7 15 0 7.35 -11.34 -2.86 45 15 15.35 -8.14 -0.94 90 30 BM180 & BP30 Wifi/BT ANT spec θ-Pol(H) φ-Pol(V) PwrSum 2. V.S.W.R 2.4 2.44 2.48 5.15 5.5 5.825 1.4799 1.6337 1.85321 2.2561 10.681 13.144 Frequency(Ghz)V.S.W.R 3. ANT 2D E1(V) pattern φ-Pol(V) No. Freq.[MHz] Avg.[dBi] Peak[dBi] θ[deg] Null[dBi] θ[deg] 1 2400 -11.17 -5.9 -170 -25.94 -160 2 2440 -10.94 -4.48 140 -25.13 90 3 2480 -11.19 -4.64 140 -24.31 -30 4 5150 -1.41 5.18 -60 -19.18 -130 5 5500 -3.01 2.7 -60 -19.64 -70 6 5825 -3.41 2.92 -30 -15.16 60 4. ANT 2D E2(V) pattern φ-Pol(V) No. Freq.[MHz] Avg.[dBi] Peak[dBi] θ[deg] Null[dBi] θ[deg] 1 2400 -6.19 1.31 -180 -21.22 80 2 2440 -5.6 2.4 -180 -22.99 -80 3 2480 -5.47 2.59 -180 -43.55 120 4 5150 -2.46 2.99 -150 -19.14 0 5 5500 -2.67 3.34 -150 -26.86 -2.1 6 5825 -2.1 3.07 -140 -19.19 120 5. ANT 2D H pattern No. Freq.[MHz] Avg.[dBi] Peak[dBi] θ[deg] Null[dBi] θ[deg] 1 2400 -3.94 -1 100 -9.27 340 2 2440 -3.59 -1 90 -8.34 340 3 2480 -3.57 -1.15 100 -7.34 340 4 5150 -7.86 -3.19 70 -13.83 330 5 5500 -12.49 -5.6 110 -23.53 10 6 5825 -8.65 -1.34 110 -30.94 40 1. Frequecy : 13.56Mhz(HF) BM180 & BP30 RFID ANT spec 2. Type : FPCB - single side3. Laminated spec 13 13 CS COVERLAY COVERLAY ADHESIVE 151213 13 15 1L FCCL (BASE) COPPER POLYIMIDE TAPE Double Tape 50 CS COVERLAY ADHESIVE 4. shape & copper line Copper line : 5 turnHoleHoleConnection pad BM180 Antenna Distance Edge 1Edge 1 5.7mm 3.4mm 6.6mm 5.7mm GPS WIFI ANTENNA 62mm 63mm3.4mm Edge 2 Front View Copyright © 1995 ‐ 2012 Bluebird Soft Inc . All Rights Reserved. Edge 3 134.3mm 134.3mm BM180 NFC Distance Edge 1Edge 1 26.9mm 16.9mm 11.3mm NFC 11.4mm Edge 4 Edge 2 Front View Copyright © 1995 ‐ 2012 Bluebird Soft Inc . All Rights Reserved. Edge 3 92.3mm

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 2 / 21 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Table of Contents 1. GENERAL INFORMATION .............................................................................................................. 3 1.1 Test Facility ............................................................................................................................................... 3 1.2 Location .................................................................................................................................................... 3 2. EQUIPMENT DESCRIPTION ........................................................................................................... 4 3. SYSTEM CONFIGURATION FOR TEST ......................................................................................... 5 3.1 Characteristics of equipment .................................................................................................................... 5 3.2 Used peripherals list ................................................................................................................................. 5 3.3 Product Modification ................................................................................................................................. 5 3.4 Operating Mode ........................................................................................................................................ 5 3.5 Test Setup of EUT .................................................................................................................................... 5 3.6 Used Test Equipment List ......................................................................................................................... 6 4. SUMMARY TEST RESULTS ............................................................................................................ 8 5. MEASUREMENT RESULTS ............................................................................................................ 9 5.1 Carrier Frequency tolerance ..................................................................................................................... 9 5.2 Field strength of radiated emissions ...................................................................................................... 10 5.3 AC Power Conducted emissions ............................................................................................................ 16 5.4 Antenna requirement .............................................................................................................................. 20 5.5 20 ㏈ bandwidth measurement ............................................................................................................. 21 Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 3 / 21 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 1. GENERAL INFORMATION 1.1 Test Facility Test laboratory and address KOSTEC Co., Ltd. 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South Korea The open area field test site and conducted measurement facility are used for these testing. This site at was fully described in a reports submitted to the Federal Communications Commission (FCC). The details of these reports have been found to be in complies with the requirements of Section 2.948 of the FCC Rules on November 14, 2002. The facility also complies with the radiated and conducted test site criteria set forth in ANSI C 63.10-2009. The Federal Communications Commission (FCC) has the reports on file and KOSTEC Co., Ltd. is listed under FCC Registration No.525762. The test site has been approved by the FCC for public use and is List in the FCC Public Access Link CORES (Commission Registration System) Registration information KCC (Korea Communications Commission) Number : KR0041 KOLAS(Korea Laboratory Accreditation Scheme) Number : 232 FCC Registration Number(FRN) : 525762 VCCI Registration Number : R-1657 / C –1763 IC Registration Site Number : 8305A-1 1.2 Location KOSTEC Co., Ltd. Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 4 / 21 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 2. EQUIPMENT DESCRIPTION The product specification described herein was declared by manufacturer. And refer to user’s manual for the details. 1) Equipment Name Handheld PDA 2) Model No BM180 3) Brand Name None 4) Usage Handheld PDA 5) Serial Number Proto type 6) ITU emission Code Not required (because it is unlicensed devices) 7) Oscillation Type X-tal 8) Data connection Type RFID (Radio Frequency Identification) 9) Modulation type ASK 10) Field Strength 25.72 ㏈㎶/m @ 30 meter** 11) Operated Frequency 13.561 ㎒ 12) Channel Number 1 ea 13) Communication Type Half duplex 15) Final Amplifier U41 16) Operation temperature - 20°C~ + 55 °C 17) Power Source AC/DC adapter Input : AC 100-240 V, 0.3 A, 50 - 60 ㎐ Output : DC 5 V, 1.0 A Battery : DC 3.7 V 18) Antenna Description Type : Internal PCB Antenna 19) FCC ID SS4BM180 ** it is maximum peak power in band Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 5 / 21 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 3. SYSTEM CONFIGURATION FOR TEST 3.1 Characteristics of equipment The Equipment Under Test (EUT) contains the…

Text truncated - open the document above for the full version.

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 1 / 2 Appendix 1. Photographs of test setup Radiated RF measurement (Below 30 ㎒) Radiated RF measurement (Above 30 ㎒) Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140001 Page: 2 / 2 Appendix 1. Photographs of test setup Conducted Emission (Front) Conducted Emission (Rear)
