SS4BM180MHandheld Mobile Computer

www.mypidion.com User's Manual ∙Please read the following warnings before using the product. ∙Shapes and colors of the images shown in this manual may differ from the actual products. ∙Contents of the manuals may differ based on the software version of products or conditions of the wireless provider. Handheld Mobile Computer BM180 2 BM180 MANUAL • This user manual is protected by copyright. • This user manual has been created by the Bluebird Inc. We have done our best not to create typos, editing errors, and leaving out any information. Please understand if there are any inconveniences. • This product’s program is legally protected. Illegal copying, transmitting, or erasing of the program is prohibited. • This product’s partial functions might have problems from the environment, user program, and other machines. • The radio equipment can’t be used for life saving services because there is possibility to have radio interference and failure. REGISTERED TRADEMARK User’s guidance BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. BLUEBIRD is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. ※ Please read warnings and cautious before use. Device typeUser’s guidance Class B Device (Household Infor- mation and Communication Device) This device has qualified the electromagnetic wave suitable registration and can be used as a household device at a resi- dential area as well as any other areas. Type registration This wireless device may cause propagation interference, and so, it cannot be used for life-saving services. 3 BM180 MANUAL § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This Automotive Diagnosis Computer meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Handheld Mobile Computer (FCC ID: SS4BM180M) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.776W/kg and when properly worn on the body is 0.738W/kg. This device was tested for typical body-worn operations with the back of the handset kept 0.5cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 0.5 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. '$$
$BVUJPO BM180 MANUAL
CE Warning label (IEC 60417-6044) To prevent possible hearing damage, do not listen at high volume levels for long periods. Hereby, Bluebird Inc. declares that this BM180 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. Use only power supplies listed in the user manual. Adaptor Info - Manufacturer : Phihong (Switching Power Supply) - Model : PSAA10R-050 - Input : 100-240~0.4A, 50~60Hz - Output : 5V / 2.0A 4 BM180 MANUAL Notice before using device ..................................... 5 Precautions before using battery ............................. 6 About the product 1. Checking components .......................................... 7 2. Checking names of parts ........................................ 8 3. Buttons ..................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 BLUEBIRD INC. August 26, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____BLUEBIRD INC. _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID : SS4BM180M, M/N : IPBT-210 We affirm that between SIEMIC and ____ BLUEBIRD INC. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Jae-Ho, Lee / Research Engineer BLUEBIRD INC. SEI Tower 13~14, 467-14, Dogok-dong, Gangnam-gu, Seoul, Korea

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 BLUEBIRD INC. August 26, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SS4BM180M We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Jae-Ho, Lee / Research Engineer Contact information / address: BLUEBIRD INC. / SEI Tower 13~14, 467-14, Dogok-dong, Gangnam-gu, Seoul, Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 BLUEBIRD INC. August 26, 2014 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: SS4BM180M To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - Manual - EXT PHOTO - INT PHOTO - Test PHOTO The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Sincerely, Client’s signature : Client’s name / title : Jae-Ho, Lee / Research Engineer Contact information / address: BLUEBIRD INC. / SEI Tower 13~14, 467-14, Dogok-dong, Gangnam-gu, Seoul, Korea

BLUEBIRD INC. SEI Tower 13~14, 467-14, Dogok-dong, Gangnam-gu, Seoul, Korea Tel. +82-70-7730-8210 / Fax. +82-2-548-0870 August 26, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize KRL Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: SS4BM180M including signing of all documents relating to these matters. Any and all acts carried out by KRL Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from BLUEBIRD INC. KRL Co.,Ltd. (Contact Person) Contact name: Kyu-Hyun, Lee Position: Manager Phone:(82)70-4324-6611 E-mail: [email protected] Jae-Ho, Lee / Research Engineer BLUEBIRD INC.

BLUEBIRD INC. SEI Tower 13~14, 467-14, Dogok-dong, Gangnam-gu, Seoul, Korea Tel. +82-70-7730-8210 / Fax. +82-2-548-0870 August 26, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : BLUEBIRD INC. FCC Application for FCC ID: SS4BM180M To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Jae-Ho, Lee / Research Engineer BLUEBIRD INC.

FCC ID: SS4BM180M Copyright Ⓒ 2014, KRL Co., Ltd. SAMPLE LABEL & LOCATION

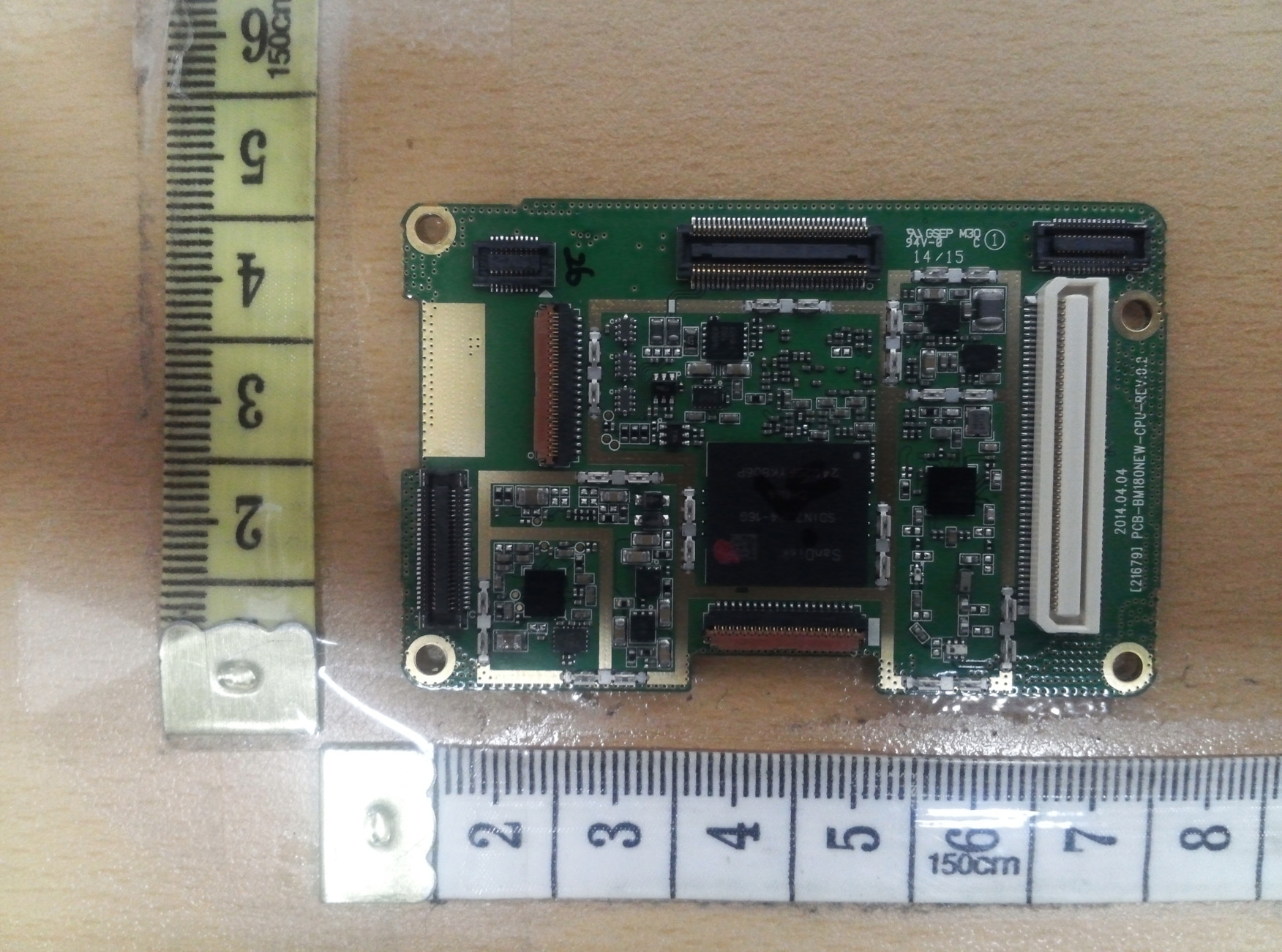

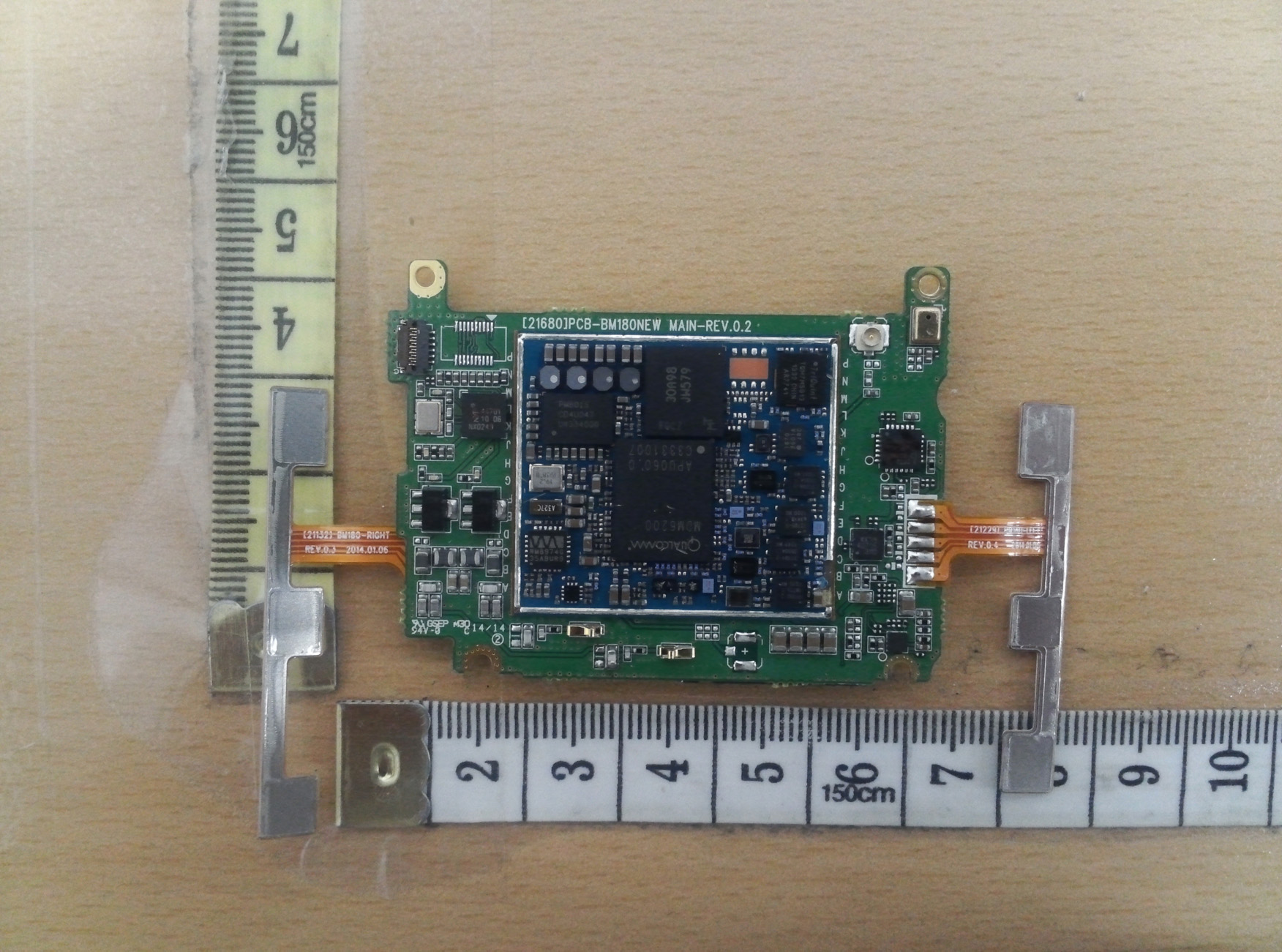

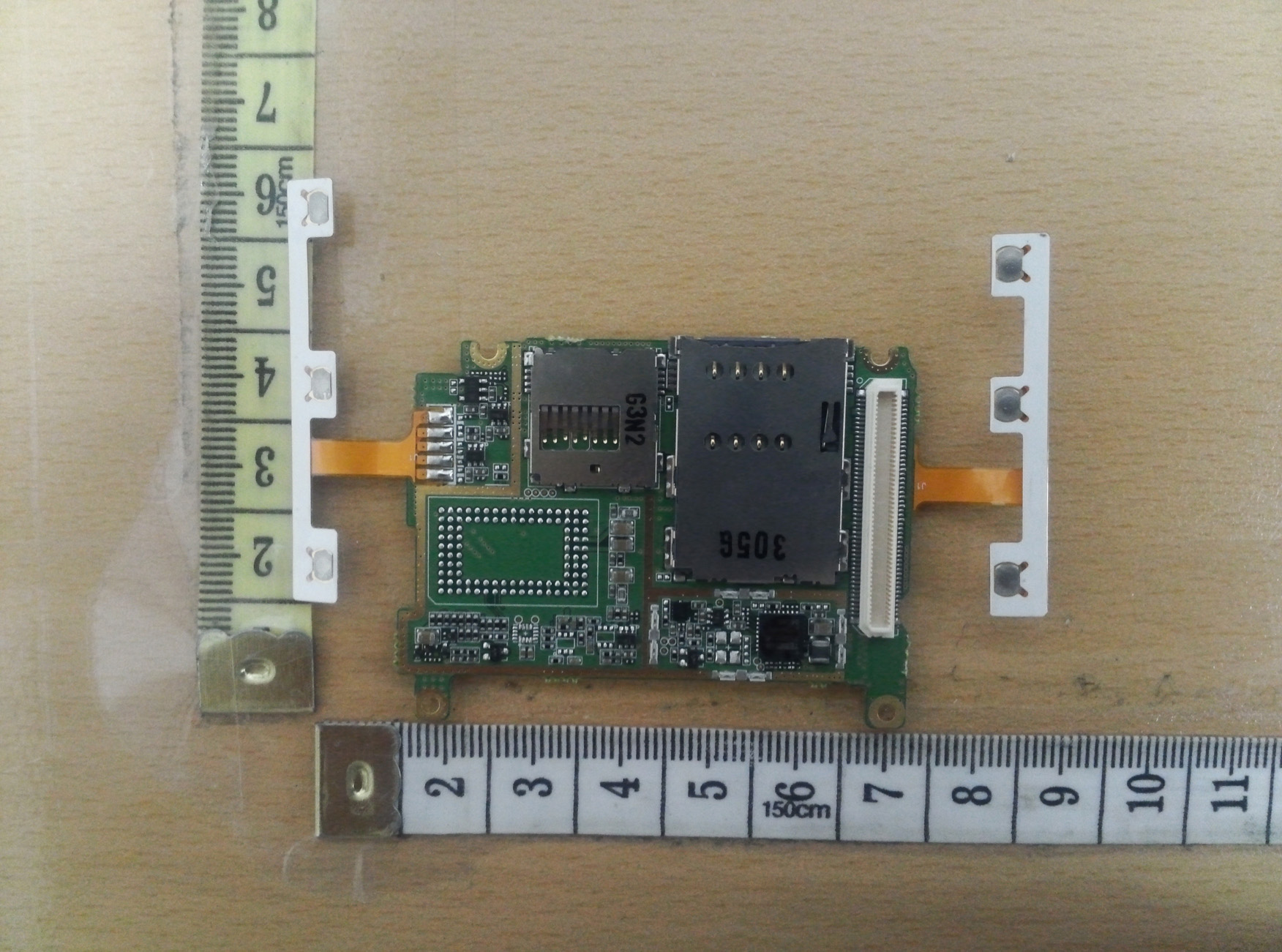

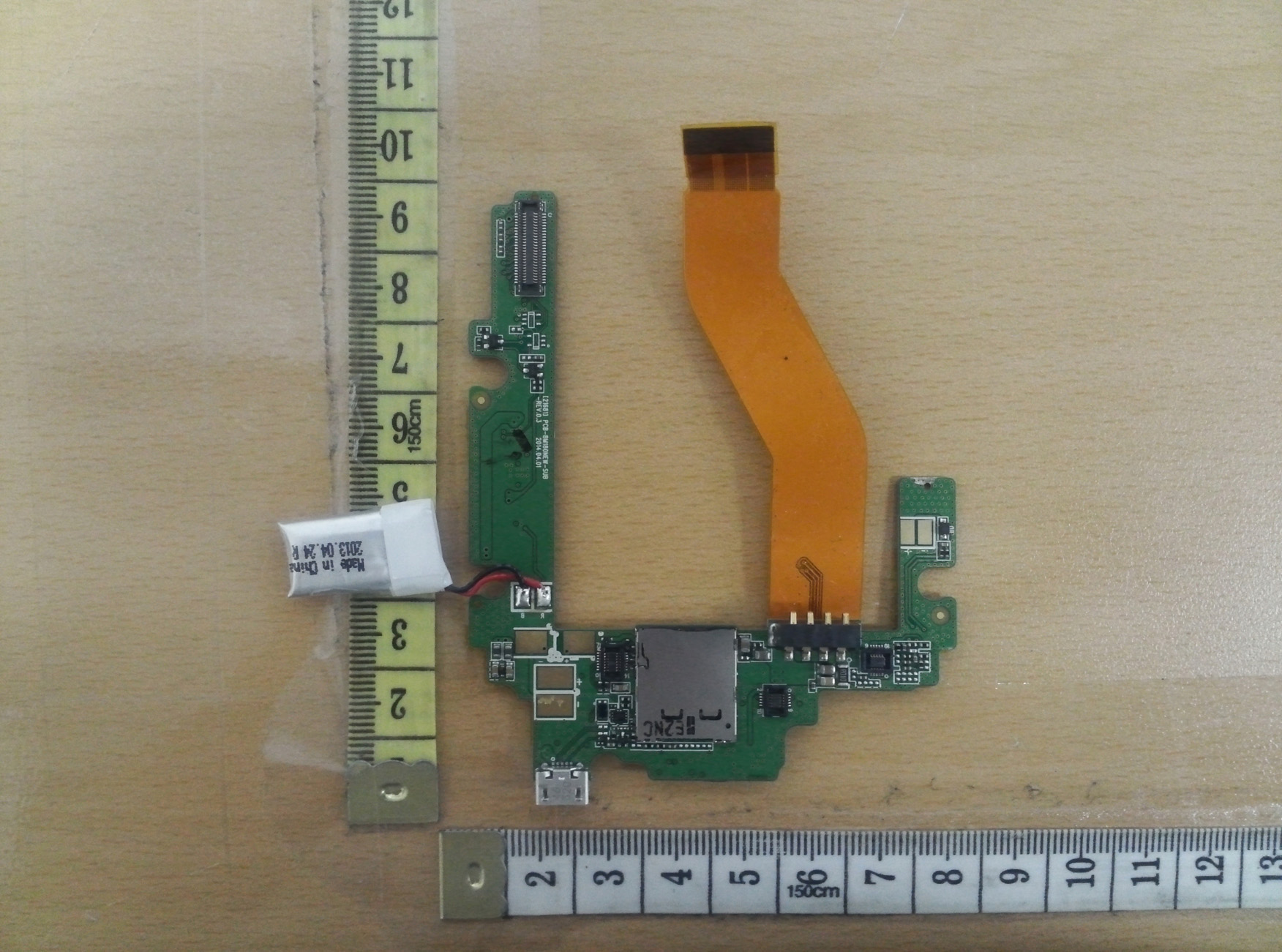

FCC ID: SS4BM180M Copyright ○ c 2014, KRL Co., Ltd. Page 1 of 3 Main Board & WCDMA Module Front Main Board Rear FCC ID: SS4BM180M Copyright ○ c 2014, KRL Co., Ltd. Page 2 of 3 SUB Board Front SUB Board Rear FCC ID: SS4BM180M Copyright ○ c 2014, KRL Co., Ltd. Page 3 of 3 CPU Board Front CPU Board Rear

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCS-140002 Page: 1 / 149 KST-FCS-SRS-Rev.0.1 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. FCC SAR TEST REPORT Report No: KST-FCS-140002 Applicant : Bluebird Inc. Manufacturer : Bluebird Inc. Equipment : Handheld Mobile Computer Brand Name : - Model Name : BM180 Standard : FCC 47 CFR Parts 1 & 2 FCC KDB 865664 Published RF Exposure KDB Procedures, and TCB workshop updates Test Date(s) : 2014.06.03 ~ 2014.06.18 Issue Date : 2014.06.20 Test Result : Compliance Note : - Supplementary Information The measurements shown in this test report were found to be in accordance with the requirements given in each KDB Guidance Publications and Rule References and in accordance with the procedure given in standard FCC KDB 865664. The test results in this report apply exclusively to tested model / sample. Without written approval of KOSTEC Co., Ltd., the test report shall not be reproduced except in full. Tested by Mi Young, Lee / Engineer Approved by Gyeong Hyeon, Park / Manager Signature Signature Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCS-140002 Page: 2 / 149 KST-FCS-SRS-Rev.0.1 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Table of Contents 1. Statement of Compliance .................................................................................................. 3 1-1 Test Method List ...................................................................................................................... 3 2. Administration Data ........................................................................................................... 4 2.1 Test Laboratory ........................................................................................................................... 4 2.2 Location ...................................................................................................................................... 4 2.3 Applicant ..................................................................................................................................... 4 2.4 Manufacturer .............................................................................................................................. 4 2.5 Application Details ...................................................................................................................... 4 3. GENERAL INFORMATION ................................................................................................. 5 3.1 Description of DUT ..................................................................................................................... 5 3.2 Photographs of EUT ................................................................................................................. 15 3.3 Exposure Positions Consideration ........................................................................................... 18 3.4 Test Condition ........................................................................................................................... 19 3.5 Requirements for compliance testing defined by FCC ............................................................. 19 4. Specific Absorption Rate (SAR) ..................................................................................... 20 4.1 Introduction ............................................................................................................................... 20 4.2 SAR Definition .......................................................................................................................... 20 4.3 SAR Measurement Procedure ................................................................................................. 20 5. SAR Measurement System ............................................................................................. 21 5.1 E-field Probe ............................................................................................................................. 22 5.2 Device Positioner ..................................................................................................................... 23 5.3 6 Axis Articulated Robot ALS-F3 .............................................................................................. 24 5.4 SAM Phantoms......................................................................................................................... 25 5.5 Flat Phantoms .......................................................................................................................... 26 5.6 DAQ-PAQ (Analog to Digital Electronics) ................................................................................. 27 5.7 Validation Dipoles ..................................................................................................................... 28 5.8 Test Equipment List .................................................................................................................. 29 6. Measurement Results ...................................................................................................... 31 6.1 Tissue Simulating Liquids ......................................................................................................... 31 6.2 System Verification ................................................................................................................... 33 6.3 DUT Testing Position ................................................................................................................ 35 6.4 SAR measurement procedure .................................................................................................. 35 6.5 SAR Exposure Limits ............................…

Text truncated - open the document above for the full version.

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140005 Page: 2 / 36 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Table of Contents 1. GENERAL INFORMATION .............................................................................................................. 3 1.1 Test Facility ............................................................................................................................................... 3 1.2 Location .................................................................................................................................................... 3 2. EQUIPMENT DESCRIPTION ........................................................................................................... 4 3. SYSTEM CONFIGURATION FOR TEST ......................................................................................... 6 3.1 Characteristics of equipment .................................................................................................................... 6 3.2 Used peripherals list ................................................................................................................................. 6 3.3 Product Modification ................................................................................................................................. 6 3.4 Operating Mode ........................................................................................................................................ 6 3.5 Test Setup of EUT .................................................................................................................................... 6 3.6 Parameters of Test Software Setting ........................................................................................................ 7 3.7 Table for Carrier Frequencies ................................................................................................................... 7 3.8 Duty Cycle Of Test signal ......................................................................................................................... 7 3.8 Used Test Equipment List ......................................................................................................................... 8 4. SUMMARY TEST RESULTS .......................................................................................................... 10 5. MEASUREMENT RESULTS .......................................................................................................... 11 5.1 Transmit Power ....................................................................................................................................... 11 5.2 Peak power spectral density .................................................................................................................. 13 5.3 Emission Bandwidth ............................................................................................................................... 16 5.4 Peak Excursion....................................................................................................................................... 19 5.5 Frequency Stability ................................................................................................................................. 22 5.6 Spurious RF Radiated emissions ........................................................................................................... 23 5.7 Antenna requirement .............................................................................................................................. 31 5.8 AC Power Conducted emissions ............................................................................................................ 32 Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140005 Page: 3 / 36 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 1. GENERAL INFORMATION 1.1 Test Facility Test laboratory and address KOSTEC Co., Ltd. 128(175-20,Annyeong-dong)406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea The open area field test site and conducted measurement facility are used for these testing. This site at was fully described in a reports submitted to the Federal Communications Commission (FCC). The details of these reports have been found to be in complies with the requirements of Section 2.948 of the FCC Rules on November 14, 2002. The facility also complies with the radiated and conducted test site criteria set forth in ANSI C 63.10-2009. The Federal Communications Commission (FCC) has the reports on file and KOSTEC Co., Ltd. is listed under FCC Registration No.525762. The test site has been approved by the FCC for public use and is List in the FCC Public Access Link CORES (Commission Registration System) Registration information KCC (Korea Communications Commission) Number : KR0041 KOLAS(Korea Laboratory Accreditation Scheme) Number : 232 FCC Registration Number(FRN) : 525762 VCCI Registration Number : R-1657 / C –1763 IC Registration Site Number : 8305A-1 1.2 Location KOSTEC Co., Ltd. Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140005 Page: 4 / 36 KST-FCR-RFS-Rev.0.2 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 2. EQUIPMENT DESCRIPTION The product specification described herein was declared by manufacturer. And refer to user’s manual for the details. Equipment Name Handheld Mobile Computer Model No BM180 Usage Handheld Mobile Computer Serial Number Proto type Data connection Type OFDM Modulation type GSM: GMSK, 8PSK WCDMA: QP…

Text truncated - open the document above for the full version.

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel : +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140005 Page: 1 / 2 Appendix 1. Photographs of test setup Radiated RF measurement (Above 30 ㎒) Radiated RF measurement (Above 1 GHz) Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel : +82-31-222-4251 / Fax: +82-31-222-4252 Report No: KST-FCR-140005 Page: 2 / 2 Appendix 1. Photographs of test setup Conducted Emission (Front) Conducted Emission (Rear)
