SS4I1F4Bluetooth Barcode Scanner

Empowering Mobility Sayfa 1/46 Bluebird Soft Inc. www.mypidion.com BI-500-A User Manual Bluebird Soft. Inc. Bluebird Soft. Inc.Bluebird Soft. Inc. Bluebird Soft. Inc. 1242 12421242 1242, , , , Gaepo GaepoGaepo Gaepo- -- -dong dongdong dong, Kangnam , Kangnam, Kangnam , Kangnam- -- -g gg gu, u,u, u, Seoul SeoulSeoul Seoul, , , , Korea KoreaKorea Korea Tel : +82 Tel : +82 Tel : +82 Tel : +82 70 7070 70 7730 77307730 7730 8000 80008000 8000 Fax : +82 2 548 0870 Fax : +82 2 548 0870Fax : +82 2 548 0870 Fax : +82 2 548 0870 www. www.www. www.mypidion.com mypidion.commypidion.com mypidion.com Empowering Mobility Sayfa 2/46 Bluebird Soft Inc. www.mypidion.com ● This User’s Manual is protected under the related copyright laws ● This User’s Manual is produced by Bluebird Soft Inc. The company has made every effort to avoid errors and omissions. Please understand that some parts may not reflect the actual state ● The supplied basic programs are protected under. Reproduction, transfer or deletion of the programs without prior consent is strictly prohibited. ● Depending on users’ environments, programs or peripherals, some parts of this Product may not work normally ● This wireless device may cause propagation interference, and so, it cannot be used for life-saving services Trademark PIDION aims for leading brand in the future mobile industry. As a global brand representing the image of reliability, representativeness, and cutting-edge technologies, this mark has been registered by Bluebird Soft Inc. around the world to be protected under trademark-related laws. Empowering Mobility Sayfa 3/46 Bluebird Soft Inc. www.mypidion.com C CC Contents. ontents.ontents. ontents. P.4 Safety Insturctions P.5 About the Product P.6 Checking names of parts P.8 Product Features P.9 Learning scan,communication, battery LEDs P.10 Battery removal P.11 Insert the battery P.12 Battery charging P.13 Power On/Off P.14 Barcode scan Function P.15 Button P.16 PC Data Sync (Win XP) - The process for PC sync - Install of PC driver P.19 Sending data to PC - Installing PidionScan Program P.23 Sending data by PDA - Procedures for data transmission - Installing Activesync. - Installing PidionScan Program. - Bluetooth Power On/Power Off - Bluetooth setting P. 35 Using PidionScan Program -Connect -Download -Setting - General - trigger - System P.45 Q&A P.46 Customer Serv Empowering Mobility Sayfa 4/46 Bluebird Soft Inc. www.mypidion.com - Read these instructions and warnings to use the Product in a safe manner and to prevent accidents. - Read these instructions and warnings to use the Product in a safe manner and to prevent accidents. Caution for Caution for Caution for Caution for Product Use Product UseProduct Use Product Use. .. . • This Product is EMC-compliant. For safety and health, use the authentic parts supplied by the manufacturer. Any inauthentic part may affect safety. • Do not modify, disassemble or repair the Product at your discretion. Manufacturer if there is a problem in the Product. Also, make sure to follow the warnings and Instructions. If you fail to follow any of the above instructions, no warranty service will be provided. • If the Product is wet, do not put it in a device that may heat the terminal (heater, microwave oven, etc.). Heating batteries may cause an explosion, deformation or fault. (Water or any other liquid will change the color of the label inside the terminal. In this case, no warranty service will be provided.) • Do not use the product on an airplane or in a hospital and also do not operate the product while driving a car. • Do not use this Product in a hot or humid place. Using the Product under a hot/humid temperature such as rain or sauna may cause a trouble. In this case, no warranty service will be provided.
Avoid vibration and impact. When not in operation or when you are absent, pull out the power cord, and keep the Product in a safe place. • Keep this Product away from magnetic products such as credit card, telephone card, bankbook and traffic ticket. The magnetic field of the terminal may affect the data • Use dedicated batteries only and do not use the batteries for any other purpose than operating this Product. Using an inauthentic battery may reduce life of the Product, or cause an explosion. (In this case, no warranty service will be provided.. • Do not place the eyes of a person and/or pet near the scanner exit window. Doing so can result in retinal damage and/or reduced vision. Empowering Mobility Sayfa 5/46 Bluebird Soft Inc. www.mypidion.com About the Product About the ProductAbout the Product About the Product Please make sure all the above components are included. 1. Basic Components Main set,, AC/DC Adapter, Clip ,USB Cable, Neck strap [ Main set] [ Neckstrap] [Battery] [ Adapter+Clip] [ USB cable] The images in this User’s Manual may not reflect the color and shape of the actual product Empowering Mobility Sayfa 6/46 Bluebird Soft Inc. www.mypidion.com Checking names of parts Checking names of partsChecking names of parts Checking names of parts 각 부분의 명칭 및 기능을 숙지하신 후 제품을 사용하시기 바랍니다. [ Front] ] Empowering Mobility Sayfa 7/46 Bluebird Soft Inc. www.mypidion.com [ Side ] Empowering Mobility Sayfa 8/46 Bluebird Soft Inc. www.mypidion.com Product Features Product FeaturesProduct Features Product Features SPECIFICATIONS SPECIFICATIONSSPECIFICATIONS SPECIFICATIONS Laser Scanner Laser ScannerLaser Scanner Laser Scanner Physical Characteristics Physical CharacteristicsPhysical Characteristics Physical Characteristics Dimensions (W x H x D) 50 x 99 x 34mm / 2.0 x 3.9 x 1.3 inch Weight Excluding battery: 80g / Including battery: 110g Indicator (LED) Three-color LED (blue, red and green) Alert Type Beep sound Input Scan, Power buttons, Reset Key Standard Battery Rechargeable, 3.7V, 1,130mAh, Li-ion GPS Integrated GPS Performance Charact Performance CharactPerformance Charact Performance Characteristics eristicseristics eristics CPU S3C2440A40, 400MHz OS Window CE Core Memory 32MB RAM …

Text truncated - open the document above for the full version.

BluebirdSoft., Inc. 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea TEL : 082-2-548-0740 / FAX : 82-31-548-0870 http://www.bluebird.co.kr/ Date: Octo. 19, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, In-Gu Kim/ Director Samsung Electronics Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

BluebirdSoft., Inc. 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea TEL : 082-2-548-0740 / FAX : 82-31-548-0870 http://www.bluebird.co.kr/ Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, BluebirdSoft Inc., would like the following documents regarding this submission for FCC ID: SS4I1F4 to be kept confidential. 1. Block Diagram 2. Schematics 3. Parts List 4. Theory of operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, In-Gu Kim /Director /Bluebird Soft., Inc.

1 Lucy Tsai From: Loh, Grace (Gunpo) [[email protected]] Sent: Tuesday, October 26, 2010 7:35 PM To: Lucy Tsai Subject: RE: Bluebird Soft Inc., FCC ID: SS4I1F4, Assessment NO.: AN10T1066, Notice#1 Attachments: BI-500_Theory of Operation_rev.pdf; BI500_BlockDiagram_rev.pdf; Bluetooth Blockdiagram.pdf; BI-500_Manual.pdf Dear Lucy, I submit to the revised documents. I hope to get the certificate by today. Thanks, Grace Grace Loh/ 노 윤 정 Wireless Division Section Chief/ 과장 SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone: +82 (0)31 428 5744 Mobile: +82 (0)10 2251 3461 Fax: +82 31 428 5859 E-mail : [email protected] = -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, October 22, 2010 4:06 AM To: Jeong, Feel (Gunpo); Loh, Grace (Gunpo) Cc: [email protected] Subject: Bluebird Soft Inc., FCC ID: SS4I1F4, Assessment NO.: AN10T1066, Notice#1 Hi, Feel and Grace, 2 Please address following issues. Q#1: Please provide an updated agent authorization letter and confidentiality request letter to have them signed by grantee contact person, In-gu Kim. Or please update the grantee contact person to Mr. Kyoung Jin Park from FCC database. Î Updated agent authorization letter and confidentiality request letter Q#2: User manual indicated this device also has GPS inside but there has no information about the GPS and Bluetooth functionality description and operating instruction. Please provide. -> It’s the GPS function. There is the information about the operational description. [Lucy] what I meant that the user manual does not have the operation of the GPS and Bluetooth for user instruction. Please check and include them. Î It’s always the ON of the GPS, it’s download to the GPS Log when it is to the download of the PC sync tool. It’s not remark for the user manual because it’s not the user functional. Q#3: Please update user manual to include 15.105 statements and related RF exposure statements. -> Updated the user manual Q#4: Block diagram and user manual indicate this device has also equipped with RFID inside which does not agree with this filing. Please clarify.-> RFID is delete for the user manual and block diagram. [Lucy] Page 12 of user manual and page 2 of block diagram still have mentioned about the RFID function. Please check again. -> Updated user manual Q#5: Please help to point out the BT module and antenna from the internal photos. Î Updated internal photo Q#6: Please provide Bluetooth RF functional block diagram. Î It’s not used to the BT module. [Lucy] don’t understand. Please provide the functional block diagram for the Bluetooth portion. -> Uploading to the Block diagram Q#7: Both user manual and operational description mentioned this device has BT 2.0+EDR capability but in your test report stated that only GPSK module is supported. If it is, please provide an attestation letter to demonstrate other two modulations are disabled in this barcode scanner. Î Updated BT 2.0 to the user manual [Lucy] It looks like that BT 2.0+EDR function was removed from the user manual. How about the operational description? -> Updated user manual and operational description 3 Q#8: This is a handheld device and according to ANSI C63.4, three orientations should be investigated; but there has no information document about this. Have they been investigated during the test? Which one is the worst case and reported? ÆThe information of worst case is updated in BT test report at page 10, 12 Page 5 of test report indicated two horn antennas were used during the test. According to the test date specified in cover page, test was from Oct. 6-Oct. 14 and according to the next calibration day of R & S horn antenna, the last calibration date should be Oct. 7, 2010. So, please clarify when the radiated emission test carried and then clarify which one was used during Oct. 6-Oct. 7. ÆHorn antenna is calibrated every two year. It was calibrated in Oct. 08 2009. The antenna still validated. Best Regards, Lucy Tsai/UL CCS The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Revised documentation should not be emailed, but instead should be submitted through "Add Attachment" function at the UL- CCS website. Please have your Assessment Number and FCC ID/IC Certification number handy. You may use the following link: https://cert.ccsemc.com/filing/ Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or o pinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus 4 transmitted by this email. All…

Text truncated - open the document above for the full version.

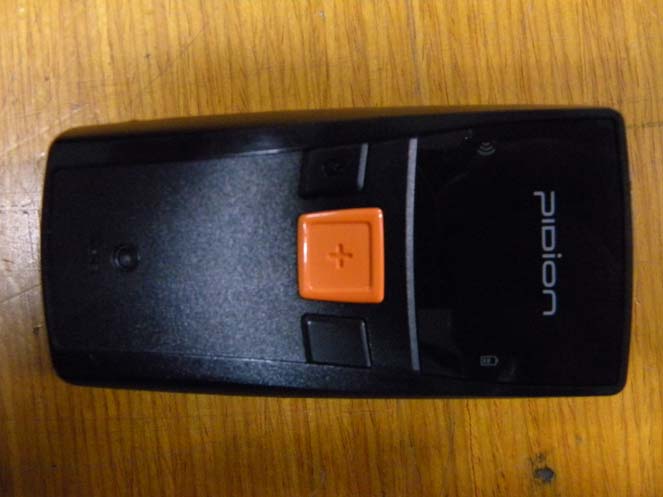

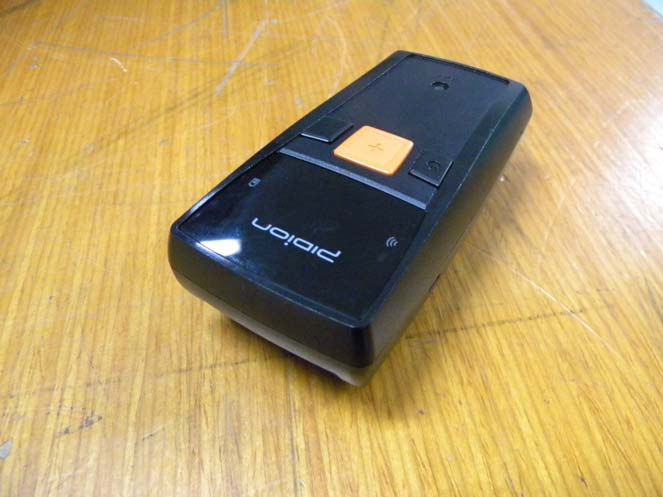

Model : BI-500 External photos of EUT Model : BI-500 Front view of EUT Rear view of EUT Model : BI-500 Side view of EUT

FCC ID LABEL 1. FCC ID label location 2. FCC ID label drawing BluebirdSoft Inc. FCC ID : SS4I1F4 Model : BI-500 Made in Korea

Model : BI-500 Internal photos of EUT Model : BI-500 Top view of main board Bottom view of main board Model : BI-500 Top view of Sub board Bottom view of Sub board

Report Number: F690501/RF-RTL004228 Page: 38 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company 10. RF Exposure Evaluation 10.1 Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational /Control Exposures 300 – 1500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1 500 6 1 500 – 100 000 -- -- 1 30 10.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. . SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Report Number: F690501/RF-RTL004228 Page: 39 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 10.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 10.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Avg Power to Antenna (dBm) Antenna Gain (dBi) Power Density at 20cm (mW/cm 2 ) Limits (mW/cm 2 ) Low 2 402 -1.07 0 0.000 16 Middle 2 441 -1.36 0 0.000 15 High 2 480 -1.65 0 0.000 14 1 Note : 1. For GFSK mode. 2. The power density Pd (5th column) at a distance of 20cm calculated from the friis transmission formula is far below the limit of 1 mW/ cm 2 .

Report Number: F690501/RF-RTL004228 Page: 2 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 8 3. 20㏈ Bandwidth ------------------------------------------------------------------------------------- 17 4. Maximum Peak Output Power ------------------------------------------------------------------- 20 5. Hopping Channel Separation --------------------------------------------------------------------- 23 6. Number of Hopping Frequency ------------------------------------------------------------------ 25 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 28 8. Transmitter AC Power Line Conducted Emission-------------------------------------------- 32 9. Antenna Requirement ------------------------------------------------------------------------------ 37 10. RF Exposure Evaluation ------------------------------------------------------------------------- 38 Report Number: F690501/RF-RTL004228 Page: 3 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Bluebird Soft, Inc. Address : 1242, Gaepo-dong, Kangnam-gu, Seoul, Korea Contact Person : Kim In-Gu Phone No. : +82 70 7730 8252 1.3. Description of EUT Kind of Product Bluetooth Barcode Scanner Model Name BI-500 Serial Number N / A Power Supply DC 3.7 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK only Number of Channels 79 Antenna Type Fixed Type Antenna Gain 0 dBi 1.4. Declaration by the manufacturer - N/A Report Number: F690501/RF-RTL004228 Page: 4 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ Report Number: F690501/RF-RTL004228 Page: 5 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Test Equipment List Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Jul. 15, 2011 Spectrum Analyzer Agilent E4440A Mar. 31, 2011 Spectrum Analyzer Rohde & Schwarz FSV30 May 15, 2011 Bluetooth Tester TESOM TC-3000C Jan. 11, 2011 Directional Coupler KRYTAR 152661 Jun. 01, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Rohde & Schwarz 8449B Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK 396 Jul. 22, 2011 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 Mar. 17, 2012 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Antenna Master EMCO 1050 N/A Turn Table Daeil EMC DI-1500 N/A Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Two-Line V-Network R & S ENV216 Jan. 06, 2011 Test Receiver R & S ESHS10 Jul. 13, 2011 Anechoic Chamber SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A Report Number: F690501/RF-RTL004228 Page: 6 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 Section Test Item Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(1) 20 ㏈ Bandwidth Complied 15.247(b)(1) Maximum Peak Output Pow…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated output power & Spurious Emission Test B. Photos of conducted power line test
