SS4MT280Mobile Payment Terminal

MT280 Mobile Payment Terminal MT280 MANUAL Class B Device (Household Information and Communication Device) Bluebird is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. This device has qualified the electromagnetic wave suitable registration and can be used as a household device at a residential area as well as any other areas. MT280 MANUAL MT280 SAM SAM SAM 6 5 MT280 MANUAL MT280 MANUAL MT280 MANUAL MT280 Main Body (Optional) MT280 MANUAL MSR Card Slot IC Card Slot Button Screen (Optional) (Optional) MT280 MANUAL MT280 MANUAL MT280 MANUAL MT280 MANUAL 1. Paying with MSR 3. Contactless 2. Paying with IC Card MicroSD SIM 2 SAM 1 SAM MicroSD SIM 2 SAM 1 SAM MT280 MANUAL 2. Insert / Remove the USIM card 2-1. Insert the SAM card Slide in the SAM card in the arrow direction. The devices supports 2 SAM slots. MicroSD SIM 2 SAM 1 SAM MT280 MANUAL 2-2. Remove the SAM card Push the top of the SAM card to slide it out in the arrow direction. *Use a piece of sticky tape to pull the SAM card out of the holder more easily. MicroSD SIM 2 SAM 1 SAM 3. Insert / Remove the SAM card MT280 MANUAL Place the USIM card on the holder then push down the holder. 3-1. Insert the USIM card Push the top of the USIM card and slide it out from the holder. 3-2. Remove the USIM card MicroSD 2 SAM 1 SAM SIM MicroSD 2 SAM 1 SAM SIM MT280 MANUAL 4. Insert / Remove the microSD card 4-1. Insert the microSD card 4-2. Remove the microSD card 2 Insert the microSD card into the storage card holder 1Open the storage card holder by lifting up the flap. 2 Remove the microSD card into the storage card holder 1Open the storage card holder by lifting up the flap. 16 SIM 2 SAM 1 SAM MicroSD SIM 2 SAM 1 SAM MicroSD MT280 MANUAL 6 MT280 MANUAL MT280 MANUAL ARM11 32-bit Security Processor Linux 128MB of Flash, 64MB of RAM / Optional, 512MB of Flash, 128MB of RAM One USB OTG port Optional, Bluetooth V4.0 Class1 or 2 Patented PCI PTS 4.X MT280 MANUAL MT280 MT280 MT280 MANUAL MT280 MANUAL MT280 MANUAL MT280 MANUAL MT280 MT280 MANUAL

BLUEBIRD INC. (Dogok-dong, SEI Tower 13,14) 39, Eonjuro30-gil, Gangnam-gu, Seoul, Korea Tel. +82-70-7730-8210 Fax +82-2-548-0870 October 05, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: BLUEBIRD INC. FCC Application for FCC ID : SS4MT280 Cover letter Gentlemen: I . The product is Mobile Payment Terminal whose RF functions are GSM, WLAN, BT and NFC. The GSM module is already authorized under FCC ID: QIPBGS2. The module is electrically identical to the one originally approved. There are no hardware changes and RF power changes though the Host device uses the different antennas from that of the modules. So we substituted parts of the module Characteristics related to the conducted measurements in the approved test report. We re-used the module RF report for the conducted measurement characteristics. II. The transmitters (GSM, WLAN and BT) do not operate simultaneously. If the WLAN is on, the other transmitters like BT and GSM Transmitter are off automatically. Also the other transmitters are the same. III. The Product does not support Voice call mode for GSM. It only supports data mode. Sincerely, Jaeho Lee / Research Engineer BLUEBIRD INC.

BLUEBIRD INC. (Dogok-dong, SEI Tower 13~14), 39, Eonju-ro30-gil, Gangnam-gu, Seoul, Korea Tel. +82-70-7730-8210 Fax +82-2-6499-2242 October 05, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : BLUEBIRD INC. FCC Application for FCC ID: SS4MT280 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Jaeho Lee / Senior engineer BLUEBIRD INC.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 (October 05, 2015) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, BLUEBIRD INC. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Mobile Payment Terminal, MT280) FCC ID: SS4MT280 Sincerely, ____________________________ Client’s signature Client’s name / title : Jae-ho, Lee / Senior engineer Contact information / address : Telephone: +82-70-7730-8210 Fax No.: +82-2-6499-2242 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 (October 05, 2015) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SS4MT280 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ____________________________ Client’s signature Client’s name / title : Jae-ho, Lee / Senior engineer Contact information / address : Telephone: +82-70-7730-8210 Fax No.: +82-2-6499-2242 E-mail: [email protected] SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0 (October 05, 2015) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: SS4MT280 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - User Manual - External Photo - Internal Photo - Test setup Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ____________________________ Client’s signature Client’s name / title : Jae-ho, Lee / Senior engineer Contact information / address : Telephone: +82-70-7730-8210 Fax No.: +82-2-6499-2242 E-mail: [email protected]

WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : SS4MT280 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. ___________________________ Signature : Company Name: BLUEBIRD INC. Address : (Dogok-dong, SEI Tower 13,14)39, Eonjuro30-gil, Gangnam-gu, Seoul, South Korea Name / Title : Jae-ho, Lee / Senior engineer Phone : +82-70-7730-8210 Email : [email protected] Date : 2015/10/14

Page 1 of 1 IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : SS4MT280

Page 1 of 123 Report No. W158R-D006 EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) SAR EVALUATION REPORT Test Report No. W158R-D006 Applicant Bluebird Inc. (Dogok-dong, SEI Tower 13,14)39, Eonjuro30-gil, Gangnam-gu, Seoul, South Korea Model Name MT280 DUT Type Mobile Payment Terminal Application Type Certification FCC ID SS4MT280 Date of Report Aug 31, 2015 Date of Test Aug 17, 2015 ~ Aug 28, 2015 Test Laboratory ONETECH 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862, Korea Procedures KDB 865664 IEEE 1528-2003 ANSI/IEEE C95.1, C95.3 FCC CFR ­2.1093 RSS-102 Issue 4 Max SAR(1g) 1.657 W/kg Test Opinion Satisfied to FCC requirements Report Author Jungwook Kim Aug 31, 2015 Test Engineer Youngyong Kim Aug 31, 2015 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distribute in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of ONETECH Corp. or testing done by ONETECH Corp. In connection with distribution or use of the product described in this report must be approved by ONETECH Corp. in writing. Page 2 of 123 Report No. W158R-D006 EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) TABLE OF CONTENTS 1. DUT INFORMATION .............................................................................. 2. INTRODUCTION ................................................................................... 3. SAR MEASUREMENT SETUP ................................................................ 4. MEASUREMENT UNCERTAINTY ............................................................ 5. ANSI/IEEE C95.1-2005 RF EXPOSURE LIMIT ........................................... 6. SYSTEM AND LIQUID VERIFICATION ................................................... 7. SAR MEASUREMENT PROCEDURES ..................................................... 8. TEST EQUIPMENT LIST ........................................................................ 9. RF CONDUCTED POWER ..................................................................... 10. SAR TEST RESULTS .......................................................................... ANNEX A. SYSTEM VERIFICATION PLOTS ................................................ ANNEX B. SAR TEST PLOTS .................................................................... ANNEX C. PHOTOGRAPHS ...................................................................... ANNEX D. ANTENNA INFORMATION ......................................................... ANNEX E. PROBE AND DIPOLE CALIBRATION CERTIFICATES .................... 3 4 5 9 11 12 16 18 20 24 25 28 47 59 62 Page 3 of 123 Report No. W158R-D006 EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 1. DUT INFORMATION DUT Description Mobile Payment Terminal Model Name MT280 Serial Number Identical Prototype Mode of Operation GSM 850, GSM 1900, WLAN, Bluetooth TX Frequency Range 824.2 MHz ~ 848.8 MHz (GSM 850) 1 850.2 MHz ~ 1 909.8 MHz (GSM 1900) 2 412 MHz ~ 2 462 MHz (802.11 b/g/n_HT20) 2 402 MHz ~ 2 480 MHz (Bluetooth) Maximum Average Conducted Power GSM 850 : 33.01 dBm (ch 251) GSM 1900 : 29.85 dBm (ch 661) 802.11b : 14.24 dBm (ch 11) Bluetooth : 7.03 dBm (ch 78) Summery of peak SAR (10g) GSM 850 : 1.657 W/kg GSM 1900 : 1.574 W/kg 802.11b : 0.510 W/kg Antenna Type & Gain WWAN Antenna Type : PiFA WLAN Antenna Type : PCB Antenna 824 MHz : -4.19 dBi / 849 MHz : -3.10 dBi 1 850 MHz : 2.57 dBi / 1 880 MHz : 2.64 dBi / 1 910 MHz : 1.73 dBi 2 410 MHz : -1.90 dBi / 2 440 MHz : -1.04 dBi / 2 460 MHz : -1.13 dBi Antenna Operation 1 Antenna Transmit USED AC/DC ADAPTER DC 7.4 V Page 4 of 123 Report No. W158R-D006 EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 2. INTRODUCTION The FCC and Industry Canada have adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 and Health Canada Safety Code 6 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz and Health Canada RF Exposure Guidelines Safety Code 6. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test…

Text truncated - open the document above for the full version.

Page 1 of 68 Report No. : W159R-D006 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : W159R-D006 AGR No. : A158A-013 Applicant : BLUEBIRD INC. Address : (Dogok-dong, SEI Tower 13,14)39, Eonjuro30-gil, Gangnam-gu, Seoul, South Korea Manufacturer : BLUEBIRD INC. Address : (Dogok-dong, SEI Tower 13,14)39, Eonjuro30-gil, Gangnam-gu, Seoul, South Korea Type of Equipment : Mobile Payment Terminal FCC ID. : SS4MT280 Model Name : MT280 Serial number : N/A Total page of Report : 68 pages (including this page) Date of Incoming : August 03, 2015 Date of issue : September 07, 2015 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Reviewed by: Approved by: Jae-Ho, Lee / Chief Engineer Sung-Ik, Han/ Managing Director ONETECH Corp. ONETECH Corp. Page 2 of 68 Report No. : W159R-D006 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 5 2. TEST SUMMARY .............................................................................................................................................................. 6 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 6 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 6 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 6 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 6 2.5 TEST METHODOLOGY .................................................................................................................................................... 6 2.6 TEST FACILITY ............................................................................................................................................................... 6 3. GENERAL INFORMATION ............................................................................................................................................ 7 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 7 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 8 4. EUT MODIFICATIONS .................................................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION ............................................................................................................................... 9 5.1 JUSTIFICATION ............................................................................................................................................................... 9 5.3 MODE OF OPERATION DURING THE TEST ...................................................................................................................... 9 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 10 5.5 ANTENNA REQUIREMENT ............................................................................................................................................ 10 6. PRELIMINARY TEST .................................................................................................................................................... 11 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 11 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 11 7. WLAN ................................................................................................................................................................................ 12 7.1 MIMIMUM 6 DB BANDWIDTH .............................................................................................................................. 12 7.1.1 Operating environment ......................................................................................................................................... 12 7.1.2 Test set-up ............................................................................................................................................................. 12 7.1.3 Test equipment used............................................................................................................................................…

Text truncated - open the document above for the full version.

Page 42 of 68 Report No. : W159R-D006 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 7.3.6 Test data for radiated emission 7.3.6.1 Radiated Emission which fall in the Restricted Band 7.3.6.1.1 Test data for 802.11b -. Test Date : August 25, 2015 -. Resolution bandwidth : 1 MHz for Peak and Average Mode -. Video bandwidth : 1 MHz for Peak Mode, 10 Hz for Average Mode -. Frequency range : 30 MHz ~ 26.5 GHz -. Measurement distance : 3 m -. Result : PASSED Frequency (MHz) Reading (dBμV) Detector Mode Ant. Pol. (H/V) Ant. Factor Cable Loss Amp Gain Total (dBμV/m) Limits (dBμV/m) Margin (dB) Test Data for Low Channel 2385.99 57.31 Peak H 27.10 7.50 43.00 48.91 74.00 25.09 2397.63 40.55 Average H 32.15 54.00 21.85 2387.53 53.89 Peak V 45.49 74.00 28.51 2387.53 40.64 Average V 32.24 54.00 21.76 Test Data for Low Channel (EDGE) 2397.63 65.44 Peak H 27.10 7.50 43.00 57.04 74.00 16.96 2397.63 59.27 Average H 50.87 54.00 3.13 2396.98 66.40 Peak V 58.00 74.00 16.00 2396.98 58.11 Average V 49.71 54.00 4.29 Test Data for High Channel 2479.12 54.52 Peak H 27.10 7.50 43.00 46.12 74.00 27.88 2479.12 43.76 Average H 35.36 54.00 18.64 2489.23 53.80 Peak V 45.40 74.00 28.60 2489.23 36.47 Average V 28.07 54.00 25.93 Tabulated test data for Restricted Band Remark: “H”: Horizontal, “V”: Vertical Margin (dB) = Limits (dBμV/m) - Total Level (dBμV/m) Total Level = Reading + Antenna Factor + Cable Loss – Pre-Amplifier Gain Tested by: Jun-Hui, Lee / Senior Engineer Page 43 of 68 Report No. : W159R-D006 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 7.3.6.1.2 Test data for 802.11g -. Test Date : August 25, 2015 -. Resolution bandwidth : 1 MHz for Peak and Average Mode -. Video bandwidth : 1 MHz for Peak Mode, 10 Hz for Average Mode -. Frequency range : 30 MHz ~ 26.5 GHz -. Measurement distance : 3 m -. Result : PASSED Frequency (MHz) Reading (dBμV) Detector Mode Ant. Pol. (H/V) Ant. Factor Cable Loss Amp Gain Total (dBμV/m) Limits (dBμV/m) Margin (dB) Test Data for Low Channel 2388.88 59.12 Peak H 27.10 7.50 43.00 50.72 74.00 23.28 2388.88 45.72 Average H 37.32 54.00 16.68 2389.24 59.51 Peak V 51.11 74.00 22.89 2389.24 46.66 Average V 38.26 54.00 15.74 Test Data for Low Channel (EDGE) 2389.04 73.42 Peak H 27.10 7.50 43.00 65.02 74.00 8.98 2399.41 50.80 Average H 42.40 54.00 11.60 2389.04 74.66 Peak V 66.26 74.00 7.74 2389.04 51.60 Average V 43.20 54.00 10.80 Test Data for High Channel 2483.63 64.06 Peak H 27.10 7.50 43.00 55.66 74.00 18.34 2483.51 45.00 Average H 36.60 54.00 17.40 2483.56 67.21 Peak V 58.81 74.00 15.19 2483.56 46.21 Average V 37.81 54.00 16.19 Tabulated test data for Restricted Band Remark: “H”: Horizontal, “V”: Vertical Margin (dB) = Limits (dBμV/m) - Total Level (dBμV/m) Total Level = Reading + Antenna Factor + Cable Loss – Pre-Amplifier Gain Tested by: Jun-Hui, Lee / Senior Engineer Page 44 of 68 Report No. : W159R-D006 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 7.3.6.1.3 Test data for 802.11n_HT20 -. Test Date : August 25, 2015 -. Resolution bandwidth : 1 MHz for Peak and Average Mode -. Video bandwidth : 1 MHz for Peak Mode, 10 Hz for Average Mode -. Frequency range : 30 MHz ~ 26.5 GHz -. Measurement distance : 3 m -. Result : PASSED Frequency (MHz) Reading (dBμV) Detector Mode Ant. Pol. (H/V) Ant. Factor Cable Loss Amp Gain Total (dBμV/m) Limits (dBμV/m) Margin (dB) Test Data for Low Channel 2389.78 62.66 Peak H 27.10 7.50 43.00 54.26 74.00 19.74 2389.78 47.51 Average H 39.11 54.00 14.89 2389.33 60.40 Peak V 52.00 74.00 22.00 2389.33 44.81 Average V 36.41 54.00 17.59 Test Data for Low Channel (EDGE) 2399.97 75.28 Peak H 27.10 7.50 43.00 66.88 74.00 7.12 2399.97 53.32 Average H 44.92 54.00 9.08 2399.58 74.07 Peak V 65.67 74.00 8.33 2399.58 51.69 Average V 43.29 54.00 10.71 Test Data for High Channel 2483.78 67.21 Peak H 27.10 7.50 43.00 58.81 74.00 15.19 2483.78 45.75 Average H 37.35 54.00 16.65 2483.52 69.71 Peak V 61.31 74.00 12.69 2483.52 46.72 Average V 38.32 54.00 15.68 Tabulated test data for Restricted Band Remark: “H”: Horizontal, “V”: Vertical Margin (dB) = Limits (dBμV/m) - Total Level (dBμV/m) Total Level = Reading + Antenna Factor + Cable Loss – Pre-Amplifier Gain Tested by: Jun-Hui, Lee / Senior Engineer Page 45 of 68 Report No. : W159R-D006 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 7.3.6.2 Spurious & Harmonic Radiated Emission 7.3.6.2.1 Test data for 802.11b -. Test Date : August 25, 2015 -. Resolution bandwidth : 1 MHz for Peak and Average Mode for the emissions fall in restricted band, 100 kHz for Peak Mode for the emissions outside restricted band -. Video bandwidth : 1 MHz for Peak Mode, 10 Hz for Average Mode -. Frequency range : 1 GHz ~ 26.5 GHz -. Measurement distance : 3…

Text truncated - open the document above for the full version.

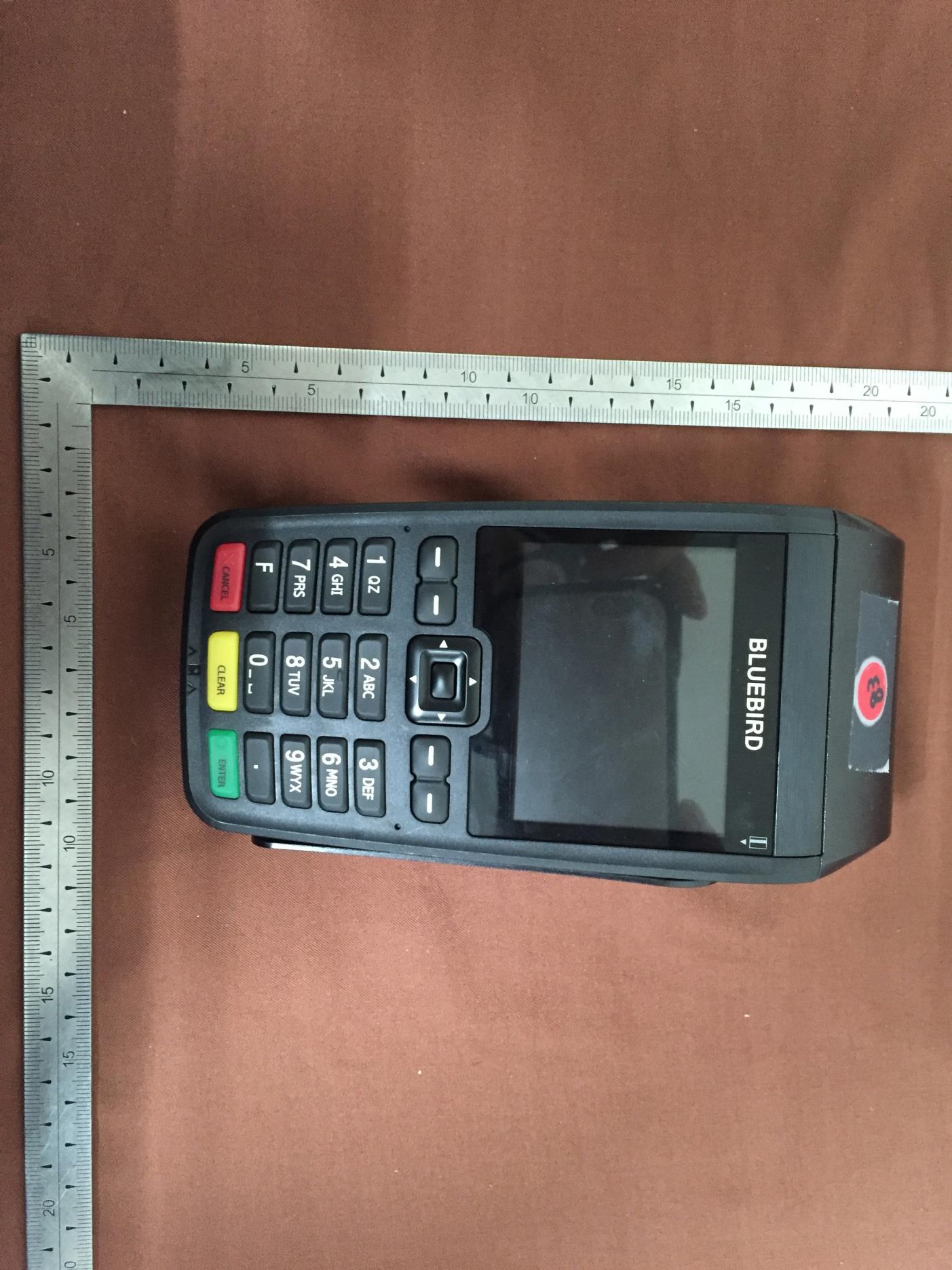

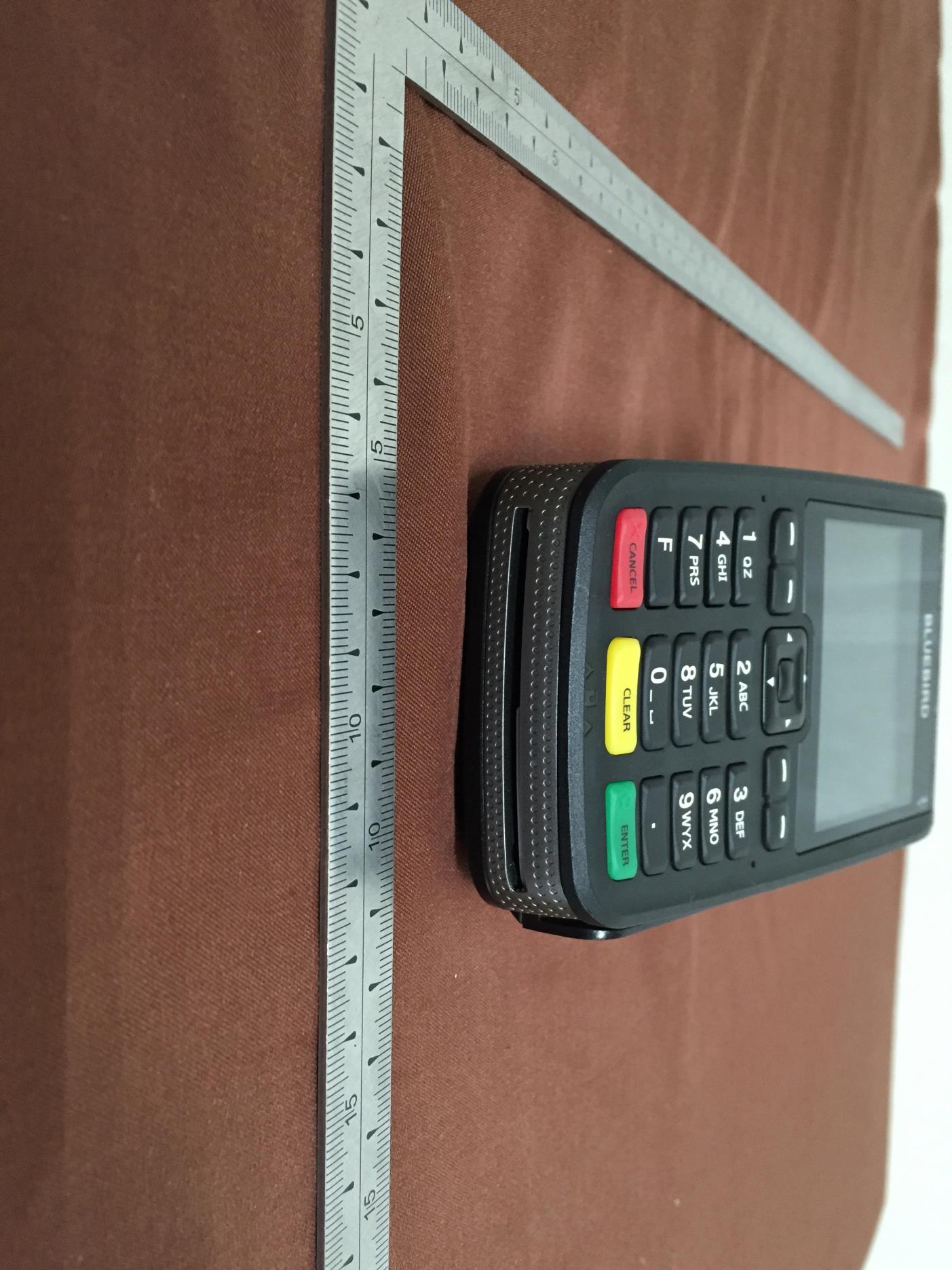

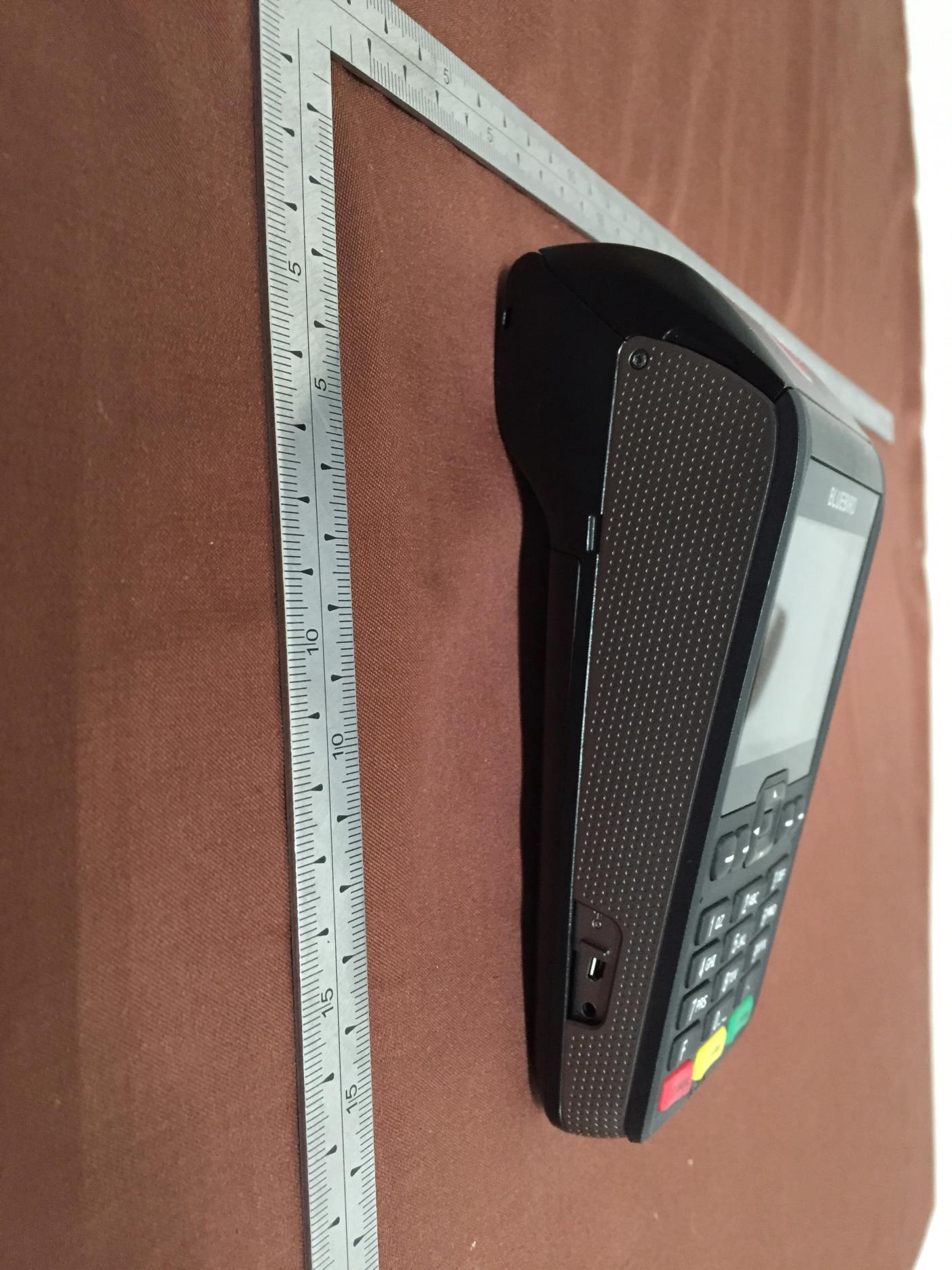

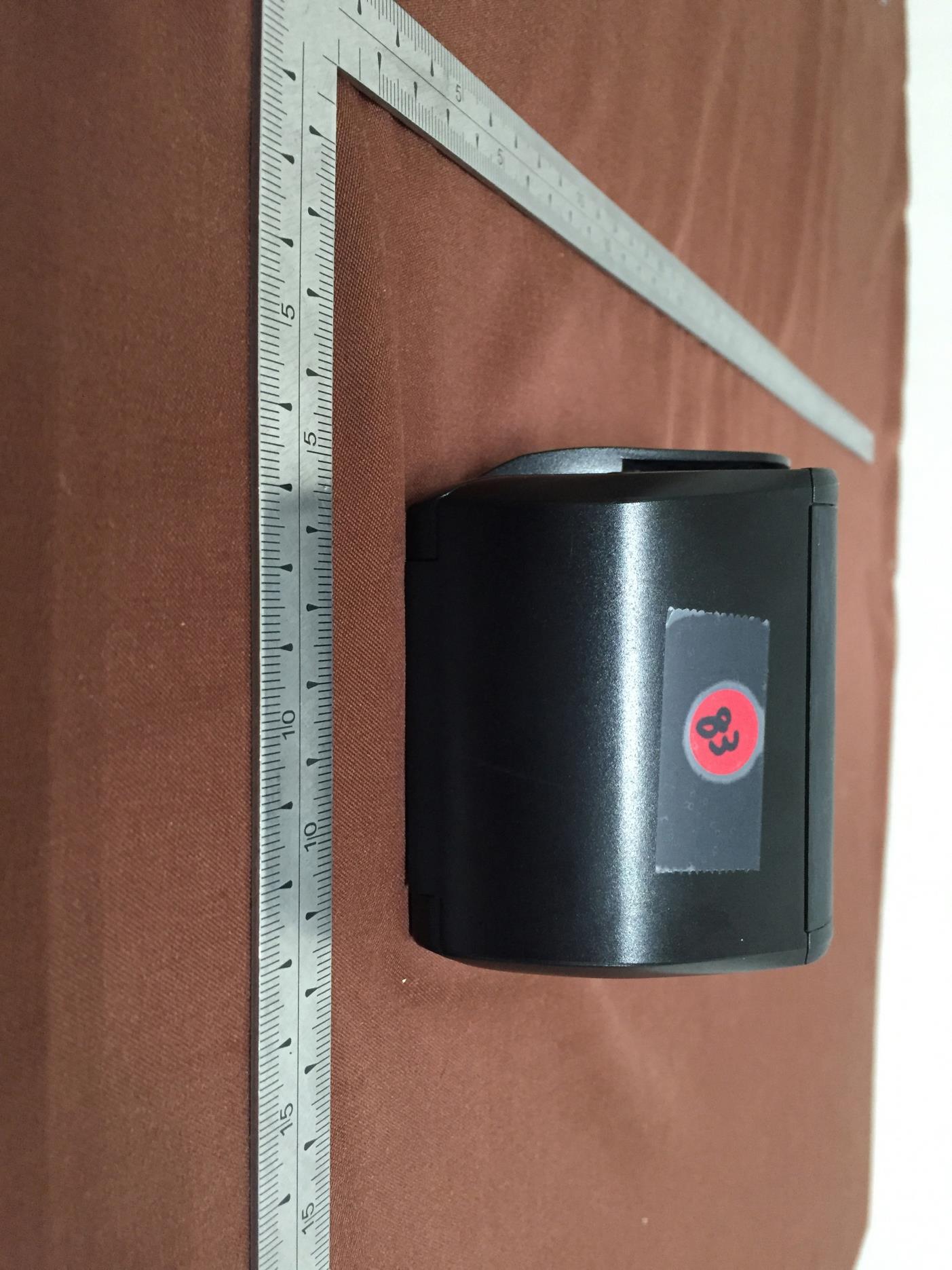

Page 1 of 4 Page 2 of 4 -. Radiated Emission Test Page 3 of 4 -. Radiated Emission Test Page 4 of 4
