SS4VF550Enterprise-Value Full Touch Handheld Computer

VF550 QUICK GUIDE &OUFSQSJTF7BMVF
'VMM
5PVDI
)BOEIFME
$PNQVUFS This user manual is protected by copyright. Copyright © 2020 Bluebird Inc. All rights reserved. Bluebird Inc. is the designer and manufacturer of Bluebird handheld mobiles. This manual and the programs in this device are protected under international copyright laws, and may not be copied, distributed, translated, or removed by any means. Registered T rademark BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc. • Qualcomm ® IZat™ is a registered trademark of Qualcomm Atheros, Inc.trademark of Qualcomm Atheros, Inc. • Adobe ® is a registered trademark of Adobe Systems Inc. • All other trademarks and copyrights are the property of their respective owners. User’s Guidance Device typeUser’s guidance Class B Device (Household Information & Communication) This device has qualified the electromagnetic wave suitable registration and can be used as a household device at a residential area as well as any other areas. Type Registration This wireless device may cause propagation interference, and so, it cannot be used for life-saving services. 1 Safety Information 1 Safety Information 1.1 Symbols This manual uses the following symbols to indicate hazards and additional information. SymbolNameDescription WarningIndicates situations that could cause injury to yourself or others. CautionIndicates situations that could cause damage to your device or other equipment. NoteIndicates additional information that can help you get the most out of the device. Please read this safety precaution information carefully. Failure to follow the information provided may result in fire, electric shock, or other property damage or bodily injuries. 1.2 Device • Do not press the Power button on the device if the device is wet or do not touch adapter or power cord with wet hands. There is risk of electric shock. • Do not use your device in an explosive danger zone. • If your device becomes wet, do not put your device in heaters, microwaves, etc. to dry it. There is a risk of explosion or malfunction. • Do not scratch the device’s touchscreen. Use only your fingers or a compatible pen. Never use an actual pen, or any other sharp object on the touchscreen. • Although this device is very sturdy, do not drop, hit, bend, or sit on it on purpose. It can be broken. • Do not modify, take apart, or repair the device. Contact to your customer service center. Failure to do so will void your warranty. • Do not attempt to modify your hardware or software. It may cause device malfunction and void your warranty. • You may not be able to use this wireless device in basements, open fields, skyscrapers, or other places where the signal is weak. • Backup the data and information from your device. Your data, such as ringtones, texts, and voice messages, may be erased during repairs or upgrades. • Do not paint your device. It can damage your screen or your device’s exterior. • Avoid using or storing this device at extreme temperatures. This device is designed to work at temperatures between -10°C and 50°C (14°F and 122°F), and humidity level between 5% and 95%. Safety Information 2 1.3 Environment •Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion. •Do not use the device in dusty or hot locations. Doing so may damage the device. • Do not expose your device to direct sunlight such as on the dashboard of a car for extended periods of time. • Do not use the device in humid locations. Doing so may damage the device and void the warranty. • Do not keep the device close to air conditioner vents. Corrosion within the device may occur due to condensation from changes in temperature. • Do not allow children to play with the device. 1.4 Charging • Use only the approved charger. Using an incompatible charger may cause device malfunction or other damage, such as fire. • Charge the battery at least once a year. If you keep it without charging for a long time, it may cause device malfunction. 1.5 Distraction In some situations, using your device may distract you and cause serious injuries and damages. For example, avoid talking on the phone or texting while driving or riding a bicycle. It is strictly prohibited by law in some jurisdictions. If you cannot avoid using your device while driving, stop your vehicle or use hand-free kit. 1.6 Frequency Interference •This wireless device may cause radio frequency interference, so use Airplane mode or turn off the device when prohibited. • The device emits an electromagnetic fields. It may interfere with your medical devices. • Do not place credit cards, phone cards, bankbook, and tickets next to the device. The magnetic field of the device can damage their magnetic strips. 3 2.1 Package Contents The package includes: USB cable (C-type) VF550 device Overview 2 Overview Battery The illustrations may differ from your actual items. Adapter SIM Tooling pin Overview 4 2.2 Your Device 2.2.1 Front 2.2.2 Back Light sensor Proximity sensor Touch screen Volume up button Volume down button Receiver Charging / Notification LED SIM card slot Power Button Scan button Back button Battery release latch Battery Scan button Home button Menu button Rear camera Camera flash Battery release latch Overview 5 2.2.3 Bottom and Top Headset jack Interface connector Microphone Speaker Microphone Barcode scanner 6 3.1 Installing the Cards 3.1.1 Inserting a Micro SIM card 1 Remove the card slot on the right side of your device. 2 Insert a micro SIM cards into the slots. Make sure that the gold contacts on the cards a…

Text truncated - open the document above for the full version.

BLUEBIRD INC. 3F, 115, Irwon-ro, Gangnam-gu, Seoul, South Korea Date: 08/14/2020 FCC ID: SS4VF550 Attestation Letter To Whom It may Concern: This device is integrated an approval module.( FCC ID: XMR201805EC25AU) When the authorized module is built into the final product, there are no changes in the hardware. ie, the transmitter module itself has not changed. -The LTE Band 5 is disabled via software. The modular test report is submitted to represent the compliance of FCC Part 22/24/27 conducted test item of this device. Sincerely, Yongsik Jang QA Senior Manager

BLUEBIRD INC. 3F, 115, Irwon-ro, Gangnam-gu, Seoul, South Korea Declaration Letter for Label Date: 08/14/2020 FCC ID: SS4VF550 To whom it may concern;  If label is placed on the outer parts of the device, there are chances that the label might be torn out or distorted. Thus, the label is being placed inside the battery compartment.  The FCC ID is readily visible to purchaser at the time of purchase because the device will be marketed without battery installed. The package includes the device, battery, battery cover packed individually. Should you have any questions, please contact us. Sincerely, Yongsik Jang QA Senior Manager

BLUEBIRD INC. 3F, 115, Irwon-ro, Gangnam-gu, Seoul, South Korea Date: Aug. 23, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: SS4VF550 including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from BLUEBIRD INC. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Yongsik Jang QA Senior Manager

BLUEBIRD INC. 3F, 115, Irwon-ro, Gangnam-gu, Seoul, South Korea Date: Aug. 21, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCC ID: SS4VF550 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, BLUEBIRD INC. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give BLUEBIRD INC. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 Tune up Procedure SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Yongsik Jang QA Senior Manager

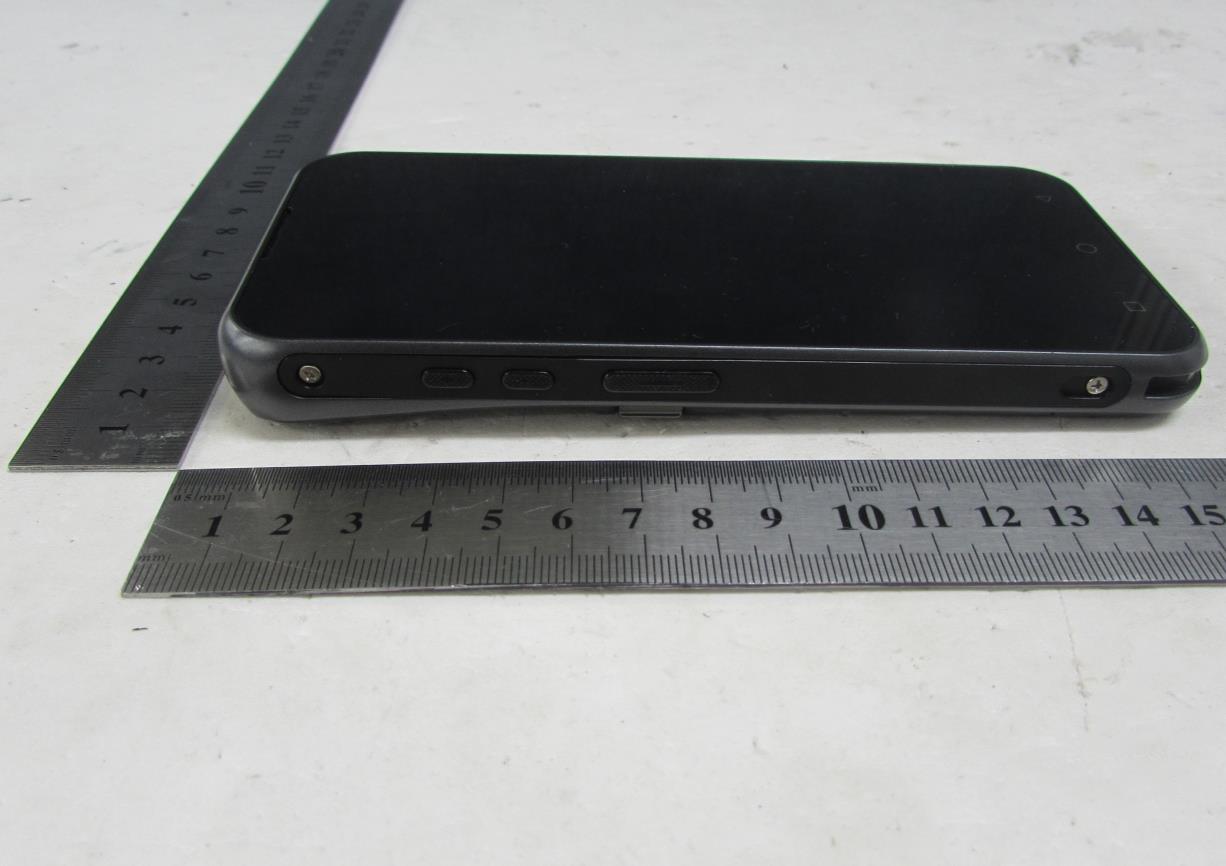

FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 4 <PORT>

FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. -The package includes the device, battery, battery cover packed individually. This allows the users to identify where the FCC ID is located. <Label location> <Sample Label> - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 4 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 5 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 6 FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 7 <Main Antenna> <Main Antenna> FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 8 <NFC Antenna> FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 9 <Wifi Antenna> <Wifi Antenna> FCC ID : SS4VF550 Copyright Ⓒ 2020, DT&C Co., Ltd. View 10 <RX Antenna> <RX Antenna>

Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 Date of issue: Aug. 21, 2020 Copyright Ⓒ 2020, DT&C Co., Ltd. SAR Plots  Verification Plots  SAR Test Plots DT&C Co., Ltd. DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d159 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.92 S/m; ε r = 42.793; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(10.32, 10.32, 10.32) @ 835 MHz; Calibrated: 9/27/2019 Electronics: DAE3 Sn520 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2020-07-17; Ambient Temp: 21.4; Tissue Temp: 20.9 835 MHz System Verification (250 mW) Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.91 W/kg SAR(1 g) = 2.48 W/kg; SAR(10 g) = 1.63 W/kg 0 dB = 3.29 W/kg DT&C Co., Ltd. DUT: Dipole 1800 MHz; Type: D1800V2; Serial: D1800V2 - SN:2d202 Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.396 S/m; ε r = 40.481; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(8.87, 8.87, 8.87) @ 1800 MHz; Calibrated: 9/27/2019 Electronics: DAE3 Sn520 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2016_07_22_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2020-08-12; Ambient Temp: 21.7; Tissue Temp: 21.5 1800 MHz System Verification (100 mW) Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.01 dB Peak SAR (extrapolated) = 6.85 W/kg SAR(1 g) = 3.67 W/kg; SAR(10 g) = 1.9 W/kg 0 dB = 5.20 W/kg DT&C Co., Ltd. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d176 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.408 S/m; ε r = 40.825; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(8.57, 8.57, 8.57) @ 1900 MHz; Calibrated: 9/27/2019 Electronics: DAE3 Sn520 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2016_07_22_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2020-08-11; Ambient Temp: 21.9; Tissue Temp: 21.6 1900 MHz System Verification (100 mW) Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.06 dB Peak SAR (extrapolated) = 5.42 W/kg SAR(1 g) = 3.79 W/kg; SAR(10 g) = 1.99 W/kg 0 dB = 3.83 W/kg DT&C Co., Ltd. DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:726 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.857 S/m; ε r = 38.295; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(7.84, 7.84, 7.84) @ 2450 MHz; Calibrated: 9/27/2019 Electronics: DAE3 Sn520 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2016_07_22_middle; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2020-07-06; Ambient Temp: 20.6; Tissue Temp: 20.3 2450 MHz System Verification (100 mW) Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.08 dB Peak SAR (extrapolated) = 12.4 W/kg SAR(1 g) = 5.24 W/kg; SAR(10 g) = 2.46 W/kg 0 dB = 7.82 W/kg DT&C Co., Ltd. DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1103 Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2600 MHz; σ = 2.024 S/m; ε r = 37.761; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(7.62, 7.62, 7.62) @ 2600 MHz; Calibrated: 9/27/2019 Electronics: DAE3 Sn520 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2020-08-13; Ambient Temp: 21.1; Tissue Temp: 20.4 2600 MHz System Verification (100 mW) Area Scan (6x8x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.06 dB Peak SAR (extrapolated) = 12.2 W/kg SAR(1 g) = 5.76 W/kg; SAR(10 g) = 2.58 W/kg 0 dB = 8.96 W/kg DT&C Co., Ltd. DUT: Dipole 5000 MHz; Type: D5GHzV2; Serial: D5GHzV2 - SN:1212 Communication System: UID 0, CW (0); Frequency: 5300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5300 MHz; σ = 4.792 S/m; ε r = 35.627; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3933; ConvF(5.1, 5.1, 5.1) @ 5300 MHz; Calibrated: 9/27/2019 Electronics: DAE3 Sn520 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2020-07-07; Ambient Temp: 20.8; Tissue Temp: 20.2 5300 MHz System Verification (100 mW) Area Scan (7x8x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm, Graded Ratio:1.4 Power Drift = -0.03 dB Peak SAR (extrapolated) = 30.1 W/kg SAR(1 g) = 8.32 W/kg; SAR(10 g) = 2.35 W/kg 0 dB = 19.8 W/kg DT&C Co., Ltd. DUT: Dipole 5000 MHz; Type: D5GHzV2; Serial: D5GHzV2 - SN:1212 Communication System: UID 0, CW (0); Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 5.138 S/m; ε r = 34.054; ρ = 1000 kg/m 3 Phantom sect…

Text truncated - open the document above for the full version.

Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 /160 Test Report Version Test Report No. Date Description Tested by Reviewed by DRRFCC2008-0084 Aug. 21, 2020 Initial issue BumJun Park HakMin Kim Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 /160 Table of Contents 1. DESCRIPTION OF DEVICE ................................................................................................................................................ 5 1.1 General Information ..................................................................................................................................................... 5 1.2 Power Reduction for SAR ............................................................................................................................................ 7 1.3 Nominal and Maximum Output Power Specifications .................................................................................................. 7 1.4 DUT Antenna Locations ............................................................................................................................................... 7 1.5 Simultaneous Transmission Capabilities ..................................................................................................................... 7 1.6 Miscellaneous SAR Test Considerations ..................................................................................................................... 8 1.7 Guidance Applied ........................................................................................................................................................ 9 1.8 Device Serial Numbers ................................................................................................................................................ 9 2. LTE INFORMATION ........................................................................................................................................................... 10 3. INTROCUCTION ................................................................................................................................................................ 11 4. DOSIMETRIC ASSESSMENT ........................................................................................................................................... 12 4.1 Measurement Procedure ........................................................................................................................................... 12 5. DEFINITION OF REFERENCE POINTS ........................................................................................................................... 14 5.1 Ear Reference Point .................................................................................................................................................. 14 5.2 Handset Reference Points ......................................................................................................................................... 14 6. TEST CONFIGURATION POSITIONS FOR HANDSETS ................................................................................................. 15 6.1 Device Holder ............................................................................................................................................................ 15 6.2 Positioning for Cheek/Touch ...................................................................................................................................... 15 6.3 Positioning for Ear / 15 ° Tilt ...................................................................................................................................... 15 6.4 Body-Worn Accessory Configurations ....................................................................................................................... 16 6.5 Extremity Exposure Configurations ........................................................................................................................... 16 6.6 Wireless Router Configurations ................................................................................................................................. 17 6.7 Phablet Configurations .............................................................................................................................................. 17 7. RF EXPOSURE LIMITS ..................................................................................................................................................... 18 8. FCC MEASUREMENT PROCEDURES ............................................................................................................................ 19 8.1 Measured and Reported SAR ................................................................................................................................... 19 8.2 Procedures Used to Establish RF Signal for SAR ..................................................................................................... 19 8.3 SAR Measurement Conditions for WCDMA (UMTS) ................................................................................................. 19 8.3.1 Output Power Verification ..................................................................................................................................... 19 8.3.2 Head SAR Measurements for Handsets .............................................................................................................. 19 8.3.3 Body SAR Measurements .................................................................................................................................... 20 8.3.4 Release 5 HSDPA Data Devices .......................................................................................................................... 20 8.3.5 Release 6 HSUPA Data D…

Text truncated - open the document above for the full version.

Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 83 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 84 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 85 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 86 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 87 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 88 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 89 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 90 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 91 /160

Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 92 /160 APPENDIX B. – Dipole Calibration Data Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 93 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 94 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 95 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 96 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 97 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 98 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 99 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 100 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 101 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 102 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 103 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 104 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 105 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 106 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 107 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 108 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 109 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 110 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 111 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 112 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 113 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 114 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 115 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 116 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 117 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 118 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 119 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 120 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 121 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 122 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 123 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 124 /160

Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 125 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 TRF-RF-601(03)161101 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 126 /160 Report No.: DRRFCC2008-0084 FCC ID: SS4VF550 …
