SS6ISC-T8411E100 to 225 watt, 150 to 174 MHz paging transmitter

ISC-T8311 E and ISC-T8411 E Transmitters USER MANUAL PN 9110.01156 Rev.D Specifications subject to change without notice Copyright © 2005 ISC Technologies All rights reserved. No part of this work may be reproduced or copied in any form or by any means -- graphic, electronic, or mechanical, including photocopying, recording, taping, or information-retrieval system -- without written permission of Glenayre. Copyright © 2005 ISC Technologies Rev D – Added label to 1.3 RF Hazards, Indicated 225 W rating w/o Isolator, Indicated complete range of nominal 28 VDC power supply. Table of Contents 1 GENERAL 1.1 Manual Scope 1.2 Applicable Documents 1.3 Human Exposure to RF Energy 1.4 Product Warranty Information 1.5 Service Warranty Information 2 SPECIFICATIONS 3 DESCRIPTION 3.1 Conceptual Description 3.2 Physical Description 3.2.1 Mounting Provisions 3.2.1.1 PA and Exciter Assemblies 3.2.1.2 Power Supply 3.2.1.3 Video Display Terminal 3.3 Simplified Paging-Site Functional Description 3.3.1 Paging Site 3.3.2 Communications Equipment and Transmitter Controller 3.3.3 Paging Transmitter 3.3.3.1 DSP Exciter 3.3.3.2 Power Amplifier RF Compartment 3.3.3.3 Metering Board 3.3.3.4 Power Supply 3.3.3.4.1 Ac-Powered Sites Table of Contents 4 INSTALLATION AND SETUP 4.1 Inspection 4.2 Installation 4.2.1 Tools and Equipment Required 4.2.2 Rack Positioning 4.2.3 Rack Grounding 4.2.4 Positioning within the Rack 4.2.5 Primary Power Requirements 4.2.5.1 Special Considerations 4.2.6 Equipment Cabling 4.2.6.1 Ac Connections 4.2.6.2 Dc Connections 4.2.6.3 Dc-Only Sites 4.2.7 Transmitter I/O Connections 4.2.8 Transmitter Controller Requirement for I20 Control 4.3 Setup 4.4 Ultimate Disposition 5 OPERATION 5.1 Controls and Indicators 5.2 Operation 5.2.1 Turn PA On and Off 5.2.2 Fan(s) Control 5.2.3 Key and Unkey PA 6 THEORY OF OPERATION 6.1 Transmitter Chassis Signal Flow 6.2 Transmitter Chassis Power Distribution 6.2.1 I/O Panel and Fuse Board 6.2.2 Fuse Board (Dc Distribution Board) 6.2.3 Metering Board 6.2.3.1 Dc-Power Distribution 6.2.3.2Control-Signal Distribution 7 MAINTENANCE 7.1 General 7.2 PA-Current Check 7.3 Dc-Ripple Check 8 CHECKOUT 8.1 General 8.2 Checkout Procedures 8.2.1 Dc-Voltage Verification 8.2.2 VDT Power-up Verification 8.2.3 Cooling-Fans Check 9 REMOVAL AND REINSTALLATION 9.1 Entire Transmitter Chassis 9.2 PA RF Compartment 9.3 Exciter 9.4 Metering Board List of Tables Table 1-1 Applicable Documents Table 2-1 Specifications Table 4-1 Tools and Equipment Table 4-2 Transmitter Chassis I/O Connectors Table 4-3 Metering Board Jumper Table for Transmitter Setup Table 5-1 Metering Board Fuses, Indicators, and Test Points Table 5-2 Fuse Board Fuses Table 6-1 Metering Board Connectors Table 6-2 Exciter J6-to-Metering Board DB-15 J6 Pin Functions Table 6-3 Input-Select Metering Lines from Exciter blil fi()b 1 GENERAL 1.1 Manual Scope This manual provides information for the following transmitters: • 200 (225 w/o Isolator)-watt, 150-MHz transmitter, model ISC-T8411E • 125-watt, 150-MHz transmitter, model ISC-T8311E. 1.2 Applicable Documents This manual is incomplete without additional manuals. See Table 1-1, Applicable Documents, for a listing and function of these manuals. Not all manuals listed are appropriate for a particular site, as transmitter controllers and power supplies differ. Also, new software revisions require new manuals which may not appear in the table. Table 1-1 Applicable Documents Document Part Number Note ISC-T8xx1 transmitter system manual 9110.01156* this manual assembled ISC-T8411E manual 9100.01025 complete set of manuals for a transmitter assembled ISC-T8311E manual 9100.01026 complete set of manuals for a transmitter configuration, GL-C20x0 to ISC-T8x11E I20 9112.01042 describes equipment rackup and interconnections DSP VDT manual 9110.00259* describes DSP exciter software installed in exciter DSP exciter user manual 9110.01021 * describes DSP exciter hardware equipment in transmitter GL-C2010 user manual 9110.00916 describes GL-C2010 controller hardware and software, v.3.0 UM GL-C2000 user manual 9110.00949 describes GL-C2000 controller hardware and software, v. 3.0 ISC-T8411E/EC PA user manual 9110.00256* describes 200-watt, 150-MHz PA with internal iso/cir ISC-T8311E/EC PA user manual 9110.01006* describes 125-watt, 150-MHz PA with internal iso/cir power supply user manual 9130.00001 describes GL2835witching ac-to-dc power supply dc-dc converter user manual 9110.00778 describes dc-dc converter *part of assembled ISC-T8311E or ISC-T8411E transmitter manual 1.3 Human Exposure to Radio Frequency Energy In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this product complies with the FCC guidelines and these international standards. This equipment is intended for use only in a permanent professionally installed licensed site. Licensing of that site may require that an Environmental Assessment be performed based upon human access, antenna type, antenna mounting height, ERP, operating frequency, duty factor, and any co-located transmitters that contribute to the overall Radio Frequency energy exposure level. Compliance is ultimately the responsibility of the site licensee and a determination of compliance can only be made by evaluating the complex factors of the specific site. Product Warranty Information ISC Technologies warrants to the original purchaser that ISC Technologies products are free from defects in material or workmanship for a period of twenty-four months from the original invoice date, subject to the provisions herein. ISC Technologies will repair or replace at its option, FOB our factory, free of charge within one year from…

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Block Diagram FCC ID: SS6ISC-T8411E

FCC ID: SS6ISC-8411E

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] ID Label/Location FCC ID: SS6ISC-T8411E • Material to be Alum Foil • Text to be Black with White Background • Permanent Adhesive • Size to be 1.5 x 1.75 Drawing of label Industry Canada requirements: The approval number for Industry Canada Requirements is IC:5783A-ISC8411E. Placement of Label ID Label Placement Canada IC:5783A-ISC8411E SS6ISC-T8411E

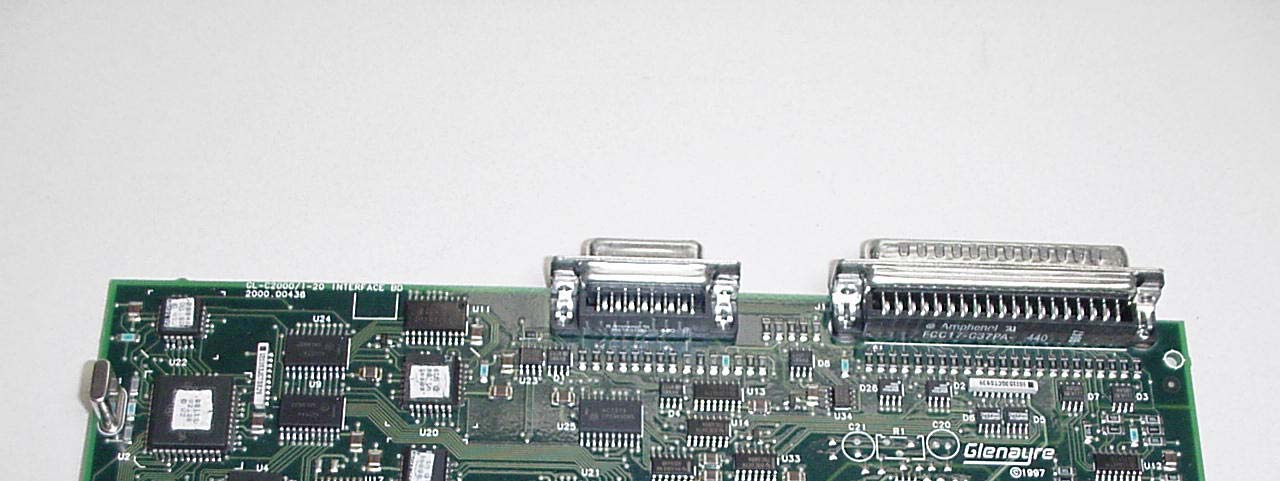

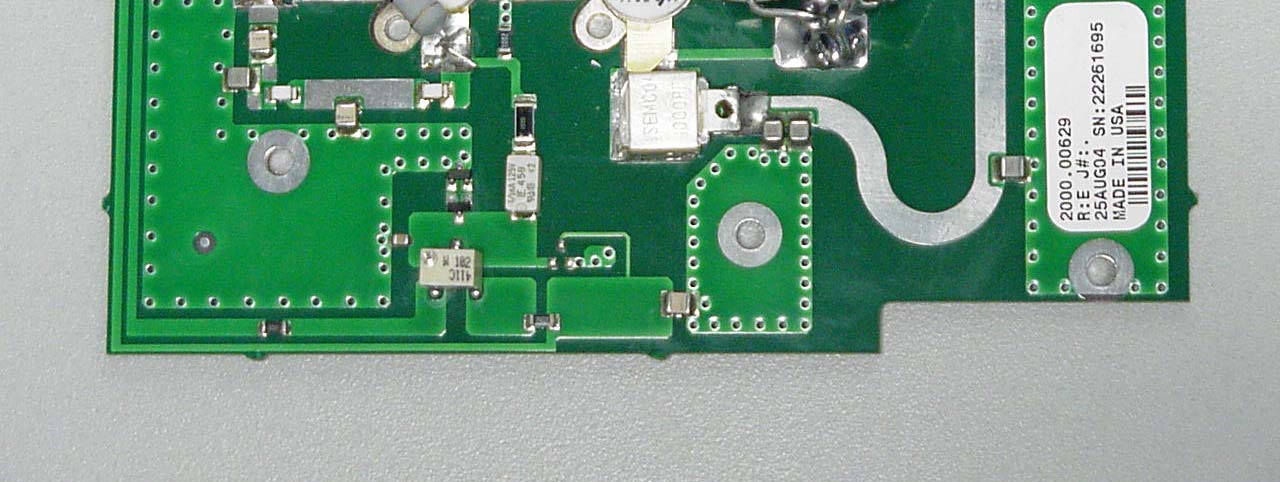

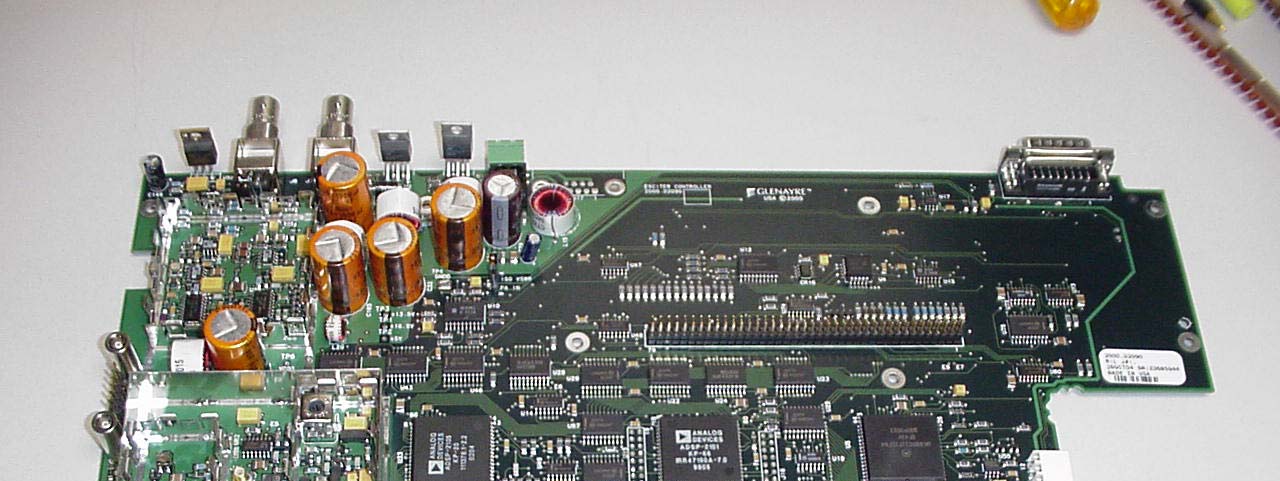

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Internal EUT Photographs FCC ID: SS6ISC-T8411E 2000.02090 DSP Exciter Control Board (covers removed) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.02090 DSP Exciter Control Board (bottom view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.02280 Exciter VCO/RF Amp Board (covers removed) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.00189 Exciter VCO/RF Amp Board (bottom view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.00436 Exciter I20 Interface Board (component side) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.00436 Exciter I20 Interface Board (bottom view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2630082036 Exciter Standard Interface Board (component side) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2630082036 Exciter Standard Interface Board (bottom view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.02154 Metering Board (top view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.02154 Metering Board (bottom view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.00629 Driver Board Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.00463 Power Amplifier Board Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 7914.01003 Dual Isolator (near view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 7914.01003 Dual Isolator (far view) Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.02248 Low Pass Filter Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 2000.02191 Directional coupler

Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Operational Description FCC ID: SS6ISC-T8411E 1.1 ISC-T8411EGeneral Description The ISC-T8411E is a 100-225 watt transmitter consisting of a DSP exciter assembly and a 225-watt power amplifier assembly. The transmitter may be equipped with an internal isolator option which limits the output power to 200 watts. The transmitter is capable of operating in the range of 138 to 174 MHz. 1.2 ISC-T8411EClock Frequencies All clock signals are contained within the DSP Exciter assembly and are identified as follows: 1. 10 MHz. Reference Oscillator. This signal provides clocking to various logic devices including the digital quadrature modulator ADSP2105 and Modulator DSP ADSP2101. 2. 16.38 MHz. This signal is the clock for the 68HC11 host processor. 3. I20 Option only. 8MHz. clock for a 68HC711 processor. 4. Standard Interface Option Only: 1.25 MHz. clock. 2 EXCITER INTERFACE There are two types of exciter interface boards that allow connections to two different types of transmitter control equipment. The first type is referred to as the I20 interface and allows connection to the GL-C2000 for transmitter controller. The exciter equipped with this type interface is capable of digital modulation only. The second interface type is the Standard Interface, which allows connection to a variety of external control equipment. This interface provides both an analog and a digital modulation path. Emissions: Approval is sought for both 25kHz. and 12.5kHz. channel bandwidths. Emissions designators follow: F3E – analog voice modulation. F1D – data modulation(FSK). F2D – data modulation using a modulated subcarrier (modem tones). 25kHz. Channel bandwidth – emissions designator 16k0F3E F3E – 3kHz. is the highest modulating frequency, 5kHz. is the deviation limit. Bn=2(M) + 2(D) Bn=2(3) + 2(5) Bn=16 25kHz. Channel bandwidth – emissions designator 16k0F2D F2D – 3kHz. is the highest modulating frequency, 5kHz. is the deviation limit. Bn=2(M) + 2(D) Bn=2(3) + 2(5) Bn=16 Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 25kHz. Channel bandwidth – 14k4F1D Highest data rate for two level modulation is 4800bps. 4800 bps represents a highest modulating frequency of 2400Hz. 4.8kHz. is the highest possible digital deviation. Bn=2(2400) + 2(4800) Bn=4800 + 9600 Bn= 14400 Note: 1 symbol=1 dibit= 2 bits. This results in a 4800 bps maximum data rate using 2 level FSK and 9600bps using 4 level FSK. 12.5kHz. Channel bandwidth – 9k6F1D Highest data rate is 4800 symbols per second. This represents a highest modulating frequency of 2400Hz. 2.4kHz. is the highest possible digital deviation. Bn=2(2400) + 2(2400) Bn=4800 + 4800 Bn= 9600 Note: 1 symbol=1 dibit= 2 bits. This results in a 4800 bps maximum data rate using 2 level FSK and 9600bps using 4 level FSK.

SS6ISC-T8411E RF Active Device List PA module Each PA module uses a single amplification stage (Q1) that is an MRF141G, ISC part number 5033.00039. Driver Module The Driver uses two stages of amplification - Q1 an MRF136 and Q2, an MRF173, ISC part numbers 5035.00083 and 5035.00081 respectively. Exciter RF Amp/VCO The VCO consists of transistor Q1, an MMBFJ310, ISC part number 5011.00032. The amplifier circuitry consists of the following stages: U3, U4, U5, and U6, MSA1105, ISC part number 5031.00025. U1, RF2360, ISC part number 5750.02030. 10 MHz Reference Oscillator: ISC part number 6624.00002.

Copyright 2005 ISC Technologies FCC ID: SS6ISC-T8411E The ISC-T8411E power amplifier does not have any field adjustable components. The following procedures can be conducted in the event of module replacement to return the unit to operating condition. VCO-2 Adjustment Procedure Perform the VCO-2 adjustment procedure after installing new VCO/RF amplifier board or after setting new channel carrier frequency. If the transmitter is to operate at more than one frequency, perform the multichannel adjustment procedure. If the transmitter is to operate at only one frequency, perform the single-channel adjustment procedure. Refer to the DSP exciter VDT manual as necessary. 7.3.1 VCO-2 Multichannel Adjustment Procedure 1. Set up VT-100 VDT and select local control (see VDT manual). 2. Select transmitter channel of lowest frequency if not already selected. 3. Use tuning tool supplied to adjust VCO ADJ control through exciter front panel. Adjust for a reading of 2.8 volts (3.5 volts for wideband VCO 263-0082- 062), on VCO2 status display. 4. Return transmitter to service. Procedure is complete. VCO-2 Single-Channel Adjustment Procedure This procedure does not apply to wideband option. 1. Set up VT-100 VDT and select local control (see VDT manual). 2. Select transmitter channel of operating frequency if not already selected. 3. Use tuning tool supplied to adjust VCO ADJ control through exciter front panel. Adjust for reading of 5.0 Vdc on VCO2 status display. 4. Return transmitter to service. Procedure is complete. Forward Power Calibration • Press K to unkey transmitter if transmitter is keyed. • Connect wattmeter and dummy load to transmitter RF output. • Press K on VDT keyboard to key transmitter. • Press and hold U on VDT keyboard until wattmeter reads correct wattage if wattmeter reads below that wattage. • Press and hold D on VDT keyboard until wattmeter reads correct wattage if wattmeter reads above that wattage. • Press Enter on VDT keyboard when the wattmeter reads correct wattage. Copyright 2005 ISC Technologies • Press N on VDT keyboard if wattmeter does not read correct wattage. • Press Y on VDT keyboard if wattmeter does read correct wattage. Caution Wattmeter must read exactly correct wattage to ensure proper metering. • Menu displays TX CALIBRATED. Press K on VDT keyboard to unkey transmitter. • Disconnect wattmeter and dummy load; return transmitter to service. Reflected Power Calibration Disconnect coax cable from output. • Press Enter to calibrate isolator REF PWR. • Isolator reflected power is calibrated. Press enter to proceed. • Reconnect coax cable to output of isolator. • Turn potentiometer R235 fully counterclockwise. • Disconnect coax cable from output of PA. • Press Enter to calibrate PA REF PWR. • Reflected power calibrated, proceed to following steps. • Adjust R235 until VSWR LED on exciter front panel just indicates red. • Turn ac power off then reconnect PA RF output to isolator input. • When ac power is restored, the transmitter will come up in the remote mode. This procedure is finished.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] RF exposure FCC ID: SS6ISC-T8411E The output power of the EUT is 225 Watts. The following information provides the minimum separation distance for the EUT, as calculated from FCC OET 65 Appendix B, Table 1A “Guidelines for Limits for Occupational/Controlled Exposure” This calculation is based on the highest EIRP possible from the EUT considering maximum power and antenna gain. The formulas were used: GP limit is = 0.2 mW/cm^2 for 138-174 MHz 225 Watts = 54 dBm S= E^2/3770 mW/cm^2 E or V/m = (ERP*30)^0.5/d, (d in meters) d = ((ERP*30)/3770*S))^0.5 SMaximum AntennaMSD Freq.GP limitRF power GainERPEd MHzmW/cm^2 dBmdBiwattsV/mmeters 174153.52 354.81361.41.680 GP is the limit for Occupational/Controlled Exposure MSD is the minimum Seperation Distance Minimum Separation Distance (MSD) is 1.68 meters
