SSC-DBU600WSTWireless Door Chime (Transmitter)

UNION INSTRUMENTS CO.,LTD. UNION BEST ENTERPRISE LTD. UNIT D, 7/F, GOOD YEAR INDUSTRY BLDG TEL: (852) 2389 3004 119 – 121 HOW MING STREET, KWUN TONG (852) 2389 2164 KOWLOON, HONG KONG FAX: (852) 2342 2784 http:// www.unioninst.com.hk e-mail: [email protected] __________________________________________________________________________________________________________ 地址：香港九龍官塘巧明街119-121號年運工業大廈7樓D座 Te l： (852) 2389 3004 (852) 2389 2164 Fax：(852) 2342 2784 http ： //www.unioninst.com.hk e-mail: [email protected] 20 Dec 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: - Schematics - Block Diagram - Technical Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tsui Chi San Title: General Manager

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 1 von 1 Page 1 of 1

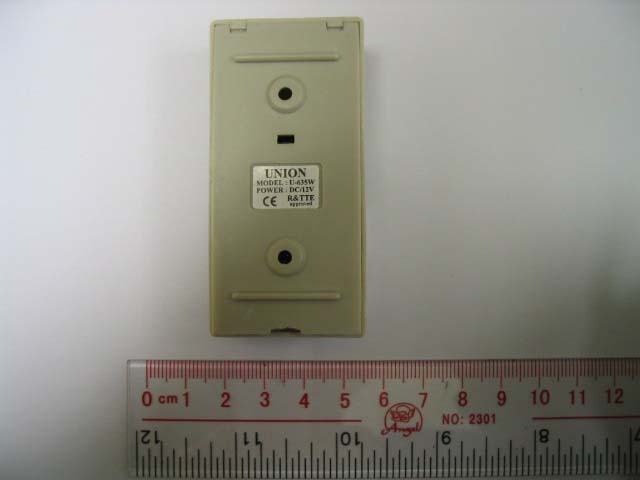

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 3 von 5 Page 3 of 5 Rating Label on Transmitter U-632AW, U632BW, U-635W, U-639W, U-639F FCC ID: SSC-DBU600WST THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATIONS. Size : 20X30mm

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 1 von 3 Page 1 of 3 www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 2 von 3 Page 2 of 3 www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 3 von 3 Page 3 of 3

www.tuv.com Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass Test Report No.: 14008204 001 Date: 15.12.2004 Page 2 of 13 www.tuv.com Contents General Remarks...................................................................................................4 Complementary Materials..................................................................................................4 List of Test and Measurement Instruments.........................................................5 General Product Information................................................................................6 Product Function and Intended Use.................................................................................6 Circuit Description.............................................................................................................6 Ratings and System Details..............................................................................................6 Independent Operation Modes..........................................................................................7 Submitted Documents.......................................................................................................7 Related Submittal(s) Grants..............................................................................................7 Test Set-up and Operation Mode..........................................................................8 Principle of Configuration Selection................................................................................8 Test Operation and Test Software....................................................................................8 Special Accessories and Auxiliary Equipment...............................................................8 Countermeasures to achieve EMC Compliance..............................................................8 Test Methodology..................................................................................................9 Radiated Emission.............................................................................................................9 Field Strength Calculation.................................................................................................9 Test Results.........................................................................................................10 Radiated Emission of Carrier Frequency Section 15.231(b).....................................10 Spurious Radiated Emissions Section 15.231(b).......................................................11 Bandwidth Measurement Section 15.231(c)...............................................................13 Test Report No.: 14008204 001 Date: 15.12.2004 Page 3 of 13 www.tuv.com General Remarks Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label, Block Diagram, Schematics and User manual. Test Report No.: 14008204 001 Date: 15.12.2004 Page 4 of 13 www.tuv.com List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 Test Report No.: 14008204 001 Date: 15.12.2004 Page 5 of 13 www.tuv.com General Product Information Product Function and Intended Use The equipment under test ( EUT) is a transmitter for the RC door chime operating at 433.920 MHz. After our construction checking and declaration by the manufacturer, it is deemed that the transmitter of U-601,U-632AW, U-632BW, U-635W, U-639F and U-639W are identical in PCB layout and function, they only differ in cosmetic design. Hence the representative transmitter for model:U- 639F was chosen to conduct all testing. FCCID: SSC-DBU600WST Model Product description U-601,U-632AW, U-632BW, U-635W, U-639F U-639W Wireless Door Chime ( Transmitter ) Circuit Description U1 and the associated circuit act as address Code Encode. Q2 and the associated circuit act as a 433.920MHz Oscillator. Ask Modulator to limit the harmonic content and provide to antenna output. Ratings and System Details Transmitter Frequency range : 433.920 MHz Number of channels : 1 Type of antenna : Integral antenna Power supply : Battery operated 12.0V, Type:23AE Ports : none Protection Class : III Test Report No.: 14008204 001 Date: 15.12.2004 Page 6 of 13 www.tuv.com Independent Operation Modes The basic operation modes are: - Remote Control: It has a push to operate switch and is under manual control at all transmission time. It will cease transmission within 5 seconds after activation. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork Related Submittal(s) Grants This is single application for certification of the transmitter. Test Report No.: 14008204 001 Date: 15.12.2004 Page 7 of 13 www.tuv.com Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasur…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 1 von 21 Page 1 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 2 von 21 Page 2 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 3 von 21 Page 3 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 4 von 21 Page 4 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 5 von 21 Page 5 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 6 von 21 Page 6 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 7 von 21 Page 7 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 8 von 21 Page 8 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 9 von 21 Page 9 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 10 von 21 Page 10 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 11 von 21 Page 11 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 12 von 21 Page 12 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 13 von 21 Page 13 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 14 von 21 Page 14 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 15 von 21 Page 15 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 16 von 21 Page 16 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 17 von 21 Page 17 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 18 von 21 Page 18 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 19 von 21 Page 19 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 20 von 21 Page 20 of 21 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 21 von 21 Page 21 of 21

www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 1 von 3 Page 1 of 3 Ref 0 dBm 270.4 ms Att 10 dB 270.4 ms * 270.4 ms A 270.4 ms RBW 1 MHz 270.4 ms VBW 1 MHz 270.4 ms * 270.4 ms SGL 270.4 ms MAXH 270.4 ms Center 433.8 MHz 270.4 ms 80 ms/ 270.4 ms SWT 800 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 1 PK 270.4 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 270.4 ms Marker 1 [T1] -27.22 dBm 270.400000 ms Marker 2 [T1] -27.21 dBm 500.800000 ms Marker 3 [T1] -27.18 dBm 710.400000 ms 1 23 MARKER 1 270.4 ms Date: 25.FEB.2005 18:09:45 - The EUT is a manually operated transmitter. It employs a push to operate switch, it will automatically deactivate the transmitter within 3 second of being released. - The graph shows one successful period of signal transmission. - The time interval of one period starts from marker 1 to marker 3, hence the total time of one period is 210.4ms – 710.4ms = 440ms. - It sums of 6 short and 15 long ‘on’ signals. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 2 von 3 Page 2 of 3 Ref 0 dBm 270.4 ms Att 10 dB 270.4 ms * 270.4 ms A 270.4 ms RBW 1 MHz 270.4 ms VBW 1 MHz 270.4 ms * 270.4 ms SGL 270.4 ms MAXH 270.4 ms Center 433.8 MHz 270.4 ms 80 ms/ 270.4 ms SWT 800 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 270.4 ms 1 PK 270.4 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 270.4 ms Marker 1 [T1] -27.09 dBm 60.800000 ms Marker 2 [T1] -27.22 dBm 270.400000 ms Marker 3 [T1] -27.21 dBm 500.800000 ms 1 23 MARKER 2 270.4 ms Date: 25.FEB.2005 18:04:58 - The graph shows next successful period of signal transmission. - The time interval of one period starts from marker 1 to marker 3, hence the total time of one period also is 500.8ms – 60.8ms = 440ms. - It also sums of 6 short and 15 long ‘on’ signals. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 3 von 3 Page 3 of 3 Ref 0 dBm 296 ms Att 10 dB 296 ms * 296 ms A 296 ms RBW 1 MHz 296 ms VBW 1 MHz 296 ms * 296 ms SGL 296 ms MAXH 296 ms Center 433.8 MHz 296 ms 80 ms/ 296 ms SWT 800 ms 296 ms 296 ms 296 ms 296 ms 296 ms 296 ms 296 ms 296 ms 296 ms 296 ms 1 PK 296 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 296 ms Marker 1 [T1] -20.30 dBm 296.000000 ms Marker 2 [T1] -20.49 dBm 307.200000 ms Marker 3 [T1] -20.36 dBm 443.200000 ms Marker 4 [T1] -20.44 dBm 452.800000 ms 1 2 34 MARKER 1 296 ms Date: 25.FEB.2005 18:19:15 - The graph shows the long signal ‘on’ is from marker 1 to marker 2, so time period is 307.2 ms - 296ms =11.2ms. - The graph shows the short signal ‘on’ is from marker 3 to marker 4, so time period is 452.8ms – 443.2ms = 9.6ms. - Therefore, the total signal ‘on’ time of one successful period is (11.2ms x 15 ) + (9.6ms x 6) = 225.6ms . Average factor: 20 log ( 225.6 / 440 ) = -5.8dB .

www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 2 of 13 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 3 of 13 Contents General Remarks ...................................................................................................4 Complementary Materials .................................................................................................. 4 List of Test and Measurement Instruments.........................................................5 General Product Information ................................................................................6 Product Function and Intended Use................................................................................. 6 Circuit Description .............................................................................................................6 Ratings and System Details .............................................................................................. 6 Independent Operation Modes.......................................................................................... 7 Submitted Documents ....................................................................................................... 7 Related Submittal(s) Grants .............................................................................................. 7 Test Set-up and Operation Mode..........................................................................8 Principle of Configuration Selection ................................................................................ 8 Test Operation and Test Software .................................................................................... 8 Special Accessories and Auxiliary Equipment ............................................................... 8 Countermeasures to achieve EMC Compliance.............................................................. 8 Test Methodology ..................................................................................................9 Radiated Emission ............................................................................................................. 9 Field Strength Calculation ................................................................................................. 9 Test Results .........................................................................................................10 Radiated Emission of Carrier Frequency Section 15.231(b) ..................................... 10 Spurious Radiated Emissions Section 15.231(b)....................................................... 11 Bandwidth Measurement Section 15.231(c) ............................................................... 13 www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 4 of 13 General Remarks Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 5 of 13 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 6 of 13 General Product Information Product Function and Intended Use The equipment under test ( EUT) is a transmitter for the RC door chime operating at 433.920 MHz. After our construction checking and declaration by the manufacturer, it is deemed that the transmitter of U-601,U-632AW, U-632BW, U-635W, U-639F and U-639W are identical in PCB layout and function, they only differ in cosmetic design. Hence the representative transmitter for model:U- 639F was chosen to conduct all testing. FCCID: SSC-DBU600WST Model Product description U-601,U-632AW, U-632BW, U-635W, U-639F U-639W Wireless Door Chime ( Transmitter ) Circuit Description U1 and the associated circuit act as address Code Encode. Q2 and the associated circuit act as a 433.920MHz Oscillator. Ask Modulator to limit the harmonic content and provide to antenna output. Ratings and System Details Transmitter Frequency range : 433.920 MHz Number of channels : 1 Type of antenna : Integral antenna Power supply : Battery operated 12.0V, Type:23AE Ports : none Protection Class : III www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 7 of 13 Independent Operation Modes The basic operation modes are: - Remote Control : It has a push to operate switch and is under manual control at all transmission time. It will cease transmission within 5 seconds after activation. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork Related Submittal(s) Grants This is single application for certification of the transmitter. www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 8 of 13 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The prod…

Text truncated - open the document above for the full version.

www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 1 von 4 Page 1 of 4 Ref 100 dBμV 10.8 ms Att 30 dB 10.8 ms A 10.8 ms RBW 1 MHz 10.8 ms VBW 1 MHz 10.8 ms * 10.8 ms Center 433.7574 MHz 10.8 ms 10 ms/ 10.8 ms SWT 100 ms 10.8 ms SGL 10.8 ms MAXH 10.8 ms 1 PK 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 0 10 20 30 40 50 60 70 80 90 100 10.8 ms Marker 1 [T1] 84.39 dBμV 47.000000 ms Delta 2 [T1] -0.15 dB 10.800000 ms 1 2 DELTA MARKER 2 10.8 ms Date: 7.APR.2005 11:14:21 - The graph shows the number of transmitting pulse within 100ms. - Marker 1 to 2 shows the duration of signal pulse. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 2 von 4 Page 2 of 4 Ref 100 dBμV 10.72 ms Att 30 dB 10.72 ms A 10.72 ms RBW 1 MHz 10.72 ms VBW 1 MHz 10.72 ms * 10.72 ms Center 433.7574 MHz 10.72 ms 2 ms/ 10.72 ms SWT 20 ms 10.72 ms SGL 10.72 ms MAXH 10.72 ms * 10.72 ms 1 PK 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 0 10 20 30 40 50 60 70 80 90 100 10.72 ms Marker 1 [T1] 85.51 dBμV 2.040000 ms Delta 2 [T1] -0.28 dB 10.720000 ms 1 2 DELTA MARKER 2 10.72 ms Date: 7.APR.2005 11:23:33 - There are eight long ‘on’ and five short ‘on’ signal within a period. - The duration of one transmitting pulse is 10.72ms. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 3 von 4 Page 3 of 4 A 570 μs Att 30 dB 570 μs Ref 107 dBμV 570 μs SGL 570 μs RBW 1 MHz 570 μs VBW 3 MHz 570 μs MAXH 570 μs Center 433.9 MHz 570 μs 100 μs/ 570 μs SWT 1 ms 570 μs 1 PK 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 10 20 30 40 50 60 70 80 90 100 570 μs Marker 1 [T1] 84.06 dBμV 366.000000 μs Delta 2 [T1] -0.11 dB 570.000000 μs 1 2 DELTA MARKER 2 570 μs Date: 7.APR.2005 20:32:45 - The graph shows the detail of single long ‘on’ signal. - Total time duration is 570us. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 4 von 4 Page 4 of 4 A 280 μs Att 30 dB 280 μs Ref 107 dBμV 280 μs SGL 280 μs RBW 1 MHz 280 μs VBW 3 MHz 280 μs Center 433.9 MHz 280 μs 100 μs/ 280 μs SWT 1 ms 280 μs 280 μs 280 μs 280 μs 280 μs 280 μs 280 μs 280 μs 280 μs 280 μs MAXH 280 μs * 280 μs 1 PK 280 μs 10 20 30 40 50 60 70 80 90 100 280 μs Marker 1 [T1] 86.37 dBμV 296.000000 μs Delta 2 [T1] -0.49 dB 280.000000 μs 1 2 DELTA MARKER 2 280 μs Date: 7.APR.2005 20:33:51 - The graph shows the detail of single short ‘on’ signal. - Total time duration is 280us. Average factor: - Therefore, the total signal ‘on’ time of one successful period is ( 280us x 5 ) + ( 570us x 8) = 5.96ms . Average factor: 20 log ( 5.96 / 10.72 ) = -5.1dB .

www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 2 of 13 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 3 of 13 Contents General Remarks ...................................................................................................4 Complementary Materials .................................................................................................. 4 List of Test and Measurement Instruments.........................................................5 General Product Information ................................................................................6 Product Function and Intended Use................................................................................. 6 Circuit Description .............................................................................................................6 Ratings and System Details .............................................................................................. 6 Independent Operation Modes.......................................................................................... 7 Submitted Documents ....................................................................................................... 7 Related Submittal(s) Grants .............................................................................................. 7 Test Set-up and Operation Mode..........................................................................8 Principle of Configuration Selection ................................................................................ 8 Test Operation and Test Software .................................................................................... 8 Special Accessories and Auxiliary Equipment ............................................................... 8 Countermeasures to achieve EMC Compliance.............................................................. 8 Test Methodology ..................................................................................................9 Radiated Emission ............................................................................................................. 9 Field Strength Calculation ................................................................................................. 9 Test Results .........................................................................................................10 Radiated Emission of Carrier Frequency Section 15.231(b) ..................................... 10 Spurious Radiated Emissions Section 15.231(b)....................................................... 11 Bandwidth Measurement Section 15.231(c) ............................................................... 13 www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 4 of 13 General Remarks Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 5 of 13 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 6 of 13 General Product Information Product Function and Intended Use The equipment under test ( EUT) is a transmitter for the RC door chime operating at 433.920 MHz. After our construction checking and declaration by the manufacturer, it is deemed that the transmitter of U-601,U-632AW, U-632BW, U-635W, U-639F and U-639W are identical in PCB layout and function, they only differ in cosmetic design. Hence the representative transmitter for model:U- 639F was chosen to conduct all testing. FCCID: SSC-DBU600WST Model Product description U-601,U-632AW, U-632BW, U-635W, U-639F U-639W Wireless Door Chime ( Transmitter ) Circuit Description U1 and the associated circuit act as address Code Encode. Q2 and the associated circuit act as a 433.920MHz Oscillator. Ask Modulator to limit the harmonic content and provide to antenna output. Ratings and System Details Transmitter Frequency range : 433.920 MHz Number of channels : 1 Type of antenna : Integral antenna Power supply : Battery operated 12.0V, Type:23AE Ports : none Protection Class : III www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 7 of 13 Independent Operation Modes The basic operation modes are: - Remote Control : It has a push to operate switch and is under manual control at all transmission time. It will cease transmission within 5 seconds after activation. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork Related Submittal(s) Grants This is single application for certification of the transmitter. www.tuv.com Test Report No.: 14008204 001 Date: 15.12.2004 Page 8 of 13 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The prod…

Text truncated - open the document above for the full version.

www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 1 von 4 Page 1 of 4 Ref 100 dBμV 10.8 ms Att 30 dB 10.8 ms A 10.8 ms RBW 1 MHz 10.8 ms VBW 1 MHz 10.8 ms * 10.8 ms Center 433.7574 MHz 10.8 ms 10 ms/ 10.8 ms SWT 100 ms 10.8 ms SGL 10.8 ms MAXH 10.8 ms 1 PK 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 10.8 ms 0 10 20 30 40 50 60 70 80 90 100 10.8 ms Marker 1 [T1] 84.39 dBμV 47.000000 ms Delta 2 [T1] -0.15 dB 10.800000 ms 1 2 DELTA MARKER 2 10.8 ms Date: 7.APR.2005 11:14:21 - The graph shows the number of transmitting pulse within 100ms. - Marker 1 to 2 shows the duration of signal pulse. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 2 von 4 Page 2 of 4 Ref 100 dBμV 10.72 ms Att 30 dB 10.72 ms A 10.72 ms RBW 1 MHz 10.72 ms VBW 1 MHz 10.72 ms * 10.72 ms Center 433.7574 MHz 10.72 ms 2 ms/ 10.72 ms SWT 20 ms 10.72 ms SGL 10.72 ms MAXH 10.72 ms * 10.72 ms 1 PK 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 10.72 ms 0 10 20 30 40 50 60 70 80 90 100 10.72 ms Marker 1 [T1] 85.51 dBμV 2.040000 ms Delta 2 [T1] -0.28 dB 10.720000 ms 1 2 DELTA MARKER 2 10.72 ms Date: 7.APR.2005 11:23:33 - There are eight long ‘on’ and five short ‘on’ signal within a period. - The duration of one transmitting pulse is 10.72ms. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 001 Seite 3 von 4 Page 3 of 4 A 570 μs Att 30 dB 570 μs Ref 107 dBμV 570 μs SGL 570 μs RBW 1 MHz 570 μs VBW 3 MHz 570 μs MAXH 570 μs Center 433.9 MHz 570 μs 100 μs/ 570 μs SWT 1 ms 570 μs 1 PK 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 570 μs 10 20 30 40 50 60 70 80 90 100 570 μs Marker 1 [T1] 84.06 dBμV 366.000000 μs Delta 2 [T1] -0.11 dB 570.000000 μs 1 2 DELTA MARKER 2 570 μs Date: 7.APR.2005 20:32:45 - The graph shows the detail of single long ‘on’ signal. - Total time duration is 570us. www.tuv.com Appendix (Supplementary) Prüfbericht - Nr.: Test Report No. 14008204 …

Text truncated - open the document above for the full version.
