SSS-BC11XBC118/BC119

BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 1 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Key Specifications  Bluetooth Certified 4.0 Audio module  Single Mode: Bluetooth Low Energy (BLE)  Embedded Bluetooth Protocol Stack  Supports GATT Profile, Audio, Proximity, and iBeacon  Supports I2C and UART transparent Data Modes  Simple UART and GPIO interface for command and control  Small form factor (14.4mm x 19.3mm x 2.2mm)  Bluetooth, FCC and CE certified Applications  Industrial Automation  Lighting  Automotive  Medical Devices  Wearable Devices  Sensors, Actuators BC118 is a highly flexible, ultra low power, small form factor Bluetooth Version 4.0 Certified module. It comes preloaded with BlueCreation Melody Smart software, and is ideal for developers who want to quickly and cost effectively integrate Bluetooth Low Energy functionality into their products or develop standalone sensors or accessories. Description BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 2 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet General Specifications Specifications Description Bluetooth Standard Bluetooth 4.0 Interfaces UART, AIO, GPIO, USB, I2C Size 19.3mm x 14.4mm x 2.8mm Weight 0.9g RF Specifications Specifications Description Frequency Band 2,402 MHz to 2,480 MHz Modulation 8 DPSK, PI/4 DQPSK, GFSK Maximum Data Rate 270kbps (typical 60kbps) Operating Range 30m RF Sensitivity 0.1% BER at -92.5dBm Transmit Power 7.5dBm BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 3 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Electric Specifications Specifications Description Supply Voltage 1.8V to 4.3V DC (Supports Li Ion battery voltage range) Typical Current Tx 16mA (Only on Tx/Rx) Typical Deep Sleep <5μA (Connected) Typical Hibernate <1.9μA (Connected) Typical Dormant >900nA Operating Temperature -40°C to 85°C BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 4 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Module Drawing BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 5 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Module Footprint BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 6 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Placement Considerations BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 7 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet PIN Description No1 is top left on the module and then it goes anti clockwise No Pin Name Pin Type Pin Description 1 GND GND Common Ground 2 GND GND Common Ground 3 AIO_2 Bi-Directional Analog programmable input/output line 4 AIO_1 Bi-Directional Analog programmable input/output line 5 AIO_0 Bi-directional Analog programmable input/output line 6 UART_TX Bi-directional UART TX Data 7 UART_RX Bi-directional UART RX Data 8 PIO_3 Bi-directional Programmable input/output line 9 PIO_4 Bi-directional Programmable input/output line 10 PIO_5/SPI_CLK Bi-directional Programmable input/output line 11 PIO_6/SPI_CSB Bi-directional Programmable input/output line 12 GND GND Common Ground 13 GND GND Common Ground 14 PIO_7/SPI_MOSI Bi-directional Programmable input/output line 15 GND GND Common Ground 16 GND GND Common Ground 17 VDD_PADS Supply Positive Supply input 18 GND GND Common Ground 19 PIO_8/SPI_MISO Bi-directional Programmable input/output line 20 SPI_PCM# Input Select PCM/SPI 21 PIO_2 Bi-directional Programmable input/output line 22 I2C_SCL Bi-directional Programmable input/output line 23 GND GND Common Ground 24 GND GND Common Ground 25 I2C_SDA Bi-directional Programmable input/output line 26 PIO_9 Bi-directional Programmable input/output line 27 VBAT Battery terminal +ve Battery Positive 28 PIO_10 Bi-directional Programmable input/output line 29 PIO_11 Bi-directional Programmable input/output line 30 WAKE Wake Pin Wake Pin 31 GND GND Common Ground 32 GND GND Common Ground 33 GND GND Common Ground 34 GND GND Common Ground 35 GND GND Common Ground BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 8 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Notes  PIO_X are bidirectional with weak pull down  Reset Input is with strong pull-up  USB data positive with selectable internal 1.5kΩ pull up resistor  UART are Bidirectional with weak pull up  PCM_OUT, IN, SYNC and CLK can be used as SPI_MISO, MOSI, CSB and CLK respectively. SPI-PCM# high switches SPI/PCM lines to SPI, low switches to PCM/PIO use Solder Reflow Profile  Preheat Temperature: 150°C for 100 seconds  Temperature: 240°C for 40 seconds.  Single Pass BlueCreation. St John’s Innovation Centre, Cowley Road Cambridge CB4 0W S United Kingdom 9 t. +44 (0)1223 420 252 e. [email protected] www.bluecreation.com BC118 Datasheet Regulatory Certifications BC118 is delivered with FCC, CE, IC and Bluetooth SIG certifications. This allows to integrate the module in an end product without the need to obtain subsequent and separate approvals from these regulatory agencies. This is valid in the case no other intentional or un-intentional radiator components are incorporated into the product. Without these certification, an end product cannot be marketed in the relevant regions. United States - FCC  In case no other intentional or un-intentional radiator is incorporated, the BC118's FCC certification allows users to integrate the module into products without the need to obtain subsequent and separate approval.  The BC118 was approved as "intentional transmitter radio module" by the United Stat…

Text truncated - open the document above for the full version.

Strictly Confidential BlueCreation St John's lnnovation Centre Cowley Road Cambridge England CB4 OWS Tel: (0) L223 420252 Fax: (0) t223420844 -1- Declaration letter Date: Sep 12, 2014 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: For our business development and marketing requirement, we would like to list different models numbers on the FCC certificates and reports, as follows: Model No.: BC118-x/BC119-x FCC ID: SSS-BC11X Difference: About the model BC118-x/BC119-x, x is variable, it indicated A-Z or 0-9. Due to sales purpose in different countries or regions. The internal PCB design are no difference, but only distinct in model names. BC119-x is BC118-x without an EEPROM. The wireless protocol and shell does not change. Thank you! Best regards, Signature: Name: Rafik Jallad Title: Director Company: Cambridge Executive Limited

Strictly Confidential BlueCreation St John's lnnovation Centre Cowley Road Cambridge England CB4 OWS Tel: (0) L223 420252 Fax: (0) t223420844 Date: Sep 12, 2014 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Cambridge Executive Limited, the undersigned, hereby authorizes Mr. Adrian Shi of TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the Cambridge Executive Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID: SSS-BC11X including the signing of documents in connection with this Application. Necessary acts carried out by Cambridge Executive Limited on our behalf of the Cambridge Executive Limited in connection with the Application shall have the same effect as acts of the Cambridge Executive Limited. The Cambridge Executive Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Name: Rafik Jallad Title: Director Company: Cambridge Executive Limited

r: fd$ Strictly Confidential BlueCreation St John's lnnovation Centre Cowley Road Cambridge England CB4 OWS Tel: (0) L223 420252 Fax: (0) t223420844 >/ Bluc Creation FCC-Confidential ity Req uest Letter Date: Sep 12,2014 To:Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Cambridge Executive Limited FCC lD: SSS-BC11X FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Gambridge Executive Limited requests that the following documents regarding this submission will be kept confidential: Exhibit Type Block Diagram Schematics Operational Description Part list File Name Block Diagram.pdf Circuit Diagram.pdf Operational Description. pdf BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Gambridge Executive Limited considers to be confidential proprietary, a custom design and, othenvise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Gambridge Executive Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. fr,& "U BIue Creation Strictly Confidential BlueCreation St John's lnnovation Centre Cowley Road Cambridge England CB4 OWS Tel: (0) L223 420252 Fax: (0) 7223420844 Yours Sincerely, {T_\ Name: Rafik Jallad Title: Director Company: Cambridge Executive Limited

f: rds >/ l'rlrtc' Clc;ttion Cambridge Executive Limited BlueCreation St John's lnnovation Centre Cowley Road Cambridge England CB4 OWS Tel:+44 (O)12234202s2 Fax: +44 (0) 1223 420 844 Part Number: BC 1 18-x/BC 119-x FCC lD: SSS-BC1'1X Request for Modular Approval Sep 12,2014 ln accordance with FCC Part 15, we, Cambridge Executive Limited, hereby request a modular level approval as outlined in FCC document DA 00 - 1407, for the device listed above. ln support of the Single Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation i data inputs. 2) The module does regulate its own power supply. 3) The module does have a permanently attached antenna. 4) The module can be tested as a stand-alone device. 5) The module is labeled with the proper FCC lD, and labeling instructions are provided to OEM end users for external product labels. 6) The module does have instruction for proper use. 7) The module does meet the FCC RF regulations. 8) The module does have its own RF shielding. Signature: Name: Rafik Jallad Title: Director Company: Cambridge Executive Limited /y

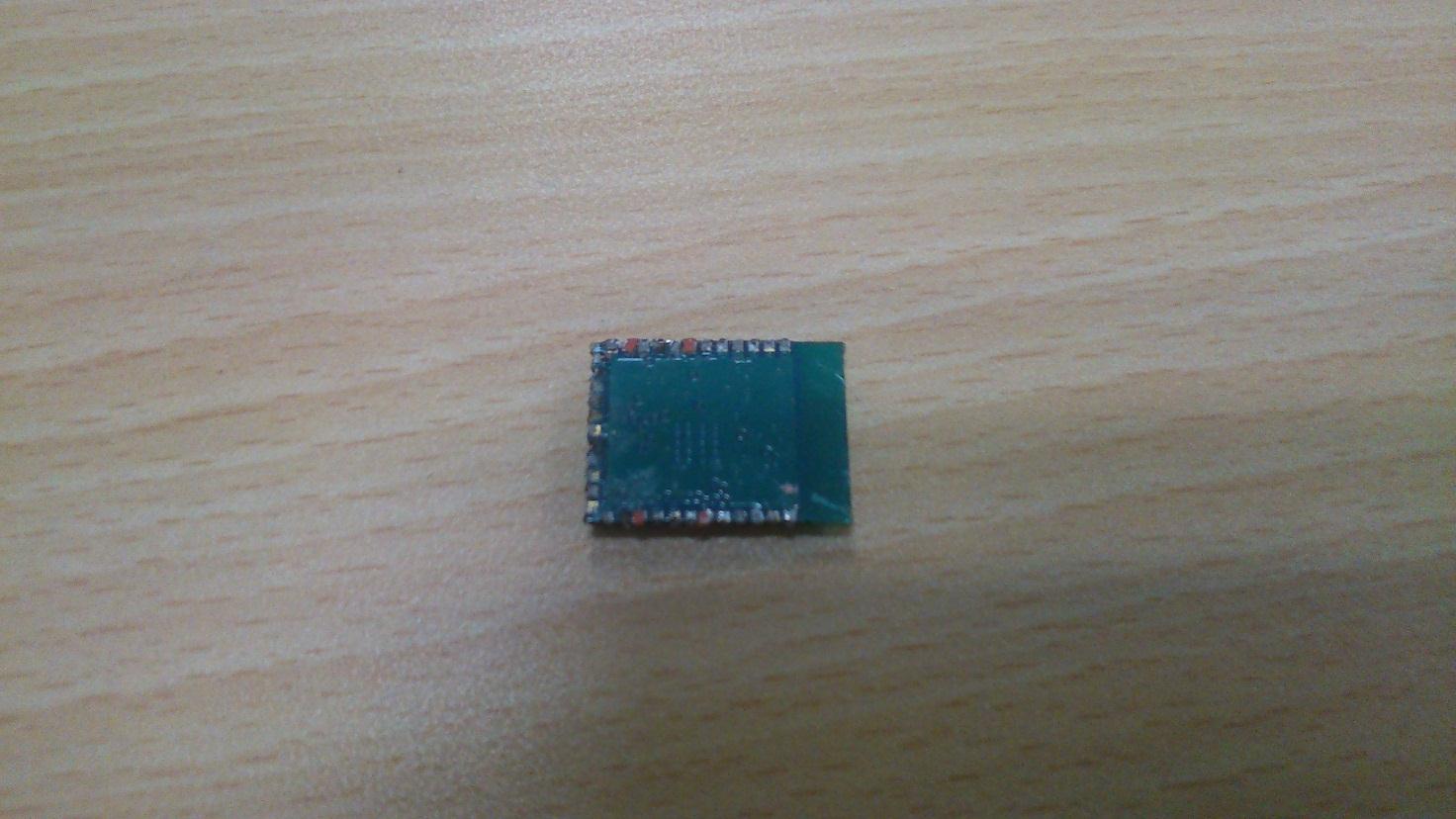

ATTACHMENT Photo Documentation Report No.: 15074279 001 Type Designation: 1M12F7W Rev. 0 Page 1 of 2 External Photo

ATTACHMENT Photo Documentation Report No.: 15074279 001 Type Designation: 1M12F7W Rev. 0 Page 2 of 2 Internal Photo

Produkte Products RF Exposure Statement: Page 1 of 1 Client: Cambridge Executive Limited St John’s Innovation Centre Cowley Road Cambridge England CB4 0WS Test item: BC118 / BC119 Identification: BC118-x / BC119-x FCC ID: SSS-BC11X FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 6 Measurement Result The maximum measured transmitter power is the following: Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = (P S = power density in mW/cm 2 P out = antenna conducted output power in mW G = antenna gain in linear scale (here: 2dBi=10log(G)) D = distance between observation point and radiating structure in cm (here: 20cm) out · G) / (4π · D 2 ), where Conclusion The device complies with the FCC RF exposure requirements since the maximum transmitter power density is below the FCC limit. Refer to test report 15074279 001 for more details. TÜV Rheinland (Shanghai) Co., Ltd. 10-15/F, Huatsing Building, No.88, Lane 777, Guangzhong Road West, Shanghai 200072, P.R. China Conducted Output Power Pout [dBm] Conducted Output Power Pout [mW] Maximum Antenna Gain [dBi] Pout EIRP [mW] Power Density at 20cm [mW/cm2] 5.563.6025.700.001

Produkte Products Prüfbericht - Nr.: Test Report No.: 15074279 001 Seite 2 von 34 Page 2 of 34 TEST SUMMARY 3.2.1 VOLTAGE REQUIREMENTS, FCC 15.31(E) RESULT: PASS 3.2.2 ANTENNA REQUIREMENTS, FCC 15.203, FCC 15.204 AND RSS-GEN 7.1.4 RESULT: PASS 5.1.1 CONDUCTED OUTPUT POWER, FCC 15.247(B)(1)& (3) AND RSS-210 A8.4(2) RESULT: PASS 5.1.2 6DB BANDWIDTH AND 99% BANDWIDTH, FCC 15.247(A)(1)& (2) AND RSS-210 A8.2(A) 5.1.3 POWER SPECTRAL DENSITY (PSD), FCC 15.247(E) AND RSS-210 A8.2 RESULT: PASS 5.1.4 CONDUCTED SPURIOUS EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 5.1.5 BAND EDGE COMPLIANCE OF RF CONDUCTED EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 6.1.1 BAND EDGE RADIATED EMISSION, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: Pass 6.1.2 RADIATED SPURIOUS EMISSION OF TRANSMITTER, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: PASS 6.2.1 RADIATED SPURIOUS EMISSION OF RECEIVER, FCC 15.109, RSS-210 2.2, RSS- 210 2.6, RSS-210 A8.5, RSS-GEN 7.2.3.2 RESULT: PASS Produkte Products Prüfbericht - Nr.: Test Report No.: 15074279 001 Seite 3 von 34 Page 3 of 34 CONTENTS 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 MEASUREMENT UNCERTAINTY ................................................................................. 6 3. GENERAL PRODUCT INFORMATION ........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .................................................................. 7 3.2 SYSTEM DETAILS .................................................................................................... 7 3.2.1 Voltage Requirements, FCC 15.31(e).......................................................................................... 7 3.2.2 Antenna Requirements, FCC 15.203, FCC 15.204 and RSS-Gen 7.1.4 ..................................... 7 3.3 INDEPENDENT OPERATION MODES ........................................................................... 8 3.4 NOISE SUPPRESSING PARTS .................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ..................................................................... 9 4.1 TEST METHODOLOGY .............................................................................................. 9 4.2 PHYSICAL CONFIGURATION FOR TESTING ................................................................. 9 4.3 TEST OPERATION AND TEST SOFTWARE ................................................................... 9 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................. 9 4.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 10 5. TEST RESULTS OF CONDUCTED MEASUREMENTS AT ANTENNA PORT ....................... 11 5.1 TRANSMITTER PARAMETERS .................................................................................. 11 5.1.1 Conducted Output Power, FCC 15.247(b)(1)& (3) and RSS-210 A8.4(2) ................................. 11 5.1.2 6dB Bandwidth and 99% Bandwidth, FCC 15.247(a)(1)& (2) and RSS-210 A8.2(a) ................ 12 5.1.3 Power Spectral Density (PSD), FCC 15.247(e) and RSS-210 A8.2 .......................................... 15 5.1.4 Conducted Spurious Emission, FCC 15.247(d) and RSS-210 A8.5 .......................................... 18 5.1.5 Band Edge Compliance of RF Conducted Emission, FCC 15.247(d) and RSS-210 A8.5 ........ 22 6. TEST RESULTS OF RADIATED MEASUREMENTS ....................................................... 24 6.1 TRANSMITTER PARAMETERS .................................................................................. 24 6.1.1 Band Edge Radiated Emission, FCC 15.205, FCC 15.209, FCC 15.247(d), RSS-210 2.2, RSS-210 2.6 and RSS-210 A8.5 ............................................................................................... 24 6.1.2 Radiated Spurious Emission of Transmitter, FCC 15.205, FCC 15.209, FCC 15.247(d), RSS-210 2.2, RSS-210 2.6 and RSS-210 A8.5 ......................................................................... 29 6.2 RECEIVER PARAMETERS ....................................................................................... 31 6.2.1 Radiated Spurious Emission of Receiver, FCC 15.109, RSS-210 2.2, RSS-210 2.6, RSS- 210 A8.5, RSS-Gen 7.2.3.2 ....................................................................................................... 31 Produkte Products Prüfbericht - Nr.: Test Report No.: 15074279 001 Seite 4 von 34 Page 4 of 34 7. PHOTOGRAPHS OF THE TEST SETUP....................................................................... 32 8. LIST OF TABLES .................................................................................................... 34 9. LIST OF FIGURES .................................................................................................. 34 10. LIST OF PHOTOGRAPHS ......................................................................................... 34 Produkte Products Prüfbericht - Nr.: Test Report No.: 15074279 001 Seite 5 von 34 Page 5 of 34 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. 2. Test Sites 2.1 Test Facilities MRT Technology (Suzhou) Co., Ltd. D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, Suzhou, China The used test equipment is in accordance with CISPR 16 for mea…

Text truncated - open the document above for the full version.

Conducted Radiated
