ST2-CEN8B2.4GHz DTS TRANSMITTER MODULE CEN-8B

Centrak, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 20, 2013
Application Purpose: Original Equipment
Date of Application: Feb 20, 2013
Equipment Note: 2.4GHz DTS TRANSMITTER MODULE CEN-8B
Frequency Range: 2412.00000000 - 2462.00000000
Company: Centrak, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wi-Fi Module CEN-8B Locating Efficiencies in Health Care User Manual UM-UGWW2US [email protected] http://www.centrak.com 1 5 Caufield Place, Suite 102, Newtown, PA 18940 TEL: (215) 860.2928 FAX: (215) 359.0659 Toll Free: (800) 515.2928 Copyright CenTrak Inc, 2013 Centrak Wi-Fi Module family PART NUMBER FAMILY: CEN8 USER MANUAL FCC ID: ST2-CEN8B IC: 6012A-CEN8B Issue Date: 11 January, 2013 Revision: 1.0 THIS DOCUMENT IS PROVIDED “AS IS” WITH NO WARRANTIES WHATSOEVER, INCLUDING ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATION OR SAMPLE. Centrak, Inc disclaims all liability, including liability for infringement of any proprietary rights, relating to use of information in this document. No license, expressed or implied, by estoppel or otherwise, to any intellectual property rights is granted herein. IMPORTANT NOTES: x This module is limited to OEM Installation only. x The End User should not either install or remove the module. As such no instructions regarding Module Installation or Removal should be given to the End-User. x No instructions for module use will be given to the customer. The module will only be used in conjunction with the integrated product *Third-party brands, names, and trademarks are the property of their respective owners. Wi-Fi Module CEN-8B Locating Efficiencies in Health Care User Manual 5 Caufield Place, Suite 102, Newtown, PA 18940 TEL: (215) 860.2928 FAX: (215) 359.0659 Toll Free: (800) 515.2928 UM-UGWW2US [email protected] http://www.centrak.com 2 Copyright CenTrak Inc, 2013 ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVAL 4 User Guide Information 5 United States of America Requirements 5 General User Guide Requirements 5 Topics Not Covered 6 UNITED STATES REGULATORY APPROVAL FCC MODULAR APPROVAL 7 Design Criteria for Modular Approval 7 General Conditions 7 Antenna 7 Antenna Interconnect & Impedance Physical Implementation Emissions Compliance Testing 7 Co-location of Additional Transmitters 8 Product Labeling Requirements 8 INDUSTRY CANADIAN REGULATORY APPROVAL 9 Design Criteria for Modular Approval 9 General Conditions 9 Antennae 9 Antenna Interconnect & Impedance Physical Implementation Emissions Compliance Testing 9 Product Labeling Requirements 10 Wi-Fi Module CEN-8B Locating Efficiencies in Health Care User Manual 5 Caufield Place, Suite 102, Newtown, PA 18940 TEL: (215) 860.2928 FAX: (215) 359.0659 Toll Free: (800) 515.2928 UM-UGWW2US [email protected] http://www.centrak.com 3 Copyright CenTrak Inc, 2013 UNITED STATES AND INTERNATIONAL TYPE APPROVAL EQUIPMENT CERTIFICATION) (STANDARD REGULATORY 14 CONTACT INFORMATION 14 APPENDIX A: 15 Agency Certifications: 15 Regulatory Certification Requirement: 15 MECHANICAL CHARACTERISTICS: 16 APPENDIX B: 17 FCC Grant# - ST2-CEN8B 17 Wi-Fi Module CEN-8B Locating Efficiencies in Health Care User Manual 5 Caufield Place, Suite 102, Newtown, PA 18940 TEL: (215) 860.2928 FAX: (215) 359.0659 Toll Free: (800) 515.2928 CEN-8B [email protected] http://www.centrak.com 4 Copyright CenTrak Inc, 2013 ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVAL The Centrak CEN-8B module (the CEN-8B) is a device that transmits and receives radio signals in accordance with the spectrum regulations for the 2.4-GHz unlicensed frequency range. Regional regulatory agency approval may be required to operate CEN-8B throughout the world. For purposes of ease of integration, time to market, and product surety, Centrak submitted CEN-8B to relevant agencies and obtained regulatory approvals for specific countries. CEN-8B was approved under the “Modular Approval (MA) Grant”. This certification represents a significant cost savings to the OEM. The radio certification portion of this grant is transferable to Digital Electronic Device manufacturers given adherence to specific implementation criteria noted herein. Any modification of the CEN-8B will void the manufacturer’s warranty. Any alteration or deviation from the documented installation and/or use of the CEN-8B will void the MA Grant as it applies to the end-product. This module is to be installed only in mobile or fixed applications and please add a reference to part 2.1091(b) for a definition of mobile and fixed devices. Note, that separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. In the event the Digital Electronic Device manufacturer alters the herein described and approved installation of the CEN-8B, the end-product may require a complete battery of regulatory agency certification test Digital Electronic Device manufacturer may be required to submit to a complete battery of tests, depending on the requirements noted in the region they wish to sell their product. The MA Grant provides that Digital Electronic Device manufacturers who incorporate the CEN-8B Module as tested and approved, and can be relieved from having to perform the Radio Regulatory certification portion of the respective agency certification. The MA Grant is valid only in countries that recognize the MA Grant certification process. Countries currently accepting the MA Grant include; the USA, Canada, and many European countries as noted in the General User Guide Requirements Section of this document. Terms and conditions of regulatory approval for these countries are also described herein. However, this “grandfathered” radio certification does not relieve the Digital Electronic Device manufacturers from submitting their device for digital emissions certifications. Electronic device manufacturers may disregard the requirements of this section provided they accept full responsibility for regulatory type-approval of the electronic device with an integrated CEN-8B wireless module. Wi-Fi Module CEN-8B Locating Efficiencies in Health Care User Manual 5 Caufield Place, Suite 102, Newtown, PA 18940 TEL: …

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: 6/27/2012 To whom it may concern: We, the undersigned, hereby authorize Wei Li, Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsibl e to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; 5 Caufield Place Ste 102, Newtown PA 18940 i Tel 215.860.2928 i Fax 215.359.0659 i www.centrak.com • document the actions taken This authorization is valid until further written notice from the a pplicant. Sincerely Yours, Printed Name: Israel Amir Title: CTO Company: CenTrak, Inc. z Page 2

Cover Letter(s)

Date: January 29, 2013 FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the following kept as confidential for the reference IDs: IC: 6012A-CEN8B Model numbers: CEN8B And: FCC: ST2- CEN8B The information provided is for the sole purpose of inclusion as exhibits in the Application for Certificate of the FCC & IC IDs stated above: We ask to keep confidential the following Tag (model# CEN-8B) documents:  Schematics  Block Diagram  Operational description Sincerely, Israel Amir, CTO CenTrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 215.860.2928

Cover Letter(s)

Centrak, INC. 5 Caufield Place, Newtown, PA 18940 U.S.A. Date: 1/29/2013 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Modular Approval. To whom may it concern: FCC ID: ST2-CEN8B IC: 6012A-CEN8B Contact person: Israel Amir E-mail: [email protected] We have the following attestation to the eight requirements described by FCC public notice DA00-1407 "Part 15 Unlicensed Modular Transmitter Approval". 1. RF shielding. The model CEN-8B, (FCC ID: ST2-CEN8B, IC:6012A-CEN8B) has its own RF shielding. The shielding is made by metal and completely added to RF part during our manufacturing. It is not easily removed module. Please see exhibition external photos of this module. 2. Excessive data rates or over modulation. The module circuit buffers all modulation and control of the transmitter. The control of the transmitter is via data commands and software instructions that are supplied from external devices. The transmitter is tested with the module operated at the maximum power. The commands can reduce the power of transmitter but do not influence the modulation contents. 3. Power supply regulation. The module has its own power supply regulator to insure compliance with part 15 requirements regardless of the quality or level of external DC supplying the module from the end product. The regulator operates in 3.3Vdc. Centrak, INC. 5 Caufield Place, Newtown, PA 18940 U.S.A. 4. Antenna and unique coupler requirements to antenna connector. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photos of the antenna is shown in the test report. 5. Stand--alone configuration. The modular transmitter has been performed the testing as a stand alone and then confirmed the compliance. Please refer to the test report number 6. Label with own FCC ID number and exterior label. The module is labeled with own FCC ID number. Please see exhibition label sample for the FCC ID of this module. The label made by polyester sheet is affixed to the module by a high-strength adhesive. Since the FCC ID number will not be visible when the module is installed inside the end product, there are instructions give to the OEM how to label the end product. 7. Compliant with any specific rule or operating requirements. The module as manufactured is completely controlled by the onboard processor. There are no influences to the operation of the transmitter the end can induce that will operate the module outside of scope of the regulations. The necessary explanation for user to be complied with this requirement is contained on the manual. 8. RF exposure requirements. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Sincerely, Israel Amir

External Photos

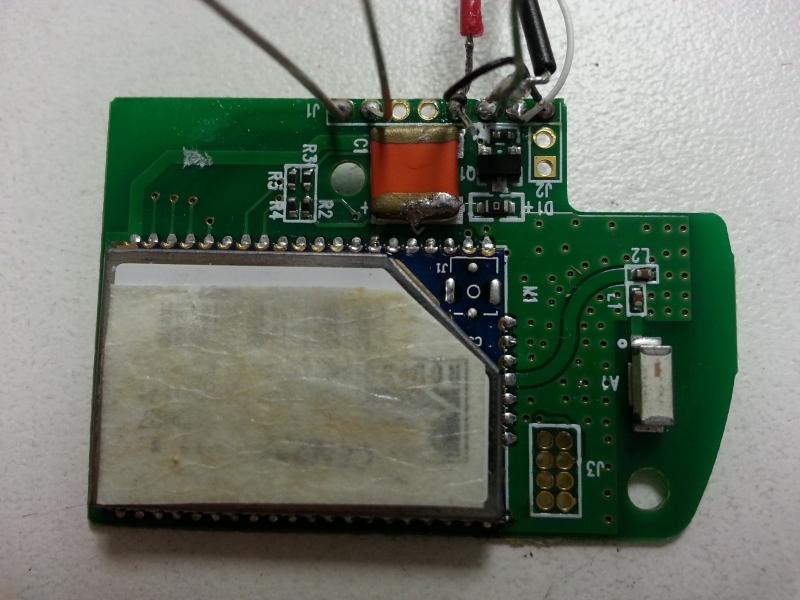

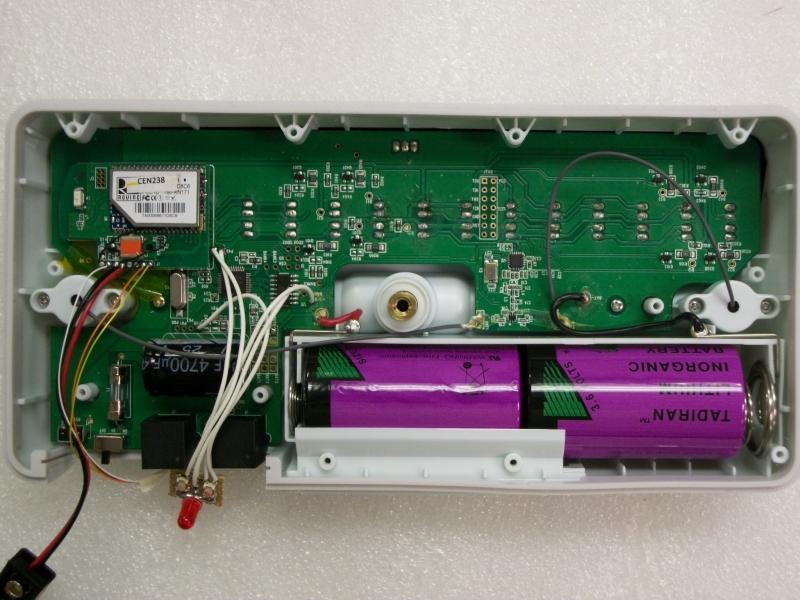

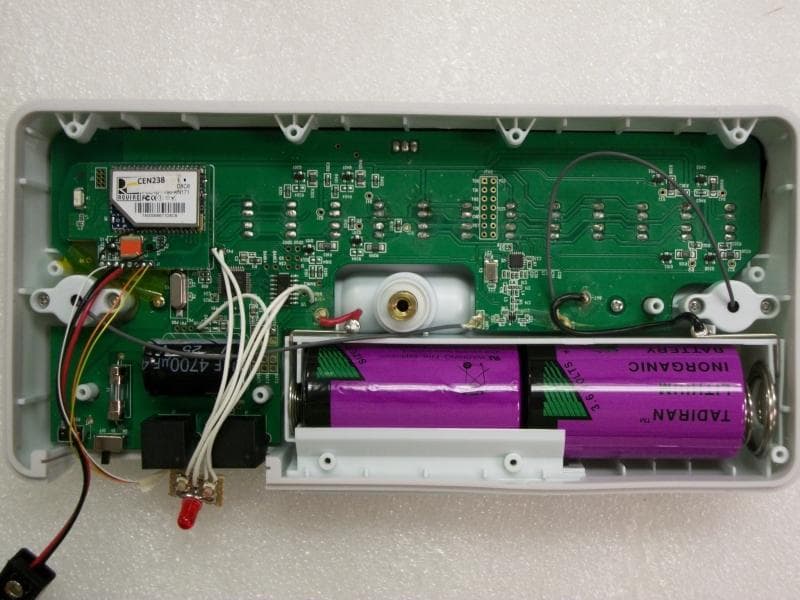

EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 56 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 PRODUCT PHOTO Front View EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 57 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Back View EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 58 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2.4GHz Radio PCB Front Side (with and without shielding cover) EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 59 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT in Host Device I EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 60 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT in Host Device II

ID Label/Location Info

EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 54 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC/IC Label Centrak 2.4GHz DTS Transmitter Module Model : CEN-8B FCC ID: ST2-CEN8B IC: 6012A-CEN8B This device complies with FCC Part 15C & IC RSS-210 Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 1 Proposed FCC/IC ID Label for 2.4GHz DTS Transmitter Module (The statement may be shown in its user manual for small size devices ) Figure 2 Proposed ID Label location ID Label EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 55 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Hosting Device FCC/IC Label : Centrak Product Name & Product Model No. Contains FCC ID: ST2-CEN8B IC: 6012A-CEN8B This device complies with FCC Part 15C & IC RSS-210 Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 3 Proposed FCC/IC ID Label for Hosting Device with 2.4GHz DTS Transmitter Module (The statement may be shown in its user manual for small size devices )

ID Label/Location Info

Internal Photos

Test Report

FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For 2.4GHz DTS Transmitter Module (for 2.4GHz Band Transmission) Model Number: CEN-8B FCC ID: ST2-CEN8B IC: 6012A-CEN8B Report Number: 0048-130114-03 Prepared for Centrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 01/25/2013 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 2 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.......................................................................................... 3 2. EUT DESCRIPTION ............................................................................................................... 4 3. TEST METHODOLOGY......................................................................................................... 5 4. FACILITIES AND ACCREDITATION................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.................................................................................. 6 5.1. MEASURING INSTRUMENT CALIBRATION...................................................................... 6 5.2. MEASUREMENT UNCERTAINTY....................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1. 6 dB&99% BANDWIDTH................................................................................................... 9 7.2. PEAK OUTPUT POWER.................................................................................................. 14 7.3. MAXIMUM PERMISSIBLE EXPOSURE............................................................................ 18 7.4. AVERAGE POWER ..........................................................................................................21 7.5. PEAK POWER SPECTRAL DENSITY ................................................................................22 7.6. CONDUCTED SPURIOUS EMISSIONS ............................................................................27 7.7. RADIATED EMISSIONS .................................................................................................34 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS .............................................. 34 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA................ ........... ......... ...................... 36 7.8. AC CONDUCTED EMISSIONS ................................................................................46 8. SETUP PHOTOS ................................................................................................................... 48 9. APENDEX .... ..... ................................................................................................................... 53 EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 3 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: Centrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940, USA EUT DESCRIPTION: 2.4GHz DTS Transmitter Module MODEL: CEN-8B DATE TESTED: 01/14/2013 to 01/25/2013 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . ( A C L ) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by A C L , A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 4 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2. EUT DESCRIPTION The EUT is a low power transmitter, using digital modulation & operating in the 2400-2483.5 MHz band. The transmitter has a maximum peak conducted output power as follows: Frequency Range (MHz) Rated Power Tested Peak Power (dBm/W) 2412-2462 8dBm 7.41 /0.006 The EUT can use a surface mount antenna: 1. Johanson Technology, Inc., P/N 2450AT42A100, 2.4GHz Band, 0 dBi, typ. (XZ-Vertical Polarization) EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 5 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 3. TEST M ETHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003/C63.10-2009, FCC CFR 47Part 2 & 15 and IC RSS-210. Test procedure described in FCC “KDB 558074 D02 DTS Measurement Guidance” is used in this report. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are loca…

Text truncated - open the document above for the full version.

Test Setup Photos

EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 50 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Z Position Radiated Test Setup (a) EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 51 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT in Hosting Device I EUT: 2.4GHz DTS Transmitter Module Report No: 0048-130114-03 Model: CEN-8B FCC ID:ST2-CEN8B IC: 6012A-CEN8B Page 52 of 60 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT in Hosting Device II Radiated Test Setup (b)

Contact Information

Applicant

Sherre Staves(VP)

[email protected]215-860-2928Fax: 215-860-2928

Test Firm

Advanced Compliance LaboratoryWei Li

[email protected]908-927-9288Fax: 908-927-0728

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	6.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Power output is conducted. Approval is limited to OEM integrator installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. This device supports 20MHz and 40MHz bandwidth mode.
