ST2-DM31YMULTI-MODE VIRTUAL WALL ITD-318 &IT-313C

© CenTrak 2013. All Rights Reserved. Proprietary and Confidential. 1/03 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com CenTrak Monitor IT‐313* •CenTrak Gen2IR™ Technology for accurate room‐level location and 2‐way communication with Star base stations •Battery Operated – Standard 5+ years typical •Battery Operated – Extended Life Option 10+ years typical •Can be configured and monitored by central server for superior control •Simple to install ceiling tile mounting bracket, no in‐room wiring required The Monitor is an IR (infrared) signaling unit used with IR‐enabled tags to provide a method of locating tagged assets or people. Each Monitor transmits an infrared pulse pattern containing a unique location code. The CenTrak proprietary IR protocol achieves a marked improvement over conventional IR protocols that were designed for remote control applications. It provides superior resilience to fluorescent and other common indoor interference sources. Coverage zones are limited by solid physical structures such as walls; however, contrary to popular belief, IR does not need line of sight for effective communication. IR signals bounce effectively from structures and walls flood the entire room including locations that are not in direct line of sight to the Monitor. The battery operation and the extremely simple mounting mechanism allow for the quick and low cost installation of the monitor. About CenTrak Gen2IR™ Technology Second Generation Infrared (Gen2IR) Monitors can be positioned wherever accurate location data is needed including rooms, hallways, and even bays. Similar to light, Gen2IR will not pass through walls, and it does not suffer from traditional infrared and ultrasound line‐of‐sight limitations. Therefore, when a tag reads a room number, there are no errors. This is certainty‐based RTLS, a requirement for today’s healthcare automation and workflow applications. *IT‐313 is for use with the CenTrak 2.0 system. Order IT‐311 for use with the 1.0 system. IT‐313 CenTrak Monitor IT‐313 Mounted to Ceiling © CenTrak 2013. All Rights Reserved. Proprietary and Confidential. 1/03 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com CenTrak Monitor IT‐313* Technical Specifications Operation FCC Operating Frequency Range902‐928 MHz (Model #IT‐313)* CE Operating Frequency Range868‐870 MHz (Model #ITEU‐313)* Power ControlLocal on/off, Remote IR on/off Default SettingFactory set location code marked on Monitor IndicatorsNone Reach Maximum Room Size20’ square rooms (with single monitor) Maximum RangeUp to 60’ Enclosure Diameter6.5 in (165.1 mm) Height2.25 in (57.15 mm) Weight (without batteries)21 oz (.6 kg) CasePC MountingCeiling tile clip, wall‐mount, desktop operation Monitor Mounting PlateITA‐352 Environmental Operating Temperature‐20 C to +70 C Storage temperature‐25 C to +80 C Operating HumiditySplash resistant or optional weatherproof case Power External PowerExternal power adapter capability (optional) contact CenTrak for details Battery typePre‐installed Lithium Standard: 5+ years typical Extended Life Option: 10+ years typical *IT‐313 is for use with the CenTrak 2.0 system. Order IT‐311 for use with the 1.0 system. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE‐EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THEFOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532. L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. IT‐313 CenTrak Monitor IT‐313 Mounted to Ceiling © CenTrak 2013. All Rights Reserved. Proprietary and Confidential. 1/03 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com CenTrak Monitor IT‐313* Accessories *IT‐313 is for use with the CenTrak 2.0 system. Order IT‐311 for use with the 1.0 system. ITA‐361 Monitor Metal Ceiling Attachment (9/16 inch) ITA‐362 Monitor Metal Ceiling Attachment (15/16 inch) ITA‐356 D Cell Lithium Battery (2) (for illustration purposes only) Ceiling Attachments Power ITA‐374 Monitor Weather‐Proof Protective Dome (Monitor not included) ITA‐351 Monitor Power Adapter ITA‐353 Ceiling Tile Attachment (standard) ITA‐363 Monitor Metal Ceiling Attachment (5/16 inch) ITA‐352 Monitor Mounting Plate (standard) Enclosure IT‐313 CenTrak Monitor IT‐313 Mounted to Ceiling

© CenTrak 2013. All Rights Reserved. Proprietary and Confidential. CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com ITDK‐318 Multi‐Mode Monitor •CCX on Wi‐Fi networks and Gen2IR™ •Battery Operated •Can be configured and monitored by central server for superior control •Simple to install ceiling tile mounting bracket, no in‐room wiring required The Monitor is an IR (infrared) signaling unit used with IR‐enabled tags or Multi‐Mode tags to provide a method of locating tagged assets or people. Each Monitor transmits an infrared pulse pattern containing a unique location code. The Multi‐Mode Monitor is different from CenTrak’s standard Gen2IR Monitor because it functions in both a 900 MHz and/or Wi‐Fi environment without any wiring. About CenTrak Gen2IR™ Technology™ The CenTrak proprietary IR protocol achieves a marked improvement over conventional IR protocols that were designed for remote control applications. It provides superior resilience to fluorescent and other common indoor interference sources. Coverage zones are limited by solid physical structures such as walls; however, contrary to popular belief, IR does not need line of sight for effective communication. IR signals bounce effectively from structures and walls flood the entire room including locations that are not in direct line of sight to the monitor. The battery operation and the extremely simple mounting mechanism allows for the quick and low cost installation. ITDK‐318 Mounted to Ceiling ITDK‐318 Multi‐Mode Monitor © CenTrak 2013. All Rights Reserved. Proprietary and Confidential. CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com ITDK‐318 Multi‐Mode Monitor Technical Specifications Reach Maximum Room Size20’ square rooms (400 square feet) Maximum RangeUp to 60’ Enclosure Diameter6.5 in (165.1 mm) Height2.25 in (57.15 mm) Weight18 oz (.51 kg) without batteries MountingCeiling tile clip, wall‐mount, desktop operation Monitor Mounting PlateITA‐352 Mounting AccessoriesVarious items detailed on page 3 Power External PowerExternal power adapter capability – (optional) see page 3 Battery typePre‐installed Lithium Environmental Operating Temperature‐20 C to +70 C Storage temperature‐25 C to +80 C Operating HumiditySplash resistant or optional weatherproof case THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE‐EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532 L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Operation FCC Operating Frequency Range2.4 GHz (CCX on Wi‐Fi networks, 802.11 b/g) 902‐928 MHz ITDK‐318 Mounted to Ceiling ITDK‐318 Multi‐Mode Monitor © CenTrak 2013. All Rights Reserved. Proprietary and Confidential. CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com ITDK‐318 Multi‐Mode Monitor Accessories ITA‐361 Monitor Metal Ceiling Attachment (9/16 inch) ITA‐362 Monitor Metal Ceiling Attachment (15/16 inch) ITA‐356 D Cell Lithium Battery (2) (for illustration purposes only) Ceiling Attachments Power ITA‐374‐M Monitor Weather‐Proof Protective Dome (Monitor not included) ITA‐351 Monitor Power Adapter ITA‐353 Ceiling Tile Attachment (standard) ITA‐363 Monitor Metal Ceiling Attachment (5/16 inch) ITA‐352 Monitor Mounting Plate (standard) Enclosure ITDK‐318 Mounted to Ceiling ITDK‐318 Multi‐Mode Monitor ITA‐377 Monitor Flush Mounting Plate (Monitor not included)

Date: 6/27/2012 To whom it may concern: We, the undersigned, hereby authorize Wei Li, Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsibl e to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; 5 Caufield Place Ste 102, Newtown PA 18940 i Tel 215.860.2928 i Fax 215.359.0659 i www.centrak.com • document the actions taken This authorization is valid until further written notice from the a pplicant. Sincerely Yours, Printed Name: Israel Amir Title: CTO Company: CenTrak, Inc. z Page 2

Date: January 27, 2013 FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the following kept as confidential for the reference IDs: IC: 6012A-ITD318 with the following model numbers: ITD-318, IT-313C And: FCC: ST2-DM31Y The information provided is for the sole purpose of inclusion as exhibits in the Application for Certificate of the FCC & IC IDs stated above: We ask to keep confidential the following Tag (model# ITD-313C, ITD-318) documents:  Schematics and Parts List  Block Diagram  Operational description Sincerely, Israel Amir, CTO CenTrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 215.860.2928

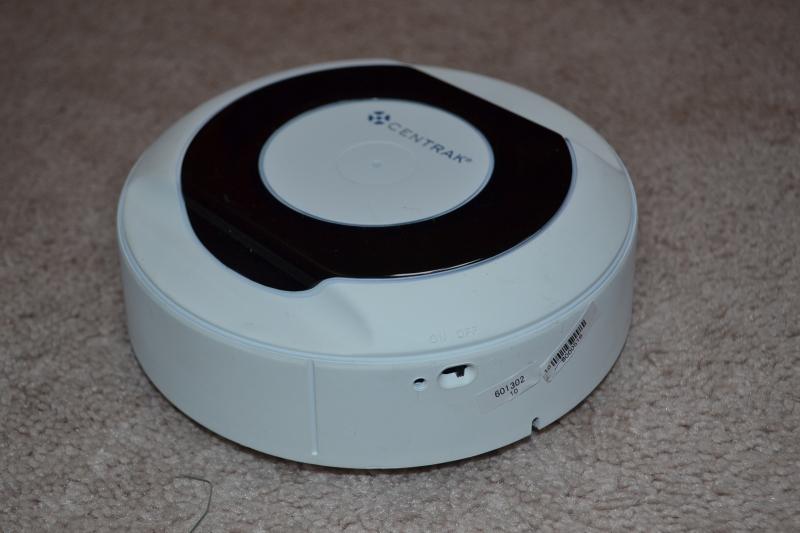

FCC ID: ST2-DM31Y ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 22 8.1 Front View FCC ID: ST2-DM31Y ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 23 8.2 Back View

FCC ID: ST2-DM31Y ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the Side of EUT Figure 2.2 FCC Label Location FCC ID: ST2-DM31Y *Contains FCC ID: ST2-CEN8B This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label (* This line is for Model ITD-318 Only) FCC Label

IC: 6012A-ITD318 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 24 8.3 Inside View 8.4 Inside View_02 IC: 6012A-ITD318 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 25 8.5 PCB Component Side View& Antenna Shown up IC: 6012A-ITD318 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 26 8.6 PCB Foil Side View

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of Multi-Mode MONITOR MODEL: ITD-318 & IT-313C FCC ID: ST2-DM31Y January 16, 2013 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: CENTRAK, INC. Report prepared by: Advanced Compliance Lab Report number: 0048-130114-02-FCC Lab Code: 200101 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory FCC ID: ST2-DM31Y ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .................................................................................................... 1 Table of Contents ...................................................................................................... 2 Figures ....................................................................................................................... 3 1. GENERAL INFORMATION ............................................................................... 4 1.1 Verification of Compliance ...................................................................... 4 1.2 Equipment Modifications ........................................................................ 5 1.3 Product Information ................................................................................ 6 1.4 Test Methodology ..................................................................................... 6 1.5 Test Facility .............................................................................................. 6 1.6 Test Equipment ........................................................................................ 6 1.7 Statement for the Document Use ............................................................. 7 2. PRODUCT LABELING ........................................................................................ 8 3. SYSTEM TEST CONFIGURATION ................................................................... 9 3.1 Justification .............................................................................................. 9 3.2 Special Accessories ................................................................................... 9 3.3 Configuration of Tested System .............................................................. 9 4. SYSTEM SCHEMATICS ..................................................................................... 13 5. RADIATED EMISSION DATA ........................................................................... 14 5.1 Field Strength Calculation ....................................................................... 14 5.2 Test Methods and Conditions .................................................................. 14 5.3 Test Data .................................................................................................. 14 6. AC CONDUCTED EMISSIONS DATA ............................................................ 18 Line Conducted Emission .............................................................................. 19 Neutral Conducted Emission ......................................................................... 19 7. EUT RECEIVING MODE VERIFICATION ...................................................... 20 8. PHOTOS OF TESTED EUT................................................................................. 21 FCC ID: ST2-DM31Y ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label ........................................................................................... 8 Figure 2.2 Location of Label on Back of the EUT.................................................... 8 Figure 3.1 Radiated Test Setup, Position 1 .............................................................. 10 Figure 4.1 EUT Schematics ....................................................................................... 12 Figure 8.1 Top View .................................................................................................. 22 Figure 8.2 Back View ................................................................................................ 23 Figure 8.3 Inside View_01 ......................................................................................... 24 Figure 8.4 Inside View_01 ......................................................................................... 24 Figure 8.5 PCB Component Side View & Antenna Shown up ................................ 25 Figure 8.6 PCB Foil Side View .................................................................................. 26 Figure 8.7 EUT Front Side View............................................................................... 27 Figure 8.8 EUT Rear Side View ................................................................................ 28 Figure 8.9 EUT Left Side View ................................................................................. 29 Figure 8.10 EUT Right Side View ............................................................................. 30 FCC ID: ST2-DM31Y ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: Multi-Mode MONITOR Model: ITD-318 & IT-313C Applicant:…

Text truncated - open the document above for the full version.

IC: 6012A-ITD318 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Test Setup, Battery Mode Figure 3.2 Radiated Test Setup, AC Mode IC: 6012A-ITD318 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 IC: 6012A-ITD318 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 12
