ST2-DM34YLOW FREQUENCY MONITOR ITD-34Y

© CenTrak 2012. All Rights Reserved. Proprietary and Confidential. 7/12 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215-860-2928 e: [email protected] www.centrak.com Low Frequency Monitor ITK-340 •900 MHz and Wi-Fi enabled •Quick installation with convenient wall mounting bracket •Can be configured and monitored by central server for superior control •Battery-operated for plug-an-play installation – no wiring necessary •2+ years battery life in egress detection mode (less than 1 second update speed) •10+ years battery life in location presence mode (1 minute updates) The Low Frequency (LF) Monitor is a signaling unit used with LF- enabled tags to segment zones or designate egress points. The LF Monitors create a detection “sphere”. When a tag enters the LF Monitor sphere, the tag’s LF sensor is triggered and the tag immediately reports this event to the CenTrak Location Engine. The LF Monitors are typically used to segment zones/areas and for egress detection. The LF Monitors may be strategically placed on the floor to define zonal areas. When a tag passes the LF Monitor, the system knows it passed from one zone to another zone. In the same manner, the LF Monitors may be placed in elevator banks and stairwells to determine if a tag passed from one floor to another. An additional use for the LF Monitors involves attaching the devices under beds and/or chairs to enable bed-/chair-level location accuracy. The battery operation and the extremely simple mounting mechanism, allow for the quick and low cost installation. ITA-790 Low Frequency Monitor Mounting Bracket ITK-340 Low Frequency Monitor © CenTrak 2012. All Rights Reserved. Proprietary and Confidential. 7/12 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215-860-2928 e: [email protected] www.centrak.com Low Frequency Monitor ITK-340 Technical Specifications Reach Low range Up to 4 ft. (battery operated) Medium range Up to 8 ft. (battery operated) Long range Up to 15 ft. (power adapter) Enclosure Length 7.38 in (186 mm) Width 4.75 in (120 mm) Height 1.9 in (49 mm) Weight 11.87 oz (.34 kg) without batteries Mounting Wall mounting bracket Monitor Mounting Plate ITA-790 Power Battery type Pre-installed Lithium D Cell (4) Environmental Operating Temperature 0 C to +50 C Storage temperature -20 C to +70 C Operating Humidity 10-90%, non-condensing This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cases undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532 L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Operation FCC Operating Frequency Range 2.4 - 2.5 GHz 902-928 MHz 125 KHz ITA-790 Low Frequency Monitor Mounting Bracket ITK-340 Low Frequency Monitor

Date: September 24, 2012 Ref: Application for FCC & IC Certifications on Centrak’s LF Monitor under Certificates, FCC ID: ST2-DM34Y and IC: 6012A-2X34Y Ctrl#: 0048-120924-01 From: Wei Li, Advanced Compliance Laboratory To: FCC & Industry Canada Dear Sir/ Madam, We, Advanced Compliance Laboratory, as EMC testing lab and agent, would like to represent the applicant, Centrak, Inc. to apply for your approval on product authorization under Single Certification. The investigation for the EMC performance of the EUT(s), Low Frequency Monitor, Model No. : ITD-34Y was performed in September, 2012 on behalf of Centrak, Inc. It was found that EUTs comply with the requirements of FCC Part 15.209, 15.247, 15.249 and IC RSS-210& RSS-Gen. The system was configured as the typical condition during the test. Enclosed please find the test data/report with application forms. Multiple rules are applied to this unit since it has three transmitters operated in different frequency bands: 125KHz, 904-926MHz and 2412-2462MHz. The measurement facility used to collect the test data is located at Somerset, New Jersey. OATS was listed by IC as “Site 3130A”. In addition, this testing site has been listed by FCC (Refer to: 31040/SIT 1300F2) since 1992 and also recognized under NVLAP by NIST (Lab code 200101-0) since 1997. Should you need more information, please contact me at (908) 392-3378 or email me to [email protected]. Your attention is highly appreciated. Sincerely, Wei Li Manager Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Lab

Date: 6/27/2012 To whom it may concern: We, the undersigned, hereby authorize Wei Li from Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsible to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; 5 Caufield Place Ste 102, Newtown PA 18940 i Tel 215.860.2928 i Fax 215.359.0659 i www.centrak.com • document the actions taken This authorization is valid until further written notice from the applicant. Sincerely Yours, Printed Name: Israel Amir Title: CTO Company: CenTrak, Inc. z Page 2

Date: June 27, 2012 FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the following kept as confidential for the reference IDs: IC: 6012A-2X34Y with the following model numbers: ITD-34Y And: FCC: ST2-DM34Y The information provided is for the sole purpose of inclusion as exhibits in the Application for Certificate of the FCC & IC IDs stated above: We ask to keep confidential the following Tag (model# ITD-340) documents:  Schematics and Parts List  Block Diagram  Operational description Sincerely, Israel Amir, CTO CenTrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 215.860.2928

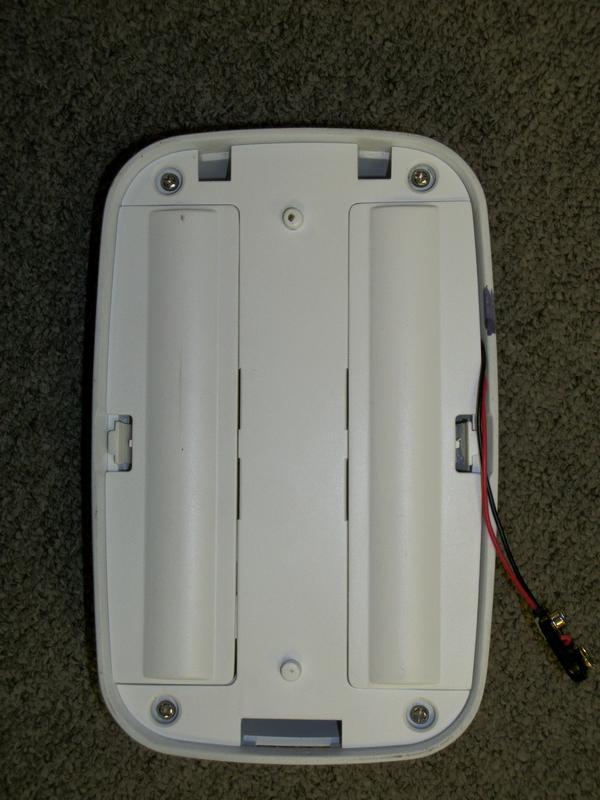

EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 46 of 52 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Front View EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 47 of 52 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Back View

EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 45 of 55 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC/IC Label Centrak Low Frequency Monitor Model : ITD-34Y FCC ID: ST2-DM34Y IC: 6012A-2X34Y This device complies with FCC Part 15C & IC RSS-210 Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 1 Proposed FCC/IC ID Label for Low Frequency Monitor (The statement may be shown in its user manual for small size devices ) Figure 2 Proposed ID Label location ID Label

EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 53 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Rear Cover Open_ Inside View 1 EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 54 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Rear Cover Open_ Inside View 2 (LF Antenna) EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 55 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 AC/DC Adapter EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 56 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Main PCB Front Side EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 57 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Main PCB Back Side EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 58 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2.4GHz Radio PCB Front Side (with and without shielding cover) EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 59 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2.4GHz Radio PCB Back Side EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 60 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 900MHz Radio PCB Front Side EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 61 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 900MHz Radio PCB Back Side

FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For Low Frequency Monitor (for 2.4GHz Band Transmission) Model Number: ITD-34Y FCC ID: ST2-DM34Y IC: 6012A-2X34Y Report Number: 0048-120904-03A Prepared for Centrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 09/17/2012 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 2 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.......................................................................................... 3 2. EUT DESCRIPTION ............................................................................................................... 4 3. TEST METHODOLOGY......................................................................................................... 5 4. FACILITIES AND ACCREDITATION................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.................................................................................. 6 5.1. MEASURING INSTRUMENT CALIBRATION...................................................................... 6 5.2. MEASUREMENT UNCERTAINTY....................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1. 6 dB&99% BANDWIDTH................................................................................................... 9 7.2. PEAK OUTPUT POWER.................................................................................................. 14 7.3. MAXIMUM PERMISSIBLE EXPOSURE............................................................................ 18 7.4. AVERAGE POWER ..........................................................................................................21 7.5. PEAK POWER SPECTRAL DENSITY ................................................................................22 7.6. CONDUCTED SPURIOUS EMISSIONS ............................................................................27 7.7. RADIATED EMISSIONS.................................................................................................33 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS .............................................. 33 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA................ ........... ......... ...................... 35 7.8. AC CONDUCTED EMISSIONS ................................................................................42 8. SETUP PHOTOS ................................................................................................................... 45 9. APENDEX .... ..... ................................................................................................................... 49 EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 3 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: Centrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940, USA EUT DESCRIPTION: Low Frequency Monitor MODEL: ITD-34Y DATE TESTED: 09/04/2012 to 09/17/2012 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . ( A C L ) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by A C L , A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 4 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2. EUT DESCRIPTION The EUT is a low power transmitter, using digital modulation & operating in the 2400-2483.5 MHz band. The transmitter has a maximum peak conducted output power as follows: Frequency Range (MHz) Rated Power Tested Peak Power (dBm/W) 2412-2462 8dBm 7.41 /0.006 The EUT can use a surface mount antenna: 1. Johanson Technology, Inc., P/N 2450AT42A100, 2.4GHz Band, 0 dBi, typ. (XZ-Vertical Polarization) EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 5 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 3. TEST M ETHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/C63.10, FCC CFR 47 Part 2 & 15 and IC RSS-210. Test procedure described in FCC “KDB 558074 D01 DTS Measurement Guidance” is used in this report. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at Hillsbor ough, New Jersey, USA The sites…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For Low Frequency Monitor (for 2.4GHz Band Transmission) Model Number: ITD-34Y FCC ID: ST2-DM34Y IC: 6012A-2X34Y Report Number: 0048-120904-03A Prepared for Centrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 09/17/2012 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 2 of 55 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.......................................................................................... 3 2. EUT DESCRIPTION ............................................................................................................... 4 3. TEST METHODOLOGY......................................................................................................... 5 4. FACILITIES AND ACCREDITATION................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.................................................................................. 6 5.1. MEASURING INSTRUMENT CALIBRATION...................................................................... 6 5.2. MEASUREMENT UNCERTAINTY....................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1. 6 dB&99% BANDWIDTH................................................................................................... 9 7.2. PEAK OUTPUT POWER.................................................................................................. 14 7.3. MAXIMUM PERMISSIBLE EXPOSURE............................................................................ 18 7.4. AVERAGE POWER ..........................................................................................................21 7.5. PEAK POWER SPECTRAL DENSITY ................................................................................22 7.6. CONDUCTED SPURIOUS EMISSIONS ............................................................................27 7.7. RADIATED EMISSIONS.................................................................................................33 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS .............................................. 33 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA................ ........... ......... ...................... 35 8. SETUP PHOTOS ................................................................................................................... 41 9. APENDEX .... ..... ................................................................................................................... 44 EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 3 of 55 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: Centrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940, USA EUT DESCRIPTION: Low Frequency Monitor MODEL: ITD-34Y DATE TESTED: 09/04/2012 to 09/17/2012 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . ( A C L ) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by A C L , A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 4 of 55 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2. EUT DESCRIPTION The EUT is a low power transmitter, using digital modulation & operating in the 2400-2483.5 MHz band. The transmitter has a maximum peak conducted output power as follows: Frequency Range (MHz) Rated Power Tested Peak Power (dBm/W) 2412-2462 8dBm 7.41 /0.006 The EUT can use a surface mount antenna: 1. Johanson Technology, Inc., P/N 2450AT42A100, 2.4GHz Band, 0 dBi, typ. (XZ-Vertical Polarization) EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 5 of 55 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 3. TEST M ETHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/C63.10, FCC CFR 47 Part 2 & 15 and IC RSS-210. Test procedure described in FCC “KDB 558074 D01 DTS Measurement Guidance” is used in this report. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at Hillsbor ough, New Jersey, USA The sites are constructed in conformance with the requirements of ANSI C63.4, ANSI C63.7 and CISPR Publication 22. All r…

Text truncated - open the document above for the full version.

EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 45 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 8. SETUP PHOTOS Conducted Measurements at Antenna Port Conducted Emission Measurements at AC Mains EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 46 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Field Strength of Spurious Radiated Test Setup (a) EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 47 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT: Low Frequency Monitor Report No: 0048-120904-03A Model: ITD-34Y FCC ID:ST2-DM34Y IC: 6012A-2X34Y Page 48 of 61 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Radiated Test Setup (b)
