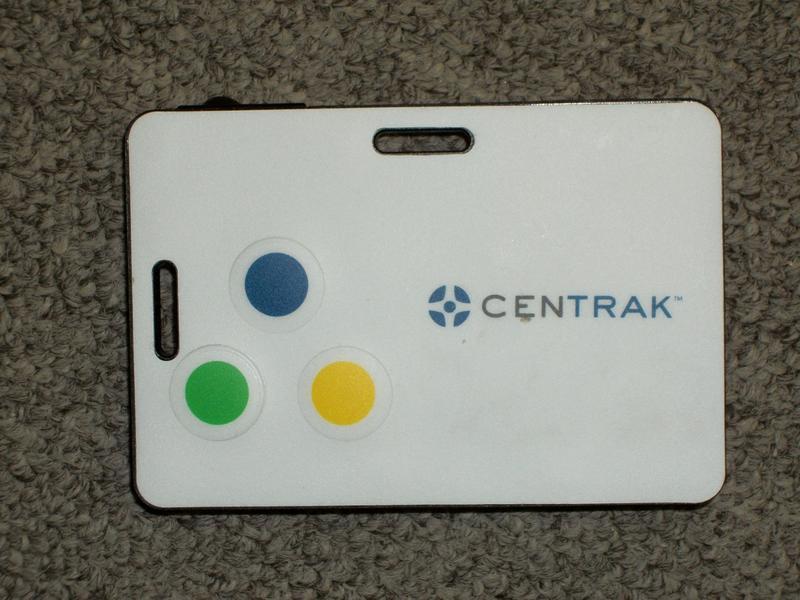

ST2-DM763MULTI-MODE STAFF TAG ITD-763

© CenTrak 2012. All Rights Reserved. Proprietary and Confidential. 5/12 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215-860-2928 e: [email protected] www.centrak.com ITD-763 & ITD-763E Multi-Mode Staff Tag ITA-766 Suspender Clip for Staff Tag A smarter approach to RTLS. CenTrak’s ITD-763 and ITD- 763E adapt to your accuracy requirements (zone, room, bed) and RF environment to maximize staff locating initiatives. •Wi-Fi and Gen2IR™ enabled •Leverages existing 802.11 networks for RF locating •Provides certainty-based room-level accuracy using CenTrak’s proven battery operated Gen2IR Monitors. •Hole mounts for portrait or landscape to wear behind a standard badge •Water resistant and easy to clean •Three customizable buttons •Low Frequency (LF) sensor (only Model ITD-763E) Used with CenTrak’s Low Frequency Monitors to create choke points. CenTrak’s Multi-Mode Staff Tags are easily worn by staff members that need to be located and identified. The tags can be located using existing Wi-Fi network infrastructure. Multi-Mode tags can be rapidly deployed without additional infrastructure. Battery operated Gen2IR components can be added in the future to areas that require greater performance and accuracy (such as for high acuity clinical workflow). Maintenance and management is easy. CenTrak’s ITD-763 and ITD-763E tags offer extreme battery life, are fully configurable in the field and allow for wireless upgrades and profile modifications onsite. ITD-763 & ITD-763E CenTrak Staff Tags © CenTrak 2012. All Rights Reserved. Proprietary and Confidential. 5/12 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215-860-2928 e: [email protected] www.centrak.com ITD-763 & ITD-763E Multi-Mode Staff Tag Technical Specifications Tag Dimensions Case Length 3.6 in (92 mm) Case Height 2.5 in (63 mm) Case Width 0.2 to 0.4 in (3-7 mm) Case Weight (with battery) 1.9 oz (53 g) Construction ABS & Poly Carbonate Mixture Environmental Operating Temperature (Tag) -10 C to +75 C Storage Temperature (Tag) -25 C to +75 C (for best battery life store at room temperature or below) Sealing Splash resistant Power Battery Type 1/10 D 3.6V (replaceable) Smart tag Feature Remaining battery life notifications Operation Operating Frequency (Wi-Fi) 802.11 b/g Operating Frequency (Secondary) 902-928 MHz Configurable buttons YES, 3 configurable buttons LED indicator YES Motion sensor YES Gen2IR sensor YES Low Frequency sensor 125 KHz (only Model ITD-763E) Battery Replacement YES, single screw Audible alarms YES Tag Attachment YES, designed to be worn behind standard staff ID badges ITD-763 & ITD-763E CenTrak Staff Tags ITA-766 Suspender Clip for Staff Tag This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cases undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532. L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

Date: 6/27/2012 To whom it may concern: We, the undersigned, hereby authorize Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsible to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; 5 Caufield Place Ste 102, Newtown PA 18940 i Tel 215.860.2928 i Fax 215.359.0659 i www.centrak.com • document the actions taken This authorization is valid until further written notice from the applicant. Sincerely Yours, Printed Name: Israel Amir Title: CTO Company: CenTrak, Inc. z Page 2

Date: June 27, 2012 FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the following kept as confidential for the reference IDs: FCC: ST2-DM763 The information provided is for the sole purpose of inclusion as exhibits in the Application for Certificate of the FCC & IC IDs stated above: We ask to keep confidential the following Tag (model# ITD-763) documents:  Schematics and Parts List  Block Diagram  Operational description Sincerely, Israel Amir, CTO CenTrak, Inc. 5 Caufield Place, Ste 102 Newtown, PA 18940 215.860.2928

FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 25 7.1 Front View FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 26 7.2 Back View

FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the Side of EUT Figure 2.2 FCC Label Location FCC ID: ST2-DM763 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label (Only FCC ID shown on EUT) FCC Label

FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 28 7.3 Inside View FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 29 7.4 PCB Component Side FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 30 7.5 PCB Foil Side

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of MULTI-MODE STAFF TAG MODEL: ITD-763 FCC ID: ST2-DM763 September 17, 2012 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: CENTRAK, INC. Report prepared by: Advanced Compliance Lab Report number: 0048-120904-02 Lab Code: 200101 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .................................................................................................... 1 Table of Contents ...................................................................................................... 2 Figures ....................................................................................................................... 3 1. GENERAL INFORMATION .................................................................................. 4 1.1 Verification of Compliance ......................................................................... 4 1.2 Equipment Modifications ............................................................................ 5 1.3 Product Information ................................................................................... 6 1.4 Test Methodology ...................................................................................... 6 1.5 Test Facility ............................................................................................... 6 1.6 Test Equipment .......................................................................................... 7 1.7 Statement for the Document Use ................................................................ 7 2. PRODUCT LABELING .......................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................... 9 3.1 Justification ................................................................................................ 9 3.2 Special Accessories .................................................................................... 9 3.3 Configuration of Tested System.................................................................. 9 4. SYSTEM SCHEMATICS ....................................................................................... 14 5. RADIATED EMISSION DATA ............................................................................. 15 5.1 Field Strength Calculation .......................................................................... 15 5.2 Test Methods and Conditions ..................................................................... 15 5.3 Test Data ................................................................................................... 15 6. EUT RECEIVING MODE VERIFICATION .......................................................... 24 7. PHOTOS OF TESTED EUT ................................................................................... 25 FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label ........................................................................................... 8 Figure 2.2 Location of Label on Back of the EUT.................................................... 8 Figure 3.1 Radiated Test Setup, Position 1 .............................................................. 10 Figure 3.2 Radiated Test Setup, Position 2 .............................................................. 11 Figure 3.3 Radiated Test Setup, Position 3 .............................................................. 12 Figure 3.4 Radiated Test Setup ................................................................................. 13 Figure 4.1 EUT Schematics ....................................................................................... 14 Figure 7.1 Front View ............................................................................................... 26 Figure 7.2 Back View ................................................................................................ 27 Figure 7.3 Inside View ............................................................................................... 28 Figure 7.4 PCB Component Side ............................................................................ 29 Figure 7.5 PCB Foil Side View .................................................................................. 30 FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: MULTI-MODE STAFF TAG Model: ITD-763 Applicant: CENTRAK, INC. Test Type: FCC Part 15C Sec. 15.249 CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LABORATORY Test Date: September 17, 2012 Report Number: 0048-120904-02 The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15 subpart C. This said equipment in the configuration described in the report, shows the maximum emission levels emanating from equipment are …

Text truncated - open the document above for the full version.

FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Test Setup, position 1 FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.2 Radiated Test Setup, position 2 FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 12 Figure 3.3 Radiated Test Setup, position 3 FCC ID: ST2-DM763 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 13 Figure 3.4 Radiated Test Setup
