ST2-IT744ESTAFF BADGE IT-744E

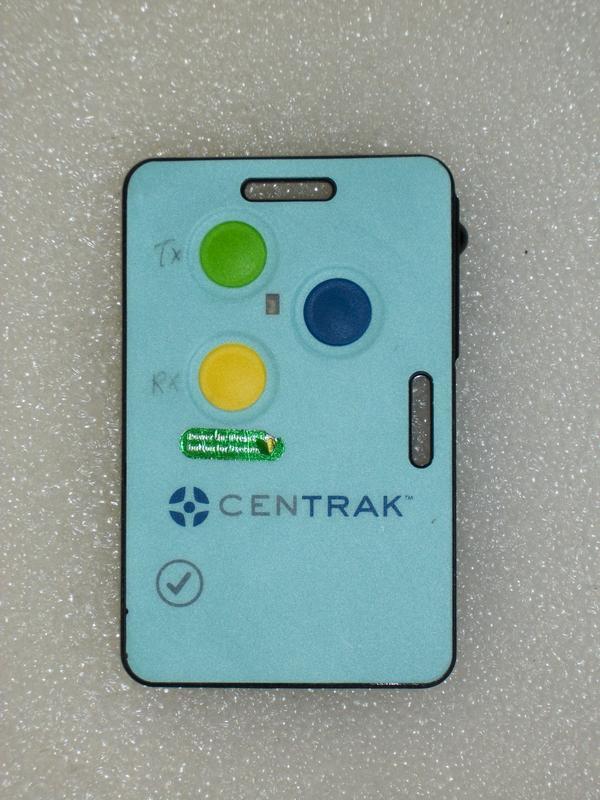

© CenTrak 2012. All Rights Reserved. Proprietary and Confidential. 8/12 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com CenTrak Staff Badge IT‐744 & IT‐744E* CenTrak Staff Badge IT‐744 •CenTrak Gen2IR™ Technology for room and bed‐level accuracy •Three customizable buttons •System controlled LED •Ultra thin (only 3.8 mm) and light weight •Audible alert functionality •Shape and size of a standard hospital issued badge •Hole mounts for portrait or landscape to wear behind a standard badge •Water resistant and easy to clean •Long battery life CenTrak Staff Badge IT‐744E •All the features and benefits of IT‐744, plus it also includes a Low Frequency (LF) sensor. •Designed to be used with CenTrak’s Low Frequency Monitors to create choke points and with CenTrak’s Hand Washing Monitors. Today’s hospitals have a critical need to locate personnel throughout their facilities. They require a reliable RTLS to optimize patient care and ensure the safety of its personnel. The CenTrak staff badge was developed to meet this need and includes several unique features that improve upon legacy staff locating technology. The CenTrak Staff Badge can be mounted onto the loop used to hold a standard hospital‐issued employee badge. The Staff Badge is designed to stay with the caregiver, thus eliminating the need for separate processes that require daily tagging of personnel. It is water resistant and can be easily cleaned. Each Staff Badge has three customizable buttons that can be assigned based upon the RTLS use case. About CenTrak Gen2IR™ Technology The CenTrak core RTLS differs from legacy systems with its combined use of a patented second‐generation infrared (Gen2IR™) and active‐RFID technology. Battery‐powered Monitors transmit a unique room number using Gen2IR which is received by any tag in that room. The tag communicates the room number and its own unique ID via RF to the CenTrak Location Server using a hospital’s existing wired or Wi‐Fi network, where it can be accessed in real‐time by hospital personnel and integrated with third party solution providers. Similar to light, Gen2IR will not pass through walls and does not suffer from traditional infrared line‐of‐sight limitations. Therefore, when a tag reads a room number, there are no errors. This is certainty‐based RTLS. Unlike estimation‐ based information, certainty based location data can be used by hospitals to make important improvements to process flow and automate decision making. Most healthcare workflow improvements can only be realized when the location data is certainty‐based. *IT‐744 and IT‐744E are for use with the CenTrak 2.0 system. Order IT‐741 for use with 1.0 system. © CenTrak 2012. All Rights Reserved. Proprietary and Confidential. 8/12 CenTrak, Inc. 5 Caufield Place, Suite 102 Newtown, PA 18940 t: 215‐860‐2928 e: [email protected] www.centrak.com CenTrak Staff Badge IT‐744 & IT‐744E* Technical Specifications Operation FCC Operating Frequency Range902‐928 MHz CE Operating Frequency Range868‐870 MHz Low Frequency Sensor (125 KHz)Optional (IT‐744E only) Group code & tag ID codes8M codes Outdoor transmission range> 300 feet Average transmission power2 uW (average) Smart tag features3 buttons, LED, low battery, audible alarms Motion SensorYES Mounting/Attachment Options Loop (portrait or landscape)Fits standard employee badge mounting Lanyard(optional) Tag Dimensions Case length3.40 in (86 mm) Case height2.125 in (55 mm) Case width0.15 in (3.8 mm) Case weight(with battery) .90 oz (25.5 g) ConstructionABS & Poly Carbonate mixture Environmental Operating Temperature0 C to +70 C Storage temperature‐25 C to +80 C SealingSplash resistant Power Battery typeLithium CR@325x2 replaceable pack Smart tag featureLow battery indication Cleaning Tag cleaning methodWipe Cleaning Method Only. See CenTrak Tag Disinfection Guide for Instructions Note: Must use CenTrak Disinfection procedure. Other methods may void product warranty. *IT‐744 and IT‐744E are for use with the CenTrak 2.0 system. Order IT‐741 for use with 1.0 system. This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cases undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532. L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Attachment clips are available ITA‐763 (top image shown with badge) ITA‐766 (bottom image above)
