STUASPIRITC6003Tire Pressure Monitor System (TX)

1 Aspirit Enterprises, Inc. TEL: +886-2-89535296 (Rep) FAX: +886-2-89535279 E-mail: [email protected] http://www.tiresmonitor.com.tw 2 Product Specification: Frequency 433.92 MHz Alarm Feature Buzzer & LED lighting flash Transmission Function Wireless Display Mode LED Display Power On/Off Front Tire: 30 Control Button Power Reset/Clear Pressure Range Rear tire: 32+/-2 psi RX: 76 mm L x 42 mm W x 19.5 mm H TX: 3 V Lithium Battery-CR1632 Dimension TX: 31mm H x 20.8mm Power Supply RX: 1.5V Alkaline Battery-2 x 4A’s Product Explanation: This security system will automatically be triggered and examine as well the tire pressure condition whenever the driver starts the engine. Even if the driver has accelerated the speed up to 150 km (93 mile), this system is still able to detect the tire pressure condition consistently. Essentially, the warning mode feature will mostly be relied upon as the Front Tire and Rear Tire pressure values have dropped down to 30+/- 2 psi and 32 +/ - 2 psi, respectively. There will be two different kinds of warning indications on the display panel. One of the warning indications is the visual warning signal – a red flash light, and the other one is an audio warning to inform the driver of the tire condition relating to the tire pressure such that it is danger to continue operating the vehicle. The Transmitter will immediately send the audio signal to the Receiver Module when the system has found out the abnormal condition. At the same time, a Red Flash Light signal on the Receiver Module panel will be on to confirm the driver regarding the tire condition. The visual warning indication will be off only when the driver has taken a further action or pressed the reset button to clear the stored memory. 3 Display Panel Aspirit Enterprises, Inc. Right Front Tire Indicator Left Front Tire Indicator Right Rear Tire Indicator Left Rear Tire Indicator POWER on indication 4 THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE UNDESRIED OPERATION. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada Technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

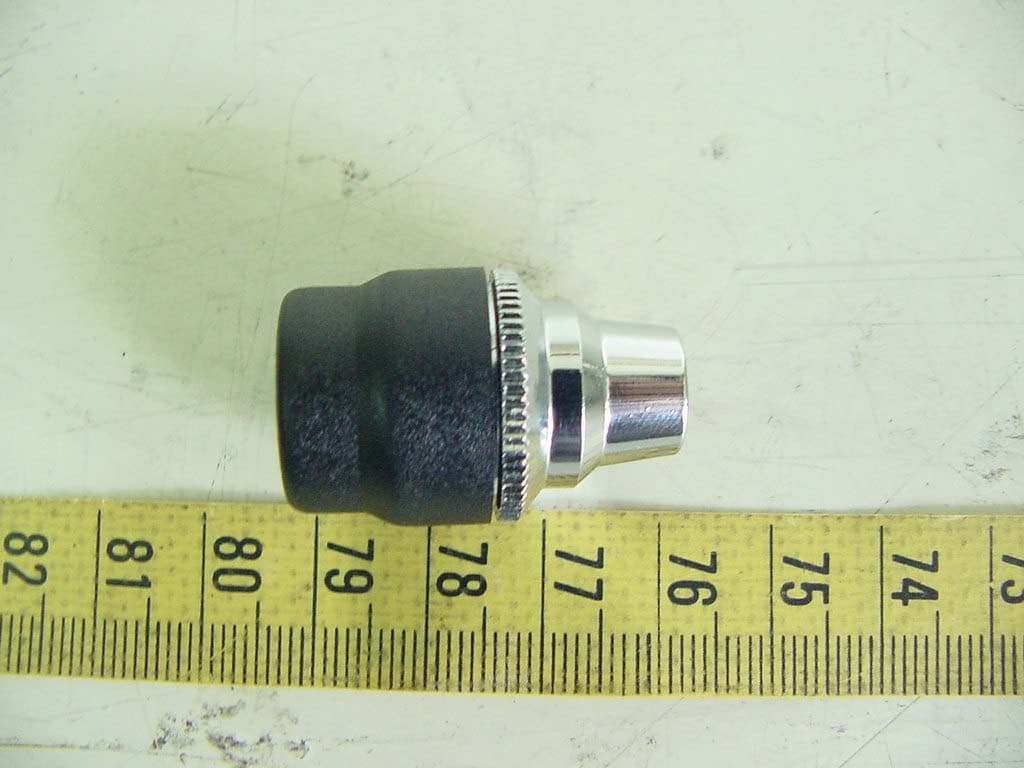

ETC Report No.:ET93R-11-106-01 Sheet 1 of 4 Sheets FCC ID.: STUASPIRITC6003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Bottom View of EUT ETC Report No.:ET93R-11-106-01 Sheet 2 of 4 Sheets FCC ID.: STUASPIRITC6003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Top View of EUT 4. Side View of EUT

ETC Report No.:ET93R-11-106-01 Sheet 3 of 4 Sheets FCC ID.: STUASPIRITC6003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of EUT ETC Report No.:ET93R-11-106-01 Sheet 4 of 4 Sheets FCC ID.: STUASPIRITC6003 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 6. Component View of PCB 7. Solder View of PCB

Product Specification: Frequency 433.92 MHz Alarm Feature Buzzer & LED lighting flash Transmission Function Wireless Display Mode LED Display Power On/Off Front Tire: 30 Control Button Power Reset/Clear Pressure Range Rear tire: 32+/-2 psi RX: 76 mm L x 42 mm W x 19.5 mm H TX: 3 V Lithium Battery-CR1632 Dimension TX: 31mm H x 20.8mm Power Supply RX: 1.5V Alkaline Battery-2 x 4A’s

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Tire Pressure Monitor System (Transmitter) MODEL : C6003 FCC ID. : STUASPIRITC6003 Working Frequency : 433.92MHz for APPLICANT : Aspirit Enterprises, Inc. ADDRESS : FL. 2, No. 3, Lane 163, Shin-Yi Rd., Banciao City, Taipei County, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http ： // www.etc.org.tw ； e-mail ： [email protected] Report Number : ET93R-11-106-01 ETC Report No.:ET93R-11-106-01 FCC ID.: STUASPIRITC6003 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Aspirit Enterprises, Inc. FL. 2, No. 3, Lane 163, Shin-Yi Rd., Banciao City, Taipei County, Taiwan, R.O.C. Manufacturer : Aspirit Enterprises, Inc. FL. 2, No. 3, Lane 163, Shin-Yi Rd., Banciao City, Taipei County, Taiwan, R.O.C. Description of EUT a) Type of EUT : Tire Pressure Monitor System (Transmitter) b) Trade Name : Cowealth c) Model No. : C6003 d) Power Supply : DC 3V Battery e) Frequency Range : 433.92 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2003) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Feb. 15, 2005 Test Engineer : (Vincent Chang) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET93R-11-106-01 FCC ID.: STUASPIRITC6003 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description.................................................................................................................. 1 1.2 Characteristics of Device: ........................................................................................................ 1 1.3 Test Methodology..................................................................................................................... 1 1.4 Test Facility.............................................................................................................................. 1 2 DEFINITION AND LIMITS.................................................................................................... 2 2.1 Definition ................................................................................................................................. 2 2.2 Restricted Bands of Operation ................................................................................................. 2 2.3 Limitation ................................................................................................................................. 3 2.4 Labeling Requirement .............................................................................................................. 4 2.5 User Information ...................................................................................................................... 4 3 SYSTEM TEST CONFIGURATION ..................................................................................... 5 3.1 Justification .............................................................................................................................. 5 3.2 Devices for Tested System ....................................................................................................... 5 4 RADIATED EMISSION MEASUREMENT.......................................................................... 6 4.1 Applicable Standard ................................................................................................................. 6 4.2 Measurement Procedure ........................................................................................................... 6 4.3 Test Data .................................................................................................................................. 8 4.4 Field Strength Calculation...................................................................................................... 10 4.5 Activate Time ......................................................................................................................... 10 4.6 Calculation of Duty Factor ..................................................................................................... 10 4.7 Radiated Test Equipment ....................................................................................................... 17 4.7 Radiated Test Equipment ....................................................................................................... 17 4.8 Measuring Instrument Setup .................................................................................................. 17 4.9 Radiated Measurement Photos ...............................................................................................18 5 BANDWIDTH OF EMISSION.............................................................................................. 19 5.1 Applicable Standard Plot Graphic of Bandwidth ................................................................... 19 5.2 Bandwidth Test Equipment .................................................................................................... 19 5.3 Plot Graphic of Bandwidth..................................................................................................... 19 6 CONDUCTED EMISSION MEASUREMENT ................................................................... 21 6.1 Description ............................................................................................................................. 21 …
