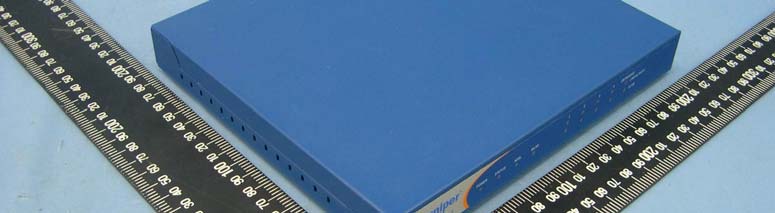

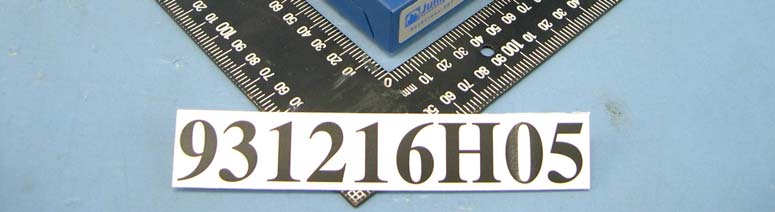

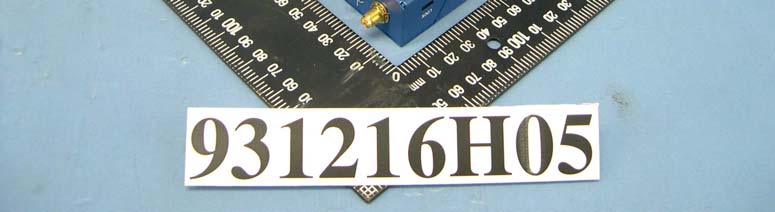

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna : 120300009100J Page 2 Antenna : 120300009300J Page 3 Antenna : FWM094505006J Page 4

(Fig. 1) FCC ID: SU2HSCW LABEL LOCATION Label

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Antenna : 120300009100J Page 11 Antenna : 120300009300J Page 12 Antenna : FWM094505006J Page 13 Adapter : FAIRWAY Page 14 Page 15 Page 16 Adapter : PHIHONG Page 17 Page 18

FCC ID: SU2HSCW Report No. RF940216H04 Operational Description This device is a NetScreen-Hardware Security Client Wireless, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (NetScreen-Hardware Security Client Wireless) is powered by power adapter. The antenna type used in this product are Dipole Antenna and Directional Antenna with RPSMA connector. The other instruction, please have a look at the users manual.

FCC ID: SU2HSCW Report No.: SA931216H05A Reference No.:940216H04 1 RF EXPOSURE REPORT REPORT NO.: SA931216H05A MODEL NO.: NS-HSC-WIRELESS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Juniper Networks ADDRESS: 1194 North Mathilda Avenue, Sunnyvale, California 94089 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: SU2HSCW Report No.: SA931216H05A Reference No.:940216H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: SU2HSCW Report No.: SA931216H05A Reference No.:940216H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: SU2HSCW Report No.: SA931216H05A Reference No.:940216H04 4 6. Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain of the antenna is 2.0dBi. Antenna 2: The maximum Gain of the antenna is 5.0dBi (With cable loss 3dB). Antenna 3: The maximum Gain of the antenna is 6.0dBi (With cable loss 4dB). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412142.56075940.0449499411.0 62437129.71792710.0409005481.0 112462128.23305830.0404323641.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412152.40527540.0480539541.0 62437159.22087270.0502029371.0 112462122.1799660.0385238011.0

FCC ID: SU2HSCW Report No.: RF931216H05A1Report Format Version 2.0.1 Reference No.: 940216H04 FCC TEST REPORT REPORT NO.:RF931216H05A MODEL NO.:NS-HSC-WIRELESS RECEIVED:Dec. 16, 2004 TESTED:Dec. 23, 2004 to Jan. 05, 2005 ISSUED: Feb. 25, 2005 APPLICANT:Juniper Networks ADDRESS:1194 North Mathilda Avenue, Sunnyvale, California 94089 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 85 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: SU2HSCW Report No.: RF931216H05A2Report Format Version 2.0.1 Reference No.: 940216H04 Table of Contents 1CERTIFICATION ........................................................................................... 5 2SUMMARY OF TEST RESULTS................................................................... 6 3GENERAL INFORMATION ........................................................................... 7 3.1GENERAL DESCRIPTION OF EUT.............................................................. 7 3.2DESCRIPTION OF TEST MODES................................................................ 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 9 3.4DESCRIPTION OF SUPPORT UNITS........................................................ 10 3.5CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4TEST TYPES AND RESULTS......................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................11 4.1.2TEST INSTRUMENTS .................................................................................11 4.1.3TEST PROCEDURES................................................................................. 12 4.1.4TEST SETUP .............................................................................................. 12 4.1.5EUT OPERATING CONDITIONS................................................................ 13 4.1.6TEST RESULTS (WITH ADAPTER 1)......................................................... 14 4.1.7TEST RESULTS (WITH ADAPTER 2)......................................................... 16 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS (ANTENNA 1 – ADAPTER 1) ........................................... 22 4.2.7TEST RESULTS (ANTENNA 2 – ADAPTER 1) ........................................... 23 4.2.8TEST RESULTS (ANTENNA 3 – ADAPTER 1) ........................................... 24 4.2.9TEST RESULTS (ANTENNA 1 – ADAPTER 2) ........................................... 25 4.2.10 TEST RESULTS (ANTENNA 2 – ADAPTER 2) ........................................... 26 4.2.11 TEST RESULTS (ANTENNA 3 – ADAPTER 2) ........................................... 27 4.2.12 TEST RESULTS (ANTENNA 1 – DSSS)..................................................... 28 4.2.13 TEST RESULTS (ANTENNA 2 – DSSS)..................................................... 31 4.2.14 TEST RESULTS (ANTENNA 3 – DSSS)..................................................... 34 4.2.15 TEST RESULTS (ANTENNA 1 –OFDM) ..................................................... 37 4.2.16 TEST RESULTS (ANTENNA 2 –OFDM) ..................................................... 40 4.2.17 TEST RESULTS (ANTENNA 3 –OFDM) ..................................................... 43 FCC ID: SU2HSCW Report No.: RF931216H05A3Report Format Version 2.0.1 Reference No.: 940216H04 4.36DB BANDWIDTH MEASUREMENT.......................................................... 46 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 46 4.3.2TEST INSTRUMENTS ................................................................................ 46 4.3.3TEST PROCEDURE ................................................................................... 47 4.3.4TEST SETUP .............................................................................................. 47 4.3.5EUT OPERATING CONDITIONS................................................................ 47 4.3.6TEST RESULTS – DSSS ............................................................................ 48 4.3.7TEST RESULTS – OFDM ........................................................................... 51 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 54 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 54 4.4.2TEST INSTRUMENTS ................................................................................ 54 4.4.3TEST PROCEDURES................................................................................. 55 4.4.4TEST SETUP .............................................................................................. 55 4.4.5EUT OPERATING CONDITIONS................................................................ 55 4.4.6TEST RESULTS - DSSS............................................................................. 5…

Text truncated - open the document above for the full version.

FCC ID: SU2HSCW Report No.: RF931216H05A58Report Format Version 2.0.1 Reference No.: 940216H04 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: SU2HSCW Report No.: RF931216H05A59Report Format Version 2.0.1 Reference No.: 940216H04 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUT SPECTRUM ANALYZER FCC ID: SU2HSCW Report No.: RF931216H05A60Report Format Version 2.0.1 Reference No.: 940216H04 4.5.6 TEST RESULTS – DSSS EUTNetScreen-Hardware Security Client Wireless MODEL NS-HSC-WIRELESS ENVIRONMENTAL CONDITIONS 26 deg. C, 65%RH, 977 hPa INPUT POWER (SYSTEM) 120Vac, 60 HzTESTED BYSky Liao Antenna Gain 2.0 dBi CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-2.428PASS 62437-2.878PASS 112462-2.298PASS FCC ID: SU2HSCW Report No.: RF931216H05A61Report Format Version 2.0.1 Reference No.: 940216H04 CH1 CH6 FCC ID: SU2HSCW Report No.: RF931216H05A62Report Format Version 2.0.1 Reference No.: 940216H04 CH11 FCC ID: SU2HSCW Report No.: RF931216H05A63Report Format Version 2.0.1 Reference No.: 940216H04 4.5.7 TEST RESULTS – OFDM EUTNetScreen-Hardware Security Client Wireless MODEL NS-HSC-WIRELESS ENVIRONMENTAL CONDITIONS 26 deg. C, 65%RH, 977 hPa INPUT POWER (SYSTEM) 120Vac, 60 HzTESTED BYSky Liao Antenna Gain 2.0 dBi CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-7.238PASS 62437-7.048PASS 112462-9.448PASS FCC ID: SU2HSCW Report No.: RF931216H05A64Report Format Version 2.0.1 Reference No.: 940216H04 CH1 CH6 FCC ID: SU2HSCW Report No.: RF931216H05A65Report Format Version 2.0.1 Reference No.: 940216H04 CH11 FCC ID: SU2HSCW Report No.: RF931216H05A66Report Format Version 2.0.1 Reference No.: 940216H04 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 1MHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set RBW spectrum analyzer to 1 MHz and set VBW spectrum analyzer to 10 Hz with suitable frequency span including 1 MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: SU2HSCW Report No.: RF931216H05A67Report Format Version 2.0.1 Reference No.: 940216H04 4.6.5 TEST RESULTS (ANTENNA 1 – DSSS) The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (1): The band edge emission plot on the following first page shows 55.85dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 107.20dBuV/m, so the maximum field strength in restrict band is 107.20-55.85=51.35dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 55.91dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 106.00dBuV/m, so the maximum field strength in restrict band is 106.00-55.91=50.09dBuV/m which is under 54 dBuV/m limit. FCC ID: SU2HSCW Report No.: RF931216H05A68Report Format Version 2.0.1 Reference No.: 940216H04 FCC ID: SU2HSCW Report No.: RF931216H05A69Report Format Version 2.0.1 Reference No.: 940216H04 4.6.6 TEST RESULTS (ANTENNA 2 – DSSS) The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (1): The band edge emission plot on the following first page shows 57.84dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 107.0dBuV/m, so the maximum field strength in restrict band is 107.0-57.84=49.16dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 56.47dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier stre…

Text truncated - open the document above for the full version.

Report No. 940216H04 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 940216H04 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 940216H04 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 940216H04 4 Ch1 Report No. 940216H04 5 Ch11 Report No. 940216H04 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 940216H04 7 Ch1 Report No. 940216H04 8 Ch11

FCC ID: SU2HSCW Report No.: RF931216H05A80Report Format Version 2.0.1 Reference No.: 940216H04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (With Adapter 1) FCC ID: SU2HSCW Report No.: RF931216H05A81Report Format Version 2.0.1 Reference No.: 940216H04 CONDUCTED EMISSION TEST (With Adapter 2) FCC ID: SU2HSCW Report No.: RF931216H05A82Report Format Version 2.0.1 Reference No.: 940216H04 RADIATED EMISSION TEST (With Antenna 1) FCC ID: SU2HSCW Report No.: RF931216H05A83Report Format Version 2.0.1 Reference No.: 940216H04 RADIATED EMISSION TEST (With Antenna 2) FCC ID: SU2HSCW Report No.: RF931216H05A84Report Format Version 2.0.1 Reference No.: 940216H04 RADIATED EMISSION TEST (With Antenna 3)
