SUIC4LINE-ETHCrosspower (Ethernet-to-Powerline)

C4Line CrossPower C4L5200-ETH Ethernet-to-Powerline Bridge Manual ► COPYRIGHT & TRADEMARKS Copyright© 2004 C4Line, All Right Reserved. CrossPower is a trademark of C4Line. Intellon, PowerPacket, and No New Wires are registered trademarks of Intellon Corporation. HomePlug is a registered trademark of the HomePlug Powerline Alliance. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks and brand names are the property of their respective proprietors. ► LIMITED WARRANTY C4Line guarantees that every CrossPower C4L5200-ETH Bridge and CrossPower C4L5200-USB Adapter will be free from physical defects in material and workmanship for one year from the date of purchase, when used within the limits set forth in the Specification section of this User Guide. If the product proves defective during this warranty period, call C4Line Technical Support in order to obtain a Return Process Information. BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCTS PACKAGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, please include a copy of your original proof of purchase. All customers located outside of the United State of America shall be held responsible for shipping and handling charges. IN NO EVENT SHALL C4LINE’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT SPECIAL, INCIDENTIAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. C4LINE DOES NOT OFFER REFUNDS FOR ANY PRODUCT. C4Line makes no warranty or representation, expressed, implied, or statutory, with respect to its product or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. C4Line reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquires to; C4Line(USA) 19758 Arbor Ridge Dr Walnut, CA 91789 USA ► FCC STATEMENT The CrossPower C4L5200-ETH Bridge have been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures; • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver’s • Consult a dealer or an experienced radio/TV technician for assistance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1 Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. [ Table of Contents ] 1. Introduction 1.1 Overview 1.2 Package contents 1.3 System requirements 1.4 Applications 1.5 Usage 2. Installation Guide Step 1 > Plan the Installation of Your Powerline Network Step 2 > Installing C4L5200-ETH Setup Utility Software Step 3 > Using C4L5200 Configuration Utility Software 3. Specifications Appendix A : Troubleshooting Guide Appendix B : Bridges and Nodes 2 1. Introduction 1.1 Overview The CrossPower C4L5200-ETH is a plug-and-play Ethernet Bridge to network your computers through the existing 110/220 V electric power lines and share Broadband Internet connections, printers, transfer files, play games, and more. After successful installation of C4L5200-ETH Setup Utility Software, the powerline network behaves like a LAN for computers. This unit offers up to 14Mbps network speed, and is requires only 10/100Base-T network Interface adapter which is installed on the computer. By offering 56-bit DES encryption, it is also much more secure than other home networking technologies such as wireless Ethernet. This manual is intended to provide basic information to help you understand how to successfully install C4L5200-ETH to meet your networking needs. With this guide, you should be known to • Plan the configuration of C4L5200-ETH • Install and configure C4L5200-ETH • Test C4L5200-ETH performance Using standard Windows applications, the user can conduct high-speed audio and video streaming demonstrations over the powerline between 2 or more systems equipped with C4L5200- ETH devices. Figure details the different use configurations of the C4L5200-ETH system. 3 1.2 Package Contents Your package includes the following ; CrossPower C4L5200-ETH Quick Start Guide CAT5 Cable CD-ROM(Containing Manual, Setup and Configuration Utilities Software) System Requirements • Computer with an available ETH interface • At least one other powerline-enabled device (HomePlug 1.0 Compliant) • Windows 98SE, ME, 2000 or XP • Additional router may be required to connect multiple users 1.3 Applications • Shared broadband internet access • Audio and video streaming and transfer • Expanding the coverage of wireless LANs • Voice Over IP calls • PC files and application sharing • Printer and peripheral sharing 4 • Network and online gaming 1.4 Usage The C4L5200-ETH is to be wall mounted as shown. The descrip…

Text truncated - open the document above for the full version.

REVISIONS REV DESCRIPTION CHECKED DATE CONF MGMT DATE 1 1.Block Diagram of C4L5200-ETH A block level architecture of the C4L5200-ETH Ethernet-to-Powerline Bridge is shown in Figure 1-1. Figure 1-1. Block diagram of the C4L5200-ETH Ethernet-to-Powerline Bridge ORIGINAL ISSUE APPROVAL APPROVALS DATE DRAWN: 12-03-04 C4Line 209 Mok-Dong GardenSweet, 907 Mok5-Dong, Yangchun-Gu, Seoul CHECKED: APPROVED: S.H. Kim CONF MGMT: Block Diagram of C4L5200-ETH NEXT ASSY USED ON APPLICATION UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES[mm] SIZE:A FSCM NO: DWG NO: 26002083REV 1 SCALE: NONE SHEET: 1 OF 1

1 Helen Zhao Subject:FW: C4Line, FCC ID: SUIC4LINE-ETH, Assessment NO.: AN05T4649, Notice#1 TEST Photographs_ETH_050322.pd... TEST Photographs_USB_050322.pd... From: Jay Kim Sent: Tuesday, March 22, 2005 4:21 AM Subject: Re: C4Line, FCC ID: SUIC4LINE-ETH, Assessment NO.: AN05T4649, Notice#1 Question #1: The test report shows the limit (QP) for 0.535-1.705MHz is 60 dBuV, please advise the frequency range this carrier current system is operating on as a unintentional radiator. This Unit use carrier current system between 4 MHz ~ 25 MHz so, we apply to the FCC 15.107 (C) Question #2: The Test setup does not show the back view of the setup. Please do provide the additional photos for both radiated emission and powerline conducted emission. we took pictures which you request an additional one. The additional photos is attached in this mail. please check for the files Question #3: This is for your information only. Verification is required to satisfy FCC15.113 requirement. We will not review the verification report, please just keep the verification report for record. Thanks, we already know it Best regards Jeong-Min KIM

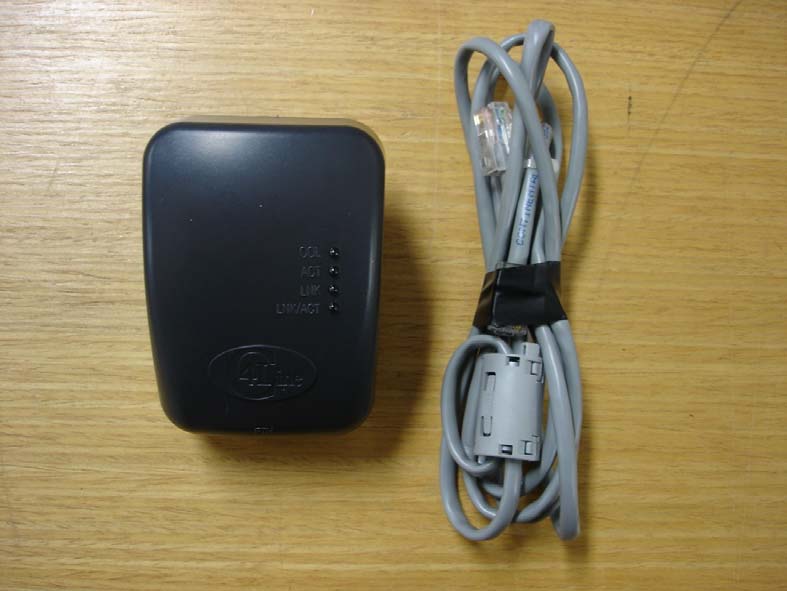

Photographs (outside) <Outside – Front> <Outside – Rear>

REVISIONS REV DESCRIPTION CHECKED DATE CONF MGMT DATE 1 Label of C4L5200-ETH Back side of C4L5200-ETH ORIGINAL ISSUE APPROVAL APPROVALS DATE DRAWN: 12-03-04 C4Line 209 Mok-Dong GardenSweet, 907 Mok5-Dong, Yangchun-Gu, Seoul CHECKED: APPROVED: S.H. Kim CONF MGMT: Label of C4L5200-ETH NEXT ASSY USED ON APPLICATION UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES[mm] SIZE:A FSCM NO: DWG NO: 50002029REV 1 SCALE: NONE SHEET: 1 OF 1

Photographs (Inside) <Inside – Front> <Inside – Rear>

KTL Korea Testing Laboratory Page 1 of 13 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Bum-Jong Kim, Engineer Won-Seo Cho , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 05-341-002-01 Name and address of the applicant C4Line 209 Mok-Dong GardenSweet, 907 Mok5-Dong, Yangchun-Gu, Seoul, Korea Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : January 4, 2005 Test item(s) ; Class B Computing Device Peripheral (In-house BPL) Model/type ref. ; C4L5200-ETH Manufacturer ; C4Line Additional information ; -Required Authorization : Certification -FCC ID. : SUIC4LINE-ETH -Note : Test report(Verification) of In-house BPL portion of this unit is issued on Ref. Report No. 05-341-002-02 Test date : March 14, 2005 Issue date : March 16 , 2005 Ref. Report No. 05 - 341 – 002-01 Page 2 of 13 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Applicant’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement II . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21and 15.105) 3. Special Accessories (Section 15.27) III . CONDUCTED EMISSION MEASUREMENT (Section 15.107) 6 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data IV . RADIATED EMISSION MEASUREMENT (Section 15.109) 10 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data V . TEST EQUIPMENTS USED FOR MEASUREMENT 13 Ref. Report No. 05 - 341 – 002-01 Page 3 of 13 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 I. GENERAL INFORMATION 1. Applicant’s Name and : C4Line Mailing Address 209 Mok-Dong GardenSweet, 907 Mok5-Dong, Yangchun-Gu, Seoul, Korea 2. Manufacturer's Name and : C4Line. Mailing Address 209 Mok-Dong GardenSweet, 907 Mok5-Dong Yangchun-Gu, Seoul, Korea 3. Equipment Descriptions 3.1 Test Item : Carrier Current System 3.2 Crystal used : 25 MHz 3.3 I/O port : Ethernet port 3.4 Power Supply : AC 110V 3.5 Model name : C4L5200-ETH 4. Devices of Test System Device Model name Serial Number Manufacturer Personal Computer DPEP P500 7951/CJN20009 Compaq Monitor DP15L/S DP15HICN102768 Compaq Mouse M-S34 166861-001 Compaq Keyboard PR235BTWKO B13BBOT39I7045 Compaq Printer 2225C+ 3145S02416 Hewlett Packard USB-To-Power line C4L5200-ETH - C4Line 5. Rules and Regulations : FCC Part 15, Subpart B 6. Measuring Procedure : ANSI C63.4-2003 7. Date of Measurement 7.1 Conducted Emission : March 14, 2005 7.2 Radiated Emission : March 14, 2005 Ref. Report No. 05 - 341 – 002-01 Page 4 of 13 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 II . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s guide manual 1.2 How Applied : Printed 2. Information to User (Section 15.21 and 15.105) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Ref. Report No. 05 - 341 – 002-01 Page 5 of 13 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 05 - 341 – 002-01 Page 6 of 13 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 III . CONDUCTED EMISSION MEASUREMENT (Section 15.107) 1. Test Procedure Conducted emission measure…

Text truncated - open the document above for the full version.

TEST Photographs < Conducted emission – Front > < Conducted emission - Rear > < Radiated emission - Front > < Radiated emission – Rear >
