27MHz R/C Battle Tank Block Diagram ANT Battery Encode Amplifier IC1 Q2 27.145MHz Oscillator XT1, Q1

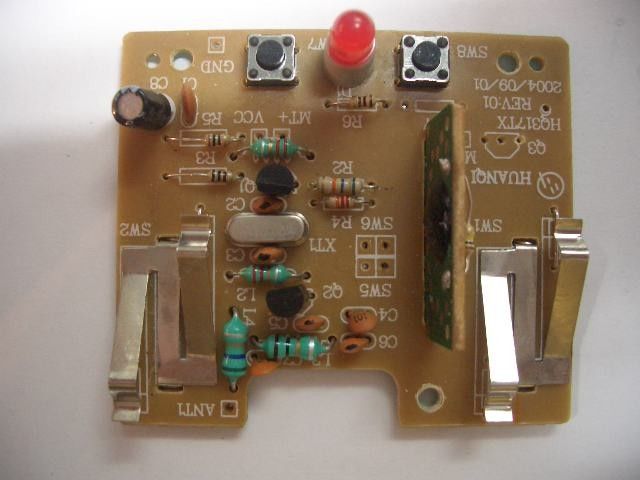

Operation Description R/C Battle Tank The R/C Battle Tank is powered by 3V battery. There are two-control stick on the EUT. When the forward or backward stick pushed once it will transmit a radio signal for receiver go forward or backward. When the turn left or turn right stick pushed once, it will transmit a radio signal for receiver go left or right Refer to the transmitter circuit design, the circuit description is listed as below: IC1 and associate circuit act as encoder. XT1, Q1 and associate circuit act as oscillator. Q2 and associate circuit act as amplifier.
TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF000172-001 Date : 2005 January 06 Applicant No. : LE203382(7) Applicant : Apple Toys Development Co Ltd Rm 1709, 17/F, Rise Comm. Bldg, 5-11 Granville Circuit, TST, KLN, HK Sample Description : One(1) submitted sample stated to be R/C Battle Tank of Model No. TX003 Rating : 2 x 1.5V βAAβ size battery No. of sample(s) : One (1) piece *** Date Received : 2004 December 07 Test Period : 2004 December 07 β 2005 December 28 Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 β April 2004 ANSI C63.4 β 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : SUJ0001-1000 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF000172-001 Date : 2005 January 06 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices.................................................................................................................................... 11 Page 2 of 11 FCC ID : SUJ0001-1000 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF000172-001 Date : 2005 January 06 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Battle Tank. Operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V βAAβ size battery. There are two control stick in the front of EUT. When the forward or backward stick pressed once, it will transmit a radio frequency for receiver go forward or backward. When the turn left or turn right stick pressed once, it will transmit a radio frequency for receiver go left or right. The brief circuit description is listed as follows : - IC1 and associated circuit act as encoder - XT1, Q1 and associated circuit act as oscillator - Q2 and associated circuit act as amplifier 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : SUJ0001-1000 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF000172-001 Date : 2005 January 06 1.3 Location of the test site Radiated emissions measurements are investigated anβ¦
Text truncated - open the document above for the full version.
CMA Testing and Certification Laboratories WF-EL-EMC-15 P. of Edition 2 2004 Dec 01 Application no. ___LE203382(7)___ Job no. ___J00013607_____ Bandwidth Plot Bandwidth 1
CMA Testing and Certification Laboratories WF-EL-EMC-15 P. of Edition 2 2004 Dec 01 Application no. ___LE203382(7)___ Job no. ___J00013607_____ Duty Cycle Duty Cycle 1 Duty Cycle 2 CMA Testing and Certification Laboratories WF-EL-EMC-15 P. of Edition 2 2004 Dec 01 Application no. ___LE203382(7)___ Job no. ___J00013607_____ Duty Cycle 3 Duty Cycle 4
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 27.145 MHz - 27.145 MHz | - |

R/C CAR
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
R/C CAR
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
