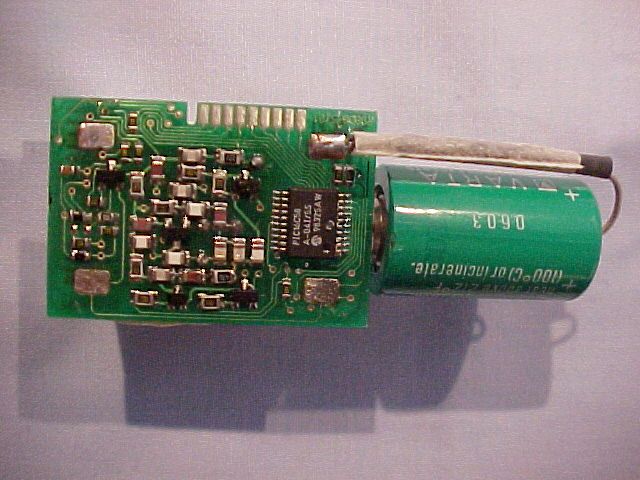

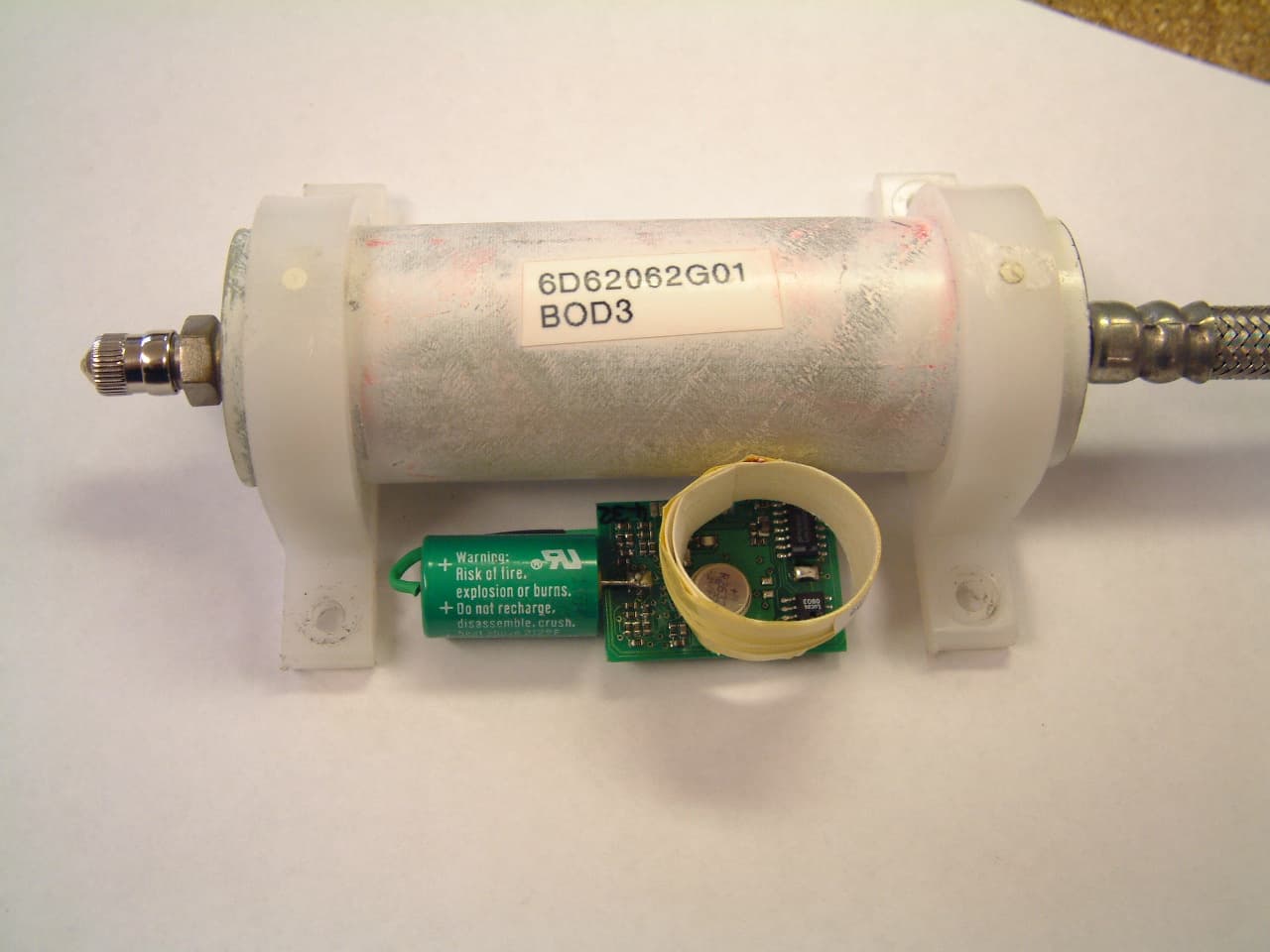

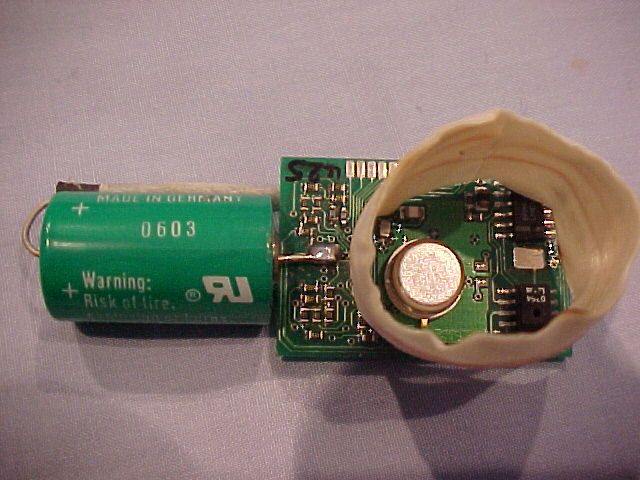

SUYTMS10Tyre Pressure Gauge

Issue5 Tyre Pressure Monitoring System Installation User Guide Specification for TMS10 and TMS11 A M Bromley Limited West Road House 26a West Road Buxton Derbyshire SK17 6HF UK T MS ® is a registered trademark of A M Bromley Limited www.ambromley.co.uk e: [email protected] t: +44 (0) 1298 77166 f: +44 (0) 1298 22044 ©2005, ©2004 by A M Bromley Limited. All rights reserved Page 1 Contents 1 Important Notices..........................................................................................................................................................2 2 What’s in the box..........................................................................................................................................................2 3 Introduction...................................................................................................................................................................3 4 Installation.....................................................................................................................................................................4 4a Sensor TMS10...........................................................................................................................................................4 4b Receiver TMS11.......................................................................................................................................................4 5 User Guide....................................................................................................................................................................6 5a Sensor TMS10.........................................................................................................................................................6 5b Receiver TMS11......................................................................................................................................................6 6 Troubleshooting............................................................................................................................................................7 7 Reference.........................................................................................................................................................................8 7a System Specification.................................................................................................................................................8 7b Sensor Specification..................................................................................................................................................8 7c Receiver Specification...............................................................................................................................................9 7d T MS Manager........................................................................................................................................................10 Page 2 1 Important Notices It is your responsibility to fully consider the implications of installing TMS sensors, and take adequate precautions to ensure the installation does not compromise the integrity of the wheel. In addition you must accept responsibility for carrying out inspection and testing of the sensors to ensure they remain suitable for use. TMS is not a safety device, but acts only as an aid to the user detecting pressure changes, and does not replace the need for regular tyre maintenance. Please do not remove any labels or identification marks on the products you have purchased, as these will help us to identify them if you should need to contact us or return them. We recommend that you do not do anything that would change, modify or alter the products supplied, except for the appropriate work necessary for assembly of the TMS. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 What’s in the box Sensors TMS10 AND Receiver TMS11 TMS Manager PC Software Sensor Transmitters Up to 16 per Receiver Receiver Up to 4 BNC Antenna (2m) FCC ID: SUYTMS10 Page 3 3 Introduction Features • Sensors are calibrated • All transmissions are encrypted to eliminate false readings and interference with other RF equipment. • Based on FM 433.92MHz. • A temperature compensated system. • Reliable transmit and receive strategy. Software protocol that recovers signal from noisy environments making the TMS more tolerant to interference. T MS Sensor Transmitters. The system is based on small battery powered sensors that can be mounted inside our customers enclosure for mounting to the wheel. The sensors monitor tyre pressure and temperature and transmit this data via a radio link to a receiver unit mounted inside the vehicle. The sensors transmit data even while the vehicle is stationary. Every sensor has its own unique identity (ID) code and every customer is assigned a unique code. This means that other users of T MS are unable to eavesdrop on your data. T MS Receiver is for use on large vehicles and other applications that require multiple tyre pressures to be monitored. It is possible to assign up to 16 sensor ID codes to the receiver unit, and set a low-pressure level for each assigned sensor. The unit can be connected to the vehicle network via the RS232 port. The unit also has the option of a switched output to drive an external alarm, the alarm can be software configured to activate on certain conditions. Page 4 4 Installation 4a Sensor TMS10 • Sensor Battery Maintenance and Replacement The battery life is dependant on the number of times the sensor transmits. We have designed the sens…

Text truncated - open the document above for the full version.

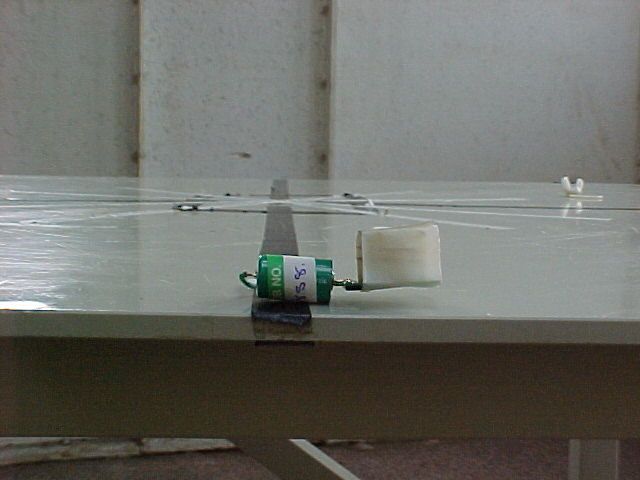

To whom ever it may concern, I confirm that A M Bromley TMS10 tyre pressure monitor RFI report number RP46858JD01A was oriented through 3 orthogonal planes in accordance with C63.4 to determine the worse case orientation. All radiated testes were then performed in the worse case orientation. Regards Nigel Davison

Registered in England No: 03306387 Registered Office: Norfolk House Hardwick Square North Buxton Derbyshire SK17 6PU Directors: A H Bromley M J Bromley J I S Bromley Tel: +44 (0) 1298 77166 Fax: +44 (0) 1298 22044 E-mail: [email protected] www.ambromley.co.uk A M Bromley Limited West Road House 26A West Road Buxton Derbyshire SK17 6HF Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Request for Confidentiality In Accordance with FCC Rule 0.459 Friday, 28 October 2005 RE: Certification Application FCC ID: SUYTMS10 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of A M Bromley Limited. Exhibit Number of files Number of pages per file Block Diagram 1 1 Operational Description (Timing Data) 1 1 Operational Description 1 1 Parts List 1 1 Schematic 1 1 The application contains technical information which A M Bromley Limited deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. When the original FCC application was made it was not understood by our company that the above information would be available in the public domain. Because of the elapsed time we are aware that the exhibits have been available to the public since 10 th January 2005. Thank you for your attention to this matter. Yours Sincerely, For and on behalf of A M Bromley Limited Mandy Bromley Director

TMS10 Product label: FCC ID: SUYTMS10 ABCD xxxxxxxx 25mm 9mm Sensor ID Code. Assigned during calibration Serial number. Sequential numbering for batch control

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: A M Bromley Ltd. TMS10 Tyre Pressure Transmitter To: FCC Part 15.231 Test Report Serial No: RFI/MPTE2/RP46858JD01A Supersedes Test Report Serial No: RFI/MPTE1/RP46858JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Tested By: Fara Razally Checked By: Tony Henriques Report Copy No: PDF001 Issue Date: 10 January 2005 Test Dates: 23 November 2004 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP46858JD01A Page 2 of 26 Issue Date: 10 January 2005 Test of: A M Bromley Ltd. TMS10 Tyre Pressure Transmitter To: FCC Part 15.231 This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP46858JD01A Page 3 of 26 Issue Date: 10 January 2005 Test of: A M Bromley Ltd. TMS10 Tyre Pressure Transmitter To: FCC Part 15.231 Table of Contents 1. Client Information .............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Methods and Procedures .................................................................................................6 4. Deviations from the Test Specification...........................................................................7 5. Operation of the EUT During Testing..............................................................................8 6. Summary of Test Results .................................................................................................9 7. Measurements, Examinations and Derived Results ....................................................10 8. Test Results.....................................................................................................................11 9. Measurement Methods ...................................................................................................18 10. Measurement Uncertainty ............................................................................................22 Appendix 1. Test Equipment Used ....................................................................................23 Appendix 2. Test Configuration Drawings........................................................................24 Test Report Serial No: RFI/MPTE2/RP46858JD01A Supersedes Test Report Serial No: RFI/MPTE1/RP46858JD01A RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP46858JD01A Page 4 of 26 Issue Date: 10 January 2005 Test of: A M Bromley Ltd. TMS10 Tyre Pressure Transmitter To: FCC Part 15.231 1. Client Information Company Name: A M Bromley Ltd. Address: West Road House 26a West Road Buxton Derbyshire SK17 6HF Contact Name: Ms M Bromley RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP46858JD01A Page 5 of 26 Issue Date: 10 January 2005 Test of: A M Bromley Ltd. TMS10 Tyre Pressure Transmitter To: FCC Part 15.231 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: Tyre Pressure Transmitter Model Name or Number: TMS10 Serial Number: S0425 1 ; S0422 2 FCC ID Number: SUYTMS10 Country of Manufacture: UK Date of Receipt: 23 November 2004 1 Sample set to operate normally i.e. transmitting approximately every 300m seconds 2 Sample set to operate continuously to facilitate testing 2.2. Description of EUT The equipment under test is a transmitter intended to operate as part of a tyre pressure monitoring system. 2.3. Modifications Incorporated in EUT During the course of testing the EUT was not modified. 2.4. Additional Information Related to Testing Power Supply Requirement: Integral 3 VDC lithium manganese battery supply Intended Operating Environment: Vehicular Equipment Category: Mobile (fitted inside vehicle tyre) Type of Unit: Transmitter Interface Ports: Not Applicable Transmit Frequency Range: 433.92 MHz, Single Frequency Channel ID Channel Number Channel Frequency (MHz) Transmit Channels Tested: N/A N/A 433.92 Occupied Bandwidth 80.9 kHz 2.5. Support Equipment No support equipment was used to exercise the EUT during testing. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE2/RP46858JD01A Page 6 of 26 Issue Date: 10 January 2005 Test of: A M Bromley Ltd. TMS10 Tyre Pressure Transmitter To: FCC Part 15.231 3. Methods and Procedures Reference: FCC Part 15 Subpart C: 2003 (Section 15.231) Title: Code of Federal Regulations, Part 15 (47CFR15) Radio Frequency Devices. Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment complied with the requirements of the specification for the purposes of certification. The methods and procedures used were as detailed in: ANSI/TIA-603-B-2002 Land Mobile Communications Equipment, Measurements and performance Standards ANSI C63.2 (1987) Title: American National Standard for Instrumentation - Electromagnetic noise and field strength. ANSI C63.4 (2003) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.5 (1988) Title: American National Standard for the Calibration of antennas used for Radiated Emission measurements in Electromagnetic Interference (EMI) control. ANSI C6…
