SVDJP-1332357Walkie Talkie

WALKIE TALKIE INSTRUCTION MANUAL 1. REMOVE THE SCREW ON THE BATTERY DOOR WITH A SCREW DRIVER.(SEE FIG.2 ) TO CHANGE THE BATTERY FOR WALKIE TALKIE: 1. REMOVE THE SCREW ON THE BATTERY DOOR WITH A SCREW DRIVER.(SEE FIG.2 ) 3. OPEN THE BATTERY DOOR AND SNAP A 9V BATTERY INTO THE BATTERY COMPARMENT ACCORDING TO CORRECT POLARITY. (SEE FIG.2 ) 4. REPLACE THE BATTERY DOOR AND THE SCREW ON POSITION. BATTERY WARNING: 1. DO NOT MIX OLD AND NEW BATTERIES. 2. DO NOT MIX ALKALINE,STANDARD (CARBON-ZINC), OR RECHARGEABLE (NICKEL-CADMIUM) BATTERIES. WALKIE TALKIE OPERATION 1. PUSH THE 'ON/OFF' SWITCH KNOB TO 'ON' POSITION. 2. MOVE THE SPEAKER CLOSE TO YOUR MOUTH.AND PRESS THE 'PUSH TO TALK ' BUTTON TO TRANSMIT YOUR VOICE. (SEE FIG.2) 3. RELEASE THE 'PUSH TO TALK' BUTTON FOR RECEIVING VOICE FROM THE SPEAKER. 4.TURN 'ON/OFF' SWITCH TO 'OFF' POSITION AFTER USED "Modifications not authorized by the manufacture may void users authority to operate this device" Note: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and cad radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and(2)this device must accept any interference received, including interference that may cause undesired operation. - Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operate this device. WARNING: 1. Batteries should be replaced by an adult. 2. Non-rechargeable batteries are not to be recharged. 3. Rechargeable batteries are to be removed from the toy before being charged. 4. Rechargeable batteries are only to be charged under adult supervision. 5. Different types of batteries or new and used batteries are not to be mixed. 6. Only batteries of the same or equivalent type as recommended are to be used. 7. Batteries are to be inserted with the correct polarity. 8. Exhausted batteries are to be removed from the toy. 9. The supply terminals are not to be short-circuited. 10. Do not dispose of the product in fire. 11. Small parts not for children under 3 years age. 12. Do not touch or modify the internal components other than replace the battery. 13. Please keep this instruction manual for future use. WARNING: CHOKING HAZARD -Small parts. Not for children under 3 years

JP PRODUCTS CO. , LTD. Address: Room 504-5 Chinachem Golden Plaza, 77 Mody Road Tsimshatsui East, Kowloon Hong Kong. Date: December 9, 2013 FCC ID: SVDJP-1332357 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, JP PRODUCTS CO. , LTD. requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Judy Lui Judy Lui (Director)

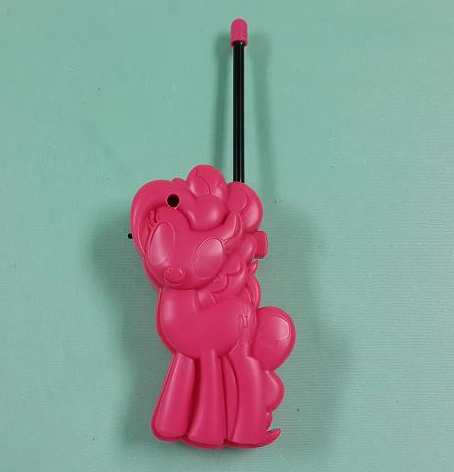

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2013-08-07 Page 1 of 18 No.: MH188809 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (JPP001): J P PRODUCTS CO., LTD. RM.504-5 CHINA CHEM GOLDEN PLAZA 77 MODY ROAD, TST, KLN, HK Manufacturer: J P PRODUCTS CO., LTD. RM.504-5 CHINA CHEM GOLDEN PLAZA 77 MODY ROAD, TST, KLN, HK Description of Sample(s): Submitted samples(s) said to be Product: WALKIE TALKIE Brand Name: N/A Model Number: SVDJP-1332357 FCC ID: SVDJP-1332357 Date Sample(s) Received: 2013-07-26 Date Tested: 2013-08-01 to 2013-08-02 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date: 2013-08-07 Page 2 of 18 No.: MH188809 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 18 Content Page 2 of 18 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 18 Description of EUT operation 1.2 Date of Order Page 3 of 18 1.3 Submitted Sample(s) Page 3 of 18 1.4 Test Duration Page 3 of 18 1.5 Country of Origin Page 3 of 18 2.0 Technical Details 2.1 Investigations Requested Page 4 of 18 2.2 Test Standards and Results Summary Page 4 of 18 3.0 Test Results 3.1 Emission Page 5-11 of 18 3.2 Bandwidth Measurement Page 12-14 of 18 Appendix A List of Measurement Equipment Page 15 of 18 Appendix B Photographs Page 16-18 of 18 STC Test Report Date: 2013-08-07 Page 3 of 18 No.: MH188809 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: WALKIE TALKIE Manufacturer: J P PRODUCTS CO., LTD. Brand Name: N/A Model Number: SVDJP-1332357 Input Voltage: 9Vd.c(“6F22” size battery x 1) 1.1.1 Description of EUT Operation The Equipment Under Test (EUT) is a sound transceiver. The transceiver operates with 1 button; the EUT continues to transmit while the button is pressed and continue to receive when the button is being released. It is audio signal transmitter, modulated by Mic. and the type is Amplitude modulation. 1.2 Date of Order 2013-07-26 1.3 Submitted Sample(s): 1 Sample 1.4 Test Duration 2013-08-01 to 2013-08-02 1.5 Country of Origin China STC Test Report Date: 2013-08-07 Page 4 of 18 No.: MH188809 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2009 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date: 2013-08-07 Page 5 of 18 No.: MH188809 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.235 Test Method: ANSI C63.4:2009 Test Date: 2013-08-01 Mode of Operation: Tx mode Test Method: The sample was placed 0.8m above the ground plane of semi-anechoic chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulatin…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
