SVN-3311Q-WPWi-Fi Villa Door Station

Villa Door Station User’s Manual V1.0.0 I Foreword General This manual introduces basic operations of the digital door station (hereinafter referred to as "VTO"). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning DANGER Indicates a high potential hazard which, if not avoided, will result in death or serious injury. WARNING Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. CAUTION Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. TIPS Provides methods to help you solve a problem or save you time. NOTE Provides additional information as the emphasis and supplement to the text. Revision History Version Revision Content Release Date V1.0.0 First release. November 2021 Privacy Protection Notice As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and license plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information. About the Manual  The manual is for reference only. Slight differences might be found between the manual and the product.  We are not liable for losses incurred due to operating the product in ways that are not in compliance with the manual.  The manual will be updated according to the latest laws and regulations of related II jurisdictions. For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.  All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.  There might be errors in the print or deviations in the description of the functions, operations and technical data. If there is any doubt or dispute, we reserve the right of final explanation.  Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.  All trademarks, registered trademarks and company names in the manual are properties of their respective owners.  Please visit our website, contact the supplier or customer service if any problems occur while using the device.  If there is any uncertainty or controversy, we reserve the right of final explanation. III Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it, and keep the manual safe for future reference. Operation Requirements ● Check whether the power supply is correct before use. ● Do not unplug the power cord on the side of the device while the adapter is powered on. ● Operate the device within the rated range of power input and output. ● Transport, use and store the device under allowed humidity and temperature conditions. ● Do not drop or splash liquid onto the device, and make sure that there is no object filled with liquid on the device to prevent liquid from flowing into it. ● Do not disassemble the device without professional instruction. Installation Requirements WARNING ● St rictly comply with the local electric safety code and standards. Make sure the ambient voltage is stable and meets the power supply requirements of the device. ● Do not connect the device to two or more kinds of power supplies, to avoid damage to the device. ● Improper use of the battery might result in a fire or explosion. ● Personnel working at heights must take all necessary measures to ensure personal safety including wearing a helmet and safety belts. ● Do not place the device in a place exposed to sunlight or near heat sources. ● Keep the device away from dampness, dust, and soot. ● Inst all the device in a well-ventilated place, and do not block its ventilation. ● Use an adapter or cabinet power supply provided by the manufacturer. ● Use the power cords that are recommended for the region and conform to the rated power specifications. ● Make sure the power supply meets the SELV (Safety Extra Low Voltage) requirements, and rated voltage conforms to the IEC60065, IEC60950-1 or IEC62368-1 standard. The requirements of the power supply are subject to the device label. Table of Contents Foreword .................................................................................................................................................... I Important Safeguards and Warnings .................................................................................................... III 1 Initializing the VTO ................................................................................................................................ 1 2 Login and Resetting Password............................................................................................................ 3 Login .............................................................................................................................................. 3 Resetting Password ...................................................................................................................... 3 3 Home Page ............................................................................................................................................. 5 4 Local Settings ..................................…

Text truncated - open the document above for the full version.

Zhejiang Dahua Vision Technology Co., Ltd. Date: 2022/01/04 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc . as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Contact Name: Yolanda chen Title of Person: Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Confirmation Letter We, Zhejiang Dahua Vision Technology Co., Ltd. The product: Wi-Fi Villa Door Station FCC ID: SVN-3311Q-WP And model No.: DHI-VTO3311Q-WP, VTO3311Q-WP Only the main model DHI-VTO3311Q-WP was tested and only the data of this model is shown in this test report. Since Their material, types of encloser, antenna location, electrical circuit design, layout, components used and internal wiring are identical, only the model name is different and the user can’t change the RF parameters or others access the software setting. (Signature) ___________ Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Contact Name: Yolanda chen Title of Person: Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

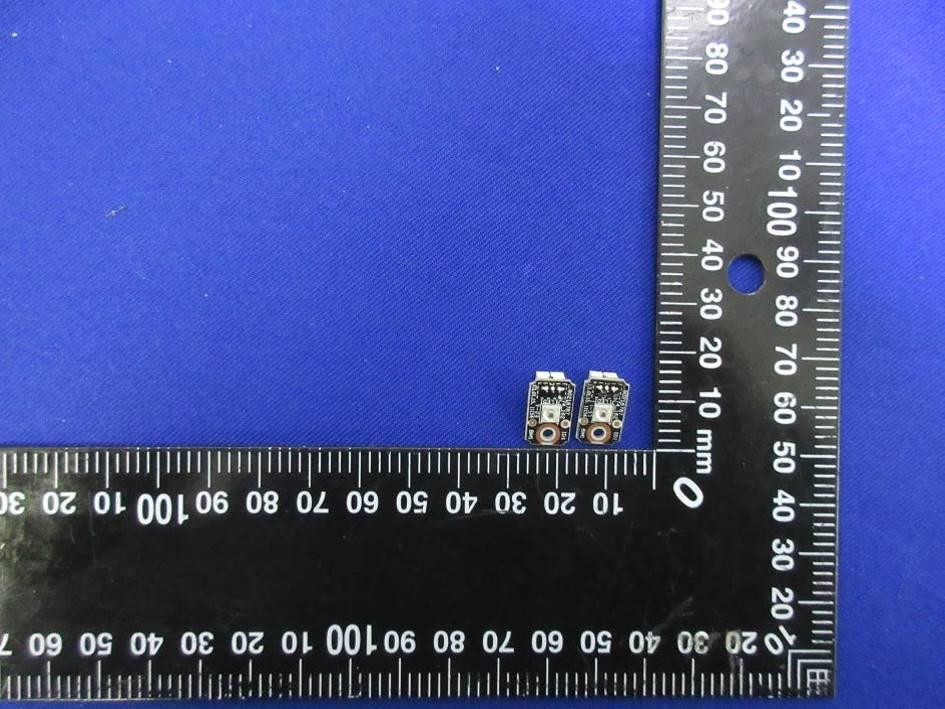

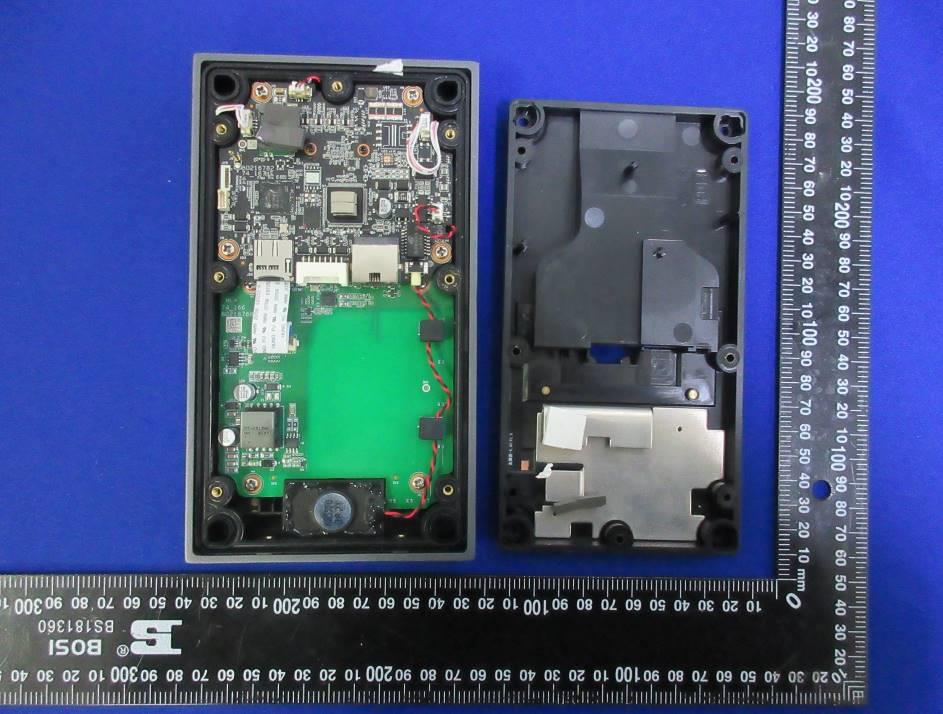

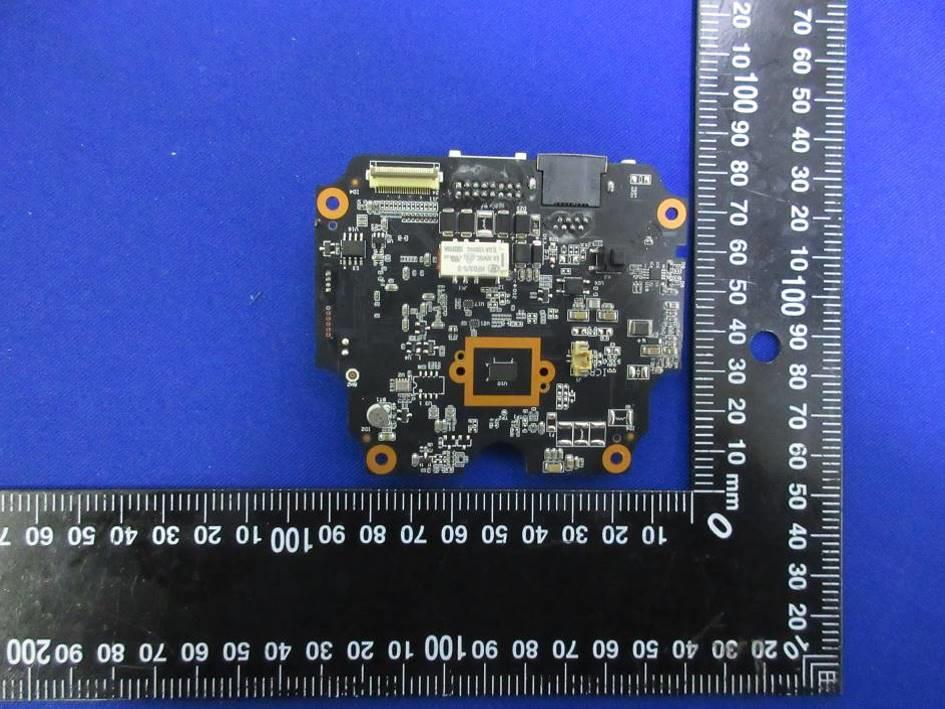

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 WIFI Module Location Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. WIFI Antenna Location NFC Module Location Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. NFC Antenna Location

Form-ULID-008536-12 V1.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For Wi-Fi Villa Door Station MODEL NUMBER: DHI-VTO3311Q-WP ADDITIONAL MODEL NUMBER: VTO3311Q-WP PROJECT NUMBER: 4790209817-3 REPORT NUMBER: 4790209817-3-16 FCC ID: SVN-3311Q-WP ISSUE DATE: Dec. 16, 2021 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790209817-3-16 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 12/16/2021 Initial Issue REPORT No.: 4790209817-3-16 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4790209817-3-16 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R. China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R. China. EUT Description Product Name: Wi-Fi Villa Door Station Model Name: DHI-VTO3311Q-WP Additional No.: VTO3311Q-WP Sample Number: 4445266 Data of Receipt Sample: Dec. 01, 2021 Test Date: Dec. 02, 2021 ~ Dec. 13, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Engineer Project Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4790209817-3-16 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056 CAB No.: CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790209817-3-16 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100) * 30 1.34-30 824/f 2.19/f (180/f2) * 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4790209817-3-16 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. CALCULATED RESULTS Radio Frequency Radiation Exposure Evaluation WIFI (Worst case) Mode Channel Output Power to Anten…

Text truncated - open the document above for the full version.

Form-ULID-008536-9 V1.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Wi-Fi Villa Door Station MODEL NUMBER: DHI-VTO3311Q-WP ADDITIONAL MODEL NUMBER: VTO3311Q-WP PROJECT NUMBER: 4790209817-3 REPORT NUMBER: 4790209817-3-15 FCC ID: SVN-3311Q-WP ISSUE DATE: Jan. 20, 2022 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790209817-3-15 Page 2 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 01/20/2022 Initial Issue REPORT No.: 4790209817-3-15 Page 3 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................14 6. MEASUREMENT METHODS ............................................................................................15 7. ANTENNA PORT TEST RESULTS ...................................................................................17 7.1. ON TIME AND DUTY CYCLE .....................................................................................17 7.2. 6 dB BANDWIDTH ......................................................................................................20 7.3. CONDUCTED OUTPUT POWER ...............................................................................27 7.4. POWER SPECTRAL DENSITY ..................................................................................29 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................36 7.6. RADIATED TEST RESULTS ......................................................................................60 7.6.1. LIMITS AND PROCEDURE .................................................................................60 7.6.2. TEST ENVIRONMENT ........................................................................................66 7.6.3. RESTRICTED BANDEDGE .................................................................................66 7.6.4. SPURIOUS EMISSIONS .....................................................................................79 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 123 9. ANTENNA REQUIREMENTS .......................................................................................... 128 REPORT No.: 4790209817-3-15 Page 4 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R. China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R. China. EUT Description Product Name: Wi-Fi Villa Door Station Model Name: DHI-VTO3311Q-WP Additional No.: VTO3311Q-WP Sample Number: 4445266 Data of Receipt Sample: Dec. 01, 2021 Test Date: Dec. 02, 2021 ~ Jan. 19, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS REPORT No.: 4790209817-3-15 Page 5 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6db DTS Bandwidth FCC 15.247 (a) (2) PASS 2 Conducted Power FCC 15.247 (b) (3) PASS 3 Power Spectral Density FCC 15.247 (e) P…

Text truncated - open the document above for the full version.

REPORT No.: 4790209817-3-15 Page 65 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. X axis, Y axis, Z axis positions: Note: For all radiated test, EUT in each of three orthogonal axis emissions had been tested, but only the worse case (X axis) data recorded in the report. REPORT No.: 4790209817-3-15 Page 66 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.6.2. TEST ENVIRONMENT Temperature 22°C Relative Humidity 56% Atmosphere Pressure 101kPa Test Voltage AC 120V 7.6.3. RESTRICTED BANDEDGE TEST RESULT TABLE Test Mode Channel Puw(dBm) Verdict 11B LCH <Limit PASS MCH <Limit PASS HCH <Limit PASS 11G LCH <Limit PASS MCH <Limit PASS HCH <Limit PASS 11N HT20 LCH <Limit PASS MCH <Limit PASS HCH <Limit PASS REPORT No.: 4790209817-3-15 Page 67 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TEST GRAPHS Test Mode Channel Polarization Verdict 11B LCH Horizontal PASS PK Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2349.8625 41.77 12.69 54.46 74.00 -19.54 Horizontal 2 2373.3404 41.63 12.97 54.60 74.00 -19.40 Horizontal 3 2390.0000 39.26 13.07 52.33 74.00 -21.67 Horizontal AV Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2349.8625 27.34 12.69 40.03 54.00 -13.97 Horizontal 2 2373.3404 27.35 12.98 40.33 54.00 -13.67 Horizontal 3 2390.0000 27.30 13.07 40.37 54.00 -13.63 Horizontal Note: 1. Peak detector: RBW: 1 MHz, VBW: 3 MHz. 2. Average detector: RBW: 1 MHz, VBW: 1/T MHz(refer to clause 7.1.). 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790209817-3-15 Page 68 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B LCH Vertical PASS PK Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2313.3329 41.25 12.32 53.57 74.00 -20.43 Vertical 2 2369.2712 41.64 12.92 54.56 74.00 -19.44 Vertical 3 2378.8161 40.77 13.05 53.82 74.00 -20.18 Vertical 4 2390.0000 39.78 13.07 52.85 74.00 -21.15 Vertical AV Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2369.2712 28.10 12.92 41.02 54.00 -12.98 Vertical Note: 1. Peak detector: RBW: 1 MHz, VBW: 3 MHz. 2. Average detector: RBW: 1 MHz, VBW: 1/T MHz(refer to clause 7.1.). 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790209817-3-15 Page 69 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B HCH Horizontal PASS PK Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2483.5000 42.08 12.97 55.05 74.00 -18.95 Horizontal 2 2503.3954 41.37 13.16 54.53 74.00 -19.47 Horizontal 3 2541.6727 41.80 13.40 55.20 74.00 -18.80 Horizontal 4 2574.2568 41.28 13.45 54.73 74.00 -19.27 Horizontal AV Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2483.5000 27.64 12.97 40.61 54.00 -13.39 Horizontal 2 2503.3954 27.50 13.16 40.66 54.00 -13.34 Horizontal 3 2541.6727 27.56 13.40 40.96 54.00 -13.04 Horizontal 4 2574.2568 27.42 13.45 40.87 54.00 -13.13 Horizontal Note: 1. Peak detector: RBW: 1 MHz, VBW: 3 MHz. 2. Average detector: RBW: 1 MHz, VBW: 1/T MHz(refer to clause 7.1.). 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790209817-3-15 Page 70 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11B HCH Vertical PASS PK Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2483.5000 39.39 12.97 52.36 74.00 -21.64 Vertical 2 2490.0063 42.32 13.00 55.32 74.00 -18.68 Vertical 3 2493.3592 42.08 13.04 55.12 74.00 -18.88 Vertical 4 2539.1974 40.90 13.42 54.32 74.00 -19.68 Vertical AV Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2490.0063 27.87 13.00 40.87 54.00 -13.13 Vertical 2 2493.3592 28.12 13.04 41.16 54.00 -12.84 Vertical 3 2539.1974 27.52 13.42 40.94 54.00 -13.06 Vertical Note: 1. Peak detector: RBW: 1 MHz, VBW: 3 MHz. 2. Average detector: RBW: 1 MHz, VBW: 1/T MHz(refer to clause 7.1.). 3. Measurement = Reading Level + Correct Factor. 4. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790209817-3-15 Page 71 of 128 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11G LCH Horizontal PASS PK Result: No. Frequency Reading Level Correct Factor Result Limit Margin Remark [MHz] [dBuV/m] [dB] [dBuV/m] [dBuV/m] [dB] 1 2354.7006 41.02 12.73 53.75 74.00 -20.25 Horizontal 2 2368.7836 40.96 12.91 53.87 74.00 -20.13 Horizontal 3 2380.2600 40.32 13.06 53.38 74.00 -20.62 Horizontal 4 2390.0000 40.65 13.07 53.72 74.00 -20.28 Horizontal AV Resul…
