SVN-ASI1212FAccess Standalone

Access Standalone User’s Manual V1.0.1 I Foreword General This manual introduces the installation and detailed operations of the Access Standalone (hereinafter referred to as "the standalone"). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning DANGER Indicates a high potential hazard which, if not avoided, will result in death or serious injury. WARNING Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. CAUTION Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. TIPS Provides methods to help you solve a problem or save you time. NOTE Provides additional information as the emphasis and supplement to the text. Revision History Version Revision Content Release Date V1.0.0 First release. March 2020 V1.0.1 Add recommended installation height. June 2020 About the Manual  The manual is for reference only. If there is inconsistency between the manual and the actual product, the actual product shall prevail.  We are not liable for any loss caused by the operations that do not comply with the manual.  The manual would be updated according to the latest laws and regulations of related regions. For detailed information, see the paper manual, CD-ROM, QR code or our official website. If there is inconsistency between paper manual and the electronic version, the electronic version shall prevail.  All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation.  There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, please refer to our final explanation. II  Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.  All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners.  Please visit our website, contact the supplier or customer service if there is any problem occurred when using the device.  If there is any uncertainty or controversy, please refer to our final explanation. III Important Safeguards and Warnings This Chapter describes the contents covering proper handling of the standalone, hazard prevention, and prevention of property damage. Read these contents carefully before using the standalone, comply with them when using, and keep it well for future reference. Operation Requirement  Do not place or install the standalone in a place exposed to sunlight or near the heat source.  Keep the standalone away from dampness, dust or soot.  Keep the standalone installed horizontally on the stable place to prevent it from falling.  Do not drop or splash liquid onto the standalone, and make sure there is no object filled with liquid on the standalone to prevent liquid from flowing into the standalone.  Install the standalone in a well-ventilated place, and do not block the ventilation of the standalone.  Operate the standalone within the rated range of power input and output.  Do not dissemble the standalone.  Transport, use and store the standalone under the allowed humidity and temperature conditions. Electrical Safety  Improper battery use might result in fire, explosion, or inflammation.  When replacing battery, make sure the same model is used.  Use the recommended power cables in the region and conform to the rated power specification.  Use the power adapter provided with the standalone; otherwise, it might result in people injury and device damage.  The power source shall conform to the requirement of the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1. Please note that the power supply requirement is subject to the device label.  Connect the device (I-type structure) to the power socket with protective earthing.  The appliance coupler is a disconnection device. When using the coupler, keep the angle for easy operation. WARNING This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause IV harmful interference to radio or television reception, which can be determined by turning the device off and on, try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the device and receiver.  Connect the device into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. V Table of Contents Foreword .................................................................................................................................................... I Important Safeguards and Warnings .................................................................................................... III 1 Overview ................................................................................................................................................. 1 Introduction ................................................................................................................................... 1 1.…

Text truncated - open the document above for the full version.

Zhejiang Dahua Vision Technology Co., Ltd Date: 12/9, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：SVN-ASI1212F To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

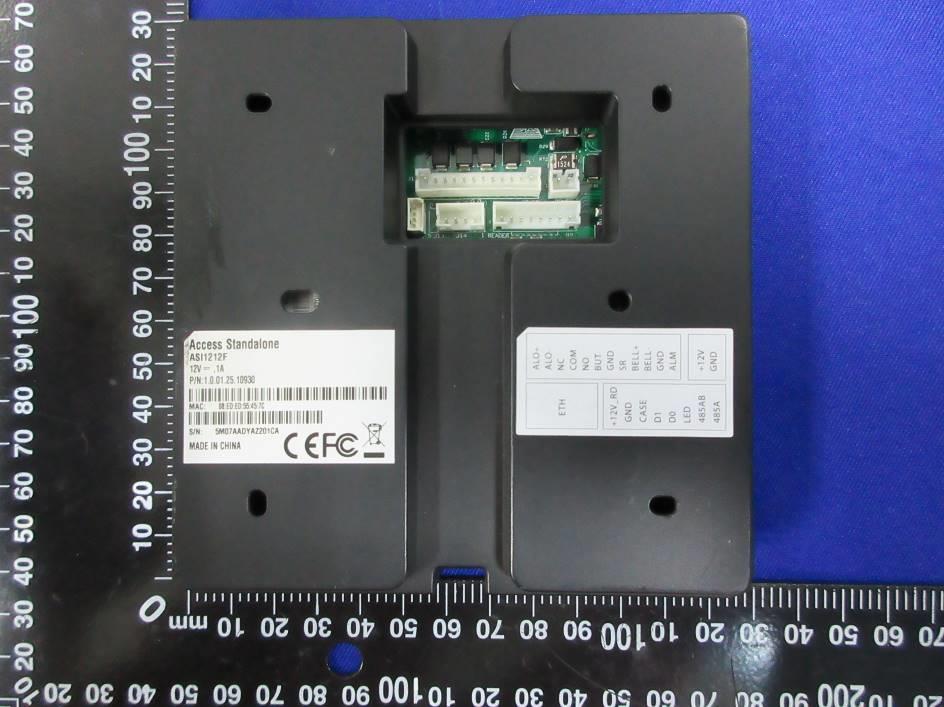

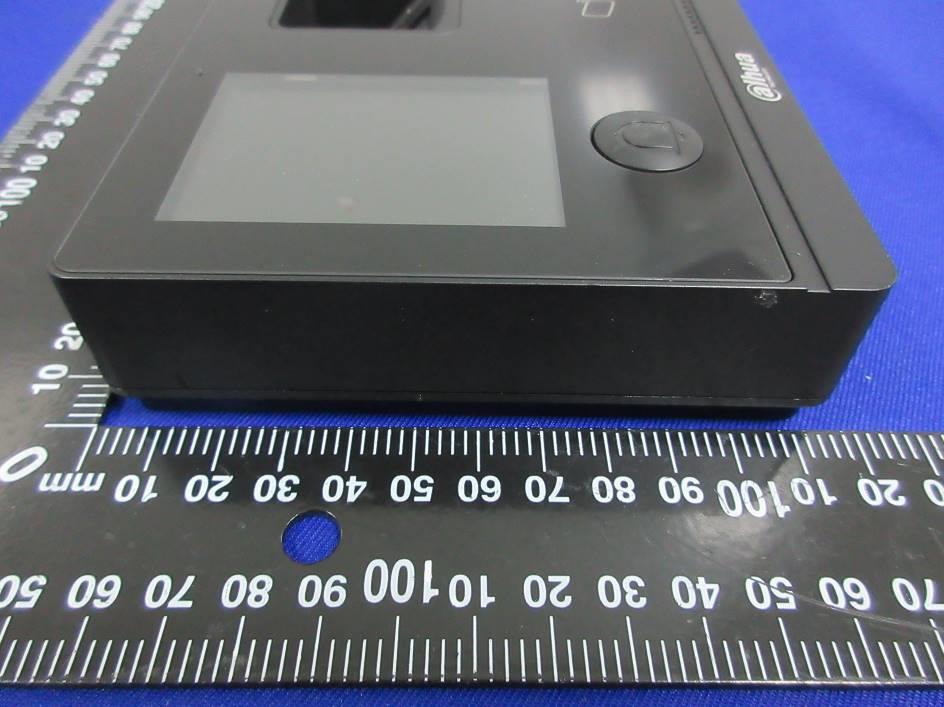

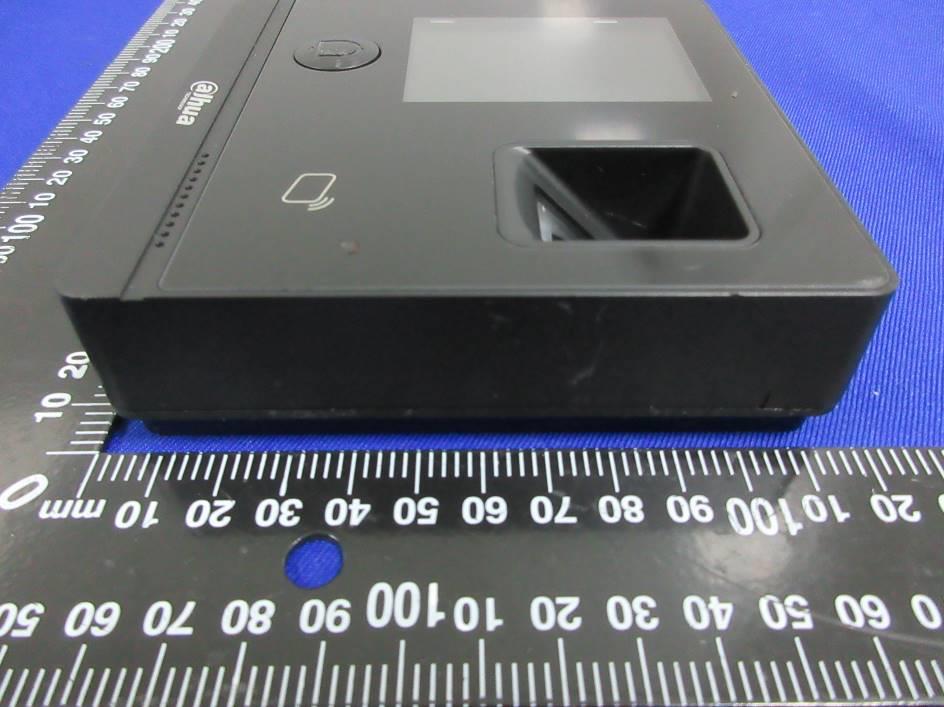

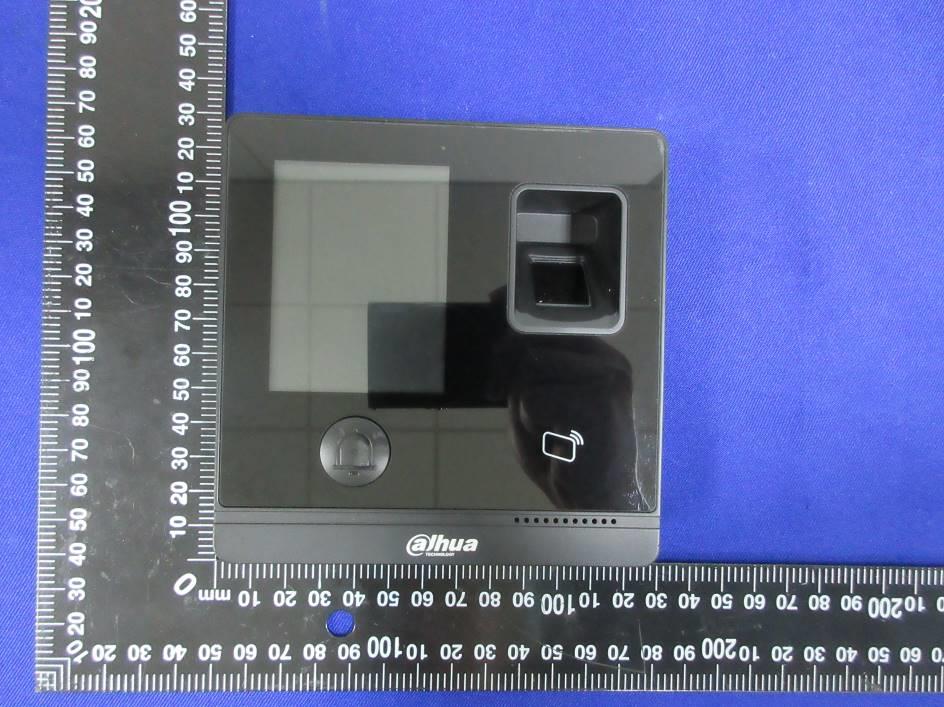

Appendix I External Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Top View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Bottom View of EUT Front View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Back View of EUT Left View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Right View of EUT

Access Standalone P/N:1.0.01.25.10930 S/N: 12V ,1A MADE IN CHINA ASI1212F MAC: AA:BB:CC:11:22:00 2M0024EPAG63295 FCC ID:SVN-ASI1212F

Appendix II Internal Photographs Page 2 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 Page 7 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-10 Internal View of EUT-11 Page 8 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-12 Internal View of EUT-13 Page 9 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-14 Internal View of EUT-15 Page 10 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-16 Antenna and RF Model location-1 Page 11 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Antenna and RF Model location-2 Antenna and RF Model location-3 Page 12 of 12 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Antenna and RF Model location-4

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Access Standalone MODEL NUMBER: ASI1212F ADDITIONAL MODEL NUMBER: DHI-ASI1212F, DH-ASI1212F, OEM-ASI1212F PROJECT NUMBER: 4789452500 REPORT NUMBER: 4789452500-2 FCC ID: SVN-ASI1212F ISSUE DATE: Jul. 10, 2020 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789452500-2 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 07/10/2020 Initial Issue REPORT No.: 4789452500-2 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789452500-2 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. EUT Description Product Name Access Standalone Model Name ASI1212F Additional No. DHI-ASI1212F, DH-ASI1212F, OEM-ASI1212F Sample Number 3002344 Data of Receipt Sample Apr. 08, 2020 Date Tested Apr. 11, 2020 ~ Jun. 26, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Engineer Project Associate Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789452500-2 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789452500-2 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4789452500-2 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. CALCULATED RESULTS Radio Frequency Radiation Exposure Evaluation WIFI …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Access Standalone MODEL NUMBER: ASI1212F ADDITIONAL MODEL NUMBER: DHI-ASI1212F, DH-ASI1212F, OEM-ASI1212F PROJECT NUMBER: 4789452500 REPORT NUMBER: 4789452500-1 FCC ID: SVN-ASI1212F ISSUE DATE: Jul. 10, 2020 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789452500-1 Page 2 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 07/10/2020 Initial Issue REPORT No.: 4789452500-1 Page 3 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................14 6. MEASUREMENT METHODS ............................................................................................15 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6 dB BANDWIDTH ......................................................................................................19 7.3. PEAK CONDUCTED OUTPUT POWER .....................................................................27 7.4. POWER SPECTRAL DENSITY ..................................................................................29 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................37 7.6. RADIATED TEST RESULTS ......................................................................................67 7.6.1. LIMITS AND PROCEDURE .................................................................................67 7.6.2. TEST ENVIRONMENT ........................................................................................73 7.6.3. RESTRICTED BANDEDGE .................................................................................73 7.6.4. SPURIOUS EMISSIONS .....................................................................................90 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 122 9. ANTENNA REQUIREMENTS .......................................................................................... 125 REPORT No.: 4789452500-1 Page 4 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. EUT Description Product Name Access Standalone Model Name ASI1212F Additional No. DHI-ASI1212F, DH-ASI1212F, OEM-ASI1212F Sample Number 3002344 Data of Receipt Sample Apr. 08, 2020 Date Tested Apr. 11, 2020 ~ Jun. 26, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS REPORT No.: 4789452500-1 Page 5 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6db DTS Bandwidth FCC 15.247 (a) (2) Complied 2 Conducted Powe…

Text truncated - open the document above for the full version.

REPORT No.: 4789452500-1 Page 56 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789452500-1 Page 57 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789452500-1 Page 58 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789452500-1 Page 59 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789452500-1 Page 60 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789452500-1 Page 61 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789452500-1 Page 62 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789452500-1 Page 63 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789452500-1 Page 64 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789452500-1 Page 65 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789452500-1 Page 66 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789452500-1 Page 67 of 125 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.6. RADIATED TEST RESULTS 7.6.1. LIMITS AND PROCEDURE LIMITS Please refer to FCC §15.205 and §15.209 Please refer to FCC KDB 558074 Radiation Disturbance Test Limit for FCC (Class B)(9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 Note: 1) At frequencies at or above 30 MHz, measurements may be performed at a distance other than what is specified provided: measurements are not made in the near field except where it can be shown that near field measurements are appropriate due to the characteristics of the device; and it can be demonstrated that the signal levels needed to be measured at the distance employed can be detected by the measurement equipment. Measurements shall not be performed at a distance greater than 30 meters unless it can be further demonstrated that measurements at a distance of 30 meters or less are impractical. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse linear-distance for field strength measurements; inverse-linear-distance-squared for power density measurements). (2) At frequencies below 30 MHz, measurements may be performed at a distance closer than that specified in the regulations; however, an attempt should be made to avoid making measurements in the near field. Pending the development of an appropriate measurement procedure for measurements performed below 30 MHz, when performing measurements at a closer distance than specified, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two distances on at least one radial to determine the proper extrapolation factor…
