SVN-DB11Doorbell

Legal and Regulatory Information Legal Considerations Video surveillance can be regulated by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes. Disclaimer Every care has been taken in the preparation of this document. Please inform your nearest Dahua office of any inaccuracies or omissions. Dahua Technology shall not be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Dahua Technology makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Dahua Technology shall not be liable or responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. This product is only to be used for its intended purpose. Intellectual Property Rights Dahua Technology retains all intellectual property rights relating to technology embodied in the product described in this document. Equipment Modifications This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals. Trademark Acknowledgments , , , are registered trademarks or trademark applications of Dahua Technology in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Regulatory Information European Directives Compliance This product complies with the applicable CE marking directives and standards:  Low Voltage (LVD) Directive 2014/35/EU.  Electromagnetic Compatibility (EMC) Directive 2014/30/EU.  Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU and its amending Directive (EU) 2015/863. A copy of the original declaration of conformity may be obtained from Dahua Technology. The most up to date copy of the signed EU Declaration of Conformity (DoC) can be downloaded from: www.dahuasecurity.com/support/notice/ CE-Electromagnetic Compatibility (EMC) This digital equipment is compliant with Class B according to EN 55032. CE-Safety This product complies with IEC/EN/UL 60950-1 or IEC/EN/UL 62368-1, Safety of Information Technology Equipment. Declaration of Conformity CE (Only for the product has RF function) Hereby, Dahua Technology declares that the radio equipment is compliant with Radio Equipment Directive (RED) 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.dahuasecurity.com/support/notice/ Questo prodotto è conforme alle direttive e agli standard di marcatura CE applicabili:  Bassa tensione (LVD) Direttiva 2014/35/UE.  Compatibilità elettromagnetica (EMC) Direttiva 2014/30UE.  Restrizione sulle sostanze pericolose (RoHS) Direttiva 2011/65/UE e Direttiva delegata (UE) 2015/863. È possibile ottenere una copia della dichiarazione originale di conformità da Dahua Technology. La copia aggiornata della Dichiarazione di conformità UE firmata può essere scaricata da: www.dahuasecurity.com/support/notice/ CE-Compatibilità elettromagnetica (EMC) Questa apparecchiatura digitale è conforme alla Classe B della certificazione EN 55032. CE-Sicurezza Questo prodotto è conforme alle disposizioni IEC/EN/UL 60950-1 o IEC/EN/UL 62368-1 sulla sicurezza delle apparecchiature informatiche. Dichiarazione di conformità CE (Solo per prodotti con trasmettitori / ricevitori RF) Con la presente, Dahua Technology dichiara che l'apparecchiatura radio è conforme alla Direttiva sulle apparecchiature radio (RED) 2014/53/UE. Il testo integrale della Dichiarazione di conformità UE è disponibile al seguente indirizzo internet: www.dahuasecurity.com/support/notice/ USA Regulatory Compliance FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC SDOC Statement can be downloaded from: https://us.dahuasecurity.com/support/notices/ RF exposure warning (Only for the product has RF communication function) This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitte…

Text truncated - open the document above for the full version.

Zhejiang Dahua Vision Technology Co., Ltd Date: 13/07, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person: Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject:Request for Confidentiality FCC ID:SVN-DB11 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Date: 2020/7/20

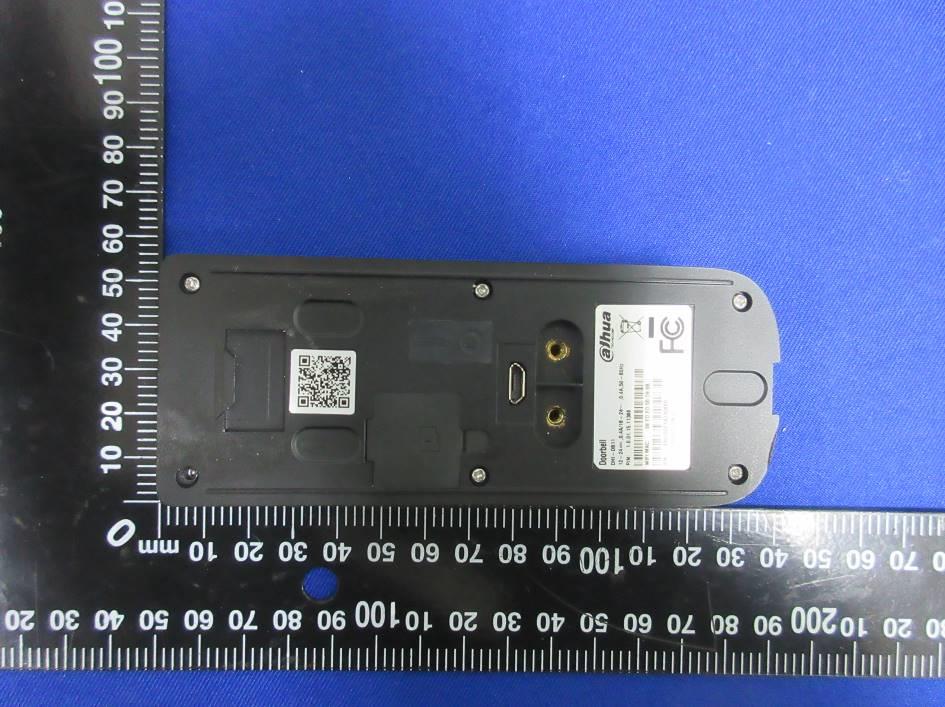

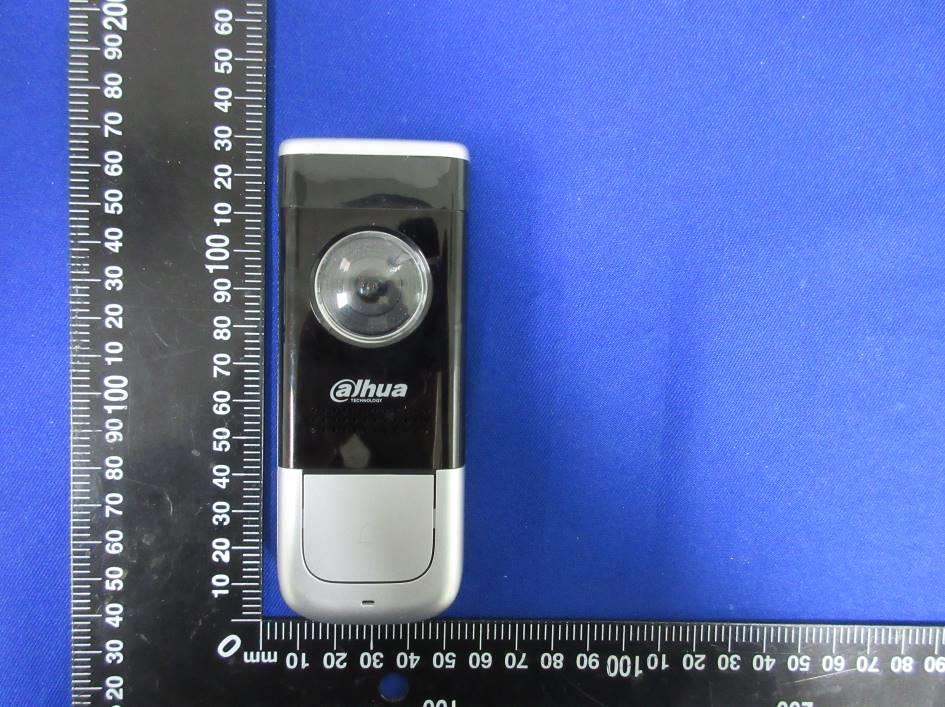

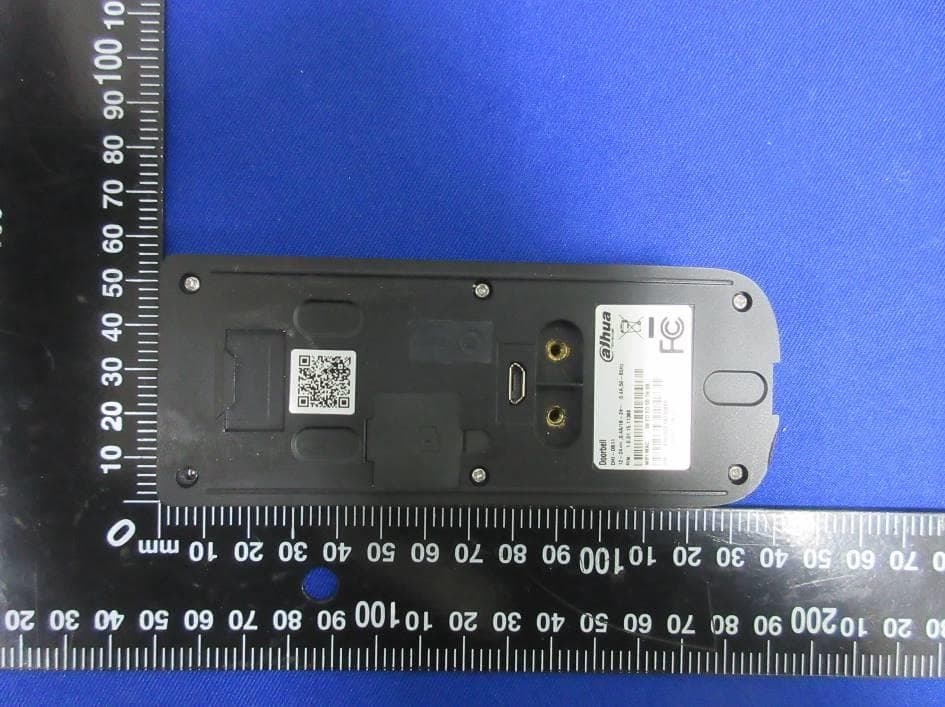

REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Appendix I External Photographs REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Top View of EUT REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Bottom View of EUT Front View of EUT REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Back View of EUT Left View of EUT REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Right View of EUT

REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Appendix II Internal Photographs REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-5 Internal View of EUT-5 REPORT NO: 4789480366-1 DATE: Jun. 29, 2020 Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Antenna RF Model location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Doorbell MODEL NUMBER: DB11 ADDITIONAL MODEL NUMBER: DH-DB11, DHI-DB11, OEM-DB11, DB11X-YZ, DH-DB11X-YZ, DHI-DB11X-YZ, OEM-DB11X-YZ (X, Y, Z can be “0-9”, “A-Z” or blank) PROJECT NUMBER: 4789480366 REPORT NUMBER: 4789480366-2 FCC ID: SVN-DB11 ISSUE DATE: Jun. 29, 2020 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789480366-2 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 03/09/2020 Initial Issue REPORT No.: 4789480366-2 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 4 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789480366-2 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. EUT Description Product Name Doorbell Model Name DB11 Additional No. DH-DB11, DHI-DB11, OEM-DB11, DB11X-YZ, DH-DB11X-YZ, DHI-DB11X-YZ, OEM-DB11X-YZ (X, Y, Z can be “0-9”, “A-Z” or blank) Sample Number 3045796 Data of Receipt Sample May. 06, 2020 Date Tested May 06, 2020 ~ May. 26, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Engineer Project Associate Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789480366-2 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789480366-2 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4789480366-2 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, wit…

Text truncated - open the document above for the full version.

REPORT No.: 4789480366-1 Page 51 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 52 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 53 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 54 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 55 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 56 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 57 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 58 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 59 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 60 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 61 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. REPORT No.: 4789480366-1 Page 62 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 63 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 64 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 65 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 66 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789480366-1 Page 67 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789480366-1 Page 68 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.6. RADIATED TEST RESULTS 7.6.1. LIMITS AND PROCEDURE LIMITS Please refer to FCC §15.205 and §15.209 Please refer to FCC KDB 558074 Radiation Disturbance Test Limit for FCC (Class B)(9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 Note: 1) At frequencies at or above 30 MHz, measurements may be performed at a distance other than what is specified provided: measurements are not made in the near field except where it can be shown that near field measurements are appropriate due to the characteristics of the device; and it can be demonstrated that the signal levels needed to be measured at the distance employed can be detected by the measurement equipment. Measurements shall not be performed at a distance greater than 30 meters unless it can be further demonstrated that measurements at a distance of 30 meters or less are impractical. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse linear-distance for field strength measurements; inverse-linear-distance-squared for power density measurements). (2) At frequencies below 30 MHz, measurements may be performed at a distance closer than that specified in the regulations; however, an attempt should be made to avoid making measurements in the near field. Pending the development of an appropriate measurement procedure for measu…

Text truncated - open the document above for the full version.

REPORT No.: 4789480366-1 Page 108 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT20 HCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2500.6876 44.24 -0.60 43.64 74.00 -30.36 peak 2 4522.6903 41.04 4.97 46.01 74.00 -27.99 peak 3 7554.9444 39.08 9.27 48.35 74.00 -25.65 peak 4 13996.3745 37.79 15.11 52.90 74.00 -21.10 peak 5 17111.1389 38.69 18.43 57.12 74.00 -16.88 peak 27.95 18.43 46.38 54.00 -7.62 average 6 17615.5769 38.13 18.71 56.84 74.00 -17.16 peak 27.96 18.71 46.67 54.00 -7.33 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. Confirm that the test have added the BRF losses during the testing. Proper operation of the transmitter prior to adding the filter to the measurement chain. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789480366-1 Page 109 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT20 HCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 4044.5056 41.44 4.44 45.88 74.00 -28.12 peak 2 7509.9387 39.35 9.13 48.48 74.00 -25.52 peak 3 11072.8841 37.78 12.72 50.50 74.00 -23.50 peak 4 13979.4974 37.79 15.14 52.93 74.00 -21.07 peak 5 16985.4982 37.20 19.20 56.40 74.00 -17.60 peak 26.09 19.20 45.29 54.00 -8.71 average 6 17611.8265 37.46 18.72 56.18 74.00 -17.82 peak 28.41 18.72 47.13 54.00 -6.87 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. Confirm that the test have added the BRF losses during the testing. Proper operation of the transmitter prior to adding the filter to the measurement chain. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789480366-1 Page 110 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT40 LCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2518.6898 44.20 -0.73 43.47 74.00 -30.53 peak 2 5602.8254 41.39 5.46 46.85 74.00 -27.15 peak 3 7461.1826 39.11 9.34 48.45 74.00 -25.55 peak 4 10767.2209 38.01 12.14 50.15 74.00 -23.85 peak 5 17024.8781 36.76 19.38 56.14 74.00 -17.86 peak 26.51 19.38 45.89 54.00 -8.11 average 6 17589.3237 37.25 18.79 56.04 74.00 -17.96 peak 26.99 18.79 45.78 54.00 -8.22 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. Confirm that the test have added the BRF losses during the testing. Proper operation of the transmitter prior to adding the filter to the measurement chain. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789480366-1 Page 111 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT40 LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 2663.2079 44.28 -0.76 43.52 74.00 -30.48 peak 2 3980.7476 41.28 4.02 45.30 74.00 -28.70 peak 3 7530.5663 39.43 9.33 48.76 74.00 -25.24 peak 4 14202.6503 37.84 15.12 52.96 74.00 -21.04 peak 5 16940.4926 37.08 19.40 56.48 74.00 -17.52 peak 26.66 19.40 46.06 54.00 -7.94 average 6 17596.8246 37.21 18.74 55.95 74.00 -18.05 peak 26.72 18.74 45.46 54.00 -8.54 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. Confirm that the test have added the BRF losses during the testing. Proper operation of the transmitter prior to adding the filter to the measurement chain. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band Reject Filter losses. 6. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4789480366-1 Page 112 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Pola…

Text truncated - open the document above for the full version.
