SVN-VTH5421HBWIP Indoor Monitor

Digital Indoor Monitor Quick Start Guide V1.0.0 V1.0.0 I Foreword General This manual introduces basic operations of the digital indoor monitor (hereinafter referred to as "VTH"). Models  2-wire VTH that supports Wi-Fi.  Non 2-wire VTH that supports Wi-Fi. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning DANGER Indicates a high potential hazard which, if not avoided, will result in death or serious injury. WARNING Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. CAUTION Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. TIPS Provides methods to help you solve a problem or save you time. NOTE Provides additional information as the emphasis and supplement to the text. Revision History Version Revision Content Release Date V1.0.0 First release. November 2021 Privacy Protection Notice As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and license plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information. II About the Manual  The manual is for reference only. Slight differences might be found between the manual and the product.  We are not liable for losses incurred due to operating the product in ways that are not in compliance with the manual.  The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.  All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.  There might be errors in the print or deviations in the description of the functions, operations and technical data. If there is any doubt or dispute, we reserve the right of final explanation.  Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.  All trademarks, registered trademarks and company names in the manual are properties of their respective owners.  Please visit our website, contact the supplier or customer service if any problems occur while using the device.  If there is any uncertainty or controversy, we reserve the right of final explanation. III Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it, and keep the manual safe for future reference. Operation Requirements ● Check whether the power supply is correct before use. ● Do not unplug the power cord on the side of the device while the adapter is powered on. ● Operate the device within the rated range of power input and output. ● Transport, use and store the device under allowed humidity and temperature conditions. ● Do not drop or splash liquid onto the device, and make sure that there is no object filled with liquid on the device to prevent liquid from flowing into it. ● Do not disassemble the device without professional instruction. Installation Requirements ● Do not connect the power adapter to the device while the adapter is powered on. ● Strictly comply with the local electric safety code and standards. Make sure the ambient voltage is stable and meets the power supply requirements of the device. ● Do not connect the device to two or more kinds of power supplies, to avoid damage to the device. ● Improper use of the battery might result in a fire or explosion. ● Personnel working at heights must take all necessary measures to ensure personal safety including wearing a helmet and safety belts. ● Do not place the device in a place exposed to sunlight or near heat sources. ● Keep the device away from dampness, dust, and soot. ● Install the device on a stable surface to prevent it from falling. ● Install the device in a well-ventilated place, and do not block its ventilation. ● Use an adapter or cabinet power supply provided by the manufacturer. ● Use the power cords that are recommended for the region and conform to the rated power specifications. ● Make sure the power supply meets the SELV (Safety Extra Low Voltage) requirements, and rated voltage conforms to the IEC60065, IEC60950-1 or IEC62368-1 standard. The requirements of the power supply are subject to the device label. ● The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing. Table of Contents Foreword .................................................................................................................................................... I Important Safeguards and Warnings .................................................................................................... III 1 Structure ................................................................................................................................................. 1 Front Panel .................................................................................................................................... 1 Rear Panel (2-wire) ..............................................................................…

Text truncated - open the document above for the full version.

1.2.51.32.16489-001 V1.1.0 01020304 05060708 09101112 13141516

17181920 21222324 25262728 29303132

Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Confirmation Letter We, Zhejiang Dahua Vision Technology Co., Ltd. The product: IP Indoor Monitor FCC ID: SVN-VTH5421HBW And model No.: DHI-VTH5421HB-W, VTH5421HB-W; DHI-VTH5421HB-W-USA; DHI-VTH5421HW-W; VTH5421HW-W; DHI-VTH5421HW-W-USA Only the main model DHI-VTH5421HB-W was tested and only the data of this model is shown in this test report. Since Their electrical circuit design, layout, components used and internal wiring are identical, only the name of the models. (Signature) Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Contact Name: Yolanda chen Title of Person: Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd. Date: 2022/01/04 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc . as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Contact Name: Yolanda chen Title of Person: Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: SVN-VTH5421HBW To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Contact Name: Yolanda chen Title of Person: Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Date: 2022/05/19

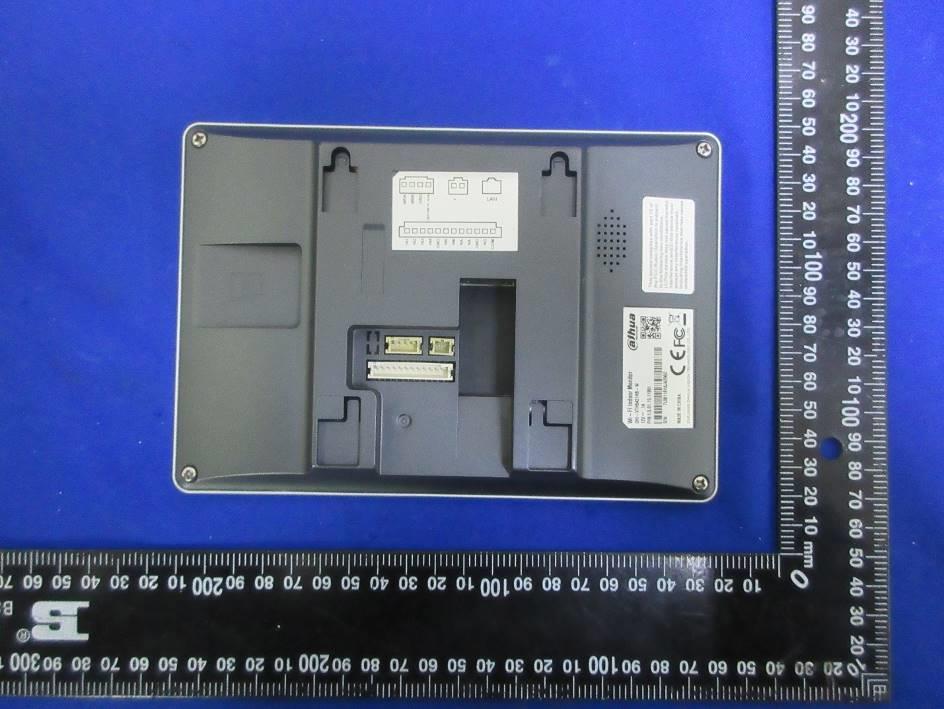

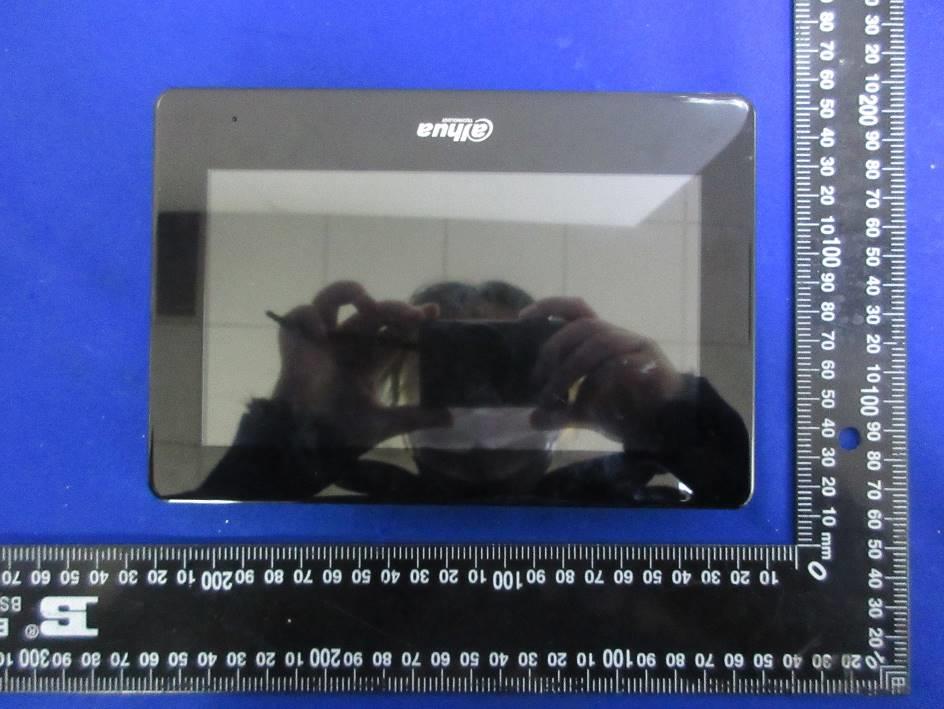

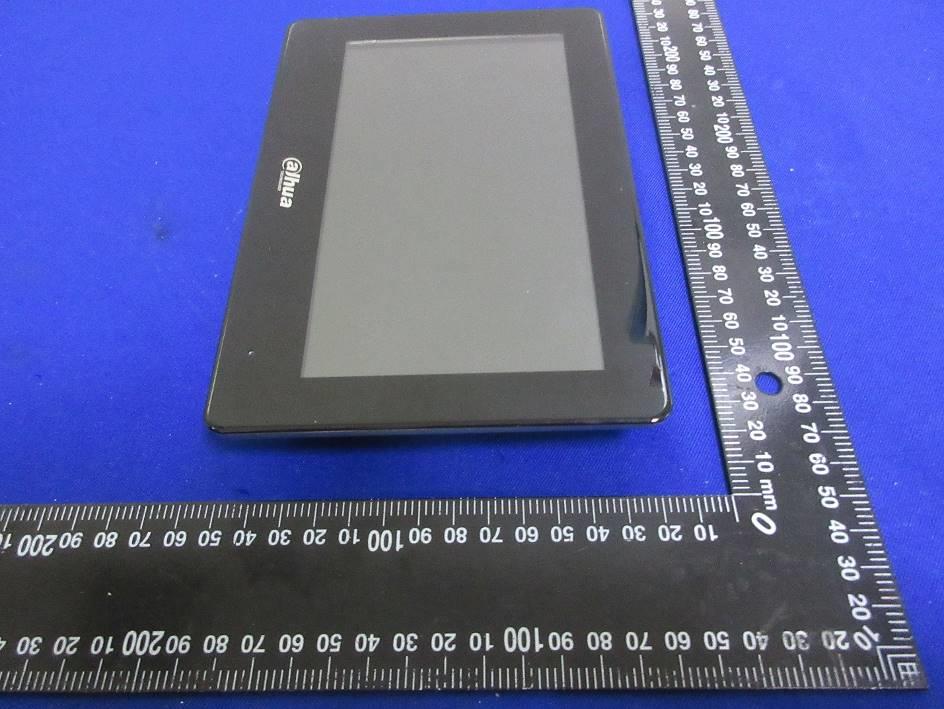

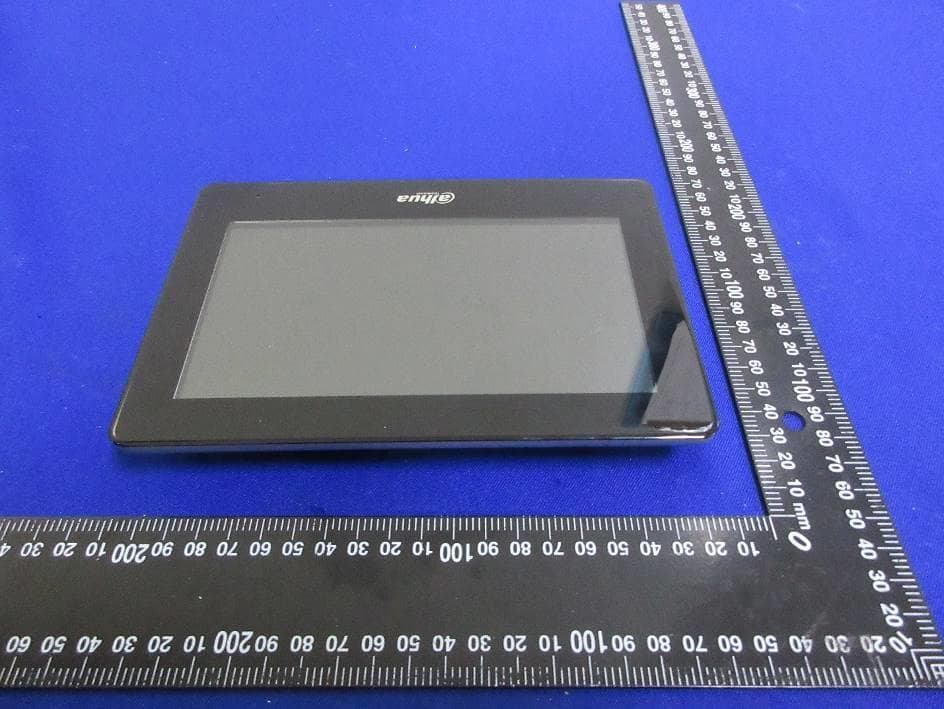

Appendix I External Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT

Appendix II Internal Photographs Page 2 of 4 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 4 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 4 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Module and antenna location `

Form-ULID-008536-12 V1.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For IP Indoor Monitor MODEL NUMBER: DHI-VTH5421HB-W ADDTIONAL MODEL NUMBER: VTH5421HB-W; DHI-VTH5421HB-W-USA; DHI-VTH5421HW-W; VTH5421HW-W; DHI-VTH5421HW-W-USA PROJECT NUMBER: 4790254061-4 REPORT NUMBER: 4790254061-4-4 FCC ID: SVN-VTH5421HBW ISSUE DATE: Jan 26, 2022 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790254061-4-2 Page 2 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 01/26/2022 Initial Issue REPORT No.: 4790254061-4-2 Page 3 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4790254061-4-2 Page 4 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Factory Information Company Name: ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Company Name: ZHEJIANG DAHUA ZHILIAN CO.,LTD. Address: No.28, Dongqiao Road, Dongzhou Street, Fuyang District, Hangzhou,P.R.China. EUT Description Product Name IP Indoor Monitor Model Name DHI-VTH5421HB-W Additional No. VTH5421HB-W; DHI-VTH5421HB-W-USA; DHI-VTH5421HW-W; VTH5421HW-W; DHI-VTH5421HW-W-USA Sample Number 4587242 Data of Receipt Sample Jan 17, 2021 Date Tested Jan 17, 2021 ~ Jan 25, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4790254061-4-2 Page 5 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Test Location UL-CCIC Company Limited, EMC&RF Lab Address No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122 ,China Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056; CAB No.:CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790254061-4-2 Page 6 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available f…
