SVNDH-IPC-HFW4X-WCONSUMER CAMERA

FCC Supplier’s Declaration of Conformity Importer Name: Dahua Technology USA Inc. Importer Address: 23 Hubble Irvine, CA 92618 Equipment Product Name: CONSUMER CAMERA Model No.: DH-IPC-HFW1435SN-W-0280B-S2;DH-IPC-HFW1435SN-W-0360B-S2; DH-IPC-HFW1435SP-W-0280B-S2;DH-IPC-HFW1435SP-W-0360B-S2; DH-IPC-HFW1435SN-W-S2;DH-IPC-HFW1435SP-W-S2;IPC-G42MP-0280B; IPC-G42MP-0360B;IPC-G42MN-0280B;IPC-G42MN-0360B;IPC-G42MP; IPC-G42MN;IPC-HFW1435S-W-0280B-S2;IPC-HFW1435S-W-0360B-S2; DH-IPC-HFW1435S-W-S2;IPC-HFW1435S-W-S2;IPC-G42M-0280B; IPC-G42M-0360B;IPC-G42M; Trade Name: Telephone. : (949) 679-7777 We, Dahua Technology USA Inc., declare under our sole responsibility that the above referenced product has been tested on samples according to FCC requirements, for which UL issued 4789507044 and found compliant with the following standards: FCC Part 15 Subpart B. Please be advised, This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, And (2) this device must accept any interference received, including Interference that may cause undesirable operation.

Bullet Wi-Fi Camera Quick Start Guide V1.0.0 V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Quick Start Guide I Foreword General This manual introduces the functions, installation, and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning WARNING Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. CAUTION Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. NOTE Provides additional information as the emphasis and supplement to the text. Revision History Version Revision Content Release Time V1.0.0 First release. March 2020 About the Manual ⚫ The Manual is for reference only. If there is inconsistency between the manual and the actual product, the actual product shall prevail. ⚫ We are not liable for any loss caused by the operations that do not comply with the manual. ⚫ The manual would be updated according to the latest laws and regulations of related regions. For detailed information, see the paper manual, QR code or our official website. If there is inconsistency between paper manual and the electronic version, the electronic version shall prevail. ⚫ All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. ⚫ There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, please refer to our final explanation. ⚫ Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ⚫ All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ⚫ Please visit our website, contact the supplier or customer service if there is any problem Quick Start Guide II occurred when using the device. ⚫ If there is any uncertainty or controversy, please refer to our final explanation. Quick Start Guide III Important Safeguards and Warnings Electrical Safety ⚫ All installation and operation shall conform to your local electrical safety codes. ⚫ The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1. Note that the power supply requirement is subject to the device label. ⚫ Make sure that the power supply is correct before operating the device. ⚫ A readily accessible disconnecting device shall be incorporated in the building installation wiring. ⚫ Prevent the power cable from being trampled or pressed, especially the plug, power socket and the junction extruded from the device. Environment ⚫ Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might cause over brightness or light marks, which are not the device malfunction, and affect the longevity of Complementary Metal-Oxide Semiconductor (CMOS). ⚫ Do not place the device in a damp, dusty extremely hot or cold environment, or the locations with strong electromagnetic radiation or unstable lighting. ⚫ Keep the device away from any liquid to avoid damage to the internal components. ⚫ Keep the indoor device away from rain or damp to avoid fire or lightning. ⚫ Keep sound ventilation to avoid heat accumulation. ⚫ Transport, use and store the device within the range of allowed humidity and temperature. ⚫ Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation. ⚫ Pack the device with standard factory packaging or the equivalent material when transporting the device. ⚫ Install the device in the location where only the professional staff with relevant knowledge of safety guards and warnings can access. The accidental injury might happen to the non-professionals who enter the installation area when the device is operating normally. Operation and Daily Maintenance ⚫ Do not touch the heat dissipation component of the device to avoid scald. ⚫ Carefully follow the instructions in the manual when performing any disassembly operation about the device; otherwise, it might cause water leakage or poor image quality due to unprofessional disassembly. Please contact after-sale service for desiccant replacement if there is condensed fog on the lens after unpacking or when the desiccant turns green. (Not all models are included with the desiccant). ⚫ It is recommended to use the device together with lightning arrester to improve lightning protection effect. Quick Start Guide IV ⚫ It is recommended to ground the device to enhance reliability. ⚫ Do not touch the image sensor (CMOS) directly. Dust and dirt can be removed with air blower, or you can wipe the lens gently with soft cloth that is moistened with alcohol. ⚫ You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild detergent. To avoid possible damage on device body coating which could cause performance decrease, do not use volatile solvent such as alcohol, benzene, diluent to clean the device body, nor can strong, abrasive detergent be used. ⚫ Dome cover is an optical component. Do not touch or wipe the cover with your hands directly during installation or operation. For removing dust, grease or fingerprints, wipe gently with moistened oil-free cotton with diethyl or moisten soft cloth. You can also remove dust with an air blower. ⚫ Strengthen the protection of network, device data and personal information by adopting measures which include but not limited to using strong password, modifying password regularly, upgrading firmware to the latest version, and isolating computer netwo…

Text truncated - open the document above for the full version.

Zhejiang Dahua Vision Technology Co., Ltd Date: 2020/3/3 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: SVNDH-IPC-HFW4X-W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Date:2020/07/02

Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Confirmation Letter We, Zhejiang Dahua Vision Technology Co., Ltd. The product: CONSUMER CAMERA And model No.: DH-IPC-HFW1435SP-W-S2 DH-IPC-HFW1435SN-W-0280B-S2;DH-IPC-HFW1435SN-W-0360B-S2;DH-IPC- HFW1435SP-W-0280B-S2; DH-IPC-HFW1435SP-W-0360B-S2;DH-IPC-HFW1435SN-W-S2; IPC-G42MP-0280B;IPC-G42MP-0360B;IPC-G42MN-0280B; IPC-G42M-0360B;IPC-G42MN- 0360B;IPC-G42MP;IPC-G42MN; IPC-G42M;IPC-HFW1435S-W-0280B-S2;IPC-HFW1435S- W-0360B-S2;DH-IPC-HFW1435S-W-S2; IPC-G42M-0280B; IPC-HFW1435S-W-S2; have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with DH- IPC-HFW1435SP-W-S2 The difference lies only the model name, product color, marketing channel and sale country. all these changes do not degrade the unwanted emissions of the certified product. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Date:7/16/2020

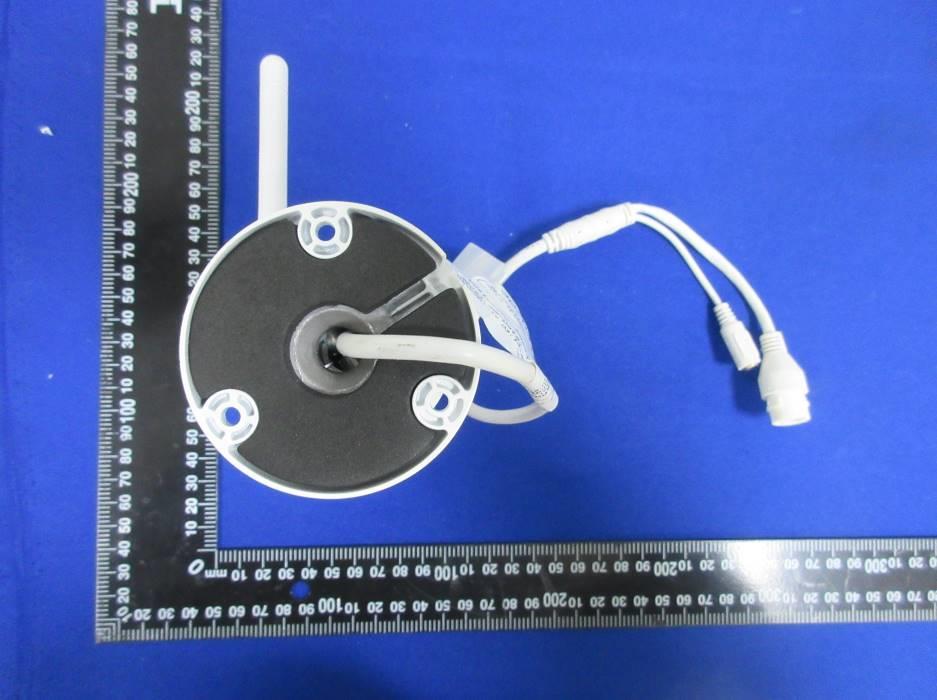

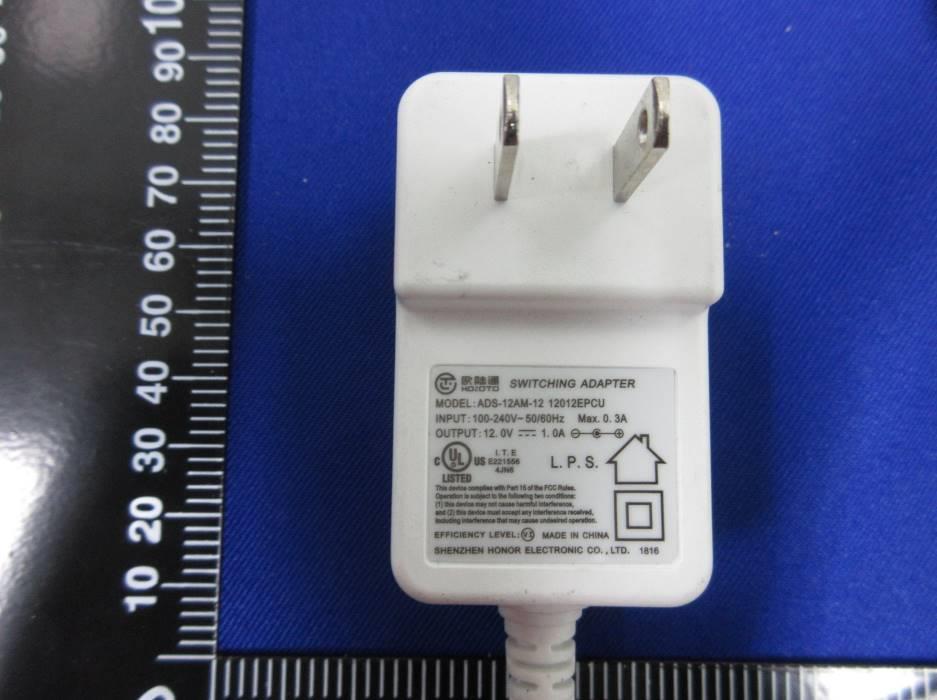

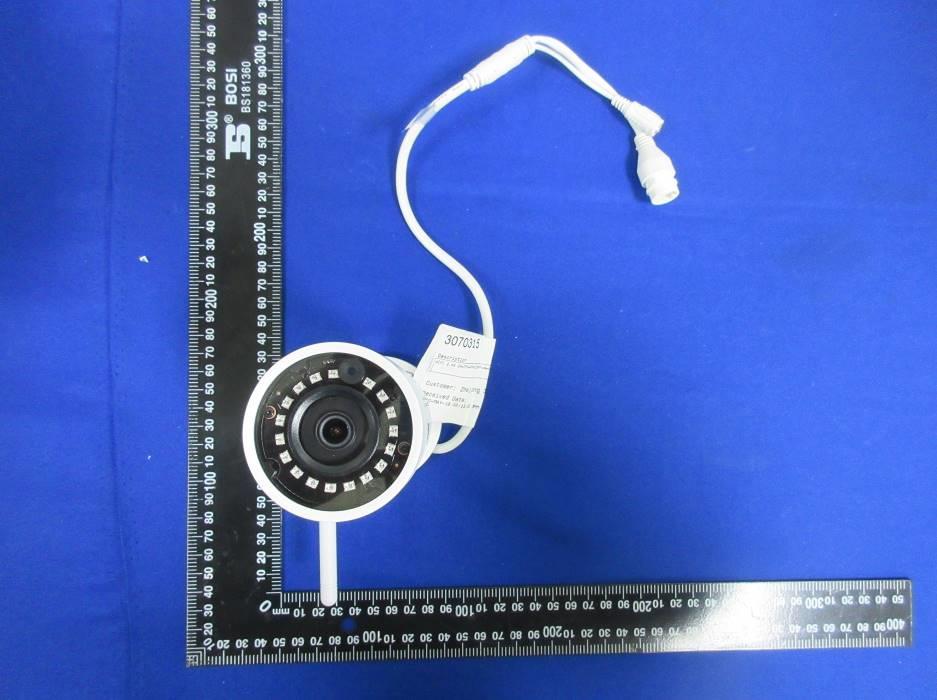

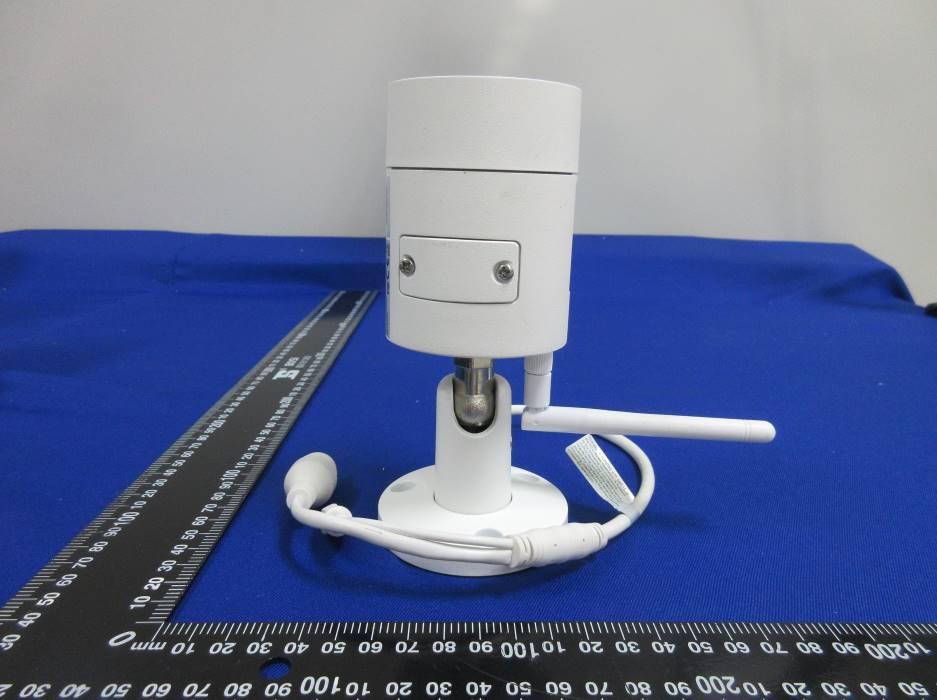

UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . Front View of EUT Back View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . Top View of EUT Bottom View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . . View of Adapter

Appendix II Internal Photographs Page 2 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Open View of EUT Internal View of EUT-1 Page 3 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-2 Internal View of EUT-3 Page 4 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-4 Internal View of EUT-5 Page 5 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-6 Internal View of EUT-7 Page 6 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-8 Internal View of EUT-9 Page 7 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-10 Internal View of EUT-11 Page 8 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . Internal View of EUT-12 Page 9 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. . RF Module location Antenna location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. RF EXPOSURE REPORT For CONSUMER CAMERA MODEL NUMBER: DH-IPC-HFW1435SP-W-S2 ADDITIONAL MODEL NUMBER: DH-IPC-HFW1435SN-W-0280B-S2;DH-IPC- HFW1435SN-W-0360B-S2;DH-IPC-HFW1435SP-W-0280B-S2; DH-IPC-HFW1435SP-W-0360B-S2;DH-IPC-HFW1435SN-W-S2; IPC-G42MP-0280B;IPC-G42MP-0360B;IPC-G42MN-0280B; IPC-G42M-0360B; IPC-G42MN-0360B;IPC-G42MP;IPC-G42MN; IPC-G42M; IPC-HFW1435S-W-0280B-S2;IPC-HFW1435S-W-0360B-S2; DH-IPC-HFW1435S-W-S2;IPC-HFW1435S-W-S2;IPC-G42M-0280B; PROJECT NUMBER: 4789507044 REPORT NUMBER: 4789507044-2 FCC ID: SVNDH-IPC-HFW4X-W ISSUE DATE: Jul. 05, 2020 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789507044-2 Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 3 2. TEST METHODOLOGY ..................................................................................................... 4 3. FACILITIES AND ACCREDITATION ................................................................................. 4 4. REQUIREMENT ................................................................................................................. 5 REPORT No.: 4789507044-2 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. EUT Description Product Name CONSUMER CAMERA Model Name DH-IPC-HFW1435SP-W-S2 Additional No. DH-IPC-HFW1435SN-W-0280B-S2;DH-IPC-HFW1435SN-W- 0360B-S2;DH-IPC-HFW1435SP-W-0280B-S2; DH-IPC-HFW1435SP-W-0360B-S2;DH-IPC-HFW1435SN-W-S2; IPC-G42MP-0280B;IPC-G42MP-0360B;IPC-G42MN-0280B; IPC-G42M-0360B;IPC-G42MN-0360B;IPC-G42MP;IPC-G42MN; IPC-G42M;IPC-HFW1435S-W-0280B-S2;IPC-HFW1435S-W- 0360B-S2;DH-IPC-HFW1435S-W-S2; IPC-G42M-0280B; IPC-HFW1435S-W-S2; Sample Number 3099059 Data of Receipt Sample Jun 05, 2020 Date Tested Jun 05, 2020 ~ Jun 30, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Engineer Project Associate Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789507044-2 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789507044-2 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) (the measured power value re…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For CONSUMER CAMERA MODEL NUMBER: DH-IPC-HFW1435SP-W-S2 ADDITIONAL MODEL NUMBER: DH-IPC-HFW1435SN-W-0280B-S2;DH-IPC- HFW1435SN-W-0360B-S2;DH-IPC-HFW1435SP-W-0280B-S2; DH-IPC-HFW1435SP-W-0360B-S2;DH-IPC-HFW1435SN-W-S2; IPC-G42MP-0280B;IPC-G42MP-0360B;IPC-G42MN-0280B; IPC-G42M-0360B; IPC-G42MN-0360B;IPC-G42MP;IPC-G42MN; IPC-G42M; IPC-HFW1435S-W-0280B-S2;IPC-HFW1435S-W-0360B-S2; DH-IPC-HFW1435S-W-S2;IPC-HFW1435S-W-S2;IPC-G42M-0280B; PROJECT NUMBER: 4789507044 REPORT NUMBER: 4789507044-1 FCC ID: SVNDH-IPC-HFW4X-W ISSUE DATE: Jul. 05, 2020 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789507044-1 ` Page 2 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 07/05/2020 Initial Issue REPORT No.: 4789507044-1 ` Page 3 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................14 6. MEASUREMENT METHODS ............................................................................................15 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6 dB BANDWIDTH ......................................................................................................19 7.3. PEAK CONDUCTED OUTPUT POWER .....................................................................27 7.4. POWER SPECTRAL DENSITY ..................................................................................29 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................37 7.6. RADIATED TEST RESULTS ......................................................................................69 7.6.1. LIMITS AND PROCEDURE .................................................................................69 7.6.2. TEST ENVIRONMENT ........................................................................................74 7.6.3. RESTRICTED BANDEDGE .................................................................................74 7.6.4. SPURIOUS EMISSIONS .....................................................................................91 7.7. AC POWER LINE CONDUCTED EMISSIONS ......................................................... 123 8. ANTENNA REQUIREMENTS .......................................................................................... 126 REPORT No.: 4789507044-1 ` Page 4 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. EUT Description Product Name CONSUMER CAMERA Model Name DH-IPC-HFW1435SP-W-S2 Additional No. DH-IPC-HFW1435SN-W-0280B-S2;DH-IPC-HFW1435SN-W- 0360B-S2;DH-IPC-HFW1435SP-W-0280B-S2; DH-IPC-HFW1435SP-W-0360B-S2;DH-IPC-HFW1435SN-W-S2; IPC-G42MP-0280B;IPC-G42MP-0360B;IPC-G42…

Text truncated - open the document above for the full version.

REPORT No.: 4789507044-1 ` Page 50 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789507044-1 ` Page 51 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789507044-1 ` Page 52 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789507044-1 ` Page 53 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789507044-1 ` Page 54 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789507044-1 ` Page 55 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789507044-1 ` Page 56 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789507044-1 ` Page 57 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789507044-1 ` Page 58 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789507044-1 ` Page 59 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789507044-1 ` Page 60 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789507044-1 ` Page 61 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without…

Text truncated - open the document above for the full version.
