SVNDH-IPC-KX2-BCONSUMER CAMERA

Installing Camera Make sure that the mounting surface is strong enough to hold at least three times of the device weight. Expansion Bolt Camera About the Guide - This quick start guide is for reference only. Minor difference might be found in user interface. - All the design and software here are subject to change without prior written notice. - All trademarks and registered trademarks mentioned are the properties of their respective owners. - Please visit our website or contact your local service engineer for more information. - If there is any uncertainty or controversy, please refer to our final explanation. Alarm Input/output The camera can connect to external alarm input/output device through digital input/output. Device collects different states of alarm input port when the input signal is idling and being grounded. Device collects logic "1" when input signal is connecting to +3V to +5V or idling. Device collects logic "0" when input signal is grounded. Mode A: Level application. Alarm outputs high and low level, and the alarm outlet is OD, which requires external pull-up resistance (10K Ohm typical) to work. The maximum external pull-up level is 12V, maximum port current is 300mA and the default output signal is high level (external pull-up voltage). The default output signal switches to low level when there is alarm output (As long as the operating current below 300mA, the output low level voltage is Step 1 Step 2 Connect alarm output device to the alarm output end of the I/O port. The alarm output is open-drain output, which works in the following modes. Mode B: Switch application. Alarm output is used to drive external circuit, the maximum voltage is 12V and the maximum current is 300mA. If the voltage is higher than 12V, please use an additional electric relay. Step 3 Log in to web interface, and configure alarm input and alarm output in alarm setting. The alarm input on the web interface is corresponding to the alarm input end of the I/O port. There will be high level and low level alarm signal generated by the alarm input device when alarm occurs, set the input mode to "NO" (default) if the alarm input signal is logic "0" and to "NC" if the alarm input signal is logic "1". The alarm output on the web interface is corresponding to the alarm output end of the device, which is also alarm output end of the I/O port. Loosen the adjust knob and adjust the camera to a proper surveillance position as needed. Secure the adjust knob to fix the camera. Note: Step 1 Step 2 Step 3 Step 4 Step 5 Drill screw holes on the mounting surface as the positioning map shows, and then put in the expansion bolts. Attach the camera pedestal to the mounting surface with the self-tapping screws. Connect the cable and start the camera. Connecting Connect alarm input device to the alarm input end of the I/O port. See the following picture. Adjust Knob Self-tapping Screw Mounting Surface Positioning Map Introduction Note: Press and hold the reset button for 10 s to reset the camera. Camera The pattern of the LED indicator is included in the following table. LED Indicator Status Green light flashing Green light on Red light flashing Green and red light flashing alternately Powered off/LED turned off Rebooting after reset Booting Device malfunction Waiting for network Operating properly Network connection failed Off Red light on Firmware updating QSG ×1Camera ×1Positioning Map ×1 Power Adapter ×1Screw Package×1 Version 1.0.0 Quick Start Guide Built-in Mic Indicator Light Ethernet Port Reset Button Power Port Built-in Speaker PIR Detector IR LED Micro SD Card Slot Digital Input/Output Device Status With Imou AppOperating Step 1 Step 3 Connect the camera to power source with the power adapter. Scan the following QR code or search “Imou” in Google Play or App Store to download and install Imou App. Run Imou App, and then register an account for the first use. Step 2 Note:If you have installed the App, update it to the latest version. Mounting Surface Step 5 Step 4 Do the following operations to finish adding camera. Wait for booting to be finished, and then the camera indicator flashes with green light. Note: If the Wi-Fi network has changed or the indicator status goes wrong, reset the camera, and then do step 5 to add it again. If you have more than one camera, do step 5 to add them one by one. Select Wi-Fi Wi-Fi XXXXXX1 Wi-Fi XXXXXX2 Wi-Fi XXXXXX3 ... Wi-Fi Password

Zhejiang Dahua Vision Technology Co., Ltd Date: 2019-11-21 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: SVNDH-IPC-KX2-B To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Zhejiang Dahua Vision Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Yolanda.chen Title: Senior Certification engineer Signature: On behalf of Company: Zhejiang Dahua Vision Technology Co., Ltd. Telephone: 0571-28822025

Zhejiang Dahua Vision Technology Co., Ltd To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Zhejiang Dahua Vision Technology Co., Ltd No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Hangzhou, 310052, China Regarding: Confidentiality Request regarding application for FCC ID : SVNDH-IPC-KX2-B LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code) Yolanda.chen Title: Senior Certification engineer Company Name: Zhejiang Dahua Vision Technology Co., Ltd.

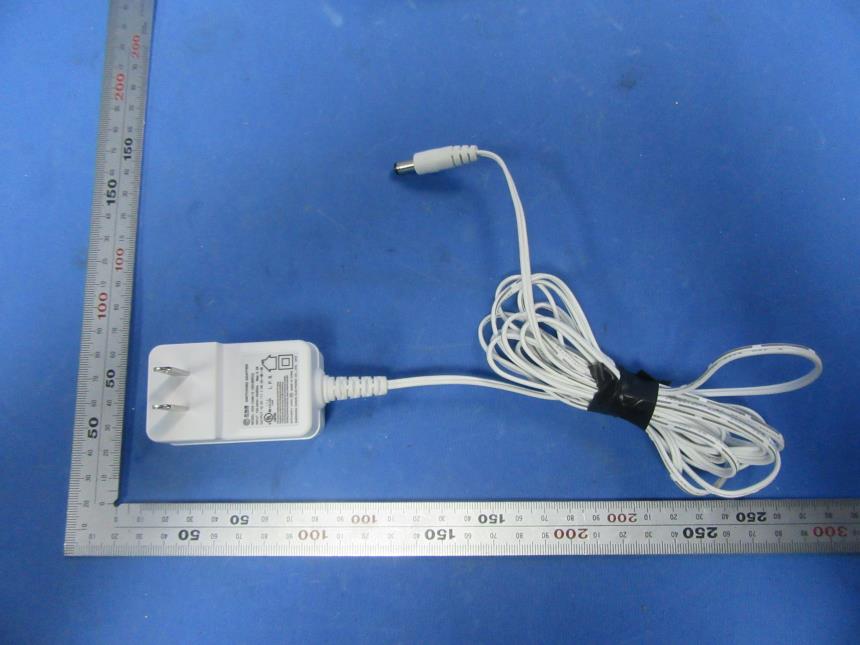

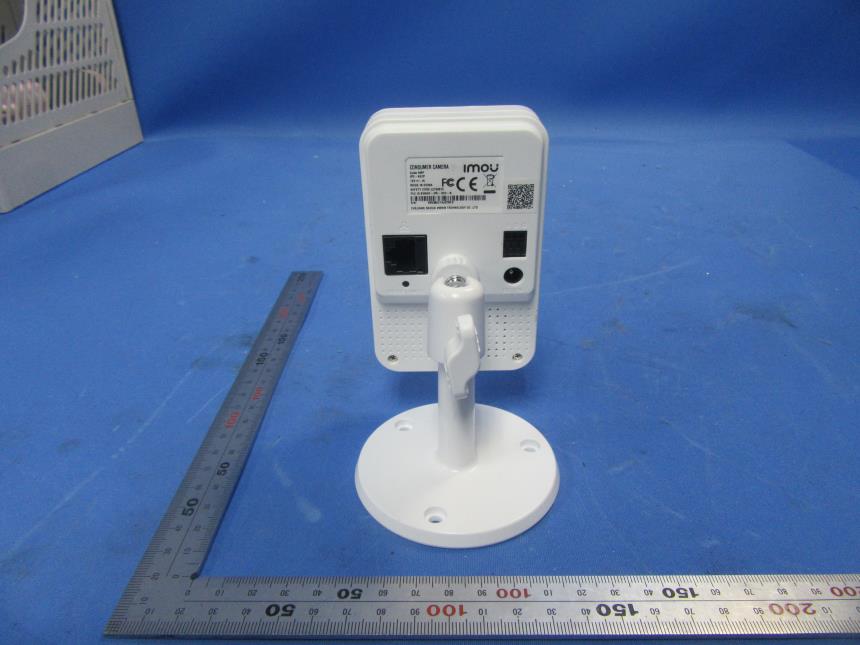

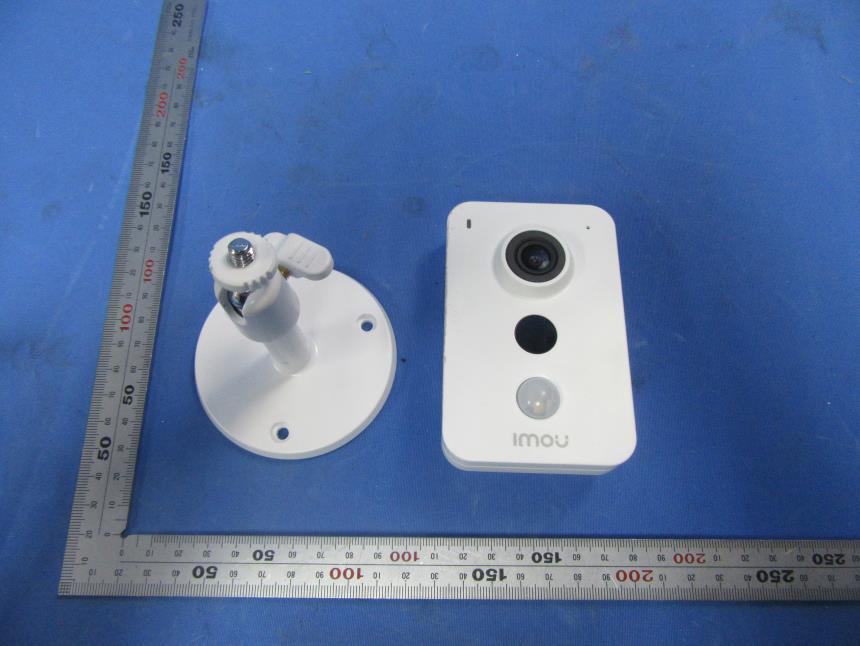

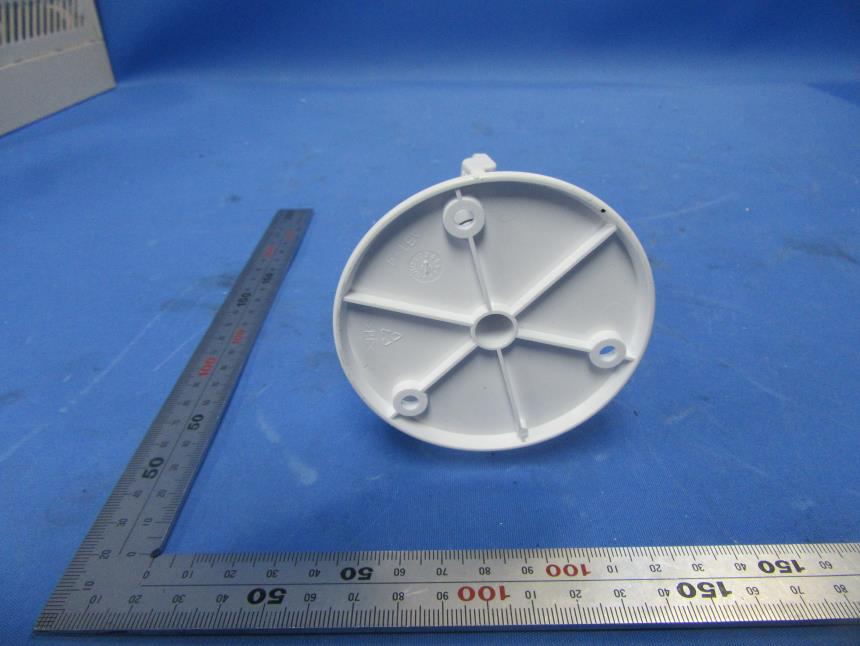

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 7 Page 1 of 7 External Photos Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): Product Name: CONSUMER CAMERA Model No.: IPC-K42P SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 7 Page 2 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 7 Page 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 7 Page 7 of 7 End

Label location FCC warning

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 6 Page 1 of 6 Internal Photos Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): Product Name: CONSUMER CAMERA Model No.: IPC-K42P SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 6 Page 2 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 6 Page 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 6 Page 6 of 6 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101890501 Page: 1 of 7 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM911018905CR FCC ID: SVNDH-IPC-KX2-B Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Manufacturer: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Manufacturer: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): EUT Name: CONSUMER CAMERA Model No.: IPC-K42P Add Model No.: IPC-K42N; IPC-K42N-imou; IPC-K42P-imou; DH-IPC-K42P; DH-IPC-K42N; DH-IPC-K42; IPC-K42; Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2019-11-15 Date of Test: 2019-11-21 to 2019-11-27 Date of Issue: 2019-12-06 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101890502 Page: 2 of 7 Revision Record Version Description Date Remark 00 Original 2019-12-06 / Authorized for issue by: Vincent Zhu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM181100065502 Page: 3 of 7 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION ........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TEST LOCATION ....................................................................................................................................... 5 3.3 TEST FACILITY ......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 5 MEASUREMENT AND CALCULATION ..................................................................................................... 6 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 6 5.2 MPE CALCULATION ................................................................................................................................. 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM181100065502 Page: 4 of 7 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V by adapter Adapter: Model:ADS-12AM-12 12012EPCU Input:100-240V~50/60Hz Max 0.3A Output:DC 12V 1A Test voltage: AC 120V 60Hz Cable: DC Cable 1.5m for adapter Antenna Gain 2.84dBi Antenna Type Integral Antenna Channel Spacing 5MHz Modulation Type 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM181100065502 Page: 5 of 7 3.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (Certificate No. 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National Voluntary Laboratory Accreditation Program(NVLAP). Certificate No. 201034-0. • FCC –Designation Number: CN5033 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. Designation Number: CN5033. Test Firm Registration Number: 479755. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has been recognized by ISED as an accredited testing laboratory. IC Registration No.: 8617A-1. CAB Identifier: CN0020. • VCCI (Member No.: 3061) The 3m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-13868, C-14336, T-12221, G-10830 respectively. SGS-CSTC Standards Technical Services Co., Ltd. …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM191101890501 1.6dB Bandwidth Test Mode Test Channel Ant EBW[MHz] Limit Verdict 11B 2412 Ant1 9.06 0.5 PASS 11B 2437 Ant1 9.07 0.5 PASS 11B 2462 Ant1 9.06 0.5 PASS 11G 2412 Ant1 16.54 0.5 PASS 11G 2437 Ant1 16.55 0.5 PASS 11G 2462 Ant1 16.56 0.5 PASS 11N20SISO 2412 Ant1 17.79 0.5 PASS 11N20SISO 2437 Ant1 17.79 0.5 PASS 11N20SISO 2462 Ant1 17.78 0.5 PASS 11N40SISO 2422 Ant1 36.40 0.5 PASS 11N40SISO 2437 Ant1 36.42 0.5 PASS 11N40SISO 2452 Ant1 36.42 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict 11B 2412 Ant1 13.43 --- PASS 11B 2437 Ant1 13.39 --- PASS 11B 2462 Ant1 13.36 --- PASS 11G 2412 Ant1 16.73 --- PASS 11G 2437 Ant1 16.73 --- PASS 11G 2462 Ant1 16.76 --- PASS 11N20SISO 2412 Ant1 17.87 --- PASS 11N20SISO 2437 Ant1 17.87 --- PASS 11N20SISO 2462 Ant1 17.86 --- PASS 11N40SISO 2422 Ant1 36.67 --- PASS 11N40SISO 2437 Ant1 36.60 --- PASS 11N40SISO 2452 Ant1 36.53 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412 Occupied Bandwidth_11B_2437 Occupied Bandwidth_11B_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412 Occupied Bandwidth_11G_2437 Occupied Bandwidth_11G_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412 Occupied Bandwidth_11N20SISO_2437 Occupied Bandwidth_11N20SISO_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422 Occupied Bandwidth_11N40SISO_2437 Occupied Bandwidth_11N40SISO_2452 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Ant Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict 11B 2412 Ant1 14.2 0.00 14.20 30 PASS 11B 2437 Ant1 15.08 0.00 15.08 30 PASS 11B 2462 Ant1 15.26 0.00 15.26 30 PASS 11G 2412 Ant1 12.25 0.00 12.25 30 PASS 11G 2437 Ant1 13.58 0.00 13.58 30 PASS 11G 2462 Ant1 14.21 0.00 14.21 30 PASS 11N20SISO 2412 Ant1 11.69 0.00 11.69 30 PASS 11N20SISO 2437 Ant1 12.75 0.00 12.75 30 PASS 11N20SISO 2462 Ant1 13.23 0.00 13.23 30 PASS 11N40SISO 2422 Ant1 11.04 0.00 11.04 30 PASS 11N40SISO 2437 Ant1 11.67 0.00 11.67 30 PASS 11N40SISO 2452 Ant1 12.06 0.00 12.06 30 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N40SISO_2422_Ant1 Maximum conducted (average) output power_11N40SISO_2437_Ant1 Maximum conducted (average) output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 4.Maximum(average) power spectral density Test Mode Test Channel Ant Level [dBm/3kHz] 10log(1/x) Factor[dB] PSD[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -18.10 0.00 -18.10 8.00 PASS 11B 2437 Ant1 -17.12 0.00 -17.12 8.00 PASS 11B 2462 Ant1 -16.94 0.00 -16.94 8.00 PASS 11G 2412 Ant1 -20.32 0.00 -20.32 8.00 PASS 11G 2437 Ant1 -18.96 0.00 -18.96 8.00 PASS 11G 2462 Ant1 -18.25 0.00 -18.25 8.00 PASS 11N20SISO 2412 Ant1 -23.18 0.00 -23.18 8.00 PASS 11N20SISO 2437 Ant1 -22.16 0.00 -22.16 8.00 PASS 11N20SISO 2462 Ant1 -21.78 0.00 -21.78 8.00 PASS 11N40SISO 2422 Ant1 -27.01 0.00 -27.01 8.00 PASS 11N40SISO 2437 Ant1 -26.45 0.00 -26.45 8.00 PASS 11N40SISO 2452 Ant1 -26.31 0.00 -26.31 8.00 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11B_2412_Ant1 Maximum(average) power spectral density_11B_2437_Ant1 Maximum(average) power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11G_2412_Ant1 Maximum(average) power spectral density_11G_2437_Ant1 Maximum(average) power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N20SISO_2412_Ant1 Maximum(average) power spectral density_11N20SISO_2437_Ant1 Maximum(average) power spectral density_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N40SISO_2422_Ant1 Maximum(average) power spectral density_11N40SISO_2437_Ant1 Maximum(average) power spectral density_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 5.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 4.78 -49.63 -25.22 PASS 11B 2462 Ant1 6.08 -54.99 -23.93 PASS 11G 2412 Ant1 -2.03 -40.65 -32.03 PASS 11G 2462 A…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101890501 Page: 1 of 60 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM1911018905CR FCC ID: SVNDH-IPC-KX2-B Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Manufacturer: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Manufacturer: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): EUT Name: CONSUMER CAMERA Model No.: IPC-K42N; IPC-K42P; IPC-K42N-imou; IPC-K42P-imou; DH-IPC-K42P; DH-IPC-K42N; DH-IPC-K42; IPC-K42; ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2019-11-15 Date of Test: 2019-11-21 to 2019-11-27 Date of Issue: 2019-12-06 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101890501 Page: 2 of 60 Revision Record Version Description Date Remark 00 Original 2019-12-06 / Authorized for issue by: Vincent Zhu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101890501 Page: 3 of 60 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Custome r Declarati on Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Note: Declaration of EUT Family Grouping: There are series models mentioned in this report and they are the similar in electrical and electronic characters. Only the model IPC-K42P was tested since their differences are model number, trade name and appearance。 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191101890501 Page: 4 of 60 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY ....................................................................................................................................... 7 4.7 DEVIATION FROM STANDARDS ................................................................................................................ 7 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 7 5 EQUIPMENT LIST ....................................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................... 9 6.1 ANTENNA REQUIREMENT .............................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 Test Setup Photos-FCC Applicant: ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address of Applicant: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Equipment Under Test (EUT): Product Name: CONSUMER CAMERA Model No.: IPC-K42P SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................. 3 2.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup ......... 3 2.2 RF Conducted Test Setup ................................................................................. 3 2.3 Spurious emissions ........................................................................................... 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 2.2 RF Conducted Test Setup SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 2.3 Spurious emissions 30MHz-1GHz Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 Zoom: End
