SVNDHCES200PIR Motion Detector / Smart Motion

In-Door Use PIR Motion Detector (Human Body Detector) Quick Start Guide Please read the quick start guide carefully before you use this series product! You can use this product to work with the LeBox, and then go to the client to set the mode to detect the human body movement. This quick start guide is for (including but not limited to) WP1 and DH-CE-S200 series product. Pair Indicator light Battery cover Bracket Press it for a long time (About 6 seconds) to go to the pair mode. Press it to install/replace three 7# batteries. Use bracket to install on the wall or in the ceiling. Please follow the steps listed below to pair the human body detector and the LeBox up. Step 1 Open the software management interface and then select Add device button. Step 2 Press the Pair button for about 6 seconds; you can go to the pair mode. Now you can see the blue indicator light becomes flashing quickly. The light becomes off after the pair mode is complete. You can view the pair is successful on the LeBox and the device is added to the human body detector category. Quick Pair Bracket Battery Cover Indicator Light Detector Pair The blue light is flashing quickly when the device is in pair mode. The light becomes off when the pair mode is complete. The blue light flashes three times when there is an alarm. The blue light is on for three seconds and then turns off when you are inserting the battery. The red light flashes slowly, it is to alert you to change the batteries. Remove the double sided adhesive tape, paste it to the solid position. Press it for about 5 seconds and then release. Specifications Installation Mode The product is mainly for standing upward on the plain surface. It supports wall mount and ceiling mount. Please follow the steps listed below. Step 1 Follow the arrow and keep the bracket facing up. Step2 Match the groove on bracket with the projection on the human body detector. Press down and then push to the left. Stpe3 Download App Use your cell phone to scan the QR on the right side or go to the App market and then search .LeChange Please contact the service engineer or your local retailer if there is any problem. Motion Detector Double Sided Adhesive Tape Bracket Groove Rated Voltage DC4.5V Rate Current 30mA Rate Power Consumption ≤1W Working Temperature -5°C-+45°C Working Humidity ﹤90% Dimensions (mm) 65*65*55 Zhejiang Dahua Technology Co.,Ltd No.1199 Bin an Road, Binjiang District, Hangzhou, China, 310053. Website: www.lechange.cn. ’ FCC Compliance Statement 2. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Zhejiang Dahua Vision Technology Co., Ltd. Date: 2014-12-17 FCC ID: SVNDHCES200 Please be notified that we, the undersigned, declares that the product which bears the above FCC ID contains 3 model numbers: WP1, DH-CE-S200, ICM-M410 The difference of them as show bellow: WP1 DH-CE-S200 ICM-M410 No differences in function,only for the differnet groups of customers Your understanding will be highly appreciated. Sincerely, Yolanda chen/ Certified engineer Zhejiang Dahua Vision Technology Co., Ltd. Signature:

RF_160, Issue 03 Declaration of Authorization We Name: Zhejiang Dahua Vision Technology Co., Ltd Address: The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China City: Hangzhou Country: China Declare that: Name Representative of agent: Miro Chueh (1) Agent Company name: Cerpass Technology (Suzhou) Co.,Ltd Address: No.66,Tangzhuang Road, Suzhou Industrial Park, Jiangsu 215006, China. City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: PIR Motion Detector / Smart Motion Type designation: WP1, DH-CE-S200, ICM-M410 Trademark: on our behalf. Date: ...2014-12-17............ City: ... China .................... Name: ... Yolanda chen ........... (2) Function: ... Certified engineer ................ Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Zhejiang Dahua Vision Technology Co., Ltd. The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Number: CF302 Version: V05 Date: 21-05-2012 We, Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Postal/Zip: 310053 City: Hangzhou State/Province: Zhejiang Country: China Contact Person: Mr. Ms. Name: Yolanda chen Function: Certified engineer Email: [email protected] Web: Phone: 0571-28822025 Fax: 0571-28178753 declare for the equipment identified by: Product Description PIR Motion Detector / Smart Motion Type or Model(s) WP1, DH-CE-S200, ICM-M410 Tradename or Brand(s) that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Testing Laboratory name: City and Country: Lab accreditation Number: Test Report Number: Date of issue: Cerpass Technology Corp. Taiwan,China TW1049, TW1061, 488071, 390316 SEFD1410017 Nov 10, 2014 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name, City and Country: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hangzhou, China 2014/12/17 Yolanda chen Certified engineer This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Zhejiang Dahua Vision Technology Co., Ltd Address : The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China City: Hangzhou Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SVNDHCES200 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: The needs of customers Planned Release Date STC: 180days (notes 2, 3, 4, 5) Date: 2014/12/17 Name and signature of applicant: Yolanda chen Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

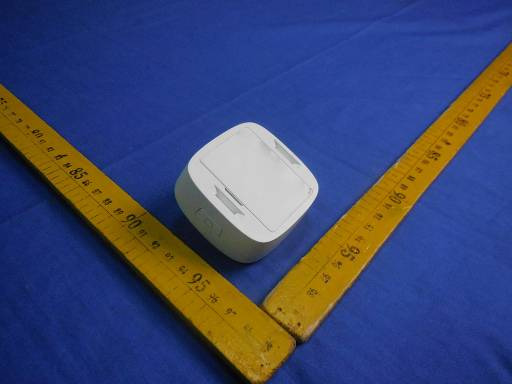

CERPASS TECHNOLOGY CORP. Report No.: SEFB1410017 Cerpass Technology Corp. Issued date : Dec 23, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFB1410017 Cerpass Technology Corp. Issued date : Dec 23, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFB1410017 Cerpass Technology Corp. Issued date : Dec 23, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: SEFC1410017 Cerpass Technology Corp. Issued date : Oct 17, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFC1410017 Cerpass Technology Corp. Issued date : Oct 17, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 3) EUT Photo

CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410017 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 1 of 16 FCC ID : SVNDHCES200 FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : Zhejiang Dahua Vision Technology Co., Ltd. Address : The 1 st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Manufacturer : Zhejiang Dahua Vision Technology Co., Ltd. Address : The 1 st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Equipment : PIR Motion Detector / Smart Motion Model No. : WP1, DH-CE-S200, ICM-M410 FCC ID : SVNDHCES200
The test result refers exclusively to the test presented test model / sample.,
Without written approval of CERPASS TECHNOLOGY(SUZHOU)CO., LTD. the test report shall not be reproduced except in full. CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410017 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 2 of 16 FCC ID : SVNDHCES200 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 General Information of Test........................................................................................................ 6 2.3 Measurement Uncertainty .......................................................................................................... 7 3. Test of Radiated Emission ................................................................................................................. 8 3.1 Test Limit .................................................................................................................................... 8 3.2 Test Procedures ......................................................................................................................... 8 3.3 Typical Test Setup ...................................................................................................................... 9 3.4 Measurement equipment ......................................................................................................... 10 3.5 Test Result and Data ................................................................................................................ 10 4. 20dB Bandwidth Measurement Data ............................................................................................... 13 4.1 Test Limit .................................................................................................................................. 13 4.2 Test Procedures ....................................................................................................................... 13 4.3 Test Setup Layout .................................................................................................................... 13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 5. Dwell Time ......................................................................................................................................... 15 5.1 Test Limit .................................................................................................................................. 15 5.2 Test Procedures ....................................................................................................................... 15 5.3 Test Setup Layout .................................................................................................................... 15 5.4 Measurement equipment ......................................................................................................... 15 5.5 Test Result and Data ................................................................................................................ 15 6. Silent Period ...................................................................................................................................... 16 6.1 Test Limit .................................................................................................................................. 16 6.2 Test Procedures ....................................................................................................................... 16 6.3 Test Setup Layout .................................................................................................................... 16 6.4 Measurement equipment ......................................................................................................... 16 6.5 Test Result and Data ................................................................................................................ 16 CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410017 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 3 of 16 FCC ID : SVNDHCES200 History of this test report
Original  Additional attachment as following record: Attachment No. Issue Date Description CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410017 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 4 of 16 FCC ID : SVNDHCES200 CERTIFICATE OF COMPLIANCE According to FCC Rules and Regulations Part 15 Su…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFD1410017 Cerpass Technology Corp. Issued date : Dec29, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 1 TEST SETUP PHOTOGRAPHS OF EUT
