SVNDHCEZ100Wireless Remote Control Outlet, Smart Outlet

Wireless Remote Control Outlet Quick Start Guide ☆ Download App Please contact the service engineer or your local retailer if there is any problem. Specifications Rated Voltage AC110V-220V, 50Hz Max Current 10A Rated Power Consumptions ＜2W Working Temperature -5°C-+45°C Working Humidity ﹤90% Dimensions (mm) 130*65*55 Use your cell phone to scan the QR on the right side or go to the App market and then search Le.Change Zhejiang Dahua Technology Co.,Ltd No.1199 Bin an Road, Binjiang District, Hangzhou, China, 310053. Website: www.lechange.cn. ’ Thanks you for using our product Features General power consumption statistics. Smart on/off. Quick Setup You can use this series product to control the device on/off status remotely, track device running status, collect power consumption statistics, schedule boot up and shut down the device. Please follow the steps listed below to pair the wireless remote control outlet and the LeBox up. Step 1 Open the software management interface and then select Add device button. Step 2 Please read the quick start guide carefully before you use this series product!! Press it manually to turn on/off the device power. Press it for a long time (About 6 seconds) to pair. Power button Indicator light The blue light is flashing quickly when it is in pair mode.The blue light is on if the connection is OK. The yellow light is on if the pair is OK but here is no network. Socket Insert the power socket. Fuse cover Open it to replace fuse. This quick start guide is for (including but not limited to) RC1 and DH-CE-Z100 series product. Pin Fuse Cover Socket Indicator Light Power Button Power consumption statistics Remote boot up and shut down Schedule boot up and shut down Countdown boot up and shut down On the client, it can collect the device power consumptions connected to the outlet. On the client, you can boot up or shut down the device remotely. On the client, you can set boot up and shut down time. On the client, you can set device boo up and shot down countdown time. Functions Press the Pair button for about 6 seconds; you can go to the pair mode. Now you can see the blue indicator light becomes flashing quickly. The light becomes on after the pair process is successful. You can view the pair is successful on the LeBox and the device is added to the wireless remote control outlet category. FCC Compliance Statement 2. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Zhejiang Dahua Vision Technology Co., Ltd. The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Number: CF302 Version: V05 Date: 21-05-2012 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Postal/Zip: 310053 City: Hangzhou State/Province: Country: China Contact Person: Mr. Ms. Name: Yolanda chen Function: Certified engineer Email: [email protected] Web: Phone: 0571-28822025 Fax: 0571-28178753 declare for the equipment identified by: Product Description Wireless Remote Control Outlet、Smart Outlet Type or Model(s) RC1、DH-CE-Z100、ICM-P210 Tradename or Brand(s) that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Testing Laboratory name: City and Country: Lab accreditation Number: Test Report Number: Date of issue: Cerpass Technology Corp. Taiwan,China TW1049, TW1061, 488071, 390316 SEFD1410016 Nov 10, 2014 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name, City and Country: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hangzhou, China 2014/12/17 Yolanda chen Certified engineer This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

Zhejiang Dahua Vision Technology Co., Ltd. Date: 2014-12-17 FCC ID: SVNDHCEZ100 Please be notified that we, the undersigned, declares that the product which bears the above FCC ID contains 3 model numbers: RC1、DH-CE-Z100、ICM-P210 The difference of them as show bellow: RC1 DH-CE-Z100 ICM-P210 No differences in function,only for the differnet groups of customers Your understanding will be highly appreciated. Sincerely, Yolanda chen/ Certified engineer Zhejiang Dahua Vision Technology Co., Ltd. Signature:

RF_160, Issue 03 Declaration of Authorization We Name: Zhejiang Dahua Vision Technology Co., Ltd Address: The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China City: Hangzhou Country: China Declare that: Name Representative of agent: Miro Chueh (1) Agent Company name: Cerpass Technology (Suzhou) Co.,Ltd Address: No.66,Tangzhuang Road, Suzhou Industrial Park, Jiangsu 215006, China. City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wireless Remote Control Outlet 、Smart Outlet Type designation: RC1、DH-CE-Z100、ICM-P210 Trademark: on our behalf. Date: ...2014-12-17............ City: ... China .................... Name: ... Yolanda chen ........... (2) Function: ... Certified engineer ................ Signature: ...... ......................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Zhejiang Dahua Vision Technology Co., Ltd Address : The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China City: Hangzhou Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SVNDHCEZ100 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: The needs of customers Planned Release Date STC: 180days (notes 2, 3, 4, 5) Date: 2014/12/17 Name and signature of applicant: Yolanda chen Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

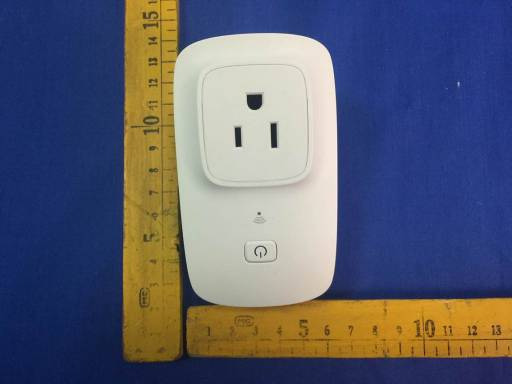

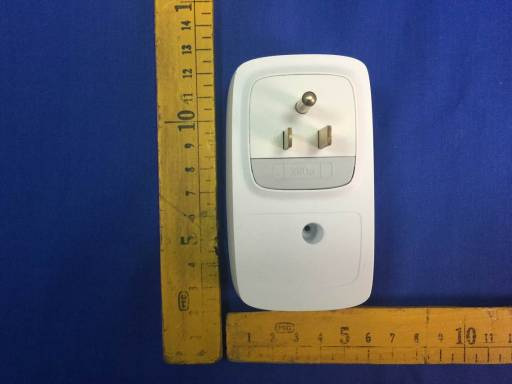

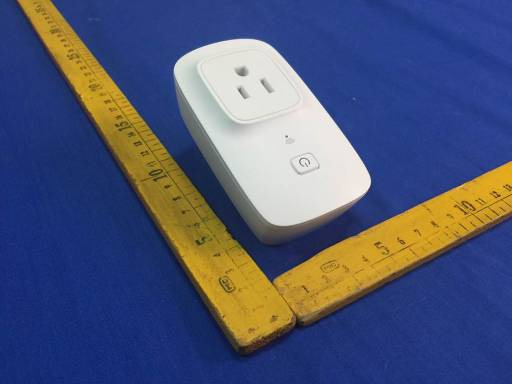

CERPASS TECHNOLOGY CORP. Report No.: SEFB1410016 Cerpass Technology Corp. Issued date : Dec 23, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFB1410016 Cerpass Technology Corp. Issued date : Dec 23, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 3) EUT Photo 4) EUT Photo

CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410016 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 1 of 20 FCC ID : SVNDHCEZ100 TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : Zhejiang Dahua Vision Technology Co., Ltd. Address : The 1 st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Manufacturer : Zhejiang Dahua Vision Technology Co., Ltd. Address : The 1 st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Equipment : Wireless Remote Control Outlet、Smart Outlet Model No. : RC1、DH-CE-Z100、ICM-P210 FCC ID : SVNDHCEZ100
The test result refers exclusively to the test presented test model / sample.,
Without written approval of CERPASS TECHNOLOGY(SUZHOU)CO., LTD. the test report shall not be reproduced except in full. CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410016 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 2 of 20 FCC ID : SVNDHCEZ100 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 Test Mode & Test Software ........................................................................................................ 6 2.3 General Information of Test........................................................................................................ 6 2.4 Measurement Uncertainty .......................................................................................................... 7 3. Test of Conducted Emission.............................................................................................................. 8 3.1 Test Limit .................................................................................................................................... 8 3.2 Test Procedures ......................................................................................................................... 8 3.3 Typical Test Setup ...................................................................................................................... 9 3.4 Measurement equipment ........................................................................................................... 9 3.5 Test Result and Data ................................................................................................................ 10 4. Test of Radiated Emission ............................................................................................................... 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement equipment ......................................................................................................... 14 4.5 Test Result and Data ................................................................................................................ 15 5. 20dB Bandwidth Measurement Data ............................................................................................... 18 5.1 Test Limit .................................................................................................................................. 18 5.2 Test Procedures ....................................................................................................................... 18 5.3 Test Setup Layout .................................................................................................................... 18 5.4 Measurement equipment ......................................................................................................... 18 5.5 Test Result and Data ................................................................................................................ 19 6. Transmission Times ......................................................................................................................... 20 6.1 Test Limit .................................................................................................................................. 20 6.2 Test Procedures ....................................................................................................................... 20 6.3 Test Setup Layout .................................................................................................................... 20 6.4 Measurement equipment ......................................................................................................... 20 6.5 Test Result and Data ................................................................................................................ 20 History of this test report CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410016 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 3 of 20 FCC ID : SVNDHCEZ100
Original  Additional attachment as following record: Attachment No. Issue Date Description CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFJ1410016 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec.16, 2014 TEL: +86-512-6917-5888 FAX: +86-512-6917-…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFD1410016 Cerpass Technology Corp. Issued date : Dec29, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 TEST SETUP PHOTOGRAPHS OF EUT Conducted EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFD1410016 Cerpass Technology Corp. Issued date : Dec29, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 Radiated Emission TEST
