SVNH1GAlarm Hub

Wireless Alarm Hub Quick Start Guide V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Cybersecurity Recommendations II Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. A strong password should be made up of at least 8 characters and a combination of special characters, numbers, and upper and lower case letters. 2. Update Firmware As is standard procedure in the tech-industry, we recommend keeping NVR, DVR, and IP camera firmware up-to-date to ensure the system is current with the latest security patches and fixes. “Nice to have” recommendations to improve your network security 1. Change Passwords Regularly Regularly change the credentials to your devices to help ensure that only authorized users are able to access the system. 2. Change Default HTTP and TCP Ports: ● Change default HTTP and TCP ports for systems. These are the two ports used to communicate and to view video feeds remotely. ● These ports can be changed to any set of numbers between 1025-65535. Avoiding the default ports reduces the risk of outsiders being able to guess which ports you are using. 3. Enable HTTPS/SSL: Set up an SSL Certificate to enable HTTPS. This will encrypt all communication between your devices and recorder. 4. Enable IP Filter: Enabling your IP filter will prevent everyone, except those with specified IP addresses, from accessing the system. 5. Change ONVIF Password: On older IP Camera firmware, the ONVIF password does not change when you change the system’s credentials. You will need to either update the camera’s firmware to the latest revision or manually change the ONVIF password. 6. Forward Only Ports You Need: ● Only forward the HTTP and TCP ports that you need to use. Do not forward a huge range of numbers to the device. Do not DMZ the device's IP address. ● You do not need to forward any ports for individual cameras if they are all connected to a recorder on site; just the NVR is needed. 7. Disable Auto-Login on SmartPSS: Those using SmartPSS to view their system and on a computer that is used by multiple people should disable auto-login. This adds a layer of security to prevent users without the appropriate credentials from accessing the system. 8. Use a Different Username and Password for SmartPSS: Cybersecurity Recommendations III In the event that your social media, bank, email, etc. account is compromised, you would not want someone collecting those passwords and trying them out on your video surveillance system. Using a different username and password for your security system will make it more difficult for someone to guess their way into your system. 9. Limit Features of Guest Accounts: If your system is set up for multiple users, ensure that each user only has rights to features and functions they need to use to perform their job. 10. UPnP: ● UPnP will automatically try to forward ports in your router or modem. Normally this would be a good thing. However, if your system automatically forwards the ports and you leave the credentials defaulted, you may end up with unwanted visitors. ● If you manually forwarded the HTTP and TCP ports in your router/modem, this feature should be turned off regardless. Disabling UPnP is recommended when the function is not used in real applications. 11. SNMP: Disable SNMP if you are not using it. If you are using SNMP, you should do so only temporarily, for tracing and testing purposes only. 12. Multicast: Multicast is used to share video streams between two recorders. Currently there are no known issues involving Multicast, but if you are not using this feature, deactivation can enhance your network security. 13. Check the Log: If you suspect that someone has gained unauthorized access to your system, you can check the system log. The system log will show you which IP addresses were used to login to your system and what was accessed. 14. Physically Lock Down the Device: Ideally, you want to prevent any unauthorized physical access to your system. The best way to achieve this is to install the recorder in a lockbox, locking server rack, or in a room that is behind a lock and key. 15. Connect IP Cameras to the PoE Ports on the Back of an NVR: Cameras connected to the PoE ports on the back of an NVR are isolated from the outside world and cannot be accessed directly. 16. Isolate NVR and IP Camera Network The network your NVR and IP camera resides on should not be the same network as your public computer network. This will prevent any visitors or unwanted guests from getting access to the same network the security system needs in order to function properly. Foreword IV Foreword General This Guide introduces the functions, installation wirings and operations of the wireless alarm hub. Models H1、H1G、H1F、ARC2000E-SW-imou、G2、DHI-ARC2000E-SW、ARC2000E-SW、 ARC2000E-SW-LC Safety Instructions The following categorized signal words with defined meaning might appear in the Guide. Signal Words Meaning DANGER Indicates a high potential hazard which, if not avoided, will result in death or serious injury. WARNING Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. CAUTION Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. TIPS Provides methods to help you solve a problem or save you time. NOTE Provides additional information as the emphasis and supplement to the text. Revision History No. Version Revision Content Release Time 1 V1.0.0 First Release February 2019 Privacy Protection Notice As the device user or data controller, you might collect personal data of others, such as face, fingerprints, car plate number, Email address, phone number, GPS and so on. You need t…

Text truncated - open the document above for the full version.

Zhejiang Dahua Vision Technology Co., Ltd Date: 2020/3/3 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: SVNH1G To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Date:2020/4/3

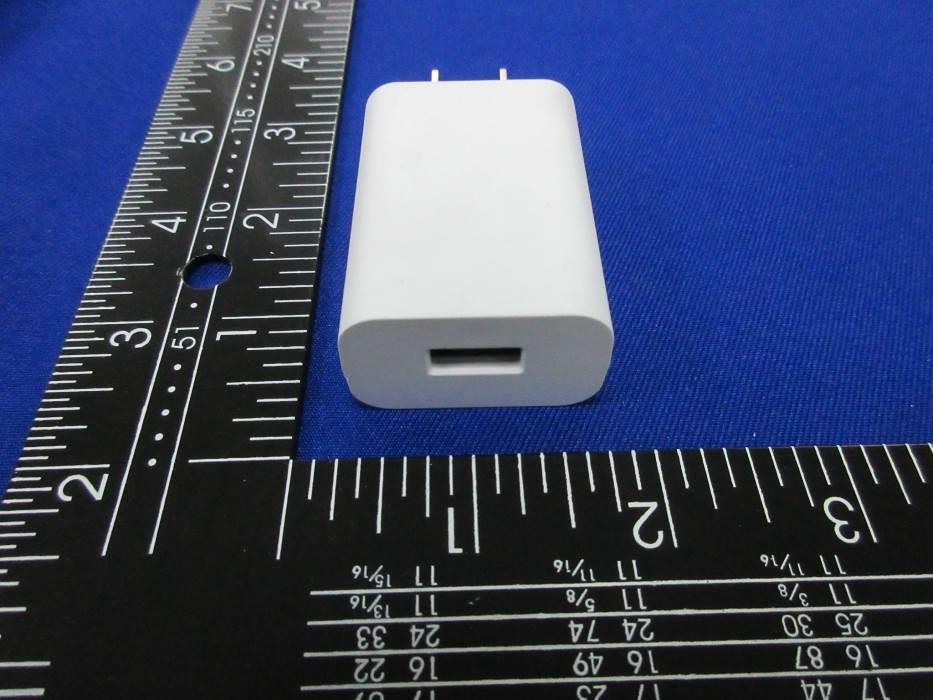

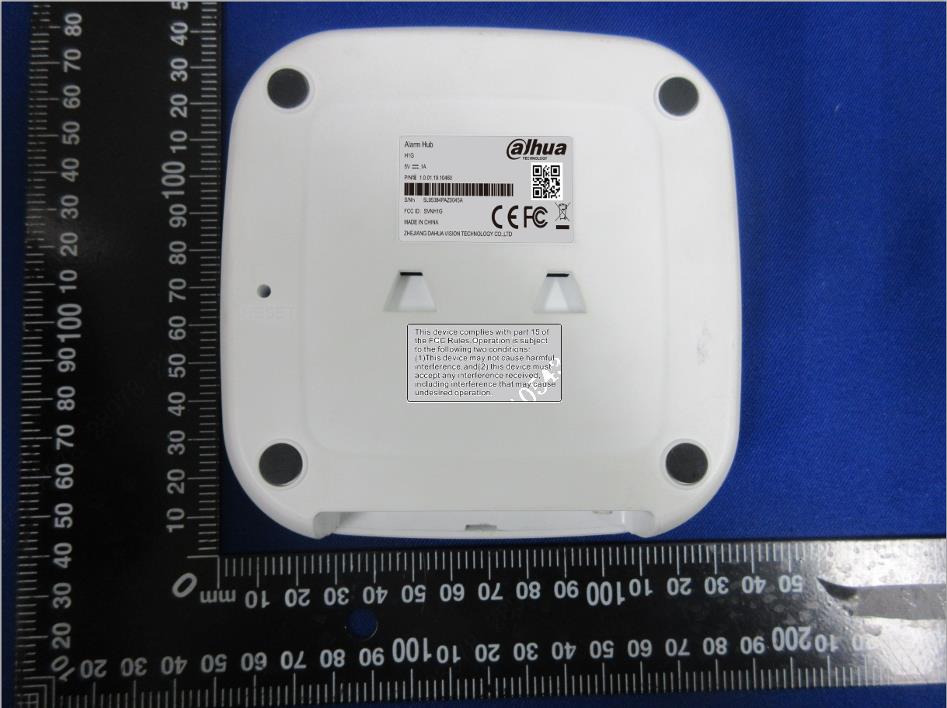

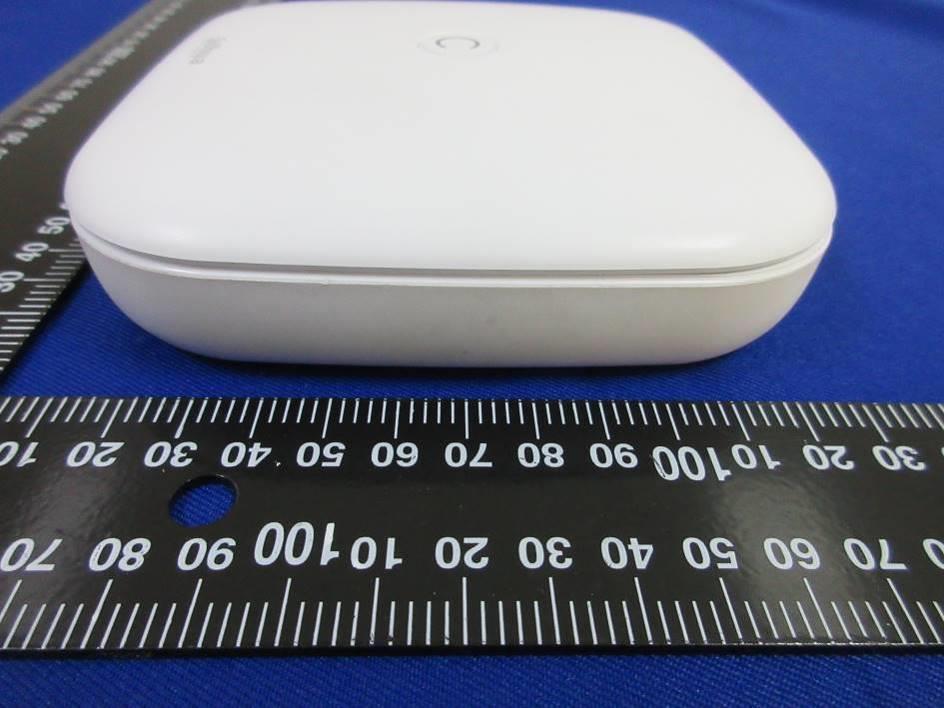

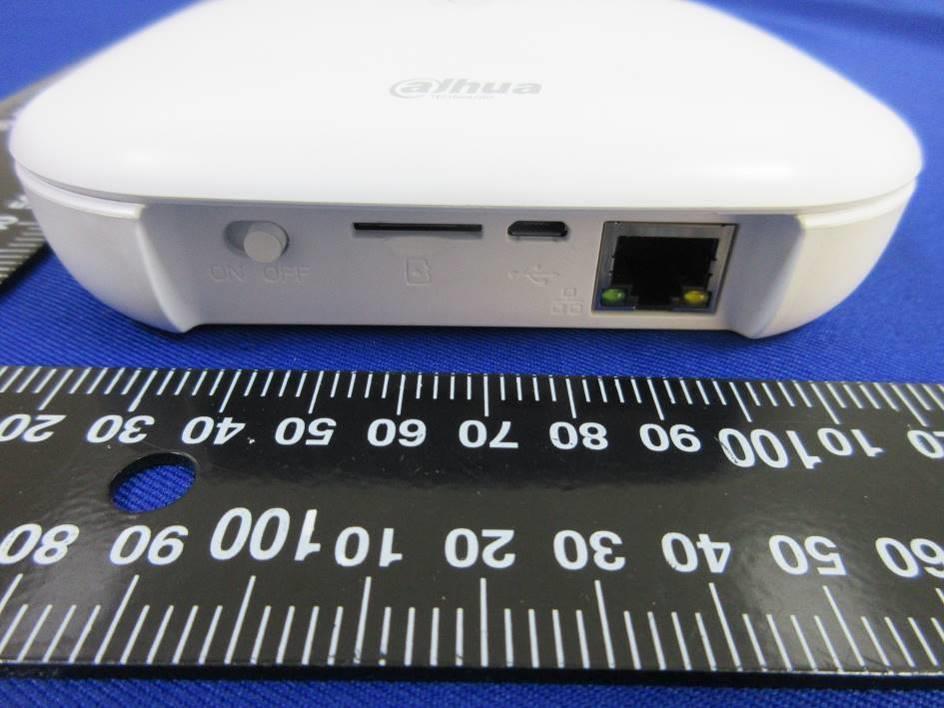

REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Appendix I External Photographs REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Detail View of Adapter REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT

1.0.01.19.10493 5L05384PAZ0045A Alarm Station ARC2000E-SW S/N： MADE IN CHINA ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD P/N： 5V ,1A FCC IDSVNH1G

REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Appendix II Internal Photographs REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 REPORT NO: 4788919558-1 DATE: Nov. 20, 2019 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Antenna and RF Model location Antenna and RF Model location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Alarm Hub, Alarm Station (The propaganda direction is inconsistent) MODEL NUMBER: H1G ADDITIONAL NUMBER: H1, H1F, ARC2000E-SW-imou, G2, DHI-ARC2000E-SW, ARC2000E-SW, ARC2000E-SW-LC FCC ID: SVNH1G REPORT NUMBER: 4788919558-2 ISSUE DATE: Nov. 20, 2019 Prepared for ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512 6808 6400 Fax: +86 512 6808 4099 Website: www.ul.com REPORT No.: 4788919558-2 Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 3 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4788919558-2 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. Address: No.1199 Bin’an Road, Binjiang District, Hangzhou, P.R.China Manufacturer Information Company Name: ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. Address: No.1199 Bin’an Road, Binjiang District, Hangzhou, P.R.China EUT Description EUT Name: Alarm Hub, Alarm Station (The propaganda direction is inconsistent) Model: H1G ADDITIONAL NUMBER H1, H1F, ARC2000E-SW-imou, G2, DHI-ARC2000E-SW, ARC2000E-SW, ARC2000E-SW-LC Sample Status: Normal Sample Received Date: May 16, 2019 Date of Tested: May 16~ June 10, 2019 REPORT No.: 4788919558-2 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 Complies Prepared By: Reviewed By: Tom Tang Chris Zhong Engineer Project Associate Senior Project Engineer Authorized By: Scholl Zhang Laboratory Leader REPORT No.: 4788919558-2 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4788919558-2 Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR2) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4788919558-2 Page 7 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. CALCULATED RESULTS Radio Frequency Radiation Exposure Evaluation Radio Frequency Radiation Exposure Evaluation WIFI (Worst case) Mode Output Power to Antenna Antenna Gain Power Density Limit Test Result 802.11g (dBm) (mW) (dBi) (Numeric) (mW/cm2) (mW/cm2) -- 22.5 177.83 3.95 2.48 0.088 1 Complies Note: 1. the calculated distance is 20cm. END OF REPORT

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C TEST REPORT For Alarm Hub MODEL NUMBER: H1G ADDITIONAL NUMBER: H1, H1F, ARC2000E-SW-imou, G2, DHI-ARC2000E-SW, ARC2000E-SW, ARC2000E-SW-LC FCC ID: SVNH1G REPORT NUMBER: 4788919558-1 ISSUE DATE: Nov. 20, 2019 Prepared for ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4788919558-1 Page 2 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 11/20/2019 Initial Issue REPORT No.: 4788919558-1 Page 3 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC/IC Rules Test Results 1 6dB Bandwidth FCC Part 15.247 (a) (2) Pass 2 Conducted Output Power FCC Part 15.247 (b) (3) Pass 3 Power Spectral Density FCC Part 15.247 (e) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 Pass 6 Conducted Emission Test For AC Power Port FCC Part 15.207 Pass 7 Antenna Requirement FCC Part 15.203 Pass Note: The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT No.: 4788919558-1 Page 4 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 8 3. FACILITIES AND ACCREDITATION ................................................................................. 8 4. CALIBRATION AND UNCERTAINTY ................................................................................ 9 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 9 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 9 5. EQUIPMENT UNDER TEST ..............................................................................................10 5.1. DESCRIPTION OF EUT .............................................................................................10 5.2. MAXIMUM OUTPUT POWER.....................................................................................11 5.3. CHANNEL LIST ..........................................................................................................11 5.4. TEST CHANNEL CONFIGURATION ..........................................................................11 5.5. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................12 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................12 5.8. DESCRIPTION OF TEST SETUP ...............................................................................13 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................14 7. MEASUREMENT METHODS ............................................................................................15 8. ANTENNA PORT TEST RESULTS ...................................................................................16 8.1. ON TIME AND DUTY CYCLE .....................................................................................16 8.2. 6 dB DTS BANDWIDTH ..............................................................................................19 8.3. CONDUCTED OUTPUT POWER ...............................................................................27 8.4. POWER SPECTRAL DENSITY ..................................................................................29 8.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................37 9. RADIATED TEST RESULTS .............................................................................................69 9.1. RESTRICTED BANDEDGE ........................................................................................75 9.1.1. 802.11b MODE ....................................................................................................76 9.1.2. 802.11g MODE ....................................................................................................80 9.1.3. 802.11n HT20 MODE ..........................................................................................84 9.1.1. 802.11n HT40 MODE ..........................................................................................88 9.2. SPURIOUS EMISSIONS (1~18GHz) ..........................................................................92 9.2.1. 802.11b MODE ....................................................................................................92 9.2.2. 802.11g MODE ....................................................................................................98 9.2.3. 802.11n HT20 MODE ........................................................................................ 104 REPORT No.: 4788919…

Text truncated - open the document above for the full version.

REPORT No.: 4788919558-1 Page 61 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4788919558-1 Page 62 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4788919558-1 Page 63 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4788919558-1 Page 64 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4788919558-1 Page 65 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4788919558-1 Page 66 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4788919558-1 Page 67 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4788919558-1 Page 68 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4788919558-1 Page 69 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 9. RADIATED TEST RESULTS LIMITS Please refer to CFR 47 FCC §15.205 and §15.209 Radiation Disturbance Test Limit for FCC (Class B)(9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 Note: 1) At frequencies at or above 30 MHz, measurements may be performed at a distance other than what is specified provided: measurements are not made in the near field except where it can be shown that near field measurements are appropriate due to the characteristics of the device; and it can be demonstrated that the signal levels needed to be measured at the distance employed can be detected by the measurement equipment. Measurements shall not be performed at a distance greater than 30 meters unless it can be further demonstrated that measurements at a distance of 30 meters or less are impractical. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse linear-distance for field strength measurements; inverse-linear-distance-squared for power density measurements). (2) At frequencies below 30 MHz, measurements may be performed at a distance closer than that specified in the regulations; however, an attempt should be made to avoid making measurements in the near field. Pending the development of an appropriate measurement procedure for measurements performed below 30 MHz, when performing measurements at a closer distance than specified, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). This paragraph (f) shall not apply to Access BPL devices operating below 30 MHz. REPORT No.: 4788919558-1 Page 70 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Radiation Disturbance Test Limit for FCC (Above 1G) Frequency (MHz) dB(uV/m) (at 3 meters) Peak Average Above 1000 74 54 FCC Restricted bands of operation: Note: 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6c REPORT No.: 4788919558-1 Page 71 of 126 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TEST SETUP AND PROCEDURE Below 30MHz The setting of the spectrum analyser RBW 200Hz (From 9kHz to 0.15MHz)/ 9KHz (From 0.15MHz to 30MHz) VBW 200Hz (From 9kHz to 0.15MHz)/ 9KHz (From 0.15MHz to 30MHz) Sweep Auto Detector Peak/QP/ Average Trace Max hold 1. The testing follows the guidelines in ANSI C6…

Text truncated - open the document above for the full version.
