SVNHFWABCDS-WXYIP Camera

Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide Version 1.0.0 Dahua Technology CO., LTD Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide i Welcome Thank you for purchasing our Network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference! Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. Please check if the power supply is correct before operating the device. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC, DC5V or AC24V in the IEC60950-1. (Power supply requirement is subject to the device label). Please install easy-to-use device for power off before installing wiring, which is for emergent power off when necessary. Please prevent the line cord from being trampled or pressed, especially the plug, power socket and the junction from the device. Note: Do not connect these two power supplying sources to the device at the same time; it may result in device damage! We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modification or attempted repair. 2．Environment Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus; otherwise it may cause overexposure (It is not the device malfunction), which will affect the longevity of CCD or CMOS. Please transport, use and store the device within the range of allowed humidity and temperature. Please don’t keep the device in a place which is wet, dusty, extremely hot, and extremely cold and with strong electromagnetic radiation or unstable lighting. Please do not allow water and other liquid falling into the camera in case that the internal components are damaged. Please do not allow rain or damp to the indoor device in case fire or lightning may occur. Please keep the sound ventilation in case of heat accumulation. Please pack the device with standard factory packaging or material with same quality when transporting the device. Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation. 3. Operation and Daily Maintenance Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide ii Please do not touch the heat dissipation component of the device directly in order to avoid scald. Please do not dismantle the device; there is no component which can be fixed by users themselves in the machine. It may cause water leakage or bad image for the device due to unprofessional dismantling. It is recommended to use the device with thunder proof device in order to improve thunder proof effect. The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera. Do not touch the CCD (CMOS) optic component directly. You can use the blower to clean the dust or dirt on the lens surface. Please use a dry cloth wetted by alcohol to wipe away the dust gently if it is necessary to clean. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Don’t use volatile solvent like alcohol, benzene, thinner and etc or strong detergent with abrasiveness, otherwise it will damage the surface coating or reduce the working performance of the device. Dome cover is an optical device, please don’t touch or wipe cover surface directly during installation and use, please refer to the following methods to deal with once dirt is found: Stained with dirt Use oil-free soft brush or hair dries to remove it gently. Stained with grease or fingerprint Use soft cloth to wipe the water drop or oil gently to make it dry, then use oil-free cotton cloth or paper soaked with alcohol or detergent to wipe from the lens center to outward. It is ok to change the cloth and wipe several times if it is not clean enough. Warning Please use the standard accessories provided by manufacturer and make sure the device is installed and fixed by professional engineers. Please prevent the device surface from the radiation of laser beam when using laser beam device. Please do not provide two or more power supply modes for the device, otherwise it may cause damage to the device. Statement Please refer to the actual product for more details; the manual is just for reference. The manual will be regularly upgraded according to the product update; the upgraded content will be added in the manual without prior announcement. Please contact the supplier or customer service if there is any problem occurred when using the device. Please contact the customer service for the latest procedure and supplementary documentation. There may be deviation between the actual value of some data and the value provided in the manual due to the reasons such as the real environment is not stable and so on. Please refer to the company’s final explanation if there is any doubt or dispute. The company is not liable for any loss caused by the operation which is not followed by the manual. Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide iii Note: Please refer to the disk for more details, check and download corresponding user’s manual and tool. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package. Accessory Name Amount Network Camera Unit 1 Quick Start Guide 1 Installation Accessories Bag 1 CD 1 Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start G…

Text truncated - open the document above for the full version.

Zhejiang Dahua Vision Technology Co., Ltd.

Zhejiang Dahua Vision Technology Co., Ltd.

Zhejiang Dahua Vision Technology Co., Ltd.

Zhejiang Dahua Vision Technology Co., Ltd. Date: 2015-04-21 FCC ID: SVNHFWABCDS-WXY Please be notified that we, the undersigned, declares that the product which bears the above FCC ID contains multiple models numbers: DH-IPC-HFW1200S*-W-xxxx, DH-IPC-HFW1200S*-WS-xxxx, IPC-HFW1200S*-W-xxxx, IPC-HFW1200S*-WS-xxxx, DH-IPC-HFW1000S*-W-xxxx, DH-IPC-HFW1000S*-WS-xxxx, IPC-HFW1000S*-W-xxxx, IPC-HFW1000S*-WS-xxxx, (“*” can be P, N, or blank; “xxxx” can be 0360B or 0600B) Models difference: 1) “*” can be P, N, or blank (different software formats); “xxxx” can be 0360B or 0600B (different lens). 2) IPC-HFW1200S-W uses the main chip of 368 platform with sensor AR0330; IPC-HFW1000S-W uses the main chip of Hisilicon with sensor OV9712. 3) The difference between IPC-HFW1X00S-W and IPC-HFW1X00S-WS is SD card function; IPC-HFW1X00S-WS is equipped with SD card while IPC-HFW1X00S-W isn’t. Your understanding will be highly appreciated. Sincerely, Yolanda chen/ Certified engineer Zhejiang Dahua Vision Technology Co., Ltd. Signature:

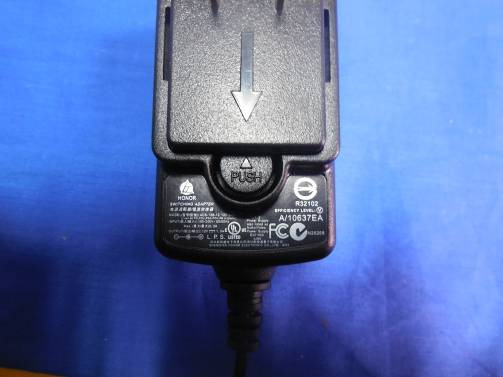

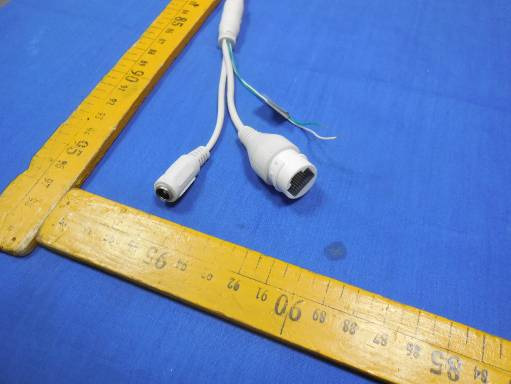

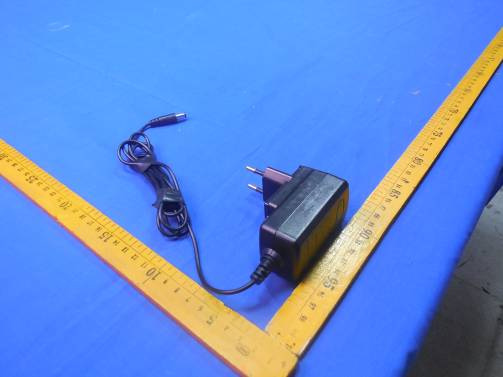

CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 7 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo(HFW1200S-W-0360B) 2) EUT Photo(HFW1200S-W-0360B) CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 7 3) EUT Photo(HFW1200S-W-0360B) 4) EUT Photo(HFW1200S-W-0360B) CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 7 5) EUT Photo(HFW1200S-W-0360B) 6) EUT Photo(HFW1200S-W-0360B) CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 7 7) EUT Photo(HFW1200S-W-0360B) 8) EUT Photo(Adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 7 9) EUT Photo(Adapter) 10) EUT Photo(Adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 6 of 7 11) EUT Photo(Adapter) 12) EUT Photo(Adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFB1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 7 of 7 13) EUT Photo(Adapter)

Label and location IP CAMERA Model: IPC-HFW1200S-W-0360B FCC ID: SVNHFWABCDS-WXY

CERPASS TECHNOLOGY CORP. Report No.: SEFC1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFC1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFC1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo WIFI Antenna

CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFM1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 1 of 3 FCC ID : SVNHFWABCDS-WXY Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT GPON ONT Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE802.11b: 13.04 dBm (0.0201W) IEEE802.11g: 15.27 dBm (0.0337W) IEEE 802.11n HT20: 13.60 dBm (0.0229 W) IEEE802.11n HT40: 11.21 dBm (0.0132 W) Antenna gain (Max) 2dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 15.27dBm (0.0337W) at 2412MHz (with numeric 1.59antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFM1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 2 of 3 FCC ID : SVNHFWABCDS-WXY TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY(SUZHOU)CO., LTD Report No.: SEFM1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 21, 2015 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 3 of 3 FCC ID : SVNHFWABCDS-WXY Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) IEEE802.11b 2412-2462 13.04 2.0 20 0.008 1 IEEE802.11g 2412-2462 15.27 2.0 20 0.013 1 IEEE802.11n HT20 2412-2462 13.60 2.0 20 0.009 1 IEEE802.11n HT40 2422-2452 11.21 2.0 20 0.005 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: SEFI1503003 Cerpass Technology Corp. Issued Date : Apr, 21, 2015 Tel:8651269175888 Fax: 8651269175666 Page No. : 1 of 73 FCC ID : SVNHFWABCDSWXY FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : Zhejiang Dahua Vision Technology Co., Ltd. Address : The 1 st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Equipment : IP CAMERA Model No. : DHIPCHFW1200S*Wxxxx,DHIPCHFW1200S*WSxxxx, IPCHFW1200S*Wxxxx, IPCHFW1200S*WSxxxx, DHIPCHFW1000S*Wxxxx,DHIPCHFW1000S*WSxxxx, IPCHFW1000S*Wxxxx, IPCHFW1000S*WSxxxx, (“*” can be P, N, or blank; “xxxx” can be 0360B or 0600B)
The test result refers exclusively to the test presented test model / sample.
Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1503003 Cerpass Technology Corp. Issued Date : Apr, 21, 2015 Tel:8651269175888 Fax: 8651269175666 Page No. : 2 of 73 FCC ID : SVNHFWABCDSWXY Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1 List of Measurements and Examinations .........................................................................................6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1 Feature of Equipment under Test .....................................................................................................7 2.2 Carrier Frequency of Channels ........................................................................................................9 The power level setting for 802.11b/g/n ......................................................................................................9 2.3 Test Manner....................................................................................................................................13 2.4 Description of Test System.............................................................................................................14 2.5 General Information of Test ............................................................................................................15 2.6 Measurement Uncertainty ..............................................................................................................15 3. Antenna Requirements ............................................................................................................................. 16 3.1 Standard Applicable........................................................................................................................16 3.2 Antenna Construction and Directional Gain ...................................................................................16 4. Test of Conducted Emission.................................................................................................................... 17 4.1 Test Limit.........................................................................................................................................17 4.2 Test Procedures..............................................................................................................................17 4.3 Typical Test Setup...........................................................................................................................18 4.4 Measurement Equipment ...............................................................................................................18 4.5 Test Result and Data ......................................................................................................................19 5. Test of Radiated Emission ....................................................................................................................... 21 5.1 Test Limit.........................................................................................................................................21 5.2 Test Procedures..............................................................................................................................21 5.3 Typical Test Setup...........................................................................................................................22 5.4 Measurement Equipment ...............................................................................................................23 5.5 Test Result and Data ......................................................................................................................24 6. Occupied Bandwidth................................................................................................................................. 37 6.1 Test Limit.........................................................................................................................................37 6.2 Test Procedures..............................................................................................................................37 6.3 Test Setup Layout...........................................................................................................................37 6.4 Measurement Equipment ...............................................................................................................37 6.5 Test Result and Data ......................................................................................................................38 7. Maximum Peak Output Power ................................................................................................................. 46 7.1 Test Limit.....................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr 21,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 TEST SETUP PHOTOGRAPHS OF EUT CONDUCTED EMISSION TEST RADEATED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1503003 Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr 21,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 30MHz~1000MHz 1000MHz~18000MHz
