SVNIPC-HFW1X30IP CAMERA

Bullet Network Camera Quick Start Guide V1.0.0 I Foreword General This manual introduces the installation and operations of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result. Provides additional information as a supplement to the text. Revision History Version Revision Content Release Date V1.0.0 First release. May 2022 Privacy Protection Notice As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and license plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information. About the Manual ● The manual is for reference only. Slight differences might be found between the manual and the product. ● We are not liable for losses incurred due to operating of the product in ways that are not in compliance with the manual. ● The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version. ● All the designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation. ● There might be deviations in the description of the technical data, functions and operations, or errors in the print. If there is any doubt or dispute, we reserve the right of final explanation. ● Upgrade the reader software or try other mainstream reader software if the manual (in PDF II format) cannot be opened. ● All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ● Please visit our website, contact the supplier or customer service if any problems occur while using the device. ● If there is any uncertainty or controversy, we reserve the right of final explanation. III Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements ● Transport the device under allowed humidity and temperature conditions. ● Pack the device with packaging provided by its manufacturer or packaging of the same quality before transporting it. ● Do not place heavy stress on the device, violently vibrate or immerse it in liquid during transportation. Storage Requirements ● Store the device under allowed humidity and temperature conditions. ● Do not place the device in a humid, dusty, extremely hot or cold site that has strong electromagnetic radiation or unstable illumination. ● Do not place heavy stress on the device, violently vibrate or immerse it in liquid during storage. Installation Requirements ● Strictly comply with the local electrical safety code and standards, and check whether the power supply is correct before operating the device. ● Please follow the electrical requirements to power the device. ◇ When selecting the power adapter, the power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply requirements are subject to the device label. ◇ We recommend using the power adapter provided with the device. ● Do not connect the device to two or more kinds of power supplies, unless otherwise specified, to avoid damage to the device. ● The device must be installed in a location that only professionals can access, to avoid the risk of non-professionals becoming injured from accessing the area while the device is working. Professionals must have full knowledge of the safeguards and warnings of using the device. ● Do not place heavy stress on the device, violently vibrate or immerse it in liquid during installation. ● An emergency disconnect device must be installed during installation and wiring at a readily accessible location for emergency power cut-off. ● We recommend you use the device with a lightning protection device for stronger protection against lightning. For outdoor scenarios, strictly comply with the lightning protection IV regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing. ● The dome cover is an optical component. Do not directly touch or wipe the surface of the cover during installation. Operation Requirements ● The cover must not be opened while the device is powered on. ● Do not touch the heat dissipation component of the device to avoid the risk of getting burnt. ● Use the device under allowed humidity and temperature conditions. ● Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing it, to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and flickering. ● When using a laser beam device, avoid exposing the device surface to laser beam radiation. ● Prevent liquid from flo…

Text truncated - open the document above for the full version.

17181920 21222324 25262728 29303132

1.2.51.32.16489-001 V1.1.0 01020304 05060708 09101112 13141516

Zhejiang Dahua Vision Technology Co., Ltd Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Confirmation Letter We, Zhejiang Dahua Vision Technology Co., Ltd The product: IP CAMERA And model No.: DH-IPC-HFW1430DS1-SAW FCC ID: SVNIPC-HFW1X30 IPC-HFW1230DS1-SAW,DH-IPC-HFW1230DS1-SAW,IPC-HFW1230DS1-SAW-0280B,DH-IPC- HFW1230DS1-SAW-0280B,IPC-HFW1230DS1-SAW-0360B,DH-IPC-HFW1230DS1-SAW- 0360B,DH-IPC-HFW12B0DS1-SAW,IPC-HFW12B0DS1-SAW,IPC-HFW1430DS1-SAW,IPC- HFW1430DS1-SAW-0280B,DH-IPC-HFW1430DS1-SAW-0280B,IPC-HFW1430DS1-SAW- 0360B,DH-IPC-HFW1430DS1-SAW-0360B,DH-IPC-HFW14B0DS1-SAW,IPC-HFW14B0DS1- SAW have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical with DH-IPC-HFW1430DS1- SAW. The difference lies only the model number. All these changes do not degrade the unwanted emissions of the certified product. Contact Name: Yolanda chen Title of Person: Certificate Manager Date：5/26/2022

Zhejiang Dahua Vision Technology Co., Ltd Date: 8/05/2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Zhejiang Dahua Vision Technology Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: SVNIPC-HFW1X30 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Dahua Vision Technology Co., Ltd Contact Name: Yolanda chen Title of Person：Certificate Manager Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Date:5/26/2022

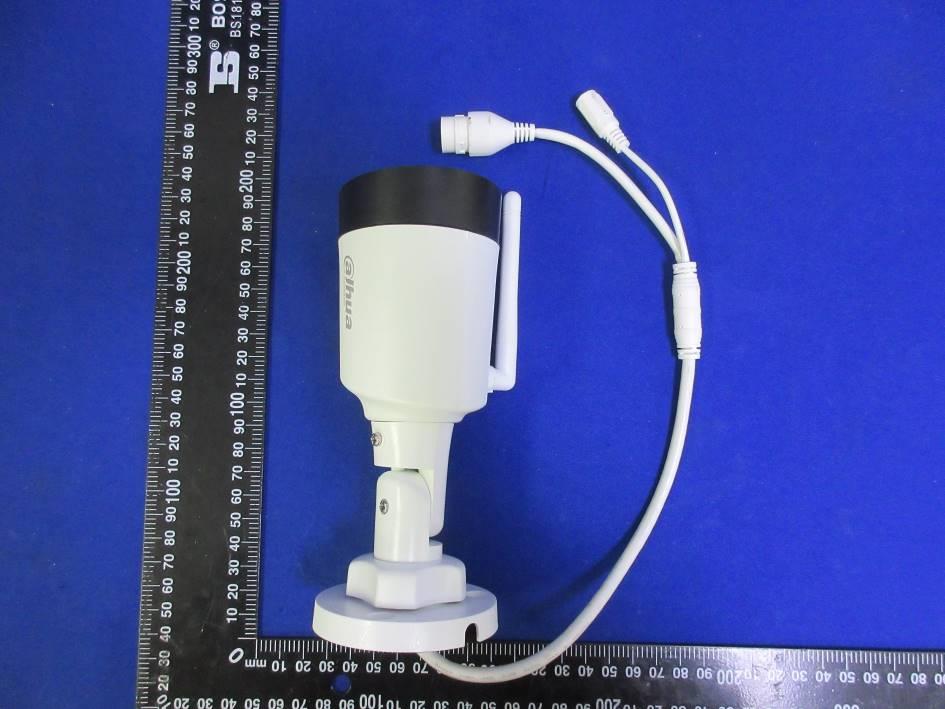

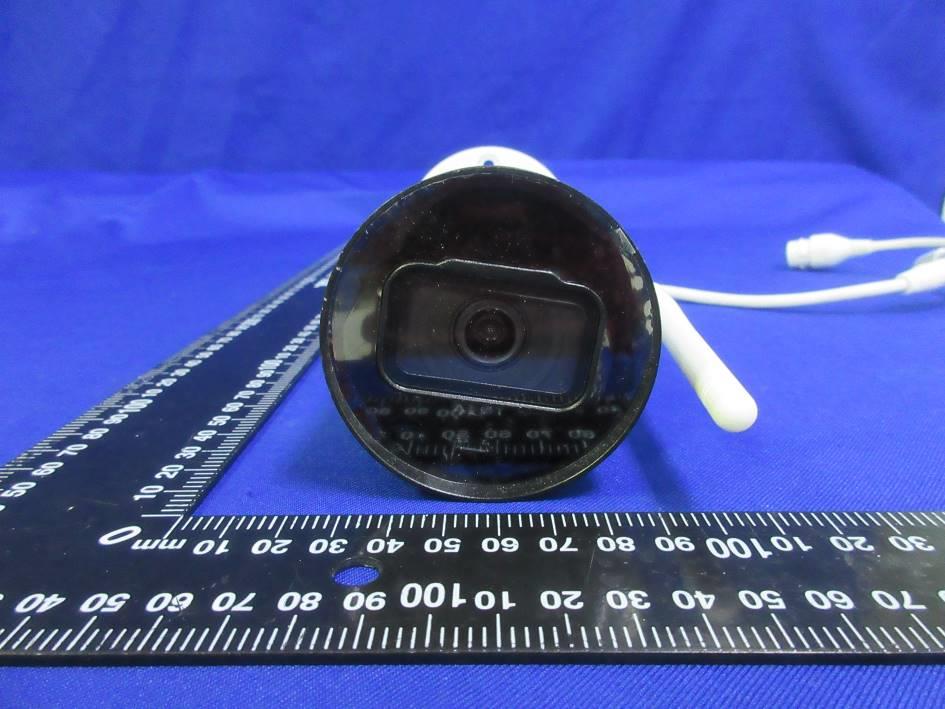

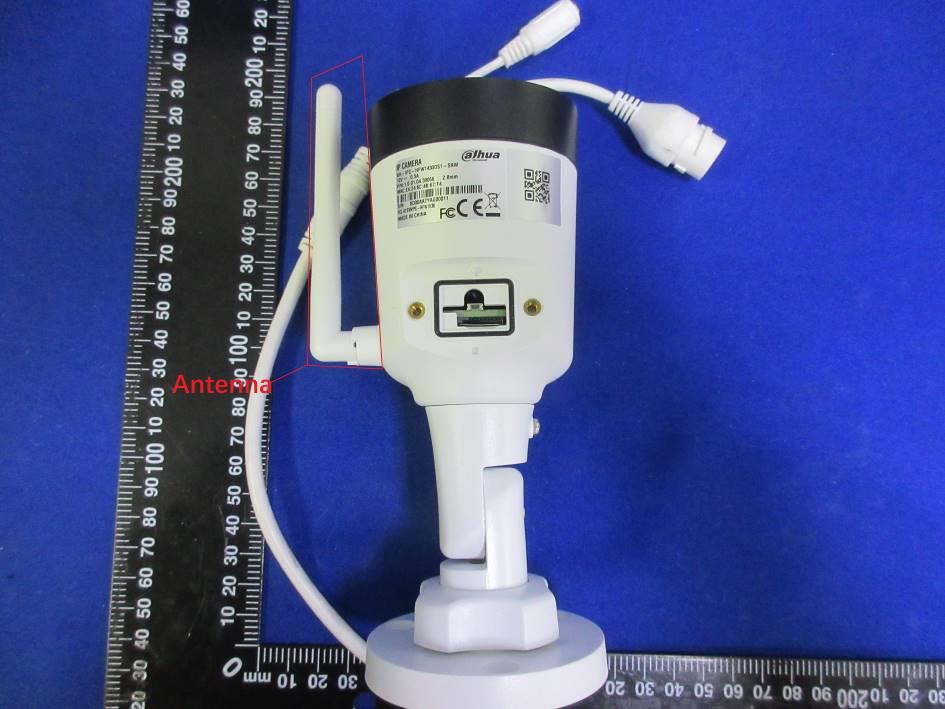

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Label and location Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of antenna& SD card slot Label and location

Appendix II Internal Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Model location ` Antenna location

Form-ULID-008536-12 V1.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For IP CAMERA MODEL NUMBER: DH-IPC-HFW1430DS1-SAW ADDTIONAL MODELS NUMBER: IPC-HFW1230DS1-SAW,DH-IPC-HFW1230DS1- SAW,IPC-HFW1230DS1-SAW-0280B,DH-IPC-HFW1230DS1-SAW-0280B,IPC- HFW1230DS1-SAW-0360B,DH-IPC-HFW1230DS1-SAW-0360B,DH-IPC- HFW12B0DS1-SAW,IPC-HFW12B0DS1-SAW,IPC-HFW1430DS1-SAW,IPC- HFW1430DS1-SAW-0280B,DH-IPC-HFW1430DS1-SAW-0280B,IPC-HFW1430DS1- SAW-0360B,DH-IPC-HFW1430DS1-SAW-0360B,DH-IPC-HFW14B0DS1-SAW,IPC- HFW142B0DS1-SAW PROJECT NUMBER: 4790401578-3 REPORT NUMBER: 4790401578-3-2 FCC ID: SVNIPC-HFW1X30 ISSUE DATE: May 17, 2022 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790401578-3-2 Page 2 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 05/17/2022 Initial Issue REPORT No.: 4790401578-3-2 Page 3 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4790401578-3-2 Page 4 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Manufacturer Information Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. EUT Description Product Name: IP CAMERA Model Name: DH-IPC-HFW1430DS1-SAW Additional Models No. : IPC-HFW1230DS1-SAW,DH-IPC-HFW1230DS1-SAW,IPC- HFW1230DS1-SAW-0280B,DH-IPC-HFW1230DS1-SAW- 0280B,IPC-HFW1230DS1-SAW-0360B,DH-IPC-HFW1230DS1- SAW-0360B,DH-IPC-HFW12B0DS1-SAW,IPC-HFW12B0DS1- SAW,IPC-HFW1430DS1-SAW, IPC-HFW1430DS1-SAW- 0280B,DH-IPC-HFW1430DS1-SAW-0280B,IPC-HFW1430DS1- SAW-0360B,DH-IPC-HFW1430DS1-SAW-0360B,DH-IPC- HFW14B0DS1-SAW,IPC-HFW142B0DS1-SAW Sample Number: 4946911 Data of Receipt Sample: May 12, 2022 Date Tested: May 12, 2022~ May 17, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4790401578-3-2 Page 5 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Test Location UL-CCIC Company Limited, EMC&RF Lab Address No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122 ,China Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056; CAB No.:CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790401578-3-2 Page 6 of 7 Form-ULID-008536-12 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures…

Text truncated - open the document above for the full version.

Form-ULID-008536-9 V1.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C CERTIFICATION TEST REPORT For IP CAMERA MODEL NUMBER: DH-IPC-HFW1430DS1-SAW ADDTIONAL MODELS NUMBER: IPC-HFW1230DS1-SAW,DH-IPC-HFW1230DS1- SAW,IPC-HFW1230DS1-SAW-0280B,DH-IPC-HFW1230DS1-SAW-0280B,IPC- HFW1230DS1-SAW-0360B,DH-IPC-HFW1230DS1-SAW-0360B,DH-IPC- HFW12B0DS1-SAW,IPC-HFW12B0DS1-SAW,IPC-HFW1430DS1-SAW,IPC- HFW1430DS1-SAW-0280B,DH-IPC-HFW1430DS1-SAW-0280B,IPC-HFW1430DS1- SAW-0360B,DH-IPC-HFW1430DS1-SAW-0360B,DH-IPC-HFW14B0DS1-SAW,IPC- HFW142B0DS1-SAW PROJECT NUMBER: 4790401578-3 REPORT NUMBER: 4790401578-3-1 FCC ID: SVNIPC-HFW1X30 ISSUE DATE: May 17, 2022 Prepared for Zhejiang Dahua Vision Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4790401578-3-1 ` Page 2 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 05/17/2022 Initial Issue REPORT No.: 4790401578-3-1 ` Page 3 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1.ATTESTATION OF TEST RESULTS ................................................................................. 4 2.TEST METHODOLOGY ..................................................................................................... 6 3.FACILITIES AND ACCREDITATION ................................................................................. 6 4.CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 7 4.2. MEASUREMENT UNCERTAINTY................................................................................ 7 5.EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT ............................................................................................... 8 5.2. MAXIMUM OUTPUT POWER ...................................................................................... 9 5.3. CHANNEL LIST ............................................................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ...........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ...............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ..............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ...................................................................11 5.8. DESCRIPTION OF TEST SETUP ...............................................................................12 5.9. MEASURING INSTRUMENT AND SOFTWARE USED ..............................................13 6.MEASUREMENT METHODS ............................................................................................14 7.ANTENNA PORT TEST RESULTS ...................................................................................15 7.1. TEST ENVIRONMENT ................................................................................................15 7.2. ON TIME AND DUTY CYCLE ......................................................................................16 7.3. 6 dB BANDWIDTH ......................................................................................................19 7.4. CONDUCTED POWER ...............................................................................................27 7.5. POWER SPECTRAL DENSITY ...................................................................................29 7.6. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................38 7.7. RADIATED TEST RESULTS .......................................................................................69 7.7.1. LIMITS AND PROCEDURE ..................................................................................69 7.7.2. RESTRICTED BANDEDGE ..................................................................................74 7.7.3. SPURIOUS EMISSIONS ......................................................................................91 8.AC POWER LINE CONDUCTED EMISSIONS ................................................................ 148 9.ANTENNA REQUIREMENTS .......................................................................................... 151 REPORT No.: 4790401578-3-1 ` Page 4 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1.ATTESTATION OF TEST RESULTS Applicant Information Company Name: Address: Manufacturer Information Company Name: Address: EUT Description Product Name: Model Name: Additional Models No. : Sample Number: Data of Receipt Sample: Date Tested: Zhejiang Dahua Vision Technology Co., Ltd. No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. Zhejiang Dahua Vision Technology Co., Ltd. No.1199, Bin’an road, Binjiang District, Hangzhou, P.R.China. IP CAMERA DH-IPC-HFW1430DS1-SAW IPC-HFW1230DS1-SAW,DH-IPC-HFW1230DS1-SAW,IPC- HFW1230DS1-SAW-0280B,DH-IPC-HFW1230DS1-SAW- 0280B,IPC…

Text truncated - open the document above for the full version.

REPORT No.: 4790401578-3-1 ` Page 136 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT40 LCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 4258.2823 38.40 5.33 43.73 74.00 -30.27 peak 2 7307.4134 38.53 8.40 46.93 74.00 -27.07 peak 3 10208.401 35.65 10.18 45.83 74.00 -28.17 peak 4 17163.6455 36.29 18.96 55.25 74.00 -18.75 peak 26.51 18.96 45.47 54.00 -8.53 average 5 17606.2008 34.98 19.61 54.59 74.00 -19.41 peak 27.06 19.61 46.67 54.00 -7.33 average 6 17921.2402 35.58 19.66 55.24 74.00 -18.76 peak 25.25 19.66 44.91 54.00 -9.09 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. AVG: VBW refer to section 7.2. 6. For above 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for HPF losses. The proper operation of the transmitter prior to adding the filter to the measurement chain. 7. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790401578-3-1 ` Page 137 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT40 MCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 4297.6622 38.34 4.77 43.11 74.00 -30.89 peak 2 7080.5101 36.62 9.44 46.06 74.00 -27.94 peak 3 10782.2228 36.74 12.01 48.75 74.00 -25.25 peak 4 17139.2674 35.76 18.84 54.60 74.00 -19.40 peak 25.98 18.84 44.82 54.00 -9.18 average 5 17495.5619 36.15 18.77 54.92 74.00 -19.08 peak 25.05 18.77 43.82 54.00 -10.18 average 6 17943.743 35.33 19.61 54.94 74.00 -19.06 peak 25.32 19.61 44.93 54.00 -9.07 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. AVG: VBW refer to section 7.2. 6. For above 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for HPF losses. The proper operation of the transmitter prior to adding the filter to the measurement chain. 7. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790401578-3-1 ` Page 138 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT40 MCH Vertical PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 4773.9717 37.62 5.28 42.90 74.00 -31.10 peak 2 7020.5026 37.17 9.28 46.45 74.00 -27.55 peak 3 13960.7451 35.87 15.55 51.42 74.00 -22.58 peak 4 17107.3884 35.51 18.59 54.10 74.00 -19.90 peak 25.46 18.59 44.05 54.00 -9.95 average 5 17641.8302 35.49 19.32 54.81 74.00 -19.19 peak 25.74 19.32 45.06 54.00 -8.94 average 6 18000 35.18 19.64 54.82 74.00 -19.18 peak 25.91 19.64 45.55 54.00 -8.45 average Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. 4. Peak: Peak detector. 5. AVG: VBW refer to section 7.2. 6. For above 3GHz part, filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for HPF losses. The proper operation of the transmitter prior to adding the filter to the measurement chain. 7. Only the worst case emission was recorded, if it complies with the limit, the other emissions deemed to comply with the limit. REPORT No.: 4790401578-3-1 ` Page 139 of 151 Form-ULID-008536-9 V1.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Polarization Verdict 11N HT40 HCH Horizontal PASS No. Frequency Reading Level Correct Factor Result Limit Margin Remark (MHz) (dBuV/m) (dB) (dBuV/m) (dBuV/m) (dB) 1 4518.9399 38.54 4.54 43.08 74.00 -30.92 peak 2 8700.7126 36.15 8.63 44.78 74.00 -29.22 peak 3 13855.732 35.04 15.31 50.35 74.00 -23.65 peak 4 16895.4869 36.95 18.45 55.40 74.00 -18.60 peak 25.42 18.…

Text truncated - open the document above for the full version.
