SVNIPC-K100Network Camera

HD Cube Network Camera Quick Start Guide Version 1.0.1 i Welcome Thank you for purchasing our network camera! This quick start guide is designed to be a reference tool for your system. Please keep this start guide well for future reference. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag. Before your operation please read the following instructions carefully. 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC60950-1. This series product supports PoE too. Please note: Do not connect these two power supplying sources to the device at the same time; it may result in device damage! We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modification or attempted repair. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation. 3．Installation Do not apply power to the camera before completing installation. Please install the proper power cut-off device during the installation connection. Always follow the instruction guide the manufacturer recommended. 4．Qualified engineers needed All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair. 5．Environment This series network camera should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. Please keep it away from the electromagnetic radiation object and environment. Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into the camera. ii Thunder-proof device is recommended to be adopted to better prevent thunder. The grounding studs of the product are recommended to be grounded to further enhance the reliability of the camera. 6. Daily Maintenance Please shut down the device and then unplug the power cable before you begin daily maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera. 7. Accessories Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package. Accessory Name Amount Network Camera 1 Quick Start Guide 1 Installation Accessories Bag 1 CD 1 iii Table of Contents 1 Structure...................................................................................................................................... 1 1.1 Device Components..................................................................................................... 1 1.2 Dimensions.................................................................................................................... 2 1.3 Bidirectional talk........................................................................................................... 3 1.3.1 Device-end to PC-end.......................................................................................... 3 1.3.2 PC-end to the Device-end.................................................................................... 3 1.4 Alarm Setup................................................................................................................... 4 1.4.1 Alarm Input and Output Connection................................................................... 4 2 Device Installation...................................................................................................................... 6 3 Quick Configuration Tool........................................................................................................... 8 3.1 Overview........................................................................................................................ 8 3.2 Operation....................................................................................................................... 8 4 Web Operation.......................................................................................................................... 11 4.1 Network Connection................................................................................................... 11 4.2 Login and Logout........................................................................................................ 11 5 FAQ............................................................................................................................................ 14 Appendix Toxic or Hazardous Materials or Elements............................................................... 16 1 1 Structure 1.1 Device Components You can refer to the following figure for component information. See Figure 1-1. Figure 1-1 Please refer to the following sheet for detailed information. SN Port Name Indicator Connector Note 1 Power indicator light POWER / z When system boots up–Green light becomes on. z When system is upgrading – Green light flashes. Interval is 0.5s. z When system is alarming– Green light flashes. Interval is 0.2s. 2 Network indicator light NET / z Wire network conn…

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co-located with any other transmitter or antenna.

Zhejiang Dahua Vision Technology Co., Ltd. The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China FCC Declaration of Conformity Number: CF302 Version: V05 Date: 21-05-2012 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: Zhejiang Dahua Vision Technology Co., Ltd. Address: The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Postal/Zip: 310053 City: Hangzhou State/Province: Country: China Contact Person: Mr. Ms. Name: Yolanda Function: Certified engineer Email: [email protected] Web: Phone: 0571-28822025 Fax: 0571-28178753 declare for the equipment identified by: Product Description Network Camera Type or Model(s) DH-IPC-K100W Tradename or Brand(s) that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Testing Laboratory name: City and Country: Lab accreditation Number: Test Report Number: Date of issue: Cerpass Technology Corp. Taiwan,China TW1049, TW1061, 488071, 390316 SEFD1302049 Apr 09, 2013 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name, City and Country: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hangzhou, China 2013/04/17 Yolanda Certified engineer This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

Zhejiang Dahua Vision Technology Co., Ltd. The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Zhejiang Dahua Vision Technology Co., Ltd. Address The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China City Hangzhou Country China request for this certification filing under: Grantee Code Product Number FCC ID: SVN IPC-K100 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hangzhou, China 2013/04/17 Yolanda Certified engineer

Zhejiang Dahua Vision Technology Co., Ltd. The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Zhejiang Dahua Vision Technology Co., Ltd. Address The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China City Hangzhou Country China declare that the following representative (agent): Name (person) Miro Company name Cerpass Technology (Suzhou) Co.,Ltd Address No.66,Tangzhuang Road City Suzhou Industrial Park, Jiangsu 215006, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Network Camera Type or Model(s) DH-IPC-K100W Tradename or Brand(s) We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hangzhou, China 2013/04/17 Yolanda Certified engineer

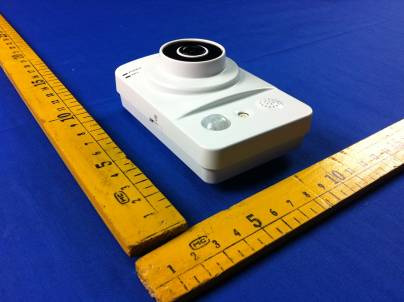

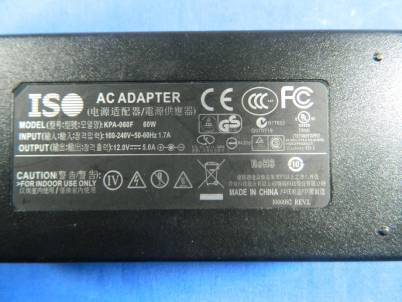

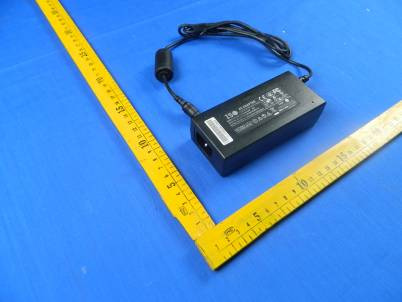

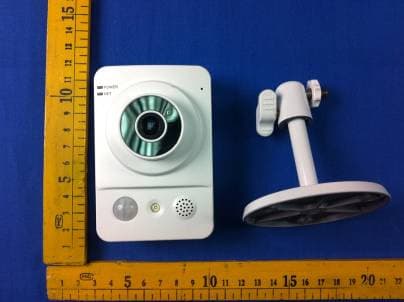

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 6 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 6 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 6 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 6 Adapter 7) EUT Photo(power adapter) 8) EUT Photo(power adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 6 9) EUT Photo(power adapter) 10) EUT Photo(power adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 6 of 6 11) EUT Photo(power adapter)

Label Location

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo（module） Antenna

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT DH-IPC-K100W Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 20.48 dBm (111.69 mW) 802.11g: 17.58dBm (57.28 mW) 802.11n (20MHz): 17.27dBm (53.33 mW) 802.11n (40MHz): 17.24 dBm (52.97 mW) Antenna gain (Max) 1.5 dBi (Numeric gain:1.413) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 20.48 dBm (111.69 mW) at 2412 MHz (withnumeric 1.413antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 20.48 1.5 20 0.0061 1 802.11g 2412-2462 17.58 1.5 20 0.0052 1 802.11 n(20MHz) 2412-2462 17.27 1.5 20 0.0052 1 802.11 n(40MHz) 2422-2452 17.24 1.5 20 0.0051 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFI1302049 Cerpass Technology(Suzhou) Co., Ltd. Issued Date : Mar 26,2013 Tel: 86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 1 of 70 FCC ID : SVNIPC K100 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Zhejiang Dahua Vision Technology Co., Ltd. Address : The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Equipment : Network Camera Model No. : DH IPC K100W FCC ID : SVNIPC K100
The test result refers exclusively to the test presented test model / sample.,
Without written approval of Cerpass Technology(Suzhou) Corp. the test report shall not be reproduced except in full.
The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Rules and Regulations Part 15.. The test report has been issued separately.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFI1302049 Cerpass Technology(Suzhou) Co., Ltd. Issued Date : Mar 26,2013 Tel: 86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 2 of 70 FCC ID : SVNIPC K100 Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Manufacturer .............................................................................................................................. 7 2.2 Feature of Equipment under Test ............................................................................................... 7 2.3 Carrier Frequency of Channels .................................................................................................. 8 2.4 Test Mode and Test Software ..................................................................................................... 9 2.5 Description of Test System ......................................................................................................... 9 2.6 General Information of Test ...................................................................................................... 10 2.7 Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 5. Test of Radiated Emission ............................................................................................................... 16 5.1 Test Limit .................................................................................................................................. 16 5.2 Test Procedures ....................................................................................................................... 16 5.3 Typical Test Setup .................................................................................................................... 17 5.4 Measurement equipment ......................................................................................................... 18 5.5 Test Result and Data ................................................................................................................ 19 6. 6dB Bandwidth Measurement Data ................................................................................................. 32 6.1 Test Limit .................................................................................................................................. 32 6.2 Test Procedures ....................................................................................................................... 32 6.3 Test Setup Layout .................................................................................................................... 32 6.4 Measurement equipment ......................................................................................................... 32 6.5 Test Result and Data ................................................................................................................ 32 7. Maximum Peak Output Power ......................................................................................................... 39 7.1 Test Limit .................................................................................................................................. 39 7.2 Test Procedures ......................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1302049 Cerpass Technology Corp. Issued date : Mar 26,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
