  1. Home/
  2. Zhejiang Dahua Vision Technology Co., Ltd/
  3. SVNIPC-KWABW

SVNIPC-KWABWIP Camera

Zhejiang Dahua Vision Technology Co., Ltd
IP Camera - FCC ID SVNIPC-KWABW - Zhejiang Dahua Vision Technology Co., Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 25, 2014
Application Purpose
Original Equipment
Date of Application
Jun 25, 2014
Equipment Note
IP Camera
Frequency Range
2422.00000000 - 2452.00000000
Company
Zhejiang Dahua Vision Technology Co., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Zhejiang Dahua Vision Technology Co., Ltd.

Cover Letter(s)

Zhejiang Dahua Vision Technology Co., Ltd.

Cover Letter(s)

Zhejiang Dahua Vision Technology Co., Ltd. Date: 2014-6-09 FCC ID: SVNIPC-KWABW Please be notified that we, the undersigned, declares that the product which bears the above FCC ID contains 8 model numbers: IPC-KW12WP, IPC-KW10WP, IPC-KW10WN, IPC-KW12WN, DH-IPC-KW10WP, DH-IPC-KW10WN, DH-IPC-KW12WP, DH-IPC-KW12WN The difference of them as show bellow: DH-IPC-KW10WP Lack of audio output, SD card function DH-IPC-KW10WN Lack of audio output, SD card function, the software version is different DH-IPC-KW12WP The same as the main test model, only different sales market DH-IPC-KW12WN Software version is different (different sales market) IPC-KW10WP Lack of audio output, SD card function IPC-KW10WN Lack of audio output, SD card function, the software version is different IPC-KW12WP Main test model IPC-KW12WN Software version is different (different sales market) Your understanding will be highly appreciated. Sincerely, Yolanda chen/ Certified engineer Zhejiang Dahua Vision Technology Co., Ltd. Signature:

External Photos

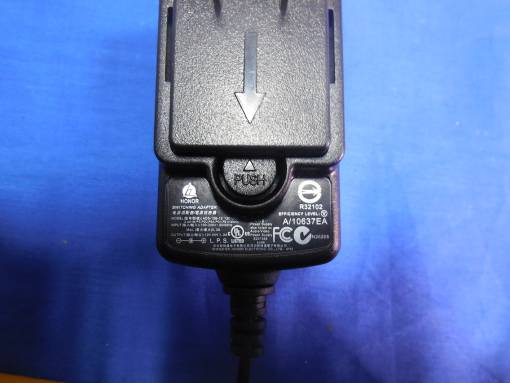

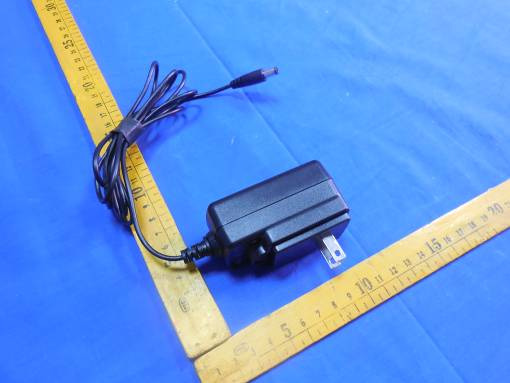

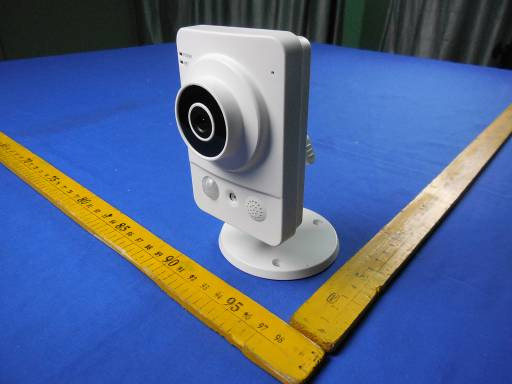

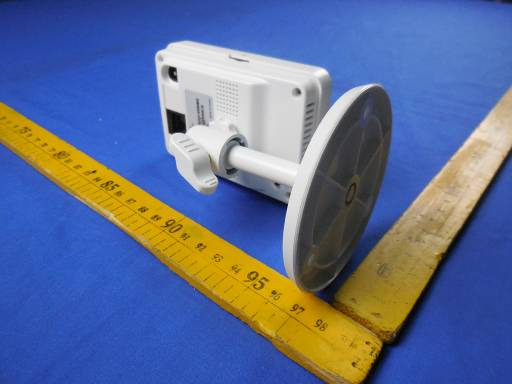

CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 5 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 5 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 5 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 5 7) EUT Photo(Adapter ) 8) EUT Photo(Adapter ) CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 5 9) EUT Photo(Adapter ) 10) EUT Photo(Adapter )

Internal Photos

CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 WLAN Antenna ATHEROS AR9271-AL3A D48431C 1317 KOPEA

RF Exposure Info

CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : SVNIPC-KWABW Radio Frequency Exposure LIMIT According to Β§15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See Β§ 1.1307(b)(1) of this chapter. EUT Specification EUT Full HD Multi-Streams Micro Wi-Fi Box IP Camera Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE802.11b: 19.69dBm (0.093 W) IEEE802.11g: 18.89 dBm (0.077 W) IEEE802.11n HT20: 15.16 dBm (0.032 W) IEEE 802.11n HT40: 13.59dBm (0.022 W) Antenna gain (Max) 3.05 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 19.69 dBm (0.093W) at 2462MHz (with numeric 1 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : SVNIPC-KWABW TEST RESULTS No non-compliance noted. Calculation Given d GP E Γ—Γ— = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S Γ—Γ— = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S Γ— Γ—= Γ— Γ—Γ— = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Jun 05, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : SVNIPC-KWABW Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) IEEE802.11b 2412-2462 19.69 3.05 20 0.037 1 IEEE802.11g 2412-2462 18.89 3.05 20 0.031 1 IEEE802.11n HT20 2412-2462 15.16 3.05 20 0.013 1 IEEE802.11n HT40 2422-2452 13.59 3.05 20 0.009 1 NOTE: The formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

Test Report

CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued Date : Jun 05, 2014 Tel:86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 1 of 73 FCC ID : SVNIPC KWABW FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : Zhejiang Dahua Vision Technology Co., Ltd Address : The 1st floor, building F, No.1199 Bin’an road, Changhe Street, Binjiang District, Hangzhou, P.R. China. Equipment : IP CAMERA Model No. : DH IPC KW10WP; DH IPC KW10WN; DH IPC KW12WP; DH IPC KW12WN; IPC KW10WP; IPC KW10WN; IPC KW12WP; IPC KW12WN; FCC ID : SVNIPC KWABW  The test result refers exclusively to the test presented test model / sample.  Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.  The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued Date : Jun 05, 2014 Tel:86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 2 of 73 FCC ID : SVNIPC KWABW Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1 List of Measurements and Examinations .........................................................................................6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1 Feature of Equipment under Test .....................................................................................................7 2.2 Carrier Frequency of Channels ........................................................................................................8 2.3 Test Manner ......................................................................................................................................9 2.4 Description of Test System .............................................................................................................10 2.5 General Information of Test ............................................................................................................11 2.6 Measurement Uncertainty ..............................................................................................................11 3. Antenna Requirements ............................................................................................................................. 12 3.1 Standard Applicable ........................................................................................................................12 3.2 Antenna Construction and Directional Gain ...................................................................................12 4. Test of Conducted Emission.................................................................................................................... 13 4.1 Test Limit.........................................................................................................................................13 4.2 Test Procedures..............................................................................................................................13 4.3 Typical Test Setup...........................................................................................................................14 4.4 Measurement Equipment ...............................................................................................................14 4.5 Test Result and Data ......................................................................................................................15 5. Test of Radiated Emission ....................................................................................................................... 17 5.1 Test Limit.........................................................................................................................................17 5.2 Test Procedures..............................................................................................................................17 5.3 Typical Test Setup...........................................................................................................................18 5.4 Measurement Equipment ...............................................................................................................19 5.5 Test Result and Data ......................................................................................................................20 6. Occupied Bandwidth................................................................................................................................. 33 6.1 Test Limit.........................................................................................................................................33 6.2 Test Procedures..............................................................................................................................33 6.3 Test Setup Layout ...........................................................................................................................33 6.4 Measurement Equipment ...............................................................................................................33 6.5 Test Result and Data ......................................................................................................................34 7. Maximum Peak Output Power ................................................................................................................. 42 7.1 Test Limit.........................................................................................................................................42 7.2 Test Procedure ...............................................................................................................................42 7.3 Test Setup Layout .........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Apr 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 TEST SETUP PHOTOGRAPHS OF EUT RADEATED EMISSION TEST Below 1G Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: SEFI1404116 Cerpass Technology Corp. Issued date : Apr 05, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 Above 1G Front View Rear View

Contact Information

Applicant

Yolanda chen
[email protected]0571-28822025Fax: 0571-28178753

Technical Contact

TeleconformityMark Koop
[email protected](31)848395876

Rietven 31 Β· Enschede, Overyssel Β· Netherlands

Test Firm

Cerpass Technology (SuZhou) Co., Ltd.Miro Chueh
[email protected]86-0512-69175888Fax: 86-0512-36175666

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz23.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device, except in accordance with accepted multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
