SVW-PR1211WPSDRF Smoke Detector

STOP NUISANCE ALARMS Push the test/silencer button on the initiating (primary) smoke alarm after the alarm has started, and the sound will stop immediately. The test LED will continue to flash as long as the smoke level is higher than the reduced smoke sensitivity (silencer/hush) level. All other units will continue to alarm for another 5-15 seconds, however with another sound character, See also the “ALARM” section. TEST Each smoke alarm can be tested individually by a short push of the test/silencer button. Then the siren in the smoke alarm will sound, all features (except radio transmission) are checked. At the same time the smoke alarm’s sensitivity is reduced (see the “SILENCER/HUSH” feature section) and two short beeps will be heard. If you would like to test the wireless alarm feature the test/silencer button should be pushed for more than 3 seconds. (The smoke alarm will not go into silencer mode) After this the test/alarm LED will shine constantly for 40 seconds, and this confirms that radio transmission is taking place. After a short delay all other units will start to alarm (but with a different alarm sound) the alarms will stop after 25-40 seconds. If other units are to be tested, there should be a delay of at least 40 seconds between each testing. IMPORTANT INFORMATION ABOUT RADIO TRANSMISSION OF ALARMS Regularly check the range and function, so that the smoke alarm could be heard sufficiently in the bedrooms, both before and after installation. Please note that radio conditions and interference etc. can change over time, therefore no guarantee can be given about a specific transmission range etc. Each time, place and building are unique from a radio transmission point of view. WARNING : Changes or modifications made to this smoke alarm not expressly approved by licence holder may void the FCC authorization to operate this equipment. © COPYRIGHT 40-573 OWNERS MANUAL FOR WIRELESS INTERCONNECTABLE PHOTOELECTRIC SMOKE ALARM. MODEL PR1211 prENISO12239 Trade Name : (reserve) Model No. : (reserve) FCC ID : SVW – PR1211WPSD IC : 5641A - PR1211 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions. (1) this device my not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation. These smoke alarms are equipped with a very sophisticated, and reliable radio system. Due to the use of modern and advanced components, the range and penetration is high, while the current consumption is extremely low, giving a long battery life. To enable radio transmission of alarms, including during severe radio conditions such as radio interference etc., each smoke alarm has a code switch to reduce the risk of interference of (or to) similar systems in the neighbourhood. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Consult the dealer or local distributor • Change code and try again • Particular environment – reallocated smoke alarm installation position • Shorter distance in between smoke alarms POSITION AND INSTALLATION – please refer to the separate position and installation directions. BATTERY INSTALLATION. The power supply should be a good quality 9-volt block battery of alkaline or lithium type, for example Ultralife. Alkaline Battery life is normally in excess of one year. When it is time to replace the battery, the smoke alarm will give a low battery warning “beep” once a minute, for up to 30 days (the smoke alarm is fully operational during this period). Each time a battery is connected, the smoke alarm will re-calibrate itself and check the detection system. When this process is completed, the smoke alarm sounds one longer beep. For extra safety, the smoke alarm also re-checks itself every 24 hours. When the detector chamber becomes dirty, and the smoke alarm needs to be cleaned, this is indicated by 4 repeated short beeps. If there is any technical problem in the circuitry, or interference in the detection system, this is indicated by either 2 or 3 short beeps. Technical problems could also occur from dust, or from external electromagnetic or extreme light sources, etc. Cleaning or re-positioning may over come this kind of problem, if not the smoke alarm needs to be returned to the supplier for service. Please note that the indications for the operation and status of the hush/silence feature are 2 or 3 fast beeps. Please refer to the “HUSH/SILENCER” section. CODING In a smoke alarm system, all units must be set to the same code. The factory pre-set code is “2” and to prevent interference from other systems, we recommend that you change the code on all units on installation. The same is recommended if you – for any reason incur problems suspected to be nuisance alarms. When new codes are set, each unit and the whole system should be tested again (Please refer to the “TEST” section.) ALARM There are two (three) different alarm sounds to differentiate where and which unit is the source of the alarm. In the detecting (primary) smoke alarm there is a characteristic sound for the smoke alarm. In all other (secondary) detectors the alarm sound has a different characteristic. The alarm sound could be …

Text truncated - open the document above for the full version.

HOMEWATCH LIMITED 1906 Cheung Tat Centre Tel : (852) 2557 4186, (852) 2557 4763 18 Cheung Lee Street, Chai Wan, Hong Kong. Fax : (852) 2897 2146, email : [email protected] CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 JANUARY 10, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Homewatch Ltd. requests confidentiality for the following products: FCC ID Number Product Title/Model SVW-PR1211WPSD 9VDC wireless photoelectric smoke alarm model PR1211 For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Homewatch trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Philip Sia Company: Homewatch Ltd. Address: 1906 Cheung Tat Centre, 18 Cheung Lee Street, Chai Wan, Hong Kong Phone: +852 25574186 Email: [email protected]

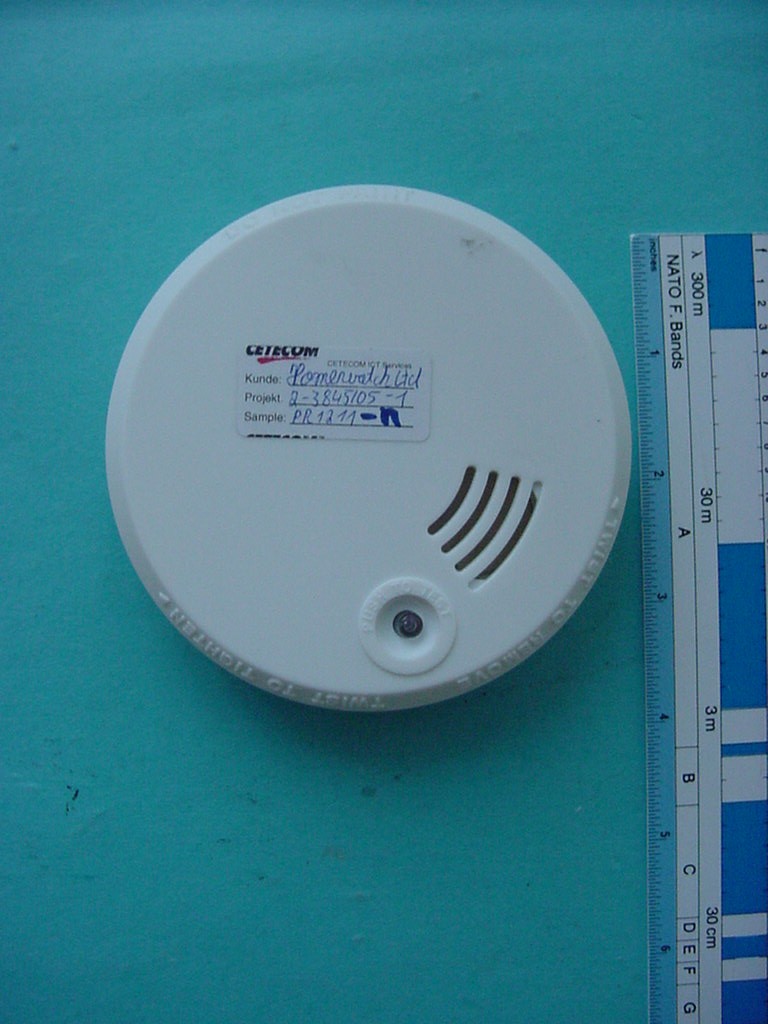

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 22 of 25 6 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 23 of 25 Photo 2:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 24 of 25 7 Annex D: INTERNAL PHOTOGRAPHS OF THE EQUIPMENT Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 25 of 25 Photo 4:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 1 of 25 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 2_3845-01-01/05 Applicant : Homewatch Limited Type : PR1211 Test Standard : FCC Part 15 / RSS210 FCC ID : SVW-PR1211WPSD Certification No. IC : 5641A-PR1211 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 2 of 25 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST SPECIFICATIONS............................................................................................................................................ 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 CFR 47 Part 15 Radio frequency devices ..................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 4 FCC PART 15 SUBPART B ...................................................................................................................................... 9 4.1 Timing of the transmitter.......................................................................................................................... 9 4.2 Radiated emission limits................................................................................................................................. 10 4.3 Occupied bandwidth ....................................................................................................................................... 14 4.4 RECEIVER SPURIOUS EMISSION (radiated) .............................................................................................. 15 5 ANNEX B: PHOTOGRAPHS OF TEST SITE ..................................................................................................... 20 6 ANNEX C: EXTERNAL PHOTOGRAPHS OF THE EQUIPMENT ................................................................ 22 7 ANNEX D: INTERNAL PHOTOGRAPHS OF THE EQUIPMENT.................................................................. 24 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 3 of 25 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Michael Berg / Dirk Hausknecht Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ..................................................... / .......................................................... Responsible for testing laboratory (Michael Berg / Dirk Hausknecht) ...................................................... / .......................................................... Responsible for test report (Michael Berg / Dirk Hausknecht) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 20 of 25 5 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2_3845-01-01/05 Date: 2005-01-18 Page 21 of 25 Photo 2 (Radiated Emissions):
