SXLI-FLEX8200Two-way Radio

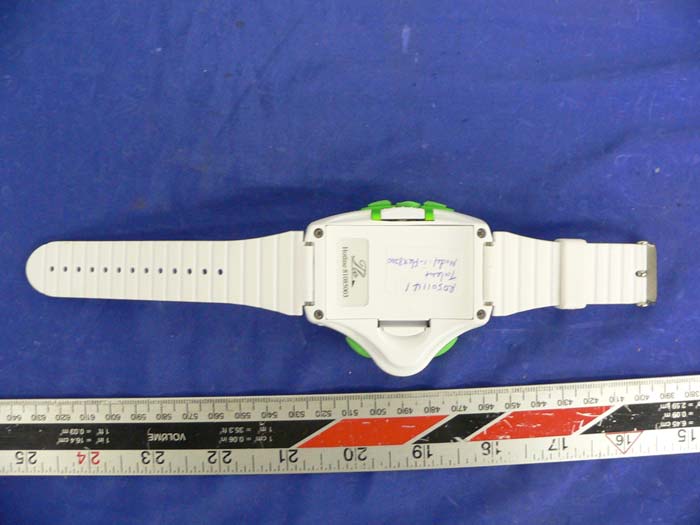

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Chassis - Front View Chassis – Rear View

APPENDIX A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Bottom View of EUT / Proposed Label Location Labeling Requirement Each equipment for which a type acceptance applications is filed on or after May 1, 1981, shall bear an identification plate or label pursuant to §2.295 (Identification of Equipment) and §2.926 (FCC identifier) In August 1996 the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Generally users manual contains a RF exposure statement to indicate compliance with FCC requirements. The users manual should also contain required information and instruction pursuant to 95.653. FCC ID: SXLI-FLEX8200

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Board and Housing View EUT – Component View EUT – Solder View EUT – Component View without Shielding

Circuit Description 1. Transmitter part After the ppt (SW13)switch is active MCU (U1) control the U8 though phase lock loop (inside U8)generate channel frequency, a microphone (MIC1)pick up the voice and amplifier in U8 and FM modulator the generated frequency send to RF (Q1,Q2,Q3)power amplifier and pass though the loop filer (Q6, C8, C9)enter antenna (ANT1) to free air. 2 .receiver mode hold the power switch (SW1)1 second the walkie-talkie will power on the receiver part (Q18). The MCU (U1)control the U8 receiver part PLL to generate the receive channel frequency and the IF amp amplifier (inside U8) the IF frequency. After amplifier the demodulation signal (inside U8)send to the audio amplifier (U4)and Sound come out from speaker (SP1). 3 clock mode When the battery(BT1) applied to the walkie-talkie, it will automatic enter clock mode. The timing system is base on the crystal (CX2D1)and the program counting (U1), the time and data will display on the LCD (CON1) by MCU (U1)build in LCD display 4 battery charging When an external transformer connect to walkie-talkie ( S1 RJ-35). It will automatic start to charge the battery(BT1). According to the battery voltage detector detected (U1)is fully charger internal power switch transistor (Q303)will cut off the charging and if the battery low is detected by the detector the walkie-talkie will enter clock mode only and save the battery life Channel Frequency 1 462.5625 2 462.5875 3 462.6125 4 462.6375 5 462.6625 6 462.6875 7 462.7125 8 467.5625 9 467.5875 10 467.6125 11 467.6375 12 467.6625 13 467.6875 14 467.7125 15 462.5500 16 462.5750 17 462.6000 18 462.6250 19 462.6500 20 462.6750 21 462.7000 22 462.7250

Note: The test report is specially limited to the use of the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 95 EMI MEASUREMENT AND TEST REPORT For Talent On Development Limited Rm 11, 2/f, Block C, Hong Kong Industrial Centre, 489-491 Castle Peak Road, Lai Chi Kok, Kowloon, HK FCC ID: SXLI-FLEX8200 This Report Concerns: Original Report Equipment Type: Walkie Talkie Watch Test Engineer: Ming Jing / Report Number: R0501141 Report Date: 2005-02-17 Reviewed By: Daniel Deng / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Talent On Development Limited FCC ID: SXLI-FLEX8200 Report # R0501141Rpt.doc FCC Part 95 Test Report Page 2 of 25 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED GRANT/SUBMISSION.....................................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT TEST CONFIGURATION........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 REQUIREMENTS OF PROVISIONS ........................................................................................................................8 §2.1046, §95.639(D), AND §95.639 (A)(1) - EFFECTIVE RADIATED POWER ....................................................9 STANDARD APPLICABLE..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT.......................................................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULTS...........................................................................................................................................................10 §2.1046, §95.639(D), AND §95.639 (A)(1) – CONDUCTED OUTPUT POWER ...................................................11 5.1 PROVISION APPLICABLE.......................................................................................................................................11 5.2 TEST PROCEDURE................................................................................................................................................11 5.3 TEST EQUIPMENT.................................................................................................................................................11 5.4 TEST RESULTS.....................................................................................................................................................11 §2.1047, §95.631(D), §95.637(A), AND § 95.637(B) - MODULATION CHARACTERISTICS ...........................13 STANDARD APPLICABLE............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT.......................................................................................................................................................13 ENVIRONMENTAL CONDITIONS..................................................................................................................................14 TEST RESULTS................................................................................................…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
