SYK-WQAR-362-2R

Teledyne Controls, a business unit of Teledyne Technologies

Wireless Groundlink(R) Quick Access Recorder

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jan 16, 2014
Application Purpose: Original Equipment
Date of Application: Jan 12, 2014
Equipment Note: Wireless Groundlink(R) Quick Access Recorder
Frequency Range: 1852.40000000 - 1907.60000000
Company: Teledyne Controls, a business unit of Teledyne Technologies
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

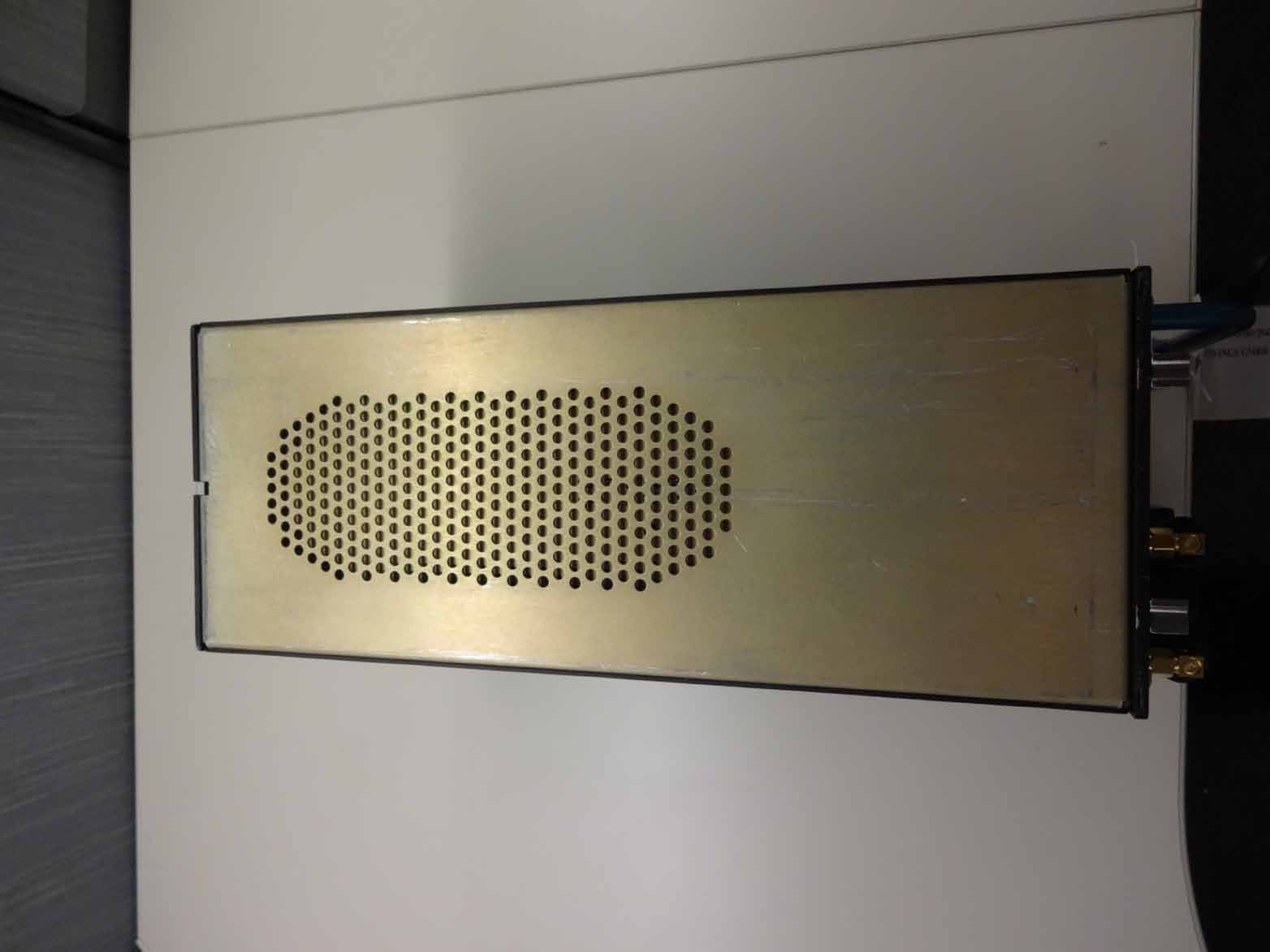

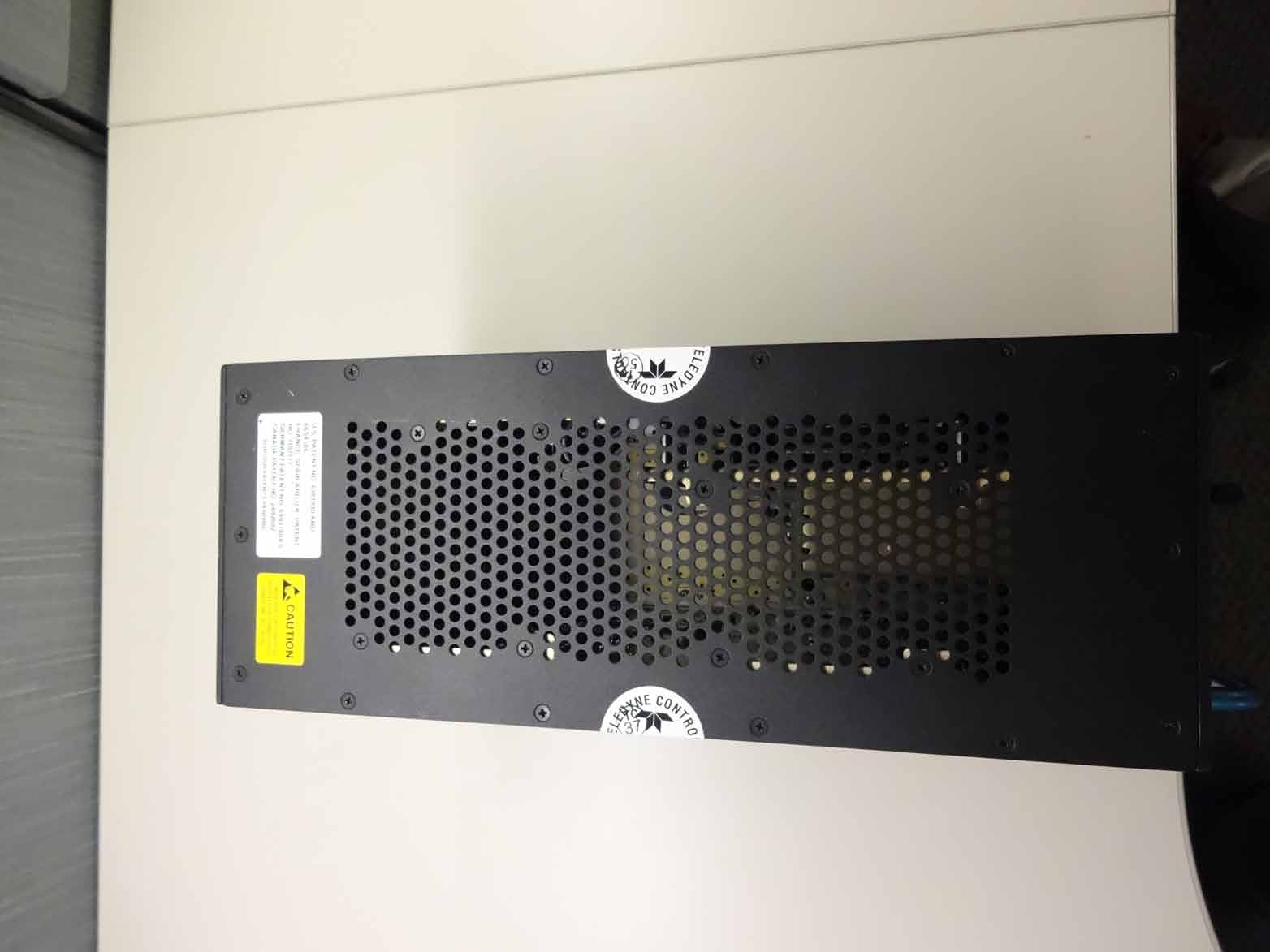

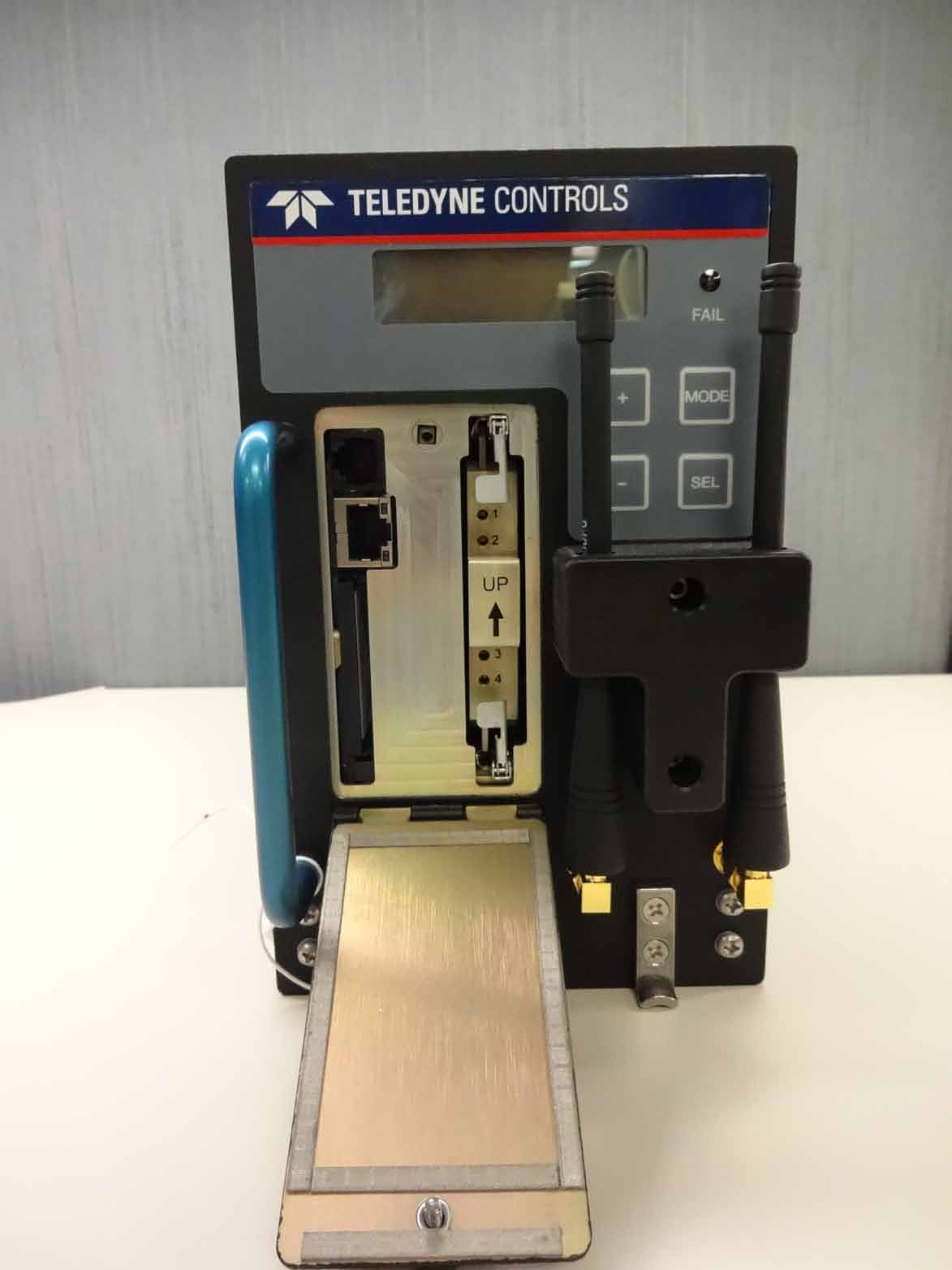

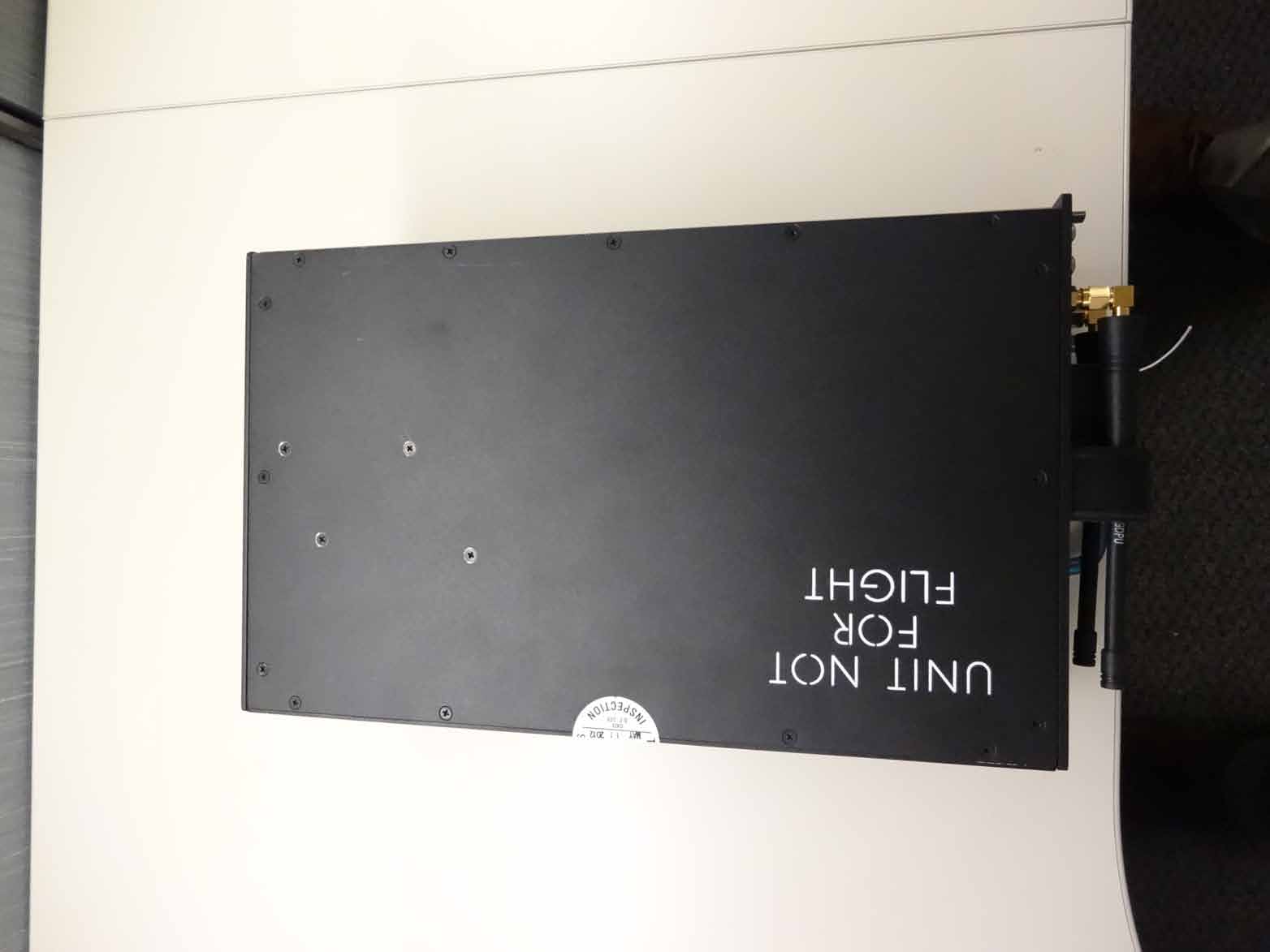

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	620.00 mW	4M19F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22 and EIRP for Parts 24. The device contains 2 identical 3G cellular modules each of which operating independently and potentially transmitting simultaneously over its respective antenna. The listed output power is per transmitter / antenna port. This device contains functions that are not operational in U.S. Territories. This filing is applicable for US operations only. The device fulfils RF exposure requirements under worst case conditions (both modules transmitting with maximum power) based on its intended and described use conditions as documented in this filing (fixed application, more than 20cm from human body). End users must be provided with transmitter operating conditions for satisfying RF Exposure compliance.
