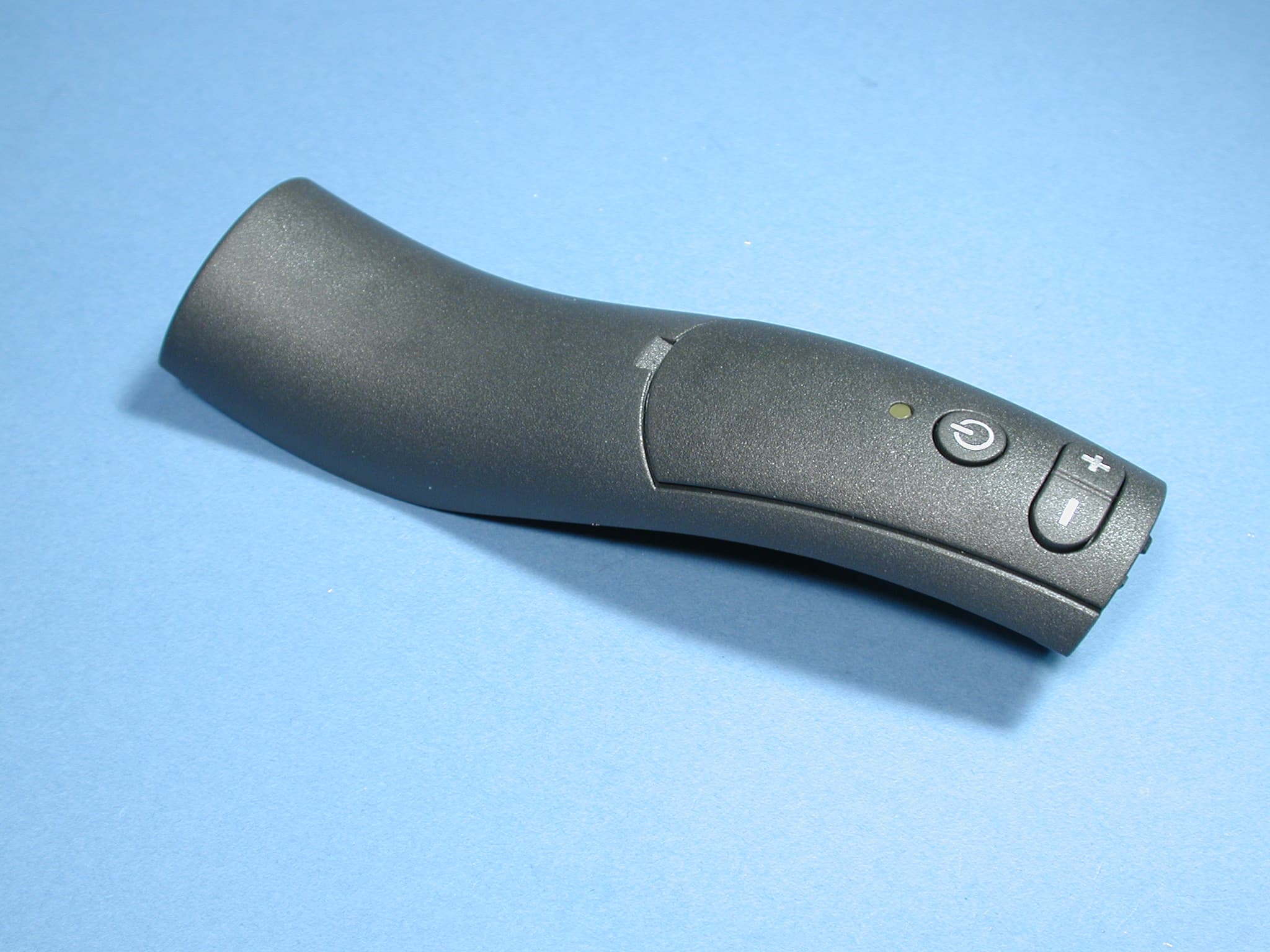

SYNTX915Remote Control Transmitter

Operating instructions Vacuum cleaner S 4000 To prevent accidents and machine damage, read these instructions beforeinstallation and use. UV M.-Nr. 06 xxx xxx 2 IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CONSIGNES DE SÉCURITÉ IMPORTANTES. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Before using the vacuum cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Using the included accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Turning the vacuum on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting the suction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Opening the air inlet valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Transport and storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Maintenance and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Purchasing new dustbags and filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 When to change the dustbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Replacing the dustbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Replacing the exhaust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Exhaust filter change indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Replacing the "SUPER air clean" filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Replacing the "ActiveAirClean Plus" filter and the "Active HEPA Plus" filter . . . . . 33 Replacing one type of filter with another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 When to change the dust compartment filter (motor protection). . . . . . . . . . . . . . 35 Replacing the dust compartment filter (motor protection). . . . . . . . . . . . . . . . . . . 35 When to change the radio handpiece battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 How to change the radio handpiece battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 When to change the thread catcher pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Replacing the thread catchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Frequently asked questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Contents 3 When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE The manufacturer cannot be held responsible for any damage caused by non-compliance of these Important Safety Instructions. WARNING- To reduce the risk of fire, electric shock or injury: Before using Check the voltage rating of the vacuum cleaner before connecting the power cord to an electrical outlet. Your power source should correspond with the voltage rating plate located on the underside of the vacuum. Use only household AC outlets. Never use DC power sources. If you are not sure of your home’s voltage supply, consult a qualified electrician. Connecting the vacuum cleaner to a higher voltage than indicated in these instructions may result in damage to the vacuum cleaner or injury. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not alter the plug in any way. A damaged vacuum cleaner can be dangerous. Check the packaging, the vacuum cleaner and accessories for any signs of damage. Do not use a damaged appliance. Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors or submerged in water, bring it to a service center. The electrical outlet must be fitted with a 15 A fuse. IMPORTANT SAFETY INSTRUCTIONS 4 Use Do not use on people or on animals. Do not use outdoors or on wet surfaces. Onlydrysurfaces should be vacuumed. Use only as described in this manual. Use only Miele recommended accessories. The hose and the telescopic wand contain electrical wires. Do not use the vacuum cleaner if these parts are damaged in any way. Danger of electric shock! The manufacturer cannot be held responsible for damage caused by non-compliance with these Important Safety Instructions. This appliance is intended strictly for household use only. This vacuum should not be used to entrap or retain any hazardous materials. Do not allow the vacuum cleaner to be used as a toy. Close attention is necessary when used near children. Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces. Do not un…

Text truncated - open the document above for the full version.

Cover letter for FCC application Type of device: transmitter (as part of a remote control system) FCC ID: SYNTX915 Model number: TX 915 Test report clarification: Test results for this transmitter (as part of a remote control system) are covered in the enclosed test report in section 5 through section 7, and including section A. The receiver (as part of a remote control system) is identified with model number RX 915 and FCC ID SYNRX915 and has ultimately been authorized under Declaration of Conformity and has not been authorized under this or any other FCC application. Section 3 and 4 of the test report refer to the receiver tests and shall be neglected.

Date: 25/01/2005 To: Federal Communication Commision (FCC) p.a. Telecommunication Certification Body Telefication BV Edisonstraat 12a 6902PK Zevenaar The Netherlands Subject: Confidentiality request Letter FCC ID: SYNTX915 Herewith we request the following information within this application to be held confidential: ∑ Circuit Schematics, document reference: EDW 4700 EDW 4750 RX915 TX915 ∑ Circuit Diagrams, document reference: EDW 4700 EDW 4750 RX915 TX915 ∑ Bil of Materials, document reference: EDW 4700 EDW 4750 RX915 TX915 Yours sincerely, Title/Name: Manager of Approvals, Dieter Bindzus Company: Miele & Cie KG Address: Miele – Strasse 2, Bielefeld, 33611, Germany

Label sample: Label location:

Operating instructions Radio Remote Control for Miele Vacuum cleaners Speed control with +/- at the radio handpiece Press the controls until the desired suction power is shown in the vacuum display. Press the + control to select a higher setting. Press the – control to select a lower setting. Even push of a button ath the radio handpiece is displayed by the indicator light. Technical data of the receiver unit: Frequency: 915 MHz Modulation: ASK Technical data of the transceiver unit: Frequency: 915 MHz Modulation: ASK

Radio Test Report: 99604230 Applicant: Miele & Cie KG Miele Strasse 2 33611 Bielefeld Germany Equipment Under Test: TX915; RX915, Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 In Accordance With: FCC Part 15, Subpart B, 15.109 (10-01-04 edition) For receivers operating within the frequency range of 30-960 MHz. FCC Part 15, Subpart C, 15.231 (10-01-04 edition) For low power transmitters operating periodically in the band 40.66 - 40.77 MHz and above 70 MHz RSS-210, issue 5 (November 2001 edition) Tested By: Telefication bv Edisonstraat 12a 6902 PK Zevenaar The Netherlands Test Engineer: _________________________________ ing. P.A. Suringa, Senior Engineer Radio/EMC Reviewed by: _________________________________ ing. J.C. le Clercq, Test Engineer Authorized by: _________________________________ J.P. van de Poll, Co-ordinator Test Group Date: 3 February 2005 Total Number of Pages: 25 FCC PART 15, SUBPART B AND SUBPART C PROJECT NO.: 99604230 EQUIPMENT: Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 Page 2 of 25 Table of Contents Section 1. Summary of Test Results General Summary of Test Data Section 2. Equipment Under Test General equipment information Description of E.U.T. Modifications incorporated in E.U.T. Theory of operation Section 3. Radiated emissions for receivers Test results Test data Section 4. Power line conducted emissions Test results Test data Graphs Section 5. Transmission requirements Test results Test data Rationale for compliance Section 6. Radiated emissions Test results Test data - radiated emissions Pre-scan data FCC PART 15, SUBPART B AND SUBPART C PROJECT NO.: 99604230 EQUIPMENT: Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 Page 3 of 25 Table of Contents, continued Section 7. Occupied bandwidth Test results Test data Graphs Section 8 Block diagrams Conducted emissions Radiated pre-scan Outdoor test site for radiated emissions Occupied bandwidth Section 9 Test equipment list Annex A - Restricted bands Annex B- IC – FCC cross reference table FCC PART 15, SUBPART B AND SUBPART C PROJECT NO.: 99604230 EQUIPMENT: Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 Page 4 of 25 Section 1. Summary of Test Results Manufacturer: Miele & Cie KG Model No.: TX915; RX915 Serial No.: -- General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart B Paragraphs 15.107, 15.109 and Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC (FCC listed 90828, IC listed 3501). New Submission Production Unit Class II Permissive Change Pre-Production Unit D S C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:1999. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The contents of this report, if reproduced, shall be copied in full, unless special consent in witing for reproduction in part is granted by Telefication. Co pyright of this test report is reserved to Telefication. FCC PART 15, SUBPART B AND SUBPART C PROJECT NO.: 99604230 EQUIPMENT: Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 Page 5 of 25 Summary of Test Data Receiver: Name of test Paragraph number Results Power line conducted emissions 15.107 Complies Radiated emissions 15.109 Complies Antenna power conducted limits for receivers 15.111 N/A Transmitter: Name of test Paragraph number Results Antenna requirement 15.203 N/A External radio frequency power amplifiers and antenna modifications 15.204 N/A Conducted emissions 15.207 N/A Transmission requirements 15.231(a) Complies Radiated emissions 15.231(b) Complies Occupied bandwidth 15.231(c) Complies Frequency tolerance 15.231(d) N/A Periodic alternate field strength requirements 15.231(e) N/A Footnotes for N/A’s: § 15.203 is not applicable because the transmitter is provided with an integral antenna. § 15.204 is not applicable because the transmitter is provided with an integral antenna. § 15.207 is not applicable because the transmitter is wireless. § 15.111 is not applicable because no terminals for external receiving antennas exist. § 15.231(d) has not been tested, because the Equipment Under Test does not operate within the frequency band 40.66-40.70 MHz. § 15.231(e) has not been tested, because the Equipment Under Test complies with § 15.231(a) Test Conditions: Indoor Temperature: 22 °C Humidity: 45 % Outdoor Temperature: 3.5 ° C Humidity: 6 % FCC PART 15, SUBPART B AND SUBPART C PROJECT NO.: 99604230 EQUIPMENT: Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 Page 6 of 25 Section 2. Equipment under Test (E.U.T.) General Equipment Information Frequency range: 915 MHz Operating frequency of sample: 915 MHz Type of emission: ON/OFF keying of RF carrier Emission designator: 4K50A1D Supply power requirement: Transmitter: 3.0 V dc Receiver: 3.0 V dc Duty cycle calculation: (0.2 msec/0.4 msec) ∗ 100 = 50 % FCC PART 15, SUBPART B AND SUBPART C PROJECT NO.: 99604230 EQUIPMENT: Remote Control Transmitter and Receiver FCC ID: SYNTX915; SYNRX915 IC ID: 5669A-TX915; 5669A-RX915 Page 7 of 25 Description of E.U.T. The transmitter serve…
