SZC-PHProximity Card Reader HID i CLASS Compatible

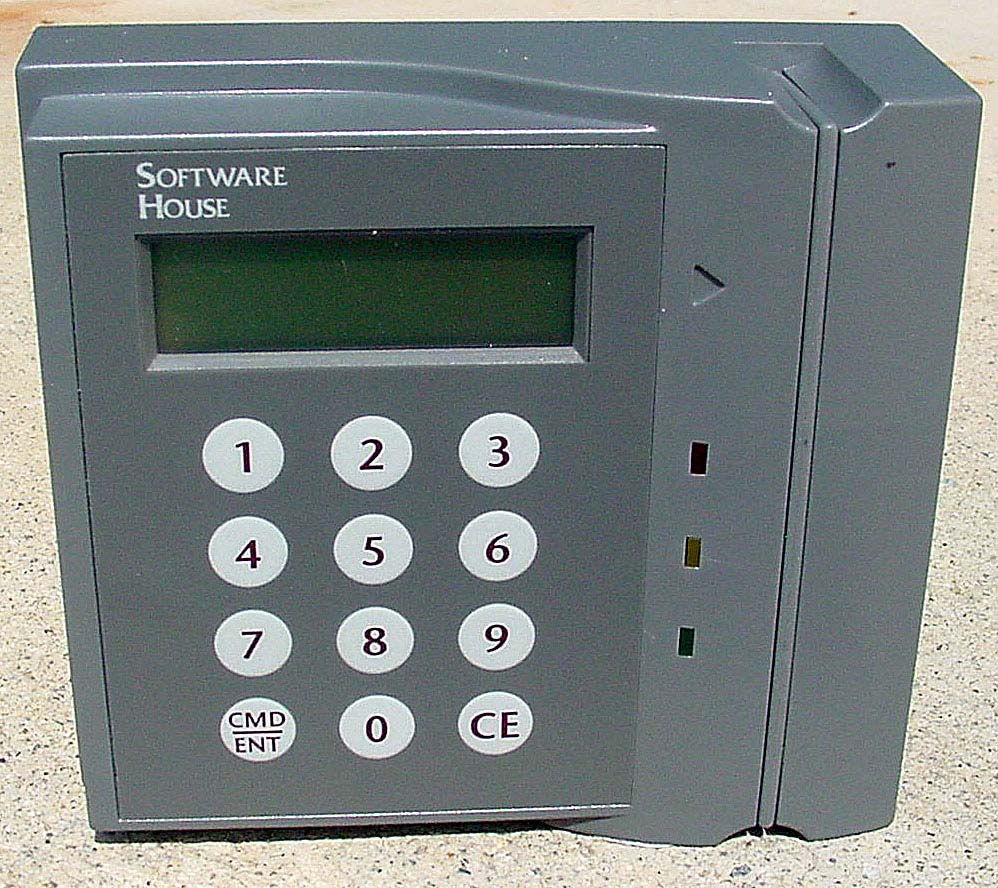

1 RM-iC Series Quick Start Installation Guide Version E0 Part Number UM-068 April 2006 PRODUCT OVERVIEW The RM-iC series readers provide an enclosed RM-4 board and attached iCLASS read head, available in the following styles: „RM1-iC - enclosed RM-4 and attached iCLASS read head „RM2-iC - enclosed RM-4 with keypad and attached iCLASS read head „RM2L-iC - enclosed RM-4 with keypad, LCD display, and attached iCLASS read head. The RM-iC Quick Start Installation Guide provides a synopsis of installation and connection information for RM-iC series readers. Refer to the Readers, Inputs, and Outputs (RIO) Guide for in-depth technical and installation information. Specifications The following specifications apply to all RM-iC series readers: „Power: 12VDC, 300 mA „Cable: Belden 9841 „Cable distance from iSTAR or apC: 4,000 ft. „Temperature ‹Indoor: 32° F to 120° F (0° C to 49° C) ‹Outdoor: -31° F to 151 ° F (-35 ° C to 66° C) „Qualified on 26-bit, 35-bit, 37-bit, and 32-bit MIFARE serial number formats. NOTE UL has only evaluated the 26-bit HID card format for this unit. Standards RM-iC series readers are Underwriters Laboratories Inc. (UL), Listed to Standard UL 294, Access Control System Units, Fifth Edition. RM-iC series readers must be wired in accordance with the National Electrical Code (ANSI/NFPA 70), local codes, and the authorities having jurisdiction. Installation 2 INSTALLATION Installing an RM-iC series reader involves: 1. Installing the mount plate 2. Wiring the components 3. Connecting and grounding the cable shields on the reader bus 4. Setting the RM-4 (reader) address 5. Installing the ARM-1 relay board (optional) 6. Installing the heater kit. (optional) Installing the Mount Plate Figure 1 shows RM-iC standard housing, mount plate, and gasket. All RM-iC series readers conform to the same housing, mount plate, and gasket dimensions. FIGURE 1. Standard Housing and Mount Plate Figure 2 shows mount plate dimensions. FIGURE 2. Mount Plate Dimensions Standard Housing Standard mount plate Housing screws Gasket Requires a security screwdriver Wiring access 1.29" .83" 2.47" 3.66" 2.73" 1.54" 5.45" 4.94" 4.11" 1.82" 3.92" 3.64" 8x Mounting hole 0.156" Thru, 0.280” Countersink Installation 3 This device has been approved for outdoor use when properly installed with RM Heater Kit Installation (P.N. 130-915) and the supplied gasket material. Position the gasket with the RM plate so that the mounting holes are properly aligned. Ensure that the gasket is placed between the mounting surface and mating surface of the RM plate. Fasten the RM plate to the mounting surface with the gasket material in between. Install the gasket so that no gaps or wrinkles are present. Wiring the Inputs, Outputs, Reader Bus Figure 3 shows RM-4 P1 and P5 wiring. FIGURE 3. RM-4 Wiring Requirements Installation 4 Wiring the Reader Figure 4 shows RM-4 P1 and P5 wiring. FIGURE 4. RM-4 Reader Wiring Installation 5 Grounding and Shielding When bus wiring more than one RM-iC reader (Figure 5 ): 1. Attach the shields along the bus together (insulate each connection). Snip off the shield wire at the end of the bus. 2. Attach the shield to the ground at only one point, the ground stud inside the cabinet adjacent to the knockout. 3. Attach a local earth ground (18 or 22 gauge) wire to the J5 component. FIGURE 5. Reader Shield Wiring Setting Module Address and EOL Termination To set the module address, set SW1 (16 position rotary switch) to a number from one to eight. Every RM-iC series reader on a bus must have a unique address. To set RS-485 EOL termination, set SW3-5 to the On (closed) position if the module is the last unit in the bus. If the module is not last, SW3-5 should be Off (open). Installing the ARM-1 Relay Two ARM-1 relay components can be connected to the RM-iC series reader through the P5 connector (Table 1 ). „P5-1 is the common (+12 VDC) pin for either ARM-1. „P5-2 is the output drive (GND) for the first relay. „P5-3 is the output drive (GND) for the second relay. ACM module RS-485 connector on a reader Knockout Twist shield wires together and insulate (do not ground) Ground stud (bus configuration) Shield wire Enclosure/cabinet Shield wire Snip off shield wire at end of bus TABLE 1.ARM-1 Wiring Module Wiring ARM-1 RelayP2-1 to RM P5-1, P2-2 to RM P5-2 ARM-2 RelayP2-1 to RM P5-1, P2-2 to RM P5-3 Installation 6 NOTE The ARM-1 has not been evaluated by UL. Installing the Heater RM-iC readers require a heater kit (Model 130-915) when installed outdoors in an environment and where temperatures may drop below 40° F (5° C). The Model 130-915 heater kit contains the following parts: Part # 130-915A is supplied without a transformer. A UL Listed Class 2 transformer rated output 12 VAC, 40 VA is required for proper installation. Figure 6 shows RM/heater wiring. FIGURE 6. RM/Heater Wiring TABLE 2.Heater Parts QuantityDescription 1Transformer 12 VAC 40VA 2Heater Strips 1Thermostat (turns on at 40 ° F) 3Wire nuts 26-32 x 1/4” screws to mount thermostat to RM plate. Installation 7 Figure 7 shows RM installation . FIGURE 7. RM Installation Heater Strip Application To avoid problems such as placing the strips too far away from the thermostat, not allowing the thermostat to shut off, or locating the strips too close to the PCB and causing component over-temperature concerns, follow mounting diagram and heater strip application instructions. To apply the heater strip: 1. Clean the attachment surface of the back plate with a solvent such as alcohol (use all required precautions when handling solvents). 2. Carefully remove the release film from the adhesive. 3. Locate the heater on the clean surface of the back plate exactly as shown in Figure 6. 4. Gently roll in place to remove air bubbles. 5. Allow to remain for 72 hours before use, for maximum adhesion. Air gaps or bubbles under the heater cause localized overheating and possible heater burnout. Also, application of adhesives at temperatures below 50° F is not recommended. In…

Text truncated - open the document above for the full version.

Software House 70 Westview Street Lexington, MA 02421 http://www.swhouse.com Fax: 781-466-9550Phone: 781-466-6660 apC®/8X I NSTALLATION AND CONFIGURATION GUIDE REVISION L0 C•CURE® 800/8000, apC®, and iSTAR® are registered trademarks of Sensormatic. Microsoft® and Windows® are registered trademarks of Microsoft Corporation. Windows NT™, Windows 2000™ and Windows XP™ are trademarks of Microsoft Corporation. PROGRESS® is a registered trademark of Progress Software. Certain Product names mentioned herein maybe trade names and/or registered trademarks of other companies. Information about other products furnished by Software House is believed to be accurate. However, no responsibility is assumed by Software House for the use of these products, or for an infringement of rights of the other companies that may result from their use. C•CURE 800/8000 Version: 9.1.0 apC8x Firmware Version: 8.7W Document Number: UM-010 Revision: L0 Release Date: July 2006 © 2006 Sensormatic Electronics Corporation. All rights reserved. Table of Contents apC/8X Technical Manualiii Preface Installation Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x How to Use this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi UL Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii FCC Class A Digital Device Limitations . . . . . . . . . . . . . . . . . .xiii FCC Class B Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv Canadian Radio Emissions Requirements. . . . . . . . . . . . . . . . . . xv CE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi Power Supply Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xviii Chapter 1Overview apC/8X Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 Software-Controlled Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Supervised Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 apC/8X Optional Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 I/32 Supervised Input Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 I/8 Input Bus Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 R/8 Output Bus Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 R/48 Relay Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Standard Star Coupler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Mini Star Coupler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Wiegand/Proximity Star Coupler . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Contents ivapC/8X Technical Manual apS Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Card Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9 Magnetic Stripe Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Wiegand Technology Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Proximity Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10 Paired Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10 Chapter 2apC/8X Physical Requirements Connecting External Devices to the apC/8X . . . . . . . . . . . . . . . .2-2 External Device Types and Connections . . . . . . . . . . . . . . . . . . . . . 2-2 apC/8X Ports to Connect External Devices. . . . . . . . . . . . . . . . . . . 2-3 Equipment Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . .2-4 apC/8X Event and Card Storage . . . . . . . . . . . . . . . . . . . . . . . . .2-6 Calculating Number of Cards Supported in Memory . . . . . . . . . . . 2-6 Calculating apC/8X Memory Requirements . . . . . . . . . . . . . . . . . . 2-7 apC/8X Power Supply Current Ratings . . . . . . . . . . . . . . . . . . . .2-8 Calculating Power Supply Limits . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 apC/8X Power Output Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 Chapter 3Mounting the apC/8X apC/8X Hardware Components . . . . . . . . . . . . . . . . . . . . . . . . . .3-2 Mounting the apC/8X Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3 Connecting the apC/8X Input Voltage. . . . . . . . . . . . . . . . . . . . .3-4 Connecting a Power Failure Input . . . . . . . . . . . . . . . . . . . . . . . .3-6 Connecting the Advanced Power System (apS) . . . . . . . . . . . . .3-7 Chapter 4Connecting the apC/8X to a Host Connecting to a Host Computer. . . . . . . . . . . . . . . . . . . . . . . . . .4-2 Connecting via RS-232, RS-485, and Modems . . . . . . . . . . . . . .4-3 RS-232 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Contents apC/8X Technical Manualv RS-485 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Connecting apC/8X panels in an RS-485 chain . . . . . . . . . . . . . 4-4 RS-232 to RS-485 Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Line Drivers for Directly Connected apC/8Xs . . . . . . . . . . . . . . . . 4-6 Modems for Dialup Mode apC/8Xs . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Chapter 5apC/8X Panel Setup Setting Up the apC/8X Main Panel . . . . . . . . . . . . . . . . . . . . . . 5-2 Layout of apC/8X Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 Summary of apC/8X Switches and Functions . . . . . . . . . . . . . . . . . 5-4 apC/8X Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.
