SZY-DK9179DK9179 Module

DK9179 Series Bluetooth Low Energy 1 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 DEXATEK DK9179 Bluetooth Low Energy Module Specification Revision History This table describes the changes to the specification. Version Date Description 1.0.0 2020/11/12 Official Release 2.0.0 2020/11/27 Modify Info DK9179 Series Bluetooth Low Energy 2 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 Table of Contents 1. Introduction ......................................................................................... 3 2. Key Features ....................................................................................... 4 3. Block Diagram .................................................................................... 5 4. Specifications ...................................................................................... 6 5. Module Pin Definition ........................................................................ 7 6. Product dimensions ............................................................................. 8 7. RF Layout Suggection ........................................................................ 9 8. Packaging Info .................................................................................. 10 DK9179 Series Bluetooth Low Energy 3 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 I. Introduction The DK9179 module is compact, surface mount Bluetooth Low Energy, Bluetooth mesh, Thread, Zigbee, 802.15.4 , ANT and 2.4 GHz compliant wireless module. The module is based on Nordic nRF52840 radio Trans- ceiver IC, has a ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, Flash memory. The outstanding performance at low power consumption and ultra-low cost, the DK9179 module is leading the way for the new generation of Bluetooth low energy modules. DK9179 Series Bluetooth Low Energy 4 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 II. Key Features  ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz  2.4GHz multi-protocol transceiver  Supported data rates : Bluetooth®5: 2 Mbps, 1 Mbps, IEEE 801.15.4-2006: 250 kbps  1MB flash, 256kB RAM  Flexible power management , DC/DC power mode Wide supply voltage range: LDO (1.8 to 3.3V)  Flexible and configurable 25 GPIO  Peripheral 12-bit/200ksps ADC, Temperature sensor  Up to 4x SPI master/3x SPI slave with EasyDMA  Up to 2x I2C compatible 2-wire master/slave  2x UART (CTS/RTS) with EasyDMA  128-bit AES/ECB/CCM/AAR co-processor (on-the-fly packet encryption)  Quadrature Decoder (QDEC)  Bluetooth mesh and Thread support DK9179 Series Bluetooth Low Energy 5 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 III. Block Diagram DK9179 Series Bluetooth Low Energy 6 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 IV. Specification Model DK-9179 Antenna PCB Antenna Main Chip nRF52840 Application smart home sensors and controllers industrial IoT sensors and contollers Transmit Power Transmit Mode output power: 0 ~+8 dBm Wireless Standards Bluetooth ® 5.0 Data Rates Bluetooth®5: 2 Mbps, 1 Mbps, IEEE 802.15.4-2006: 250kbps Work Mode Bluetooth ® 5.0 Frequency Range 2405MHz---2480MHz Power Consumption (in different states) Radio transmitting @ 0 dBm output power, 1 Mbps BLE : 6.4mA Voltage: 3.3V Modulation Technique GFSK Modulation Wireless Security AES/ECB/CCM/AAR Encryption Dimension(W×D×H) 25x17x2.3 mm Certification BQB Environment Operating Temperature: -10°C~45°C Storage Temperature: -20°C~65°C DK9179 Series Bluetooth Low Energy 7 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 V. Module Pin Definition DK-9179B Module Pin Definition 1 SWDIO 16 P0.24 2 SWDCLK 17 P0.05 (ADC) 3 P0.26 18 P1.09 4 P0.27 19 P0.25 5 GND 20 P0.16 6 P0.18 21 P0.14 7 NC 22 P0.15 8 P0.13 23 P1.00 (SWO) 9 VDD 24 P0.07 10 P0.31 (ADC,LF) 25 P0.08 11 P0.04 (ADC) 26 P1.08 12 P0.29 (ADC,LF) 27 P0.10(NFC2) 13 P0.06 28 P0.09(NFC1) 14 P0.11 29 P1.01 15 P0.12 30 P1.02 DK9179 Series Bluetooth Low Energy 8 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 VI. Product Dimension  PCB SIZE: (W) 25 x (D) 17 mm  PIN OUT: 30  Recommended Layout of solder Pad TOP Layer BOTTON Layer DK9179 Series Bluetooth Low Energy 10 16F.-1, No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., Module Specification New Taipei City 221, Taiwan TEL: +886-2-86984245 FAX: +886-2-86984215 VIII. Packaging Info ● Reel Packaging Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the eq…

Text truncated - open the document above for the full version.

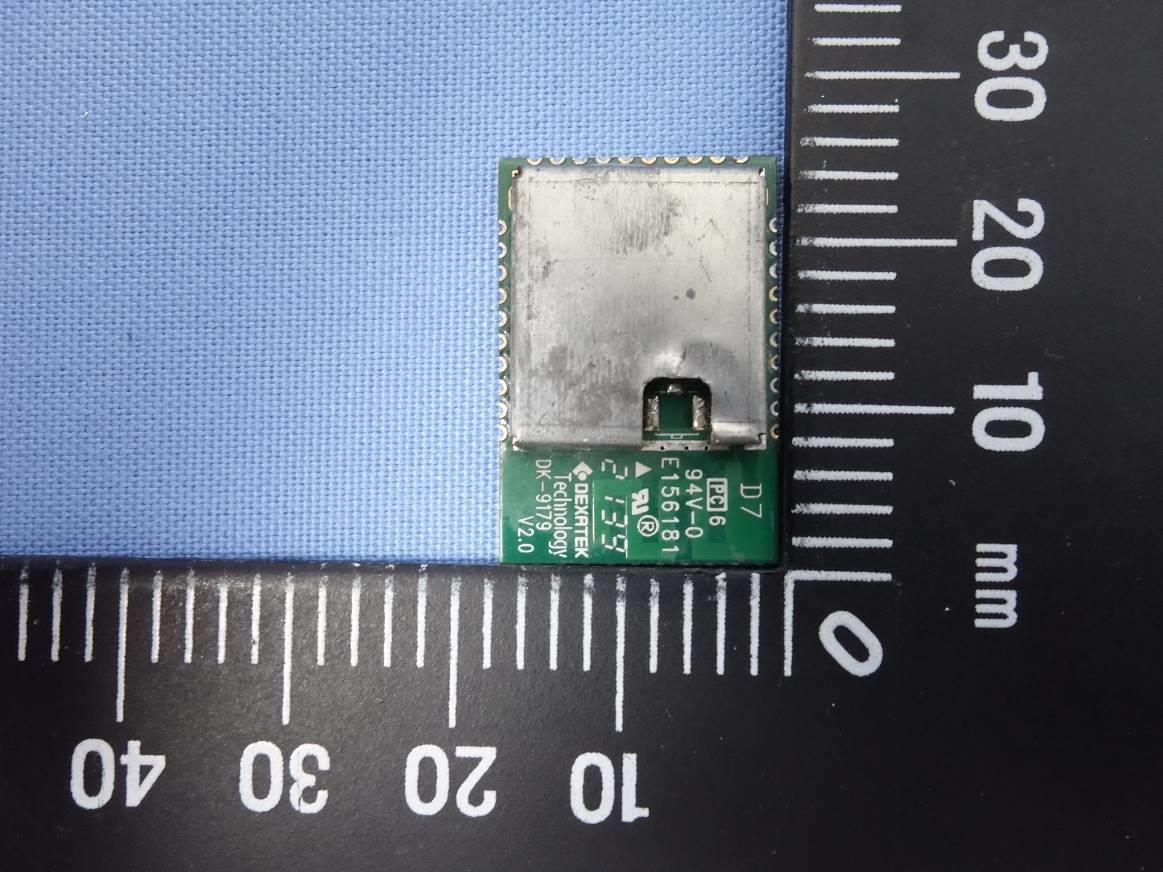

Appendix EP Photographs of EUT Page 1 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Appendix EP Photographs of EUT Page 2 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Appendix EP Photographs of EUT Page 3 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179

DEXATEK TECHNOLOGY LTD. Model No.:DK9179 FCC ID: SZY-DK9179 IC: 28614-DK9179

Appendix EP Photographs of EUT Page 4 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Antenna

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN22HCTI (FCC-MPE) 001 Auftrags-Nr.: Order no.: 238547373 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-09-07 Auftraggeber: Client: DEXATEK TECHNOLOGY LTD. 16F, No. 81, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan R.O.C. Prü fgegenstand: Test item: DK9179 Bezeichnung / Typ-Nr.: Identification / Type no.: DK9179 Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1091 47 CFR §1.1310 KDB 447498 D04 Wareneingangsdatum: Date of sample receipt: 2022-09-01 Prü fmuster-Nr.: Test sample no: A003329090-002 & 003 A003329090-005 & 006 Prü fzeitraum: Testing period: 2022-09-08 - 2022-10-05 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-10-12 Ausstellungsdatum: Issue date: 2022-10-12 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (FCC-MPE) 001 Seite 2 von 10 Page 2 of 10 Contents 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 MAXIMUM PERMISSIBLE EXPOSURE EVALUATION .................................................... 7 4.1 INTRODUCTION ..................................................................................................... 7 4.2 REFERENCE LEVELS ............................................................................................. 7 4.3 CLASSIFICATION OF THE ASSESSMENT METHODS.................................................... 9 5 TEST RESULTS ................................................................................................... 10 5.1 MAXIMUM POWER DENSITY ................................................................................. 10 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (FCC-MPE) 001 Seite 3 von 10 Page 3 of 10 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN22HCTI (FCC-MPE) 001 Original Release 2022-10-12 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (FCC-MPE) 001 Seite 4 von 10 Page 4 of 10 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (FCC-MPE) 001 Seite 5 von 10 Page 5 of 10 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (FCC-MPE) 001 Seite 6 von 10 Page 6 of 10 3 General Product Information 3.1 Product Function and Intended Use The EUT is DK9179. It contains Bluetooth and THREAD compatible module enabling the user to communicate data through a Wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic Information of EUT Item EUT Information Kind of Equipment/Test Item DK9179 Type Identification DK9179 FCC ID SZY-DK9179 Technical Specification of EUT Item EUT Information Operating Frequency Bluetooth LE: 2402 ~ 2480 MHz THREAD: 2405 ~ 2475 MHz Modulation Bluetooth LE: GFS…

Text truncated - open the document above for the full version.

SA-7559 Antenna Test Report Report by Josson Table of Contents A.Antenna Testing Conditions 1.Test System 2.Antenna Under Test 3.Antenna Placement B.Antenna RF Characteristics 1.Return Loss 2.Gain Table 3.3D Radiation / 2D Pattern Antenna Test System Antenna Under Test X Y Z Ant. 1 Single band 2.4 GHz Antenna Placement Ant.1 Return loss S11 Gain Table Ant.1 Frequency (MHz) 240024502500 Peak Gain (dBi) 2.93.53.2 Efficiency (%) 656761 X-Y Z-YZ-X 3D Y x Ant.1 2.4GHz Radiation Pattern x z Y z Antenna Characteristics: Return loss < -10dB in operating band Gain: 2.4GHz band : 2.9~3.5 dBi Efficiency: 2.4GHz band > 60% Summary

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN22HCTI (P15C-BLE) 001 Auftrags-Nr.: Order no.: 238547373 Seite 1 von 27 Page 1 of 27 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-09-07 Auftraggeber: Client: DEXATEK TECHNOLOGY LTD. 16F, No. 81, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan R.O.C. Prü fgegenstand: Test item: DK9179 Bezeichnung / Typ-Nr.: Identification / Type no.: DK9179 Auftrags-Inhalt: Order content: FCC Part 15C Test report (BLE) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2022-09-01 Prü fmuster-Nr.: Test sample no: A003329090-002 A003329090-005 Prü fzeitraum: Testing period: 2022-09-08 - 2022-10-05 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass zusammengestellt von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-10-12 Ausstellungsdatum: Issue date: 2022-10-12 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (P15C-BLE) 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (P15C-BLE) 001 Seite 3 von 27 Page 3 of 27 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 13 4.5 TEST SETUP DIAGRAM ........................................................................................ 14 5. TEST RESULTS ................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 15 5.1.1 Antenna Requirement ......................................................................................................... 15 5.1.2 Peak Output Power ......................................................................…

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN22HCTI (P15C- THREAD) 001 Auftrags-Nr.: Order no.: 238547373 Seite 1 von 27 Page 1 of 27 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-09-07 Auftraggeber: Client: DEXATEK TECHNOLOGY LTD. 16F, No. 81, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan R.O.C. Prü fgegenstand: Test item: DK9179 Bezeichnung / Typ-Nr.: Identification / Type no.: DK9179 Auftrags-Inhalt: Order content: FCC Part 15C Test report (THREAD) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2022-09-01 Prü fmuster-Nr.: Test sample no: A003329090-003 A003329090-006 Prü fzeitraum: Testing period: 2022-09-08 - 2022-10-05 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass zusammengestellt von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-10-12 Ausstellungsdatum: Issue date: 2022-10-12 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (P15C-THREAD) 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(3) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN22HCTI (P15C-THREAD) 001 Seite 3 von 27 Page 3 of 27 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 13 4.5 TEST SETUP DIAGRAM ........................................................................................ 14 5. TEST RESULTS ................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 15 5.1.1 Antenna Requirement ......................................................................................................... 15 5.1.2 Peak Output Power .........................................................…

Text truncated - open the document above for the full version.

Appendix SP Photographs of Test Setup Page 1 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Photograph 1: Test Setup for Spurious Emissions (Front View 1) Photograph 2: Test Setup for Spurious Emissions (Front View 2) Appendix SP Photographs of Test Setup Page 2 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Photograph 3: Test Setup for Spurious Emissions (Back View 1) Photograph 4: Test Setup for Spurious Emissions (Back View 2) Appendix SP Photographs of Test Setup Page 3 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Photograph 5: Test Setup for Spurious Emissions (Back View 3) Photograph 6: Test Setup for Spurious Emissions (Back View 4) Appendix SP Photographs of Test Setup Page 4 of 4 CN22HCTI (P15C-BLE) 001 CN22HCTI (P15C-THREAD) 001 CN22HCTI (FCC-MPE) 001 CN22FRBE (RSS247-BLE) 001 CN22FRBE (RSS247-THREAD) 001 CN22FRBE (ISED-MPE) 001 Product: DK9179 Type Identification: DK9179 Photograph 7: Test Setup for Mains Conducted Emissions (Front View) Photograph 8: Test Setup for Mains Conducted Emissions (Back View)
