SZY-SA5106Bluetooth Music

1 Bluetooth Music User Manual 2 Table of contents 1. Introduction.........................................................................................3 1.1 Bluetooth Music.........................................................................................3 1.2 Accessory....................................................................................................3 1.3 Function Table............................................................................................4 1.4 Features.......................................................................................................5 1.5 Specification................................................................................................8 1.6 System requirement..................................................................................8 2.Setting up the Bluetooth Music .............................................8 3.Pairing the Bluetooth Music ..............................................................9 4.Using the Bluetooth Music..................................................................11 3 1. Introduction Please read the instructions carefully before using Bluetooth Music.  Please charge the battery about 3-5 hours before using the Bluetooth Music first time.  1.1 Bluetooth Music  1.2 Accessory 4  1.3 Function Table Function Operation Control Button  When playing music - Tap to button Pause - Tap to button again  Playing - Double tap the button Playing the next song  When phone incoming call - Tap to button  answer call - Tap to button again  End call  When Bluetooth Music don’t find pair or you go away over 10 meters distance about 2 minutes , it will standby modePress and hold button, it will working Micro USB Port  When flashing red light of Bluetooth Music, it mean low battery. You have to plug in the Micro USB Charging Cable charging.(Charge directly from your PC with Micro USB Charging Cable provided)  Light is red, the Bluetooth Music is charging.  When the Red Light is gone out, the Bluetooth Music is fully charging. Reset  Reset power LED Status Red Light Charging Flashing Red Light Low battery Steady blue Light Playing or Pairing done Steady Purple Light Bluetooth Music is connecting status for charging Rapid flashes of Blue Light Searching the previous pairing Slow flashes of Blue Light Searching the new pairing / Phone incoming call First flashing purple light then blue light of flicker Power On Interlace the Red and Blue Light of flicker Power Off 5  1.3 Function Table Function Operation Power ON/OFF  Press long power button 5 sec until LED slow blue light Power on (new pairing mode)  Press power button 3 seconds Power ON/Off 3.5mm to 3.5 female phone jack Plug the audio cable to 3.5mm female phone jack input  1.4 Features 1.Support Bluetooth v3.0 with EDR Let you enjoy music from anywhere 6  1.4 Features 2. Build-in high performance stereo audio codec Let you enjoy high quality music stream from your device. 3.Truly Protable Device You can take Bluetooth music to anywhere, such as in the car and friends house etc..... 7  1.4 Features 4. Build-in Battery Bluetooth Music built-in battery, let you carry it to anywhere that listen to music. 5.Support AUX Let you easily switches between calls and music in the car. 8  1.5 Specification  Bluetooth Bluetooth V3.0 with EDR  Bluetooth profile HSP(Headset Profile), HFP(Hands-Free Profile) , A2DP(Advanced Audio Distribution Profile) AVRCP(Audio / Video Remote Control Profile)  Effective range  Battery Capacity  Dimension  Working time  Charging time  Weight  Standby Class 2 240mA 52x52x13mm 10 hours 2.5hours G.W. 26g (only device) Over 7 days  1.6 System requirement Bluetooth Music is bluetooth v3.0 backward compatible. So if your bluetooth device is v4.0 which have to be v4.0 backward compatible that you can pair with Bluetooth Music. 2. Setting the Bluetooth Music Step1. Connect Bluetooth Music to your home stereo / speaker. Step2. Press power button until LED is flashing the slow blue light then it will into paring mode. Note : The Bluetooth Music can be record 5 different devices, so when Bluetooth Music pairs the previous device, LED will flash the fast blue light. 9 3. Pairing the Bluetooth Music Bluetooth setup for iPhone/iPad/iPod  Go to the Bluetooth manager of your iPhone/iPad/iPod and turn on the “Bluetooth”  Follow the onscreen instruction on idevice. Click the pair, the Bluetooth Music will be connected. When LED will show the steady blue light after a few second, Bluetooth Music is pairing done. 10 Bluetooth setup for Android phone  Go to the Bluetooth manager of your Android phone and turn on the “Bluetooth”. Follow as below and when LED will show the steady blue light after a few second, Bluetooth Music is pairing done. Note: If your android phone just show “Connected to phone audio” or “Connected to media audio” on screen. Then Bluetooth Music just have one function. Ex: If your android phone just show “Connected to media audio” on screen, Bluetooth Music don’t have phone audio function, you only play music on Bluetooth Music. when you meet “Connected to phone audio” or “Connected to media audio” of situation, please reconnect to Bluetooth Music or resent it. 11 4. Use the Bluetooth Music 1. Start playing music on your smartphone. 2. You can play/pause music on Bluetooth Music or your smartphone. Press the control button on Bluetooth Music  Play/Pause music Double press the control button on Bluetooth Music  Playing the next Song And you can directly control volume on your smartphone/stereo. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not instal…

Text truncated - open the document above for the full version.

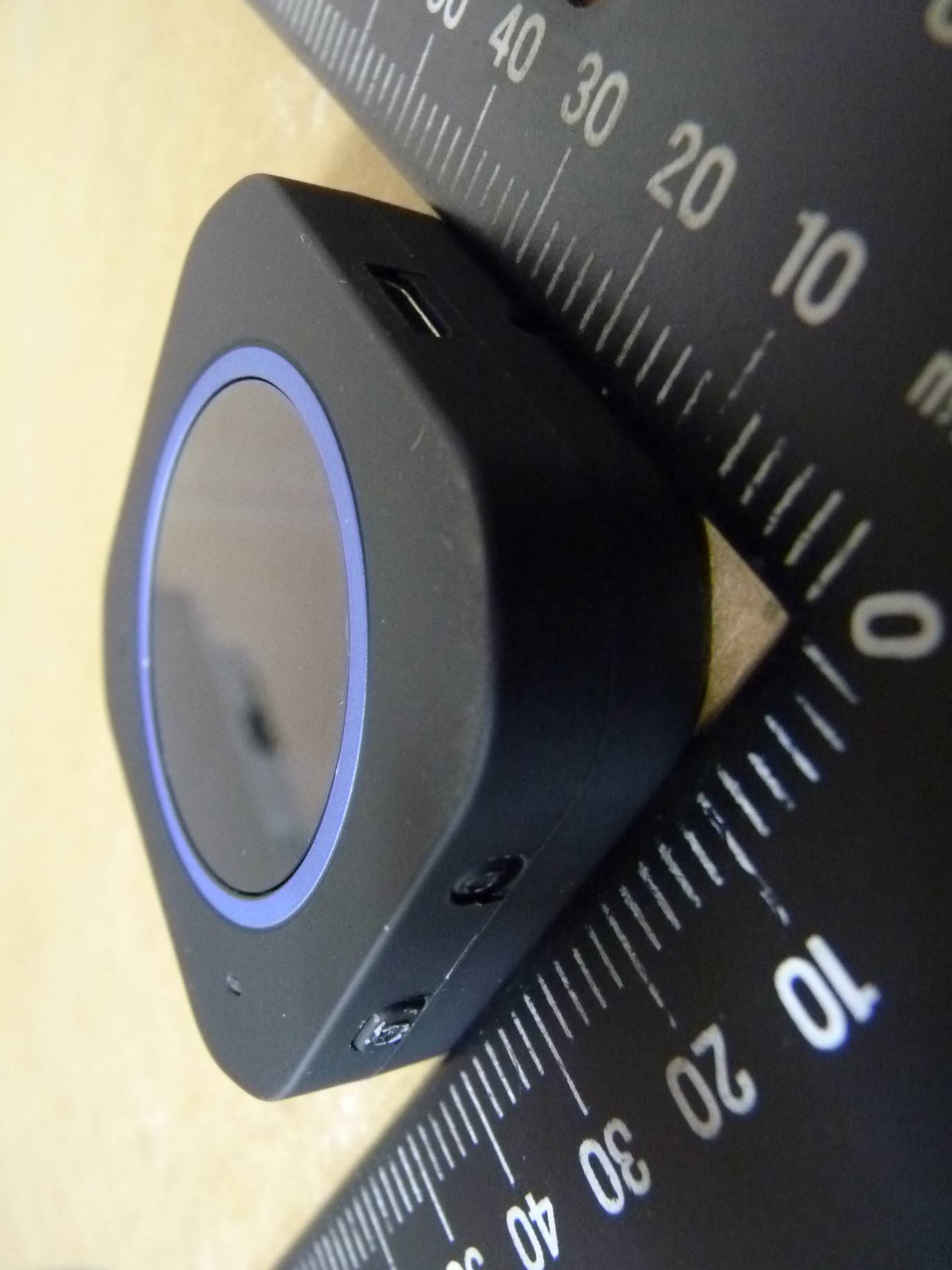

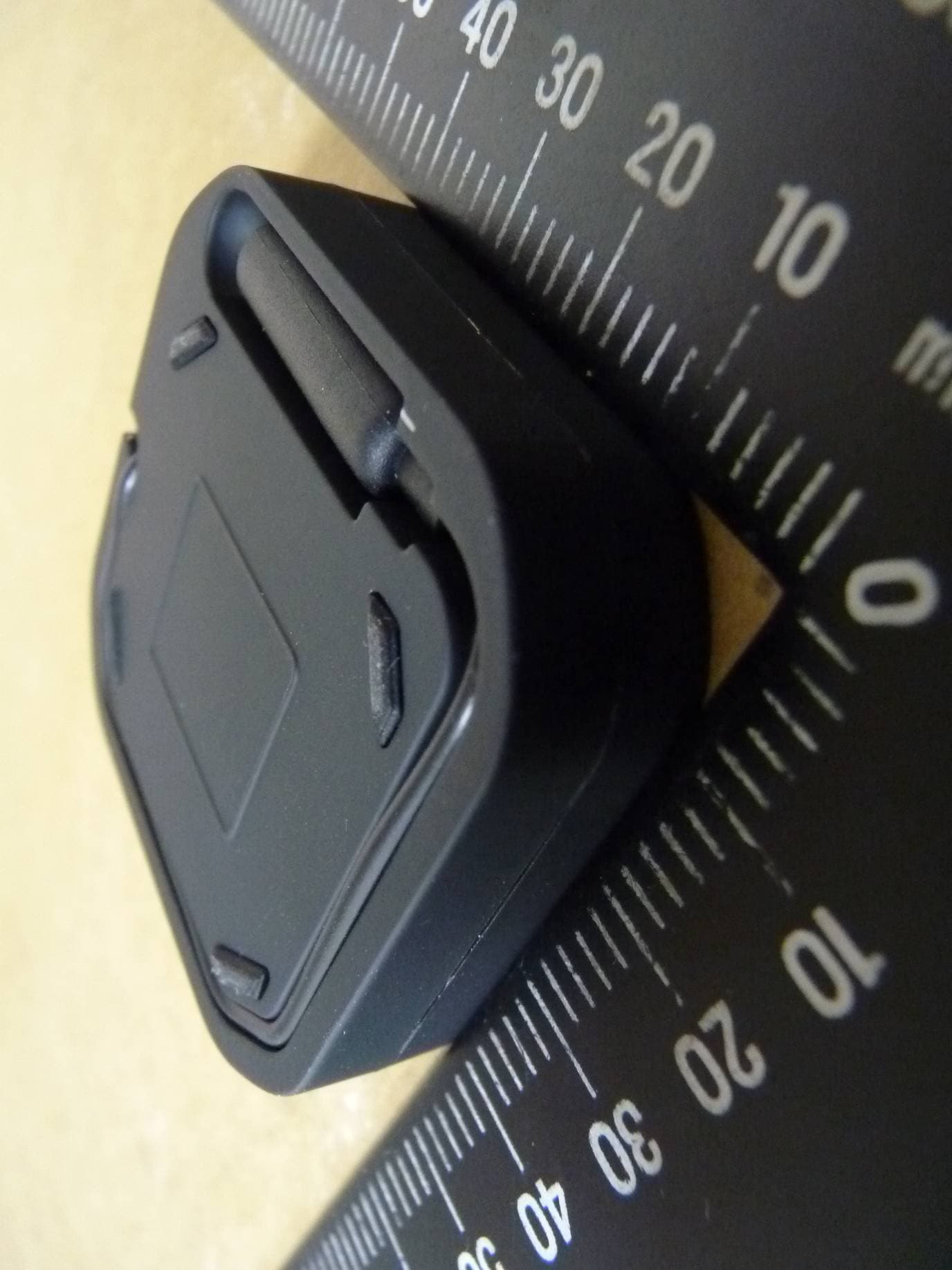

Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 12 External Photos Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 12 Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 12

Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 12 Internal Photos Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 6 of 12 Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 7 of 12 Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 8 of 12

Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -2.94 dBm + (1.13 dBi) = -1.81 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 RF Exposure Compliance Requirements Conclusion: No Evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power -2.94 dBm (0.50816 mW) EIRP Power -1.81 dBm (0.659174 mW)  The antenna is PCB antenna, antenna gain is 1.13 dBi. Threshold for no SAR evaluation is 24.58 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: Dexatek Technology Ltd. Address: 15F., NO. 81, Sec. 1, Sintai 5th Rd., Sijhih Dist., New Taipei City 221, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21307-13345-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Bluetooth Music Model No.: SA5106 FCC ID: SZY-SA5106 Registration number: W6M21307-13345-C-1 FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 45 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 2 1.1 Notes ...........................................................................2 1.2 Testing laboratory ...........................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 Details of approval holder ...........................................................................3 1.4 Application details ...........................................................................4 1.5 General information of Test item......................................................................................... 4 1.6 Test standards ...........................................................................5 2 TECHNICAL TEST .................................................................................................................... 6 2.1 Summary of test results ...........................................................................6 2.2 Test environment ...........................................................................6 2.3 Test Equipment List ...........................................................................7 2.4 General Test Procedure ...........................................................................9 3 TEST RESULTS (ENCLOSURE) ............................................................................................ 11 3.1 Peak Output Power (transmitter) ....................................................................................... 12 3.2 RF Exposure Compliance Requirements ........................................................................... 16 3.3 Out of Band Radiated Emissions ....................................................................................... 16 3.4 Transmitter Radiated Emissions in restricted Bands ......................................................... 17 3.5 Spurious emissions (tx) ...... ..................................................................18 3.6 Carrier Frequency Separation .....................................................................21 3.7 Number of Hopping Frequencies....................................................................................... 24 3.7.1 Pseudorandom Frequency Hopping Sequence .................................................................26 3.7.2 Coordination of hopping sequences to other transmitters................................................26 3.7.3 System Receiver Hopping Capability ...............................................................................26 3.8 Time of Occupancy (Dwell Time) ..................................................................................... 27 3.9 20dB Bandwidth ...........................................................................33 3.9.1 System Receiver Input Bandwidth.....................................................................................36 3.10 Band-edge Compliance of RF Emissions .......................................................................... 37 3.11 Radiated Emissions from Digital Part................................................................................ 42 3.12 Power Line Conducted Emission....................................................................................... 43 Appendix Registration number: W6M21307-13345-C-1 FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 45 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: July 26, 2013 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 26, 2013 Kevin Wang Date WTS Name Signature Registration number: W6M21307-13345-C-1 FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 45 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.…

Text truncated - open the document above for the full version.

Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 9 of 12 Set Up Photo of Radiated Emission EMI mode Below 1GHz Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 10 of 12 Above 1GHz Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 11 of 12 RF mode Registration number: W6M21307-13345-FCC FCC ID: SZY-SA5106 Worldwide Testing Services(Taiwan) Co., Ltd. Page 12 of 12 Set Up Photo of Conducted Emission
